| Image Sensor |
1/2.5'' progressive scan CMOS |
| Lens |
2.8-12mm |
| Max. Resolution |
2688×1520 |
| Shutter time: |
1/3s to 1/100 000s |
| view angle |
H114°-32° V59°-18° D141°-36.5° |
| Min. Illumination: |
0.008 Lux @(F1.2, AGC ON), 0.011Lux @(F1.4, AGC) |
| Video Compresion |
H.265/H.264, H.265/H.264/MJPEG |
| operating mode |
| Main stream: |
50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) 60Hz: 30 fps
(2688 × 1520, 2304 × 1296, 1920 × 1080) |
| Sub Stream: |
50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 ×
480, 640 × 360, 320 × 240) |
| Third Stream: |
50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1280 ×
720, 640 × 360, 352 × 240) |
| Video bit rate: |
32 Kbps - 16 Mbps |
| Range IR |
30m |
| Interface |
Communication Interface - 1 RJ45 10M/100M self adaptive Ethernet
port |
| On-board Storage |
Built In microSD/SDHC/SDXC slot, up to 128 GB |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Functions: |
Day/Nght, WDR 120dB, 3D DNR, BLC, HLC, ROI, One key reset, anti
flicker, three streams, heartbeat, mirror, password protection, privacy
mask, watermark, IP address filter |
| Moution detection |
yes |
| Tampering alarm |
yes |
| Power suply |
12 V DC 11W |
| Power suply PoE |
PoE(802.3af, class 3) 12.5W |
| Operating Conditions |
-30..60 °C |

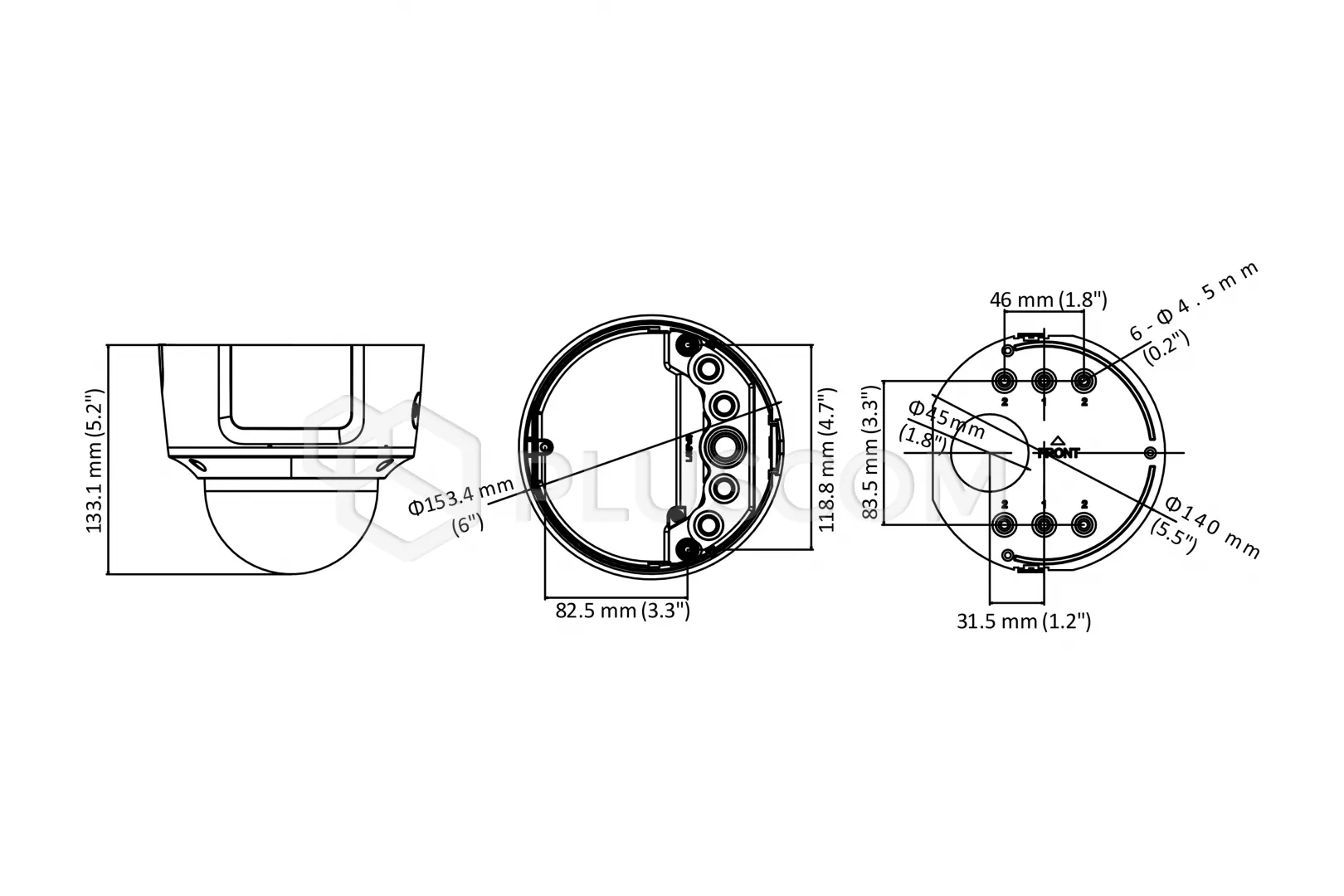

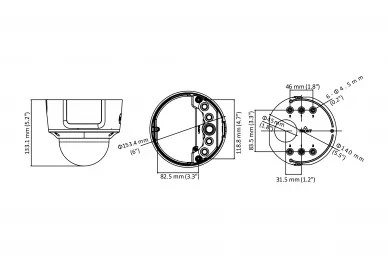

| Dimensions |
Φ 153.4×133.1mm |
| Weight |
1287g |
