Switch PoE Pulsar SG64H with power supply for 4 IP cameras in enclosure

173,75 EUR including 23.00% VAT
Product code: #19569
Manufacturer: Pulsar
  • The number of PoE ports: 4 + 2 UPLINK
  • PoE IEEE 802.3af 52V DC, 30W per port
  • 30W – max. total power for all PoE ports
  • LED indication
  • Hermetic enclosure
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
S64H 6-port switch with power supply in hermetic enclosure

SG64H 6-port switch with power supply for 4 IP cameras in hermetic enclosure

Switch PoE Pulsar SG64H with power supply for 4 IP cameras in enclosure

Switch PoE Pulsar SG64H with power supply for 4 IP cameras in enclosure

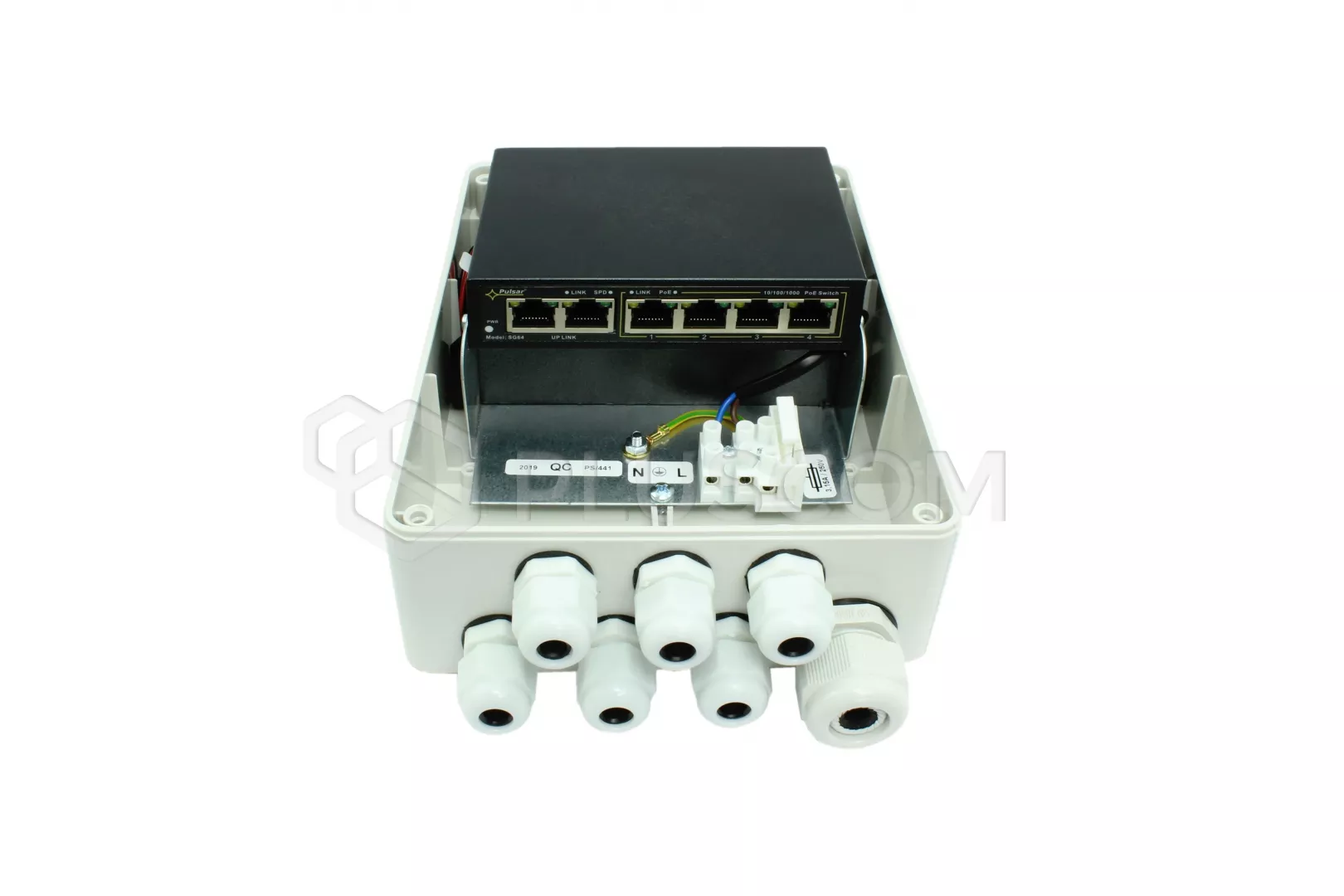

SG64H is a 6-ports PoE switch designed to supply 4 IP cameras operating in IEEE 802.3af/at standard. Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 4 ports of the switch. The UpLink ports is used for connection of another network device via RJ45 connector. The LEDs at the front panel indicate the operation status.
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access point or router.

Switch PoE Pulsar SG64H with power supply for 4 IP cameras in enclosure

Switch PoE Pulsar SG64H with power supply for 4 IP cameras in enclosure

Switch PoE Pulsar SG64H with power supply for 4 IP cameras in enclosure

Switch PoE Pulsar SG64H with power supply for 4 IP cameras in enclosure

FEATURES:

  • 6port 10/100Mbit
  • 4 x PoE (10/100Mb/s)
  • 2 x UPLINK (10/100/1000Mb/s)
  • power supply: 100-240VAC
  • PoE IEEE 802.3af//at, DC 52V, 30W per port
  • LED indication the operation status
  • enclosure: IP56, light grey
  • the number of cable glands: 6 szt./4÷8mm i 1 szt./10÷14mm
  • protections:
    • SCP short circuit protection
    • OLP overload protection
    • surge protection (AC input)
  • Dimensions: 146x196x78mm(+/- 2mm)
  • weight: 1.4kg
  • operating temperature: -10°C...+40°C
Download
Datasheet 1.51 MB
Declaration CE 0.32 MB
Instruction 0.96 MB
