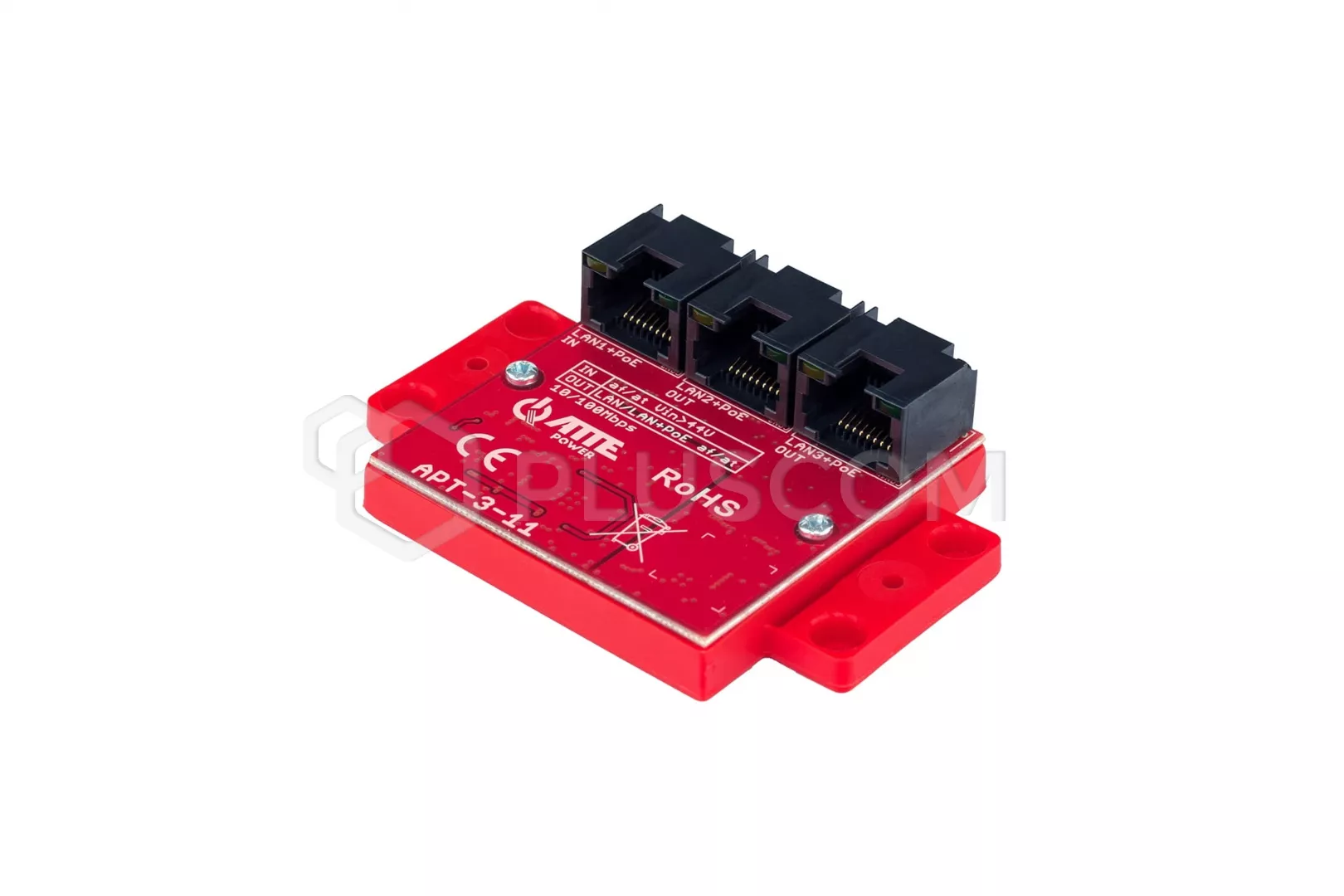

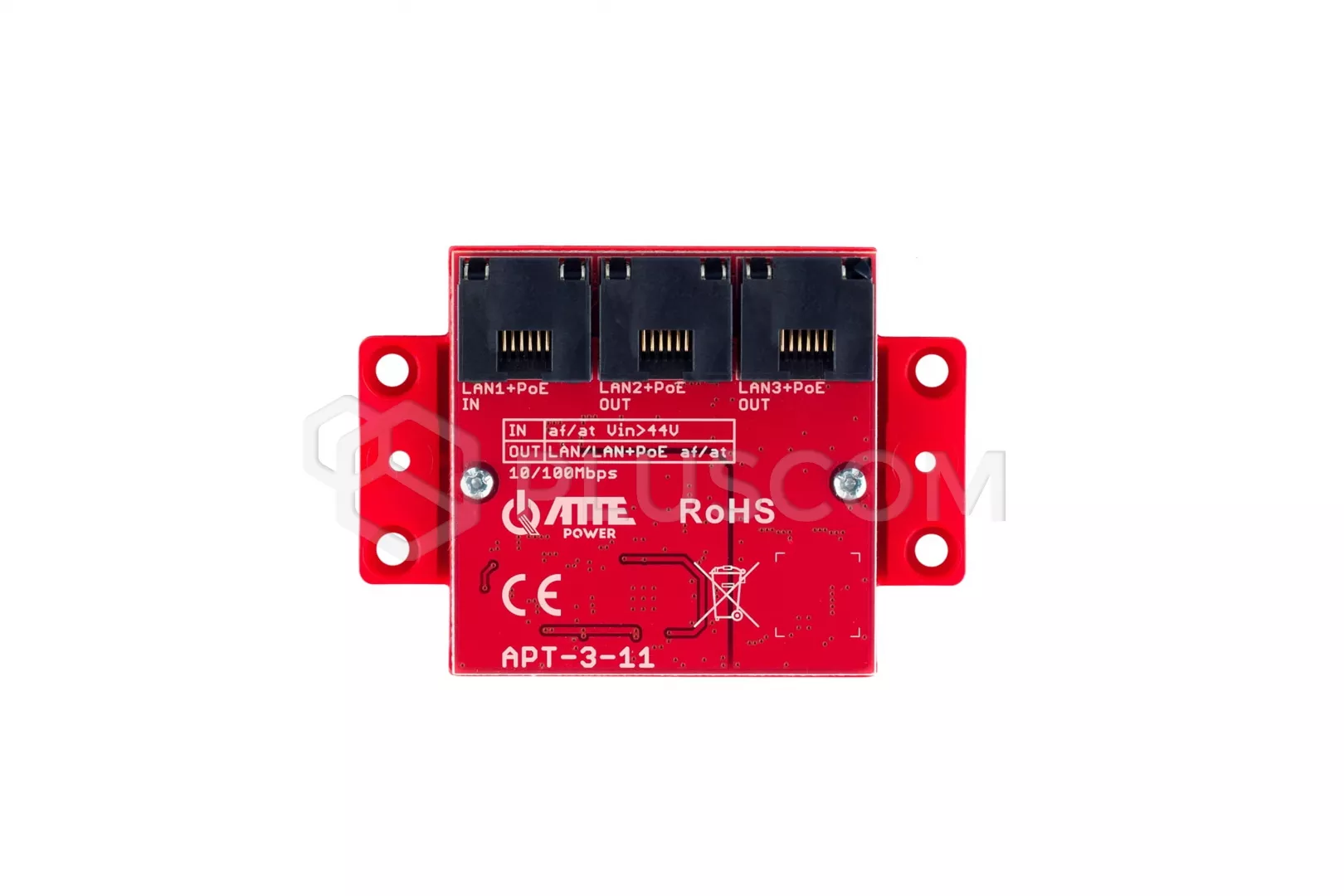

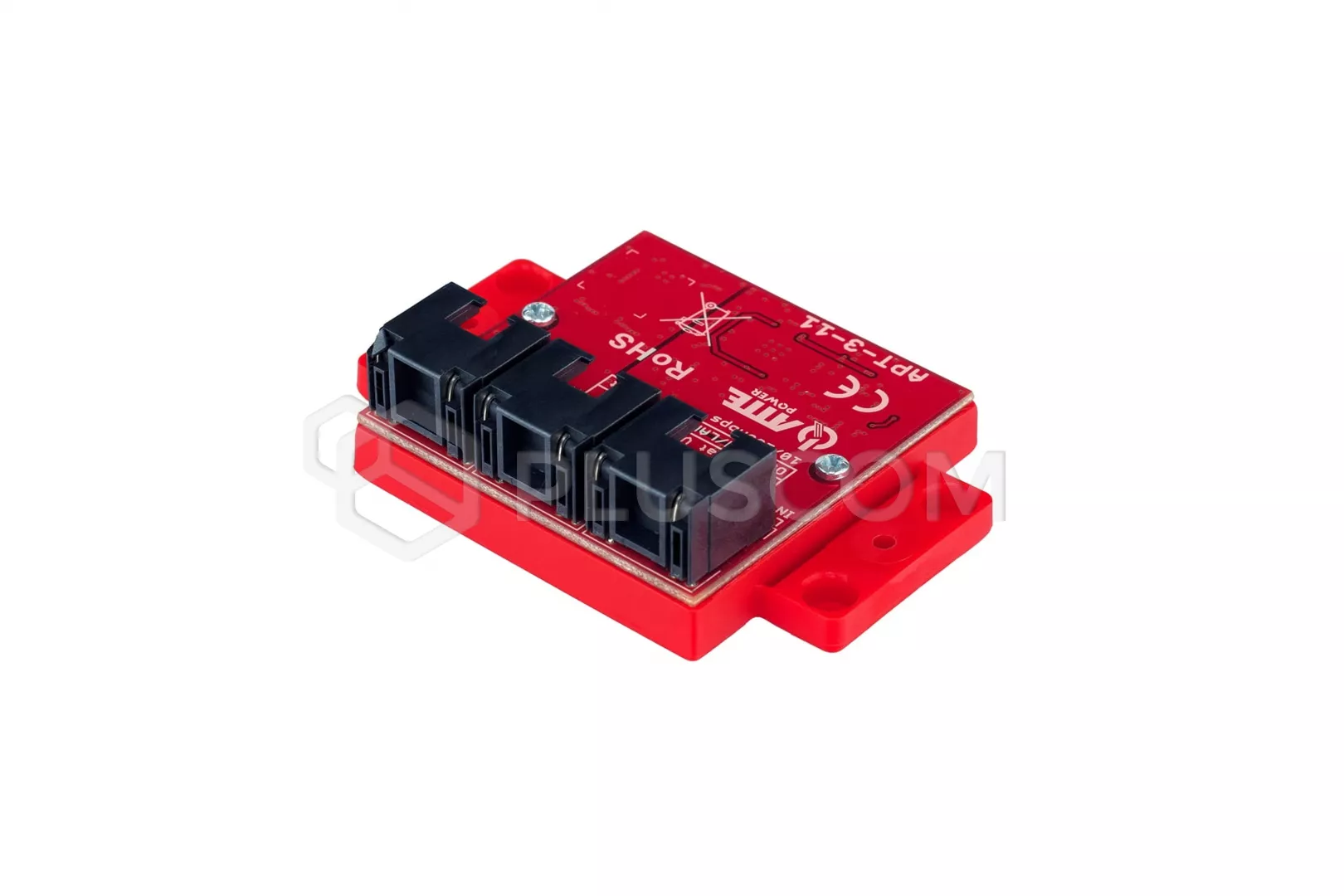

ATTE APT-3-11 3-port PoE Switch

61,97 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #36437
Manufacturer: Atte
  • Number of PoE ports: 3
  • Input voltage: 44-58V DC
  • Very low power consumption (<0.3W)
  • Compatibility with IEEE 802.3 at/af and PoE PASSIVE standards
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

ATTE APT-3-11 Switch PoE 3-port 10/100Mbps, extender

APT-3-11 is an unmanaged PoE network switch working as an extender (repeater) of the LAN network and PoE power supply. Most often used as an "active splitter" in situations when we need to run several devices on one UTP cable network connections (e.g. several IP cameras) or when an additional network branch is necessary.

It is designed to work with any network devices, IP cameras and other standard powered devices PoE 802.3at/af and PoE PASSIVE. APT (Atte Power Tree) series devices ensure compatibility with standards IEEE 802.3.at/af both as PoE power receivers and on all output ports. Once connected device to port 2 or 3, the receiver is identified and if it is a PoE-powered device, it will be turned on power in the port.

The device has a very small size, which allows for easy installation in small spaces.

TECHNICAL DATA:

  • Total number of ports: 1 PoE IN port, 2 PoE OUT ports
  • PoE IN port: LAN 1 PoE 802.3af/at, PoE Passive
  • PoE OUT ports: LAN 2 ... LAN 3 PoE 802.3af/at
  • LAN ports 10/100Mbps: LAN 1 ... LAN 3
  • LAN ports + PoE OUT 10/100Mbps: LAN 2 ... LAN 3
  • Input voltage: 44 ... 58 V
  • PoE output voltage: Vout = Vin
  • Power consumption: 0.3 W
  • Output power control: Autonegotiation
  • Surge protection: LAN 1 ... LAN 3
  • Overload protection: LAN 2 ... LAN 3 Overcurrent protection 0.7 A
  • Power indication: LAN 1 (yellow) - device power supply
  • PoE signaling: LAN 2 ... LAN 3 (yellow) - presence of PoE power
  • Transmission signaling: LAN 1 ... LAN 3 (green) - link and data transmission
  • Housing design: Universal mounting base
  • Protection rating: IP20
  • Operating temperature range: -25°C...+65°C

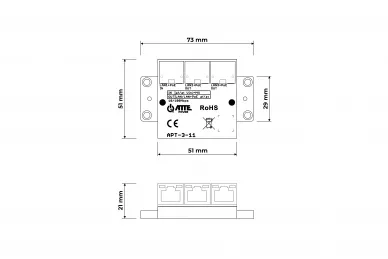

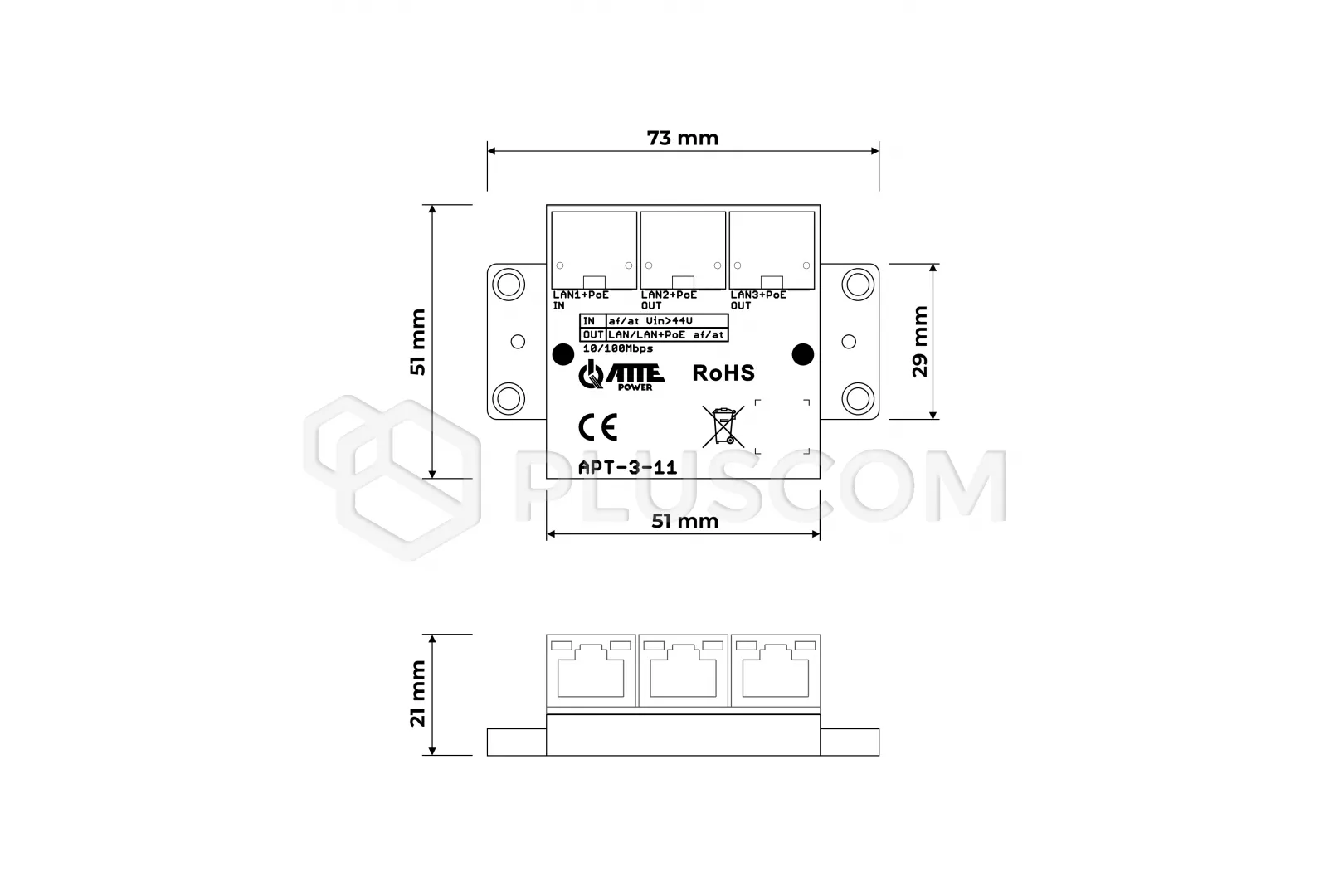

  • Dimensions: 51(73) x 51 x 21 mm
  • Weight: 0.026 kg
Download
User manual 0.16 MB
CE Declaration 0.16 MB
