ATTE ASW-3-10 LAN Switch 3 ports

33,42 EUR including 20.00% VAT
Product code: #36440
Manufacturer: Atte
  • Number of LAN ports: 3
  • Power supply via screw connection
  • Input voltage: 10-58V DC
  • Very low power consumption (<0.5W)
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

ASW-3-10 Switch Lan 3 ports 10/100Mbps

ASW-3-10 is an unmanaged network switch working as a LAN extender (repeater). It allows you to extend the LAN network at distances longer than 100m by another segment.
TheASW-3-10 can ONLY be powered via a screw connection

The device has a very small size, which allows for easy installation in small spaces.
This allows the device to be installed in any housing, but the most convenient method of installation is dedicated ABOX series housings and mounting plates equipped with system holes. in a 10.8 mm pitch. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the housing or mounting plate. When using additional adapter, the device can be installed on the TH-35 rail.

The most important features and functions:

  • miniature design allows installation in hard-to-reach places
  • amplifies and splits the network signal (fully functional 100Mbps switch)
  • easy and quick startup without the need to configure parameters
  • wide range of operating temperatures
  • very low power consumption (< 0.5 W)
  • large input voltage range

TECHNICAL DATA:

  • Total number of ports: 3 RJ45 ports, 1 Screw connector
  • LAN ports 10/100Mbps: LAN 1 ... LAN 3
  • Input voltage: DC IN - 10 ... 56 VDC
  • Power consumption: 0.3 W
  • Surge protection: LAN 1 ... LAN 3
  • Power indication: LED PWR – device power supply
  • Transmission signaling: LAN 1 ... LAN 3 (green) - link and data transmission
  • Protection rating: IP20
  • Operating temperature range: -25°C ... +65°C

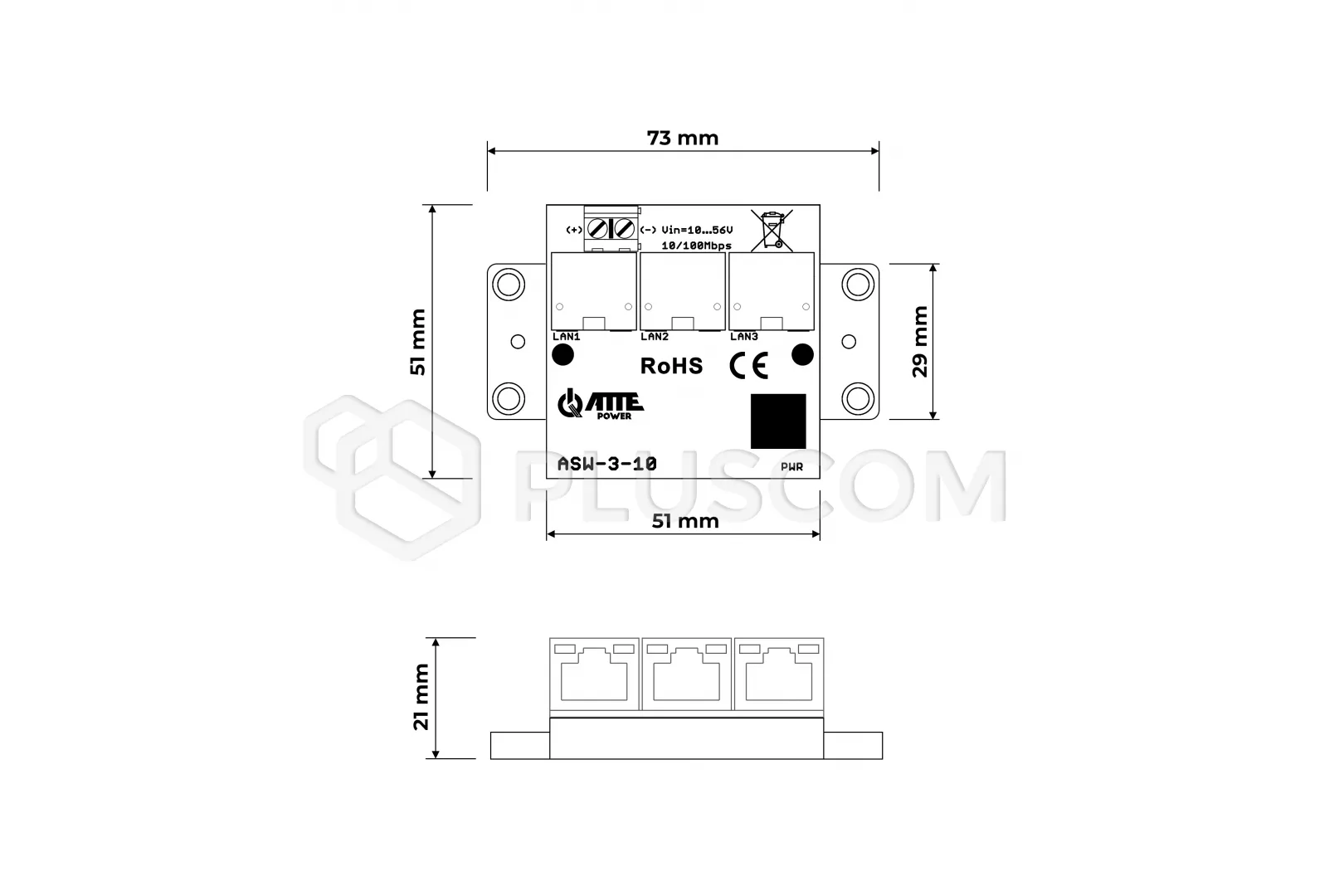

  • Dimensions: 51 x 51(73) x 21 mm
  • Weight: 0.02 kg
