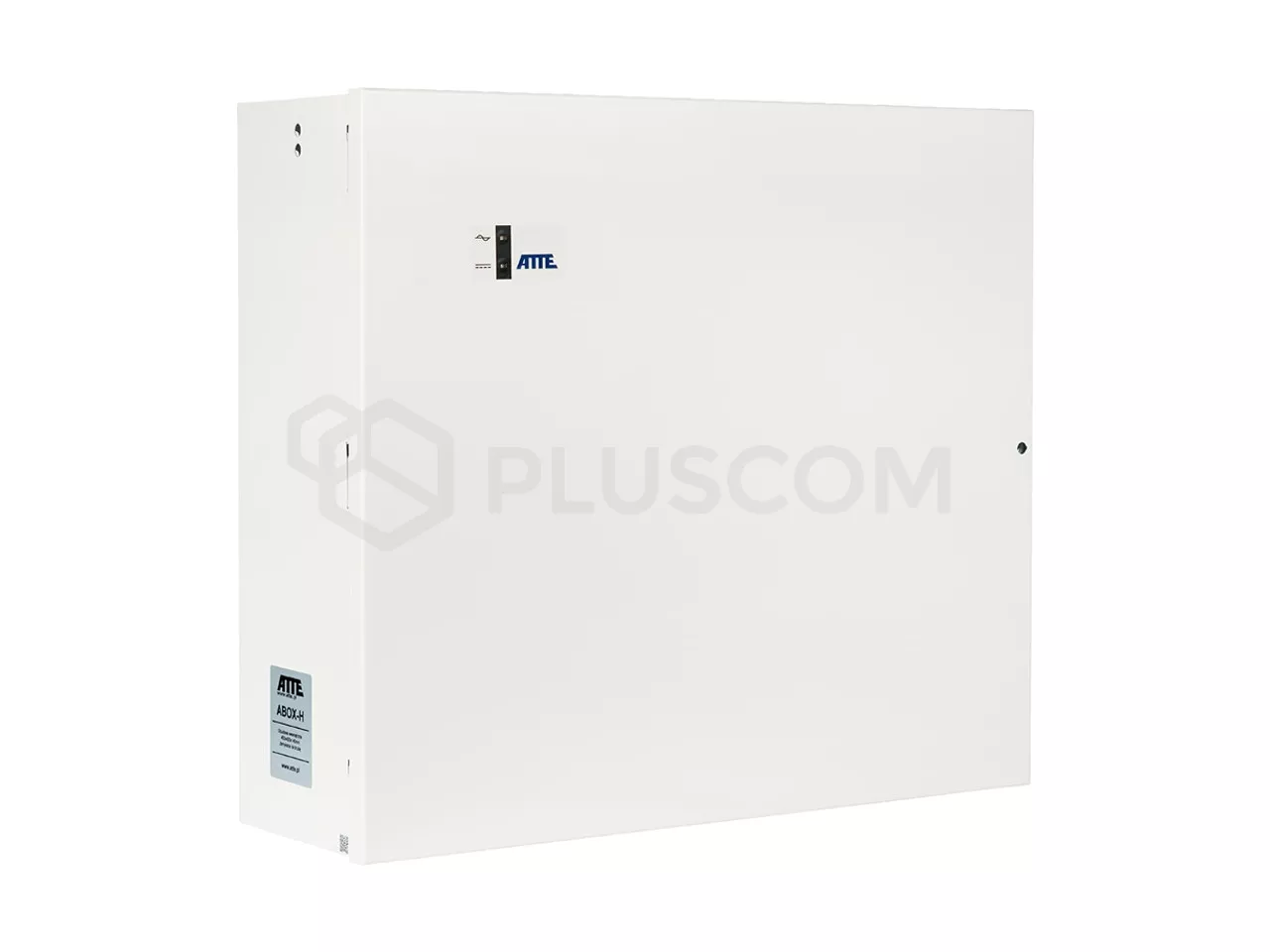

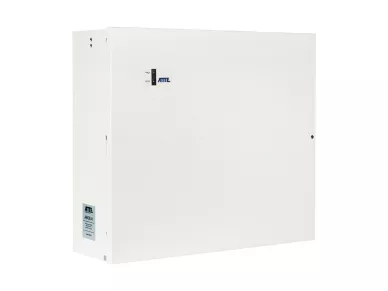

Switch PoE ATTE IPUPS-17-11-F for 17 cameras IP buffer with power supply in the inner casing

572,61 EUR including 23.00% VAT
Product code: #13779
Manufacturer: Atte
  • Unmanaged switch PoE
  • Number of ports: 17x PoE + 1x Uplink
  • Long Range mode
  • Input voltage: 180~240V AC
  • Inner housing: ABOX-H (2x AKU 18Ah)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Switch PoE IPUPS-17-11-F for 17 IP cameras

FUNCTIONS:
  • Buffer capacity for 17 PoE 802.3at/af or PASSIVE receivers
  • Data transfer capability of 280m (in Long Range mode)
  • Electronic fuse independently for each PoE (auto return)
  • Optional power off on selected PoE ports
  • Clear optical signaling of power and data transmission
  • up to 70W power at LAN_5 PoE IN/OUT port
  • Up to 40W of power on other PoE ports
  • Easy and fast start-up without configuration parameters
  • High efficiency of power supply module (90%)
  • Two supply voltage values ​​are available: 12VDC and 48VDC

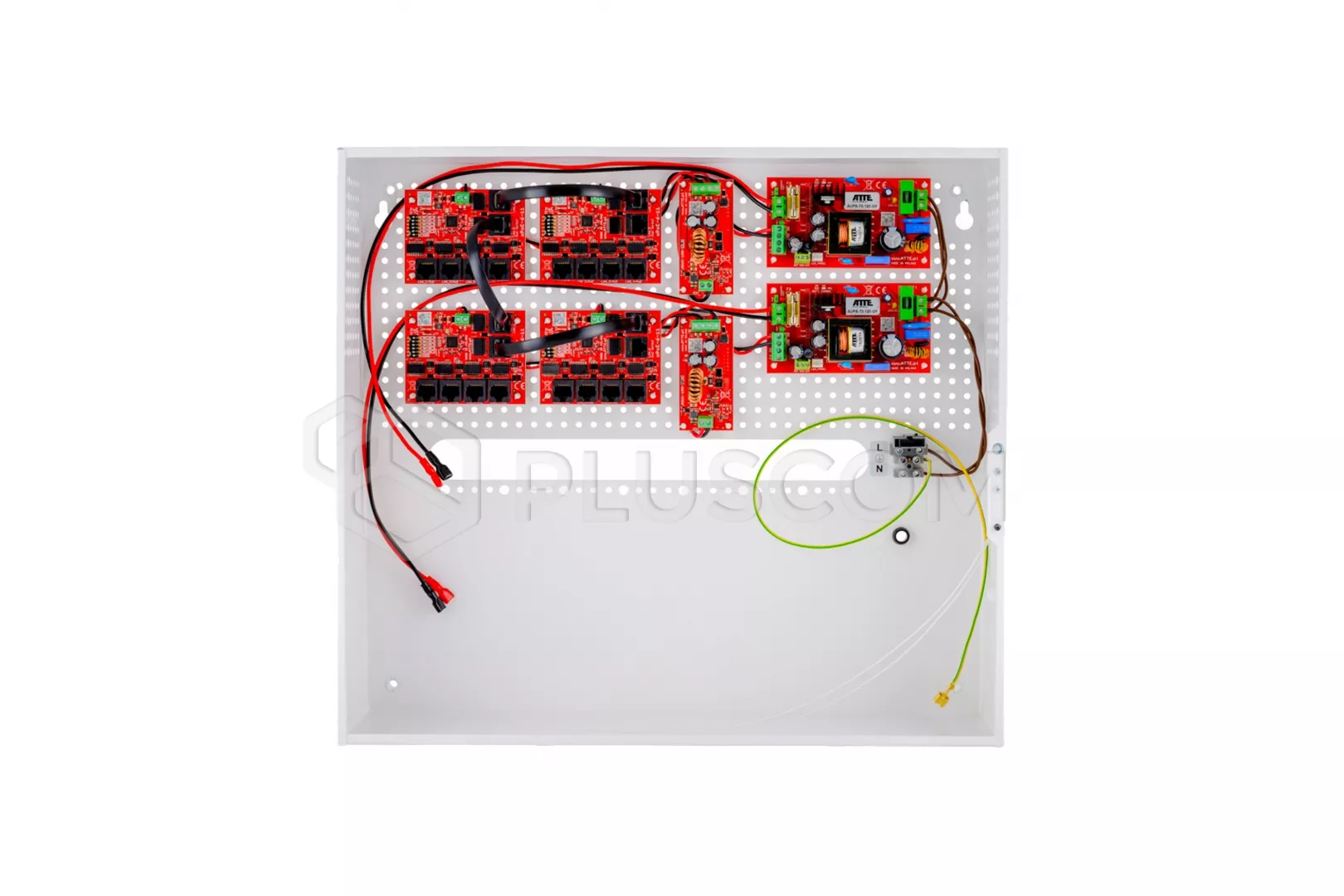

  • Easy and fast installation service thanks to modular design
  • Easily expand and scale your system by adding additional xPoE/IP and IPB/IPUPS switches
  • assembly of modules in any open housing (raster system)
  • space for 2 batteries 18Ah
  • place for video recorder (NVR)
  • Cable entries on the back of the case
  • Distance to wall/mounting surface
  • Possibility of keeping cables inside the casing
  • Internal housing ABOX-H
Download
Datasheet 0.36 MB
Instruction 0.15 MB
