Switch PoE ATTE IPB-5-10A-S4 for 5 cameras IP not buffer with power supply in the outer casing

Switch IPB-5-10A-S4 for 5 IP cameras

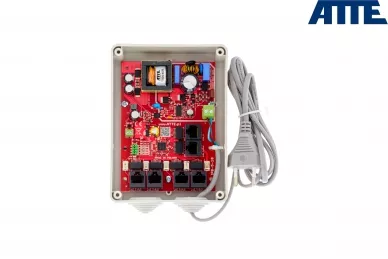

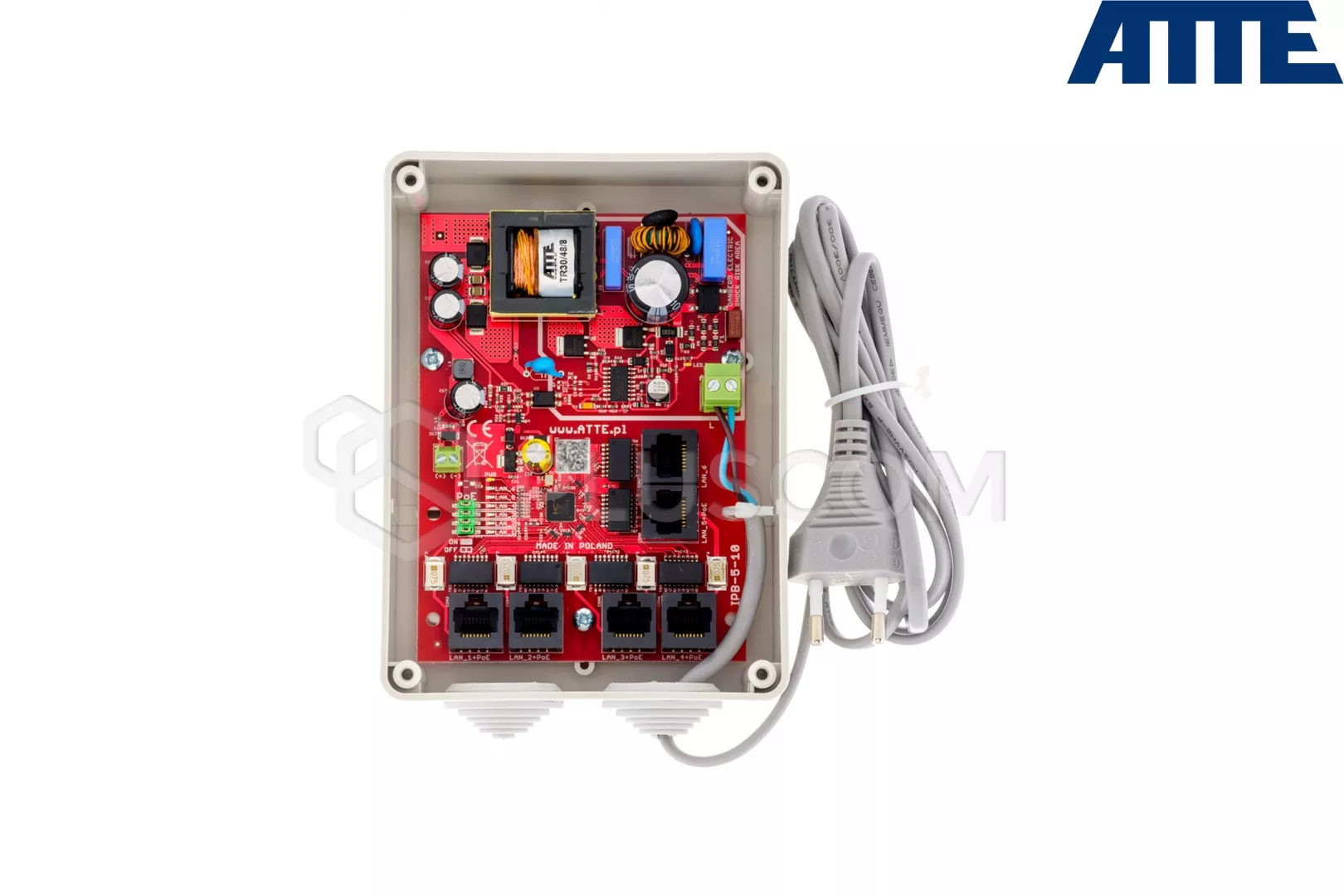

The IPB-5-10A-S4 switch is it unmanaged IP series network switch located in the internal casing ABOX-S4 with 90W power supply, designed to work with IP cameras and others devices working in the PoE standard.

PoE power is sent over all four pairs of UTP cable. Such a solution has a positive effect on reduction of voltage drops.
Increased supply voltage (55VDC) allows you to maintain the correct voltage value at the end of longer lines, for PoE receivers with higher power.

FUNCTIONS:

• small size
• Possibility to power 5 PoE 802.3at / af or PASSIVE receivers
• data transmission possible at 100m (range)
• polymer fuse independently for each PoE channel
• ability to turn off the power on selected PoE ports
• clear optical signaling of power and data transmission status
• up to 40W of power on PoE ports
• easy and quick commissioning without the need for configuration parameters
• high efficiency of the integrated power supply (> 90%)
• additional screw connection makes it easier to "pick up" 55VDC power supply to other devices
• easy expansion and scaling of the system by adding additional ones xPoE / IP and IPB / IPUPS
• switches
• possibility to keep spare cables inside the case
• cable entry through mounted in the housing rubber plugs: 2x29mm
• possibility of introducing cables with terminated plugs (after cutting covers)

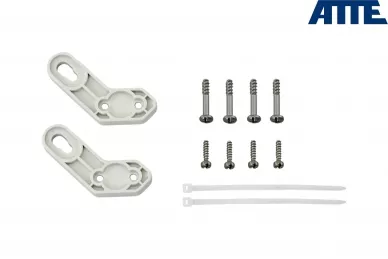

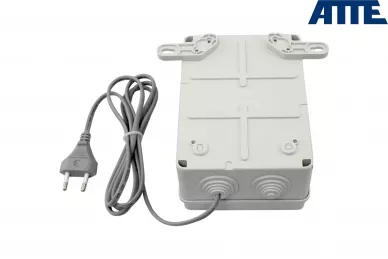

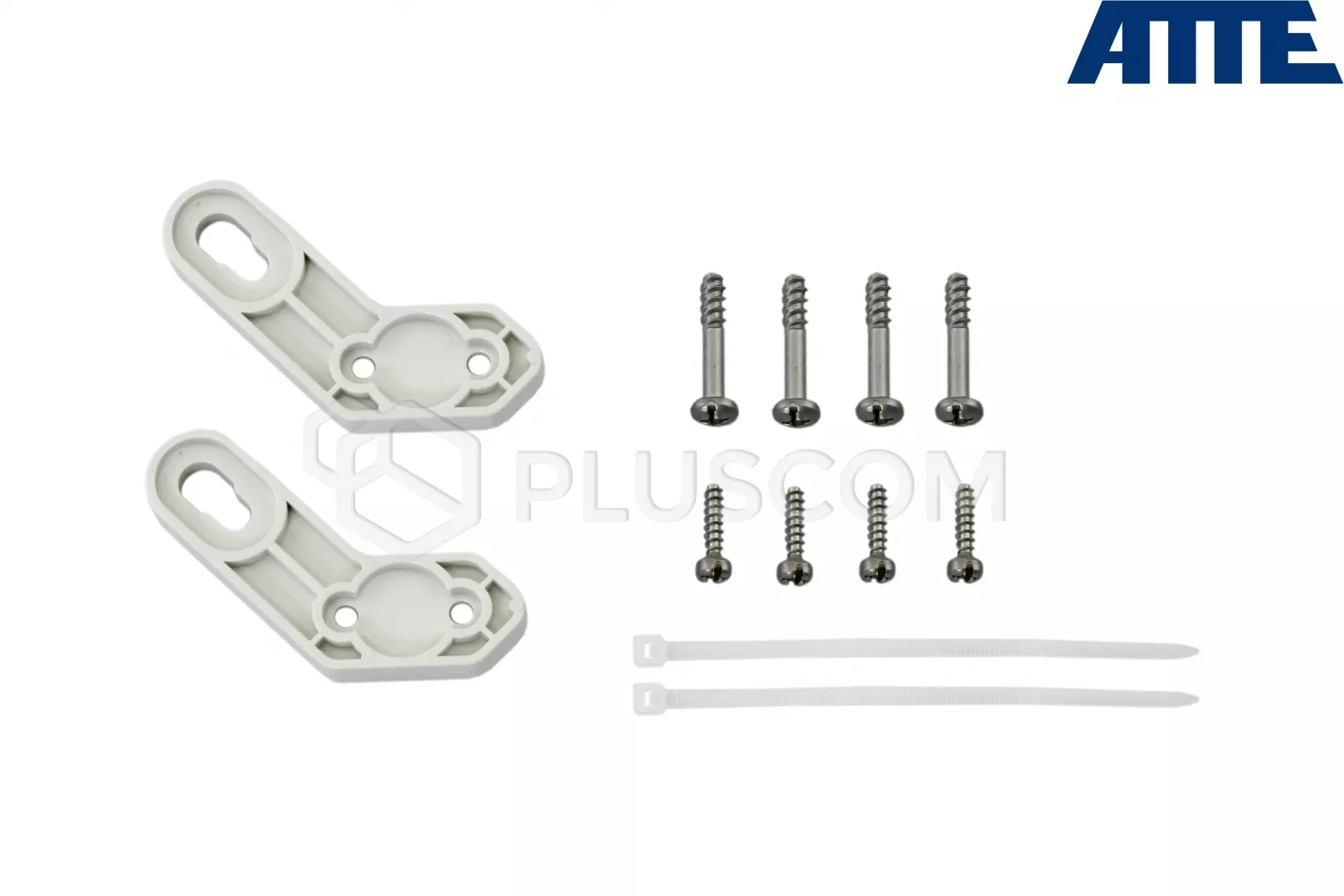

• supplied with a power cable and 2 brackets for mounting the housing without compromising the protection class IP55

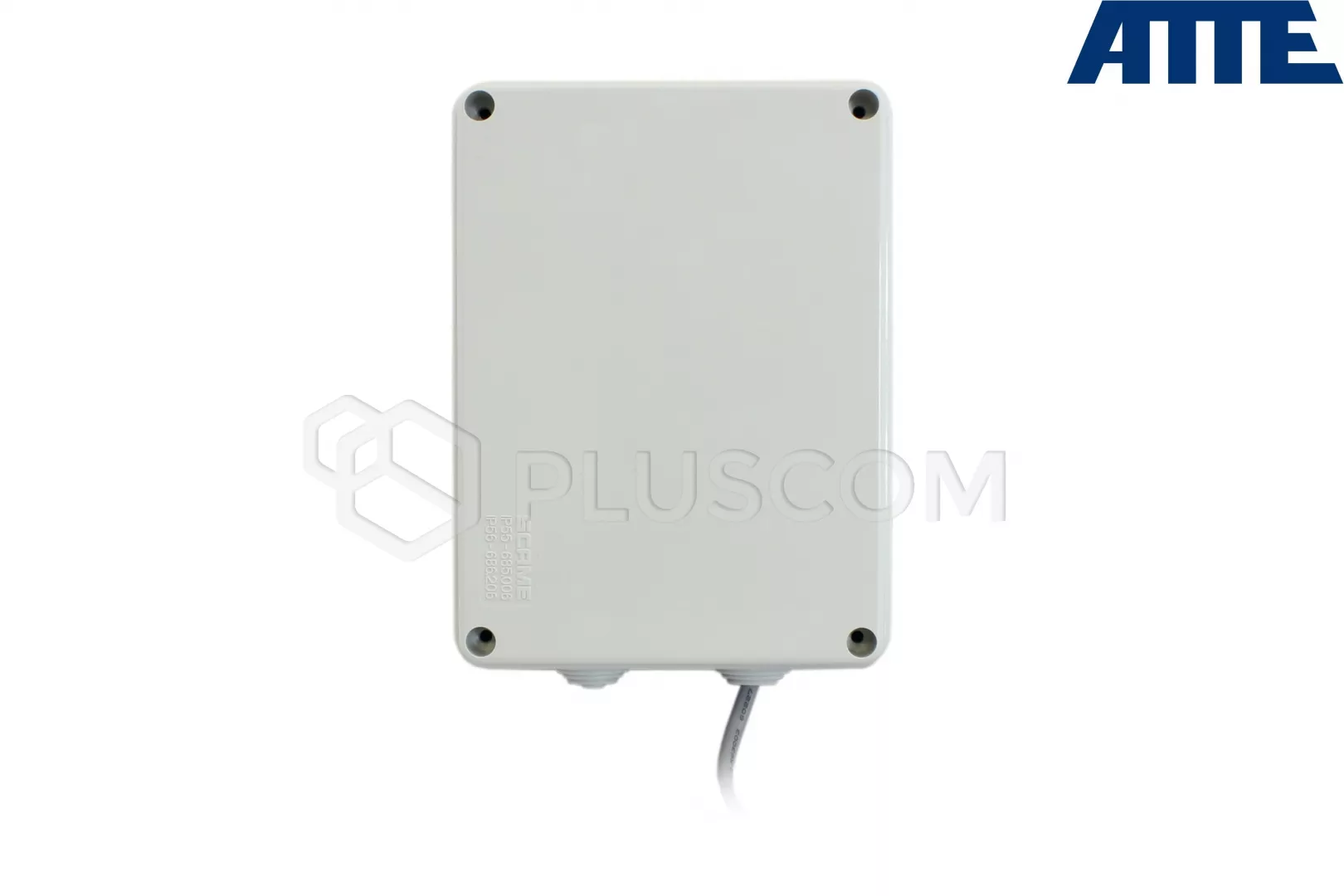

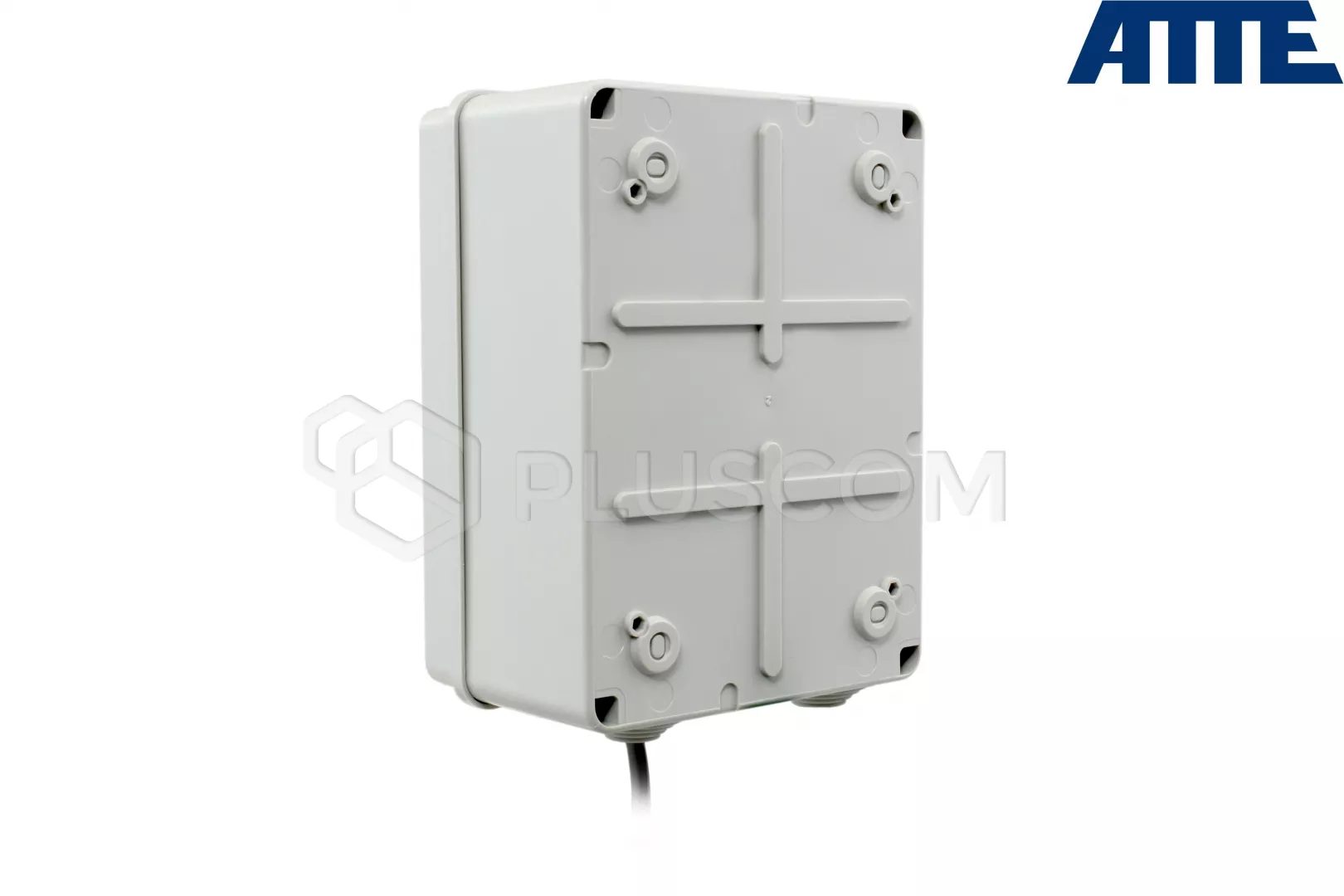

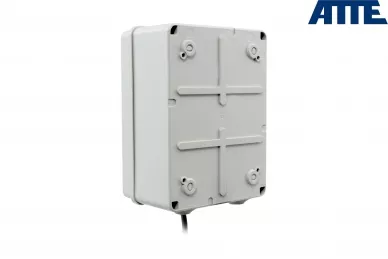

• external housing ABOX-S4


TECHNICAL DATA

• LAN ports: 6 x 10 / 100Mbps RJ45 ports (auto MDI-MDIX, auto-negotiation) 5 x PoE, 1 x UPLINK
• Output voltage: 55V
• Efficiency: 93%
• PSU power: 90 W - continuous
• Input voltage: 190 ... 260 VAC
• Mounting: wall mounted, mounting brackets
• Degree of protection: IP55
• Working temperature: -25 ... + 50 ° C
• Dimensions: 110 x 160 x 70 mm
• Weight: 0.43 kg
