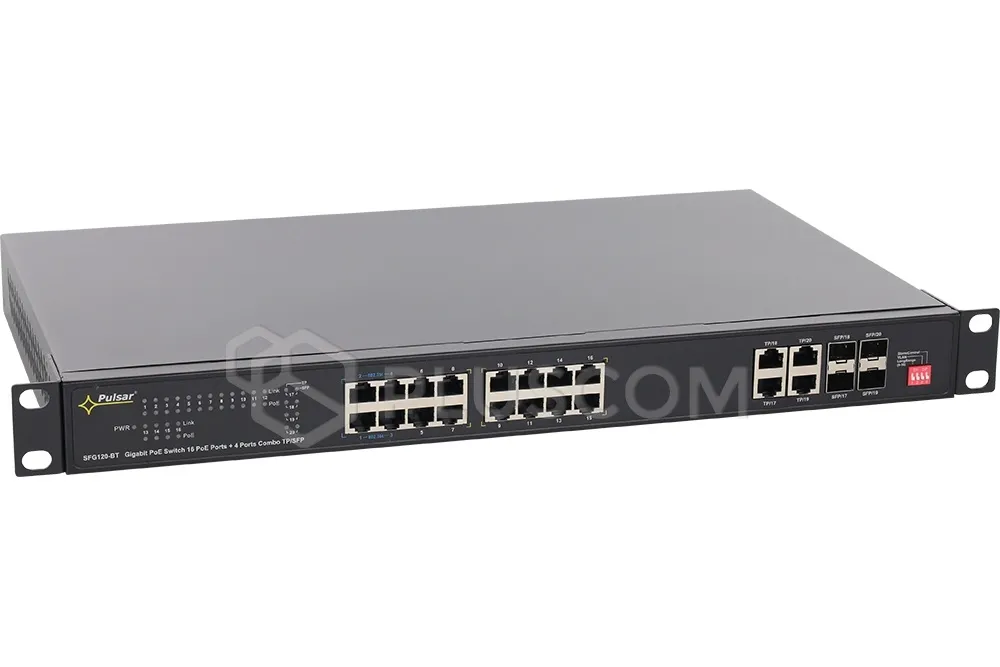

Pulsar SFG120WP-BT SFG120WP-BT 20-port PoE switch without power supply for 16 IP cameras

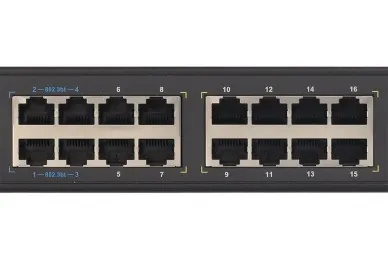

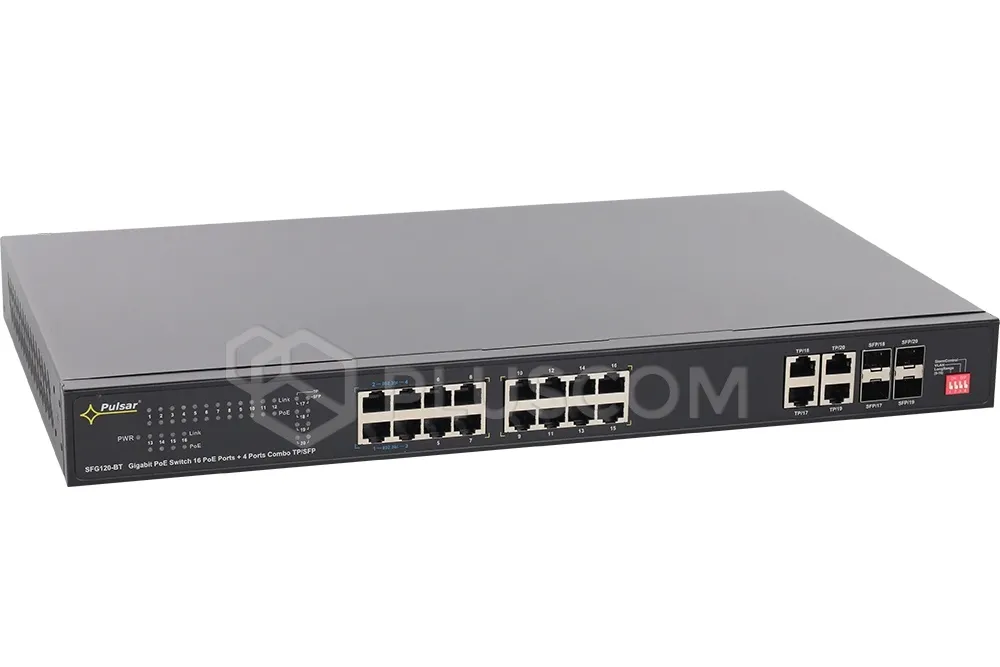

SFG120WP-BT is a 20-port PoE switch designed to supply IP cameras operating in the IEEE 802.3af/at/bt standard. Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 16 ports of the switch, and HiPoE for ports 1 – 4. The ports marked TP/17-20 are used to connect additional network devices via an RJ45 connector. Switch also has four SFP sockets (marked SFP/17-20), which after using SFP modules (GBICs) enable fiber optic transmission.

TECHNICAL DATA:

  • Switch type: standard

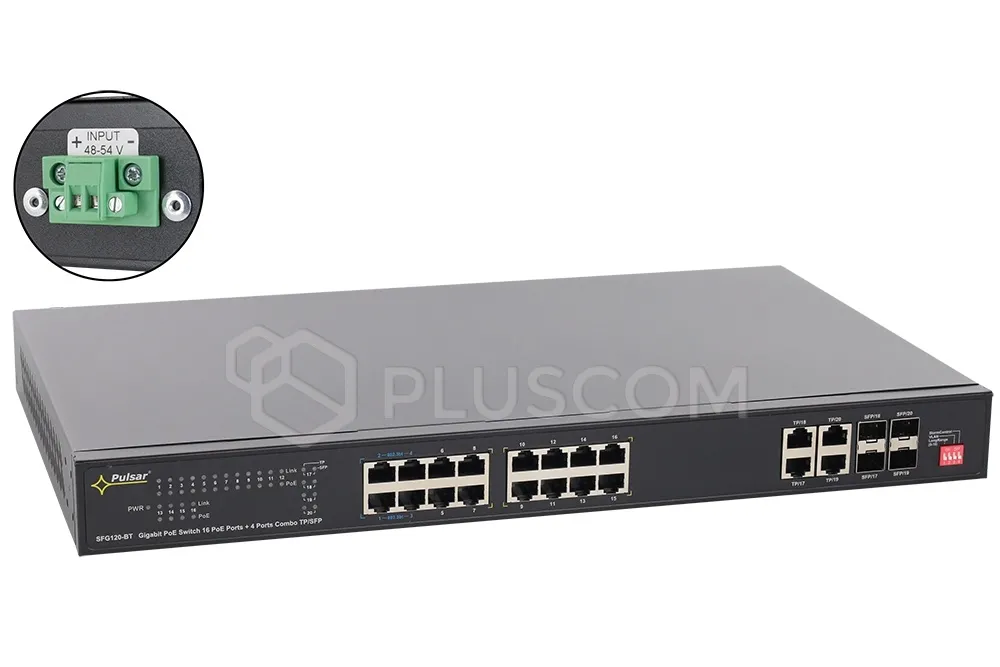

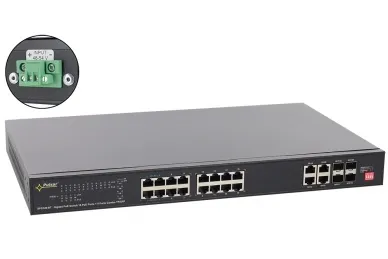

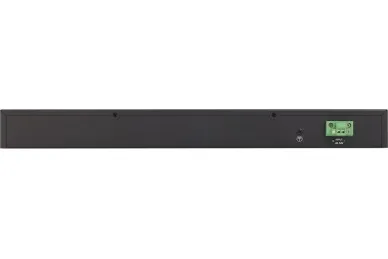

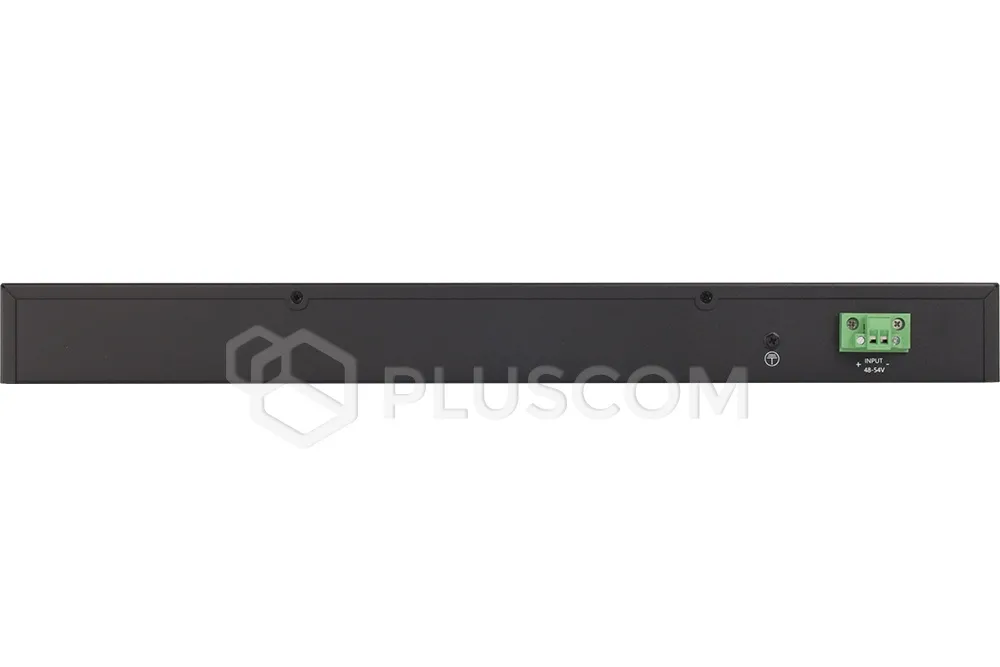

  • Power supply: 48 - 54 V DC, detachable power socket; power supply unit is not included
  • Ports: 20

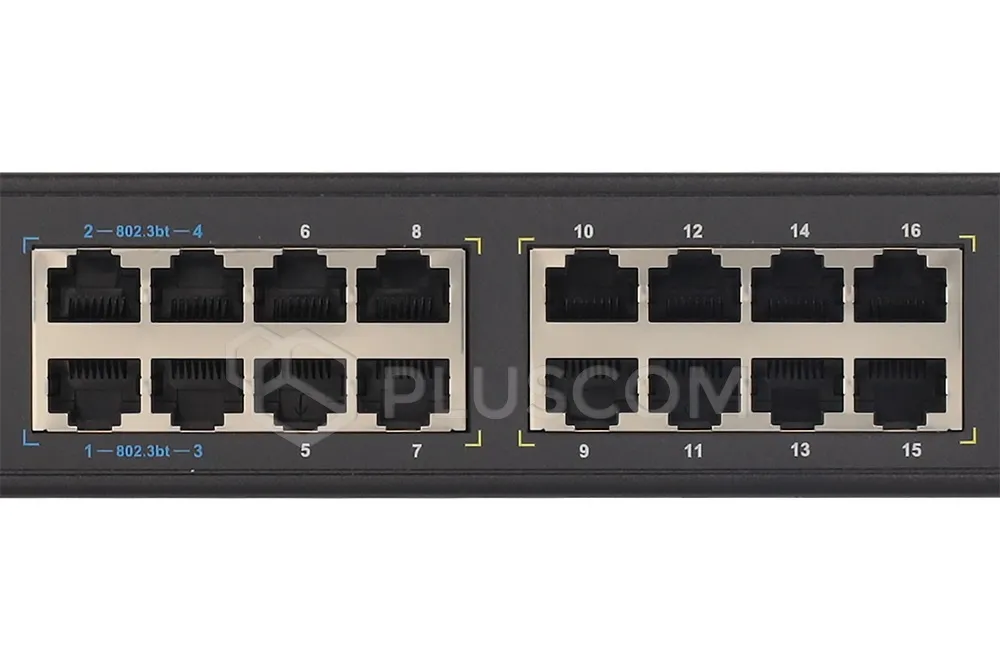

  • PoE ports: 16 x 1 Gb/s - IEEE 802.3af/at, IEEE 802.3af/at/bt, PoE+, PoE++; 52V DC, 30W/port, 60W/port, 240W/all ports; Tryb Long Range: OFF – 100m/1Gb/s or ON – 250m/10Mb/s (9÷16 ports); VLAN; Storm control

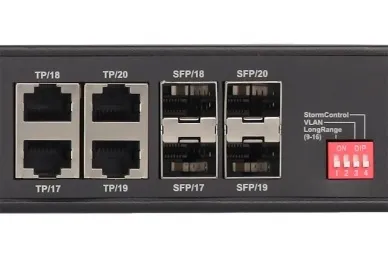

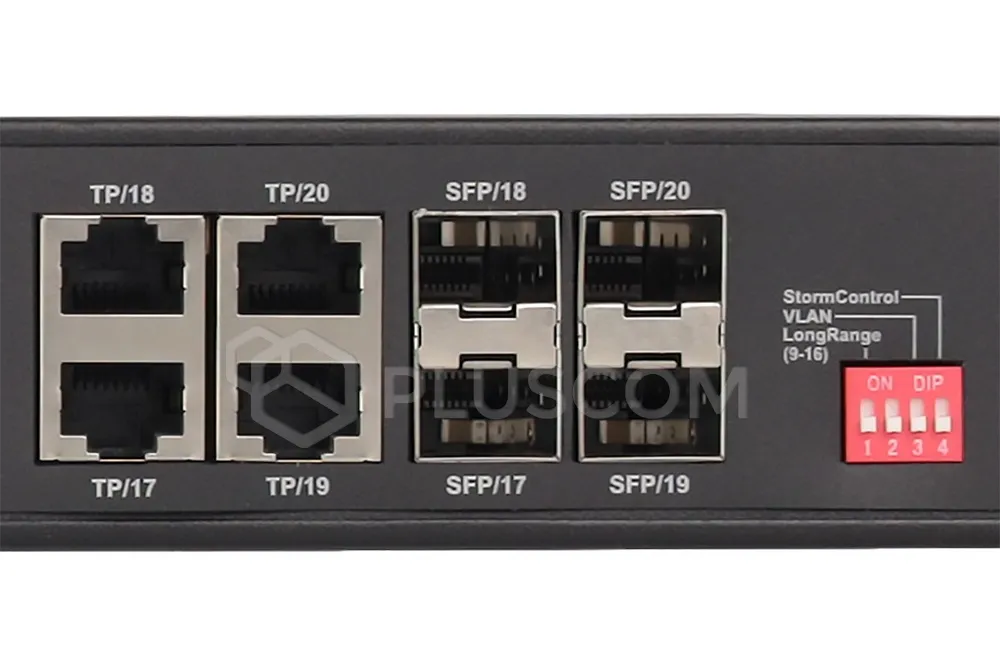

  • UPLINK ports RJ45: 4 x 1 Gb/s - TP/17-20
  • SFP UPLINK sockets: 4 x 1 Gb/s - SFP/17-20; 17/TP i 17/SFP ...... 20/TP i 20/SFP – nie mogą pracować jednocześnie - typ COMBO
  • Mounting dimensions: 1U

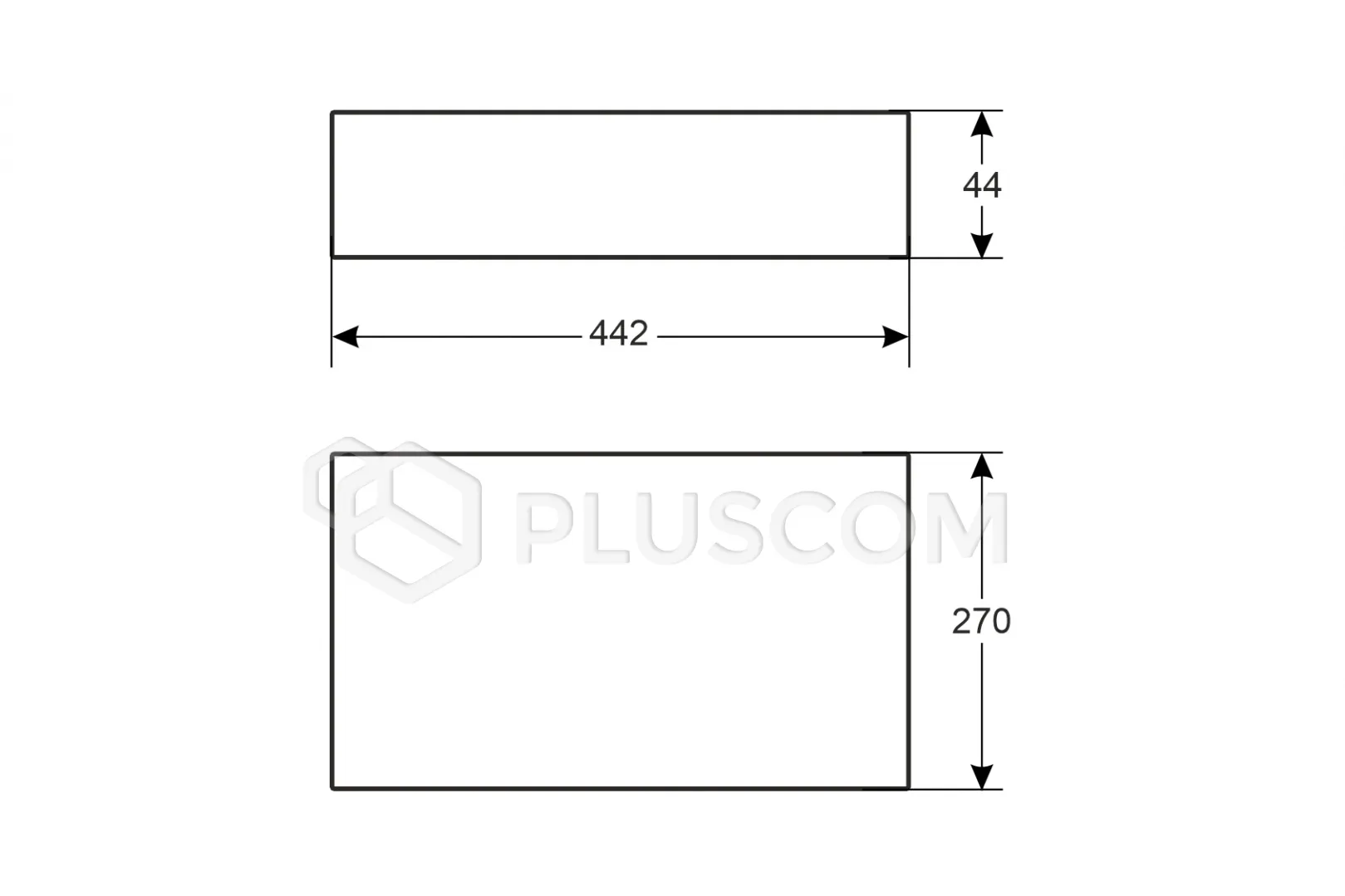

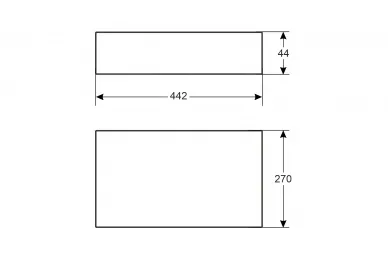

  • Dimensions: 442 x 44 x 270 [+/-2 mm]

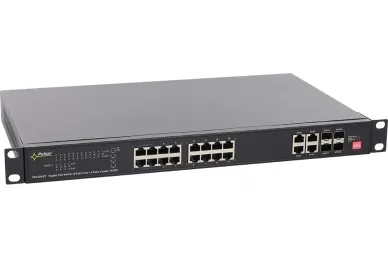

  • Installation: standard / RACK 19"

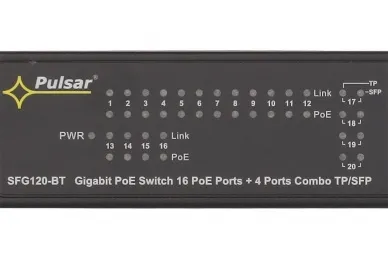

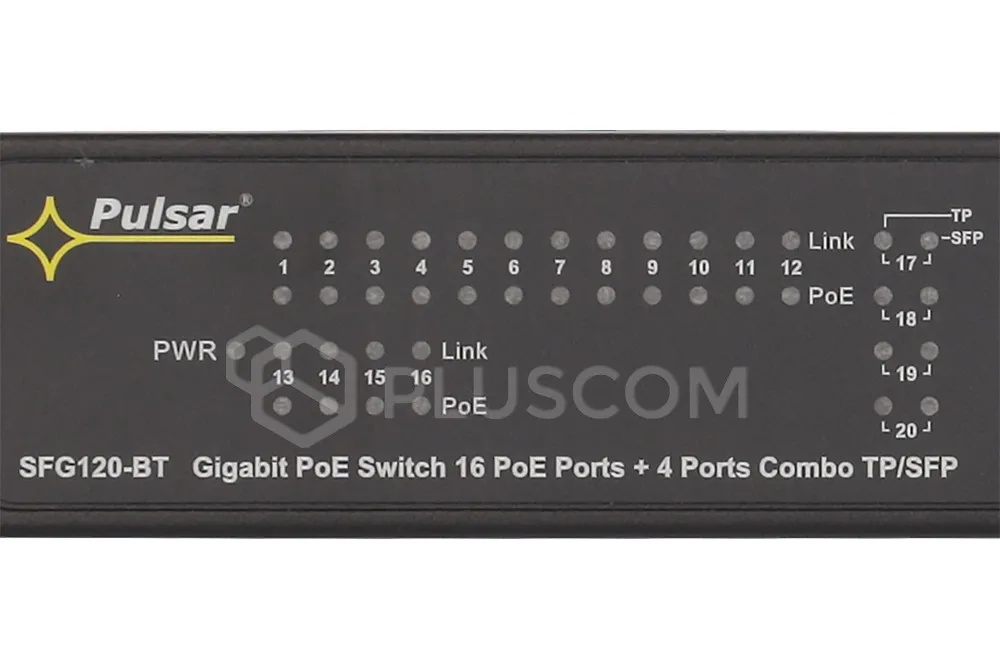

  • Indication: LED optical indication
  • Warranty: 2 years

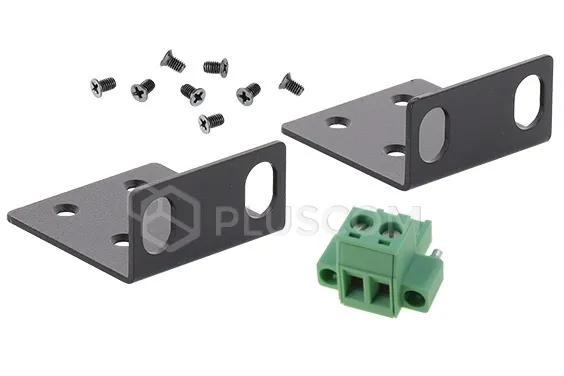

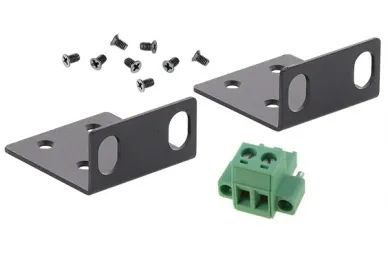

  • Notes: additional mounting elements – mounting brackets for RACK
