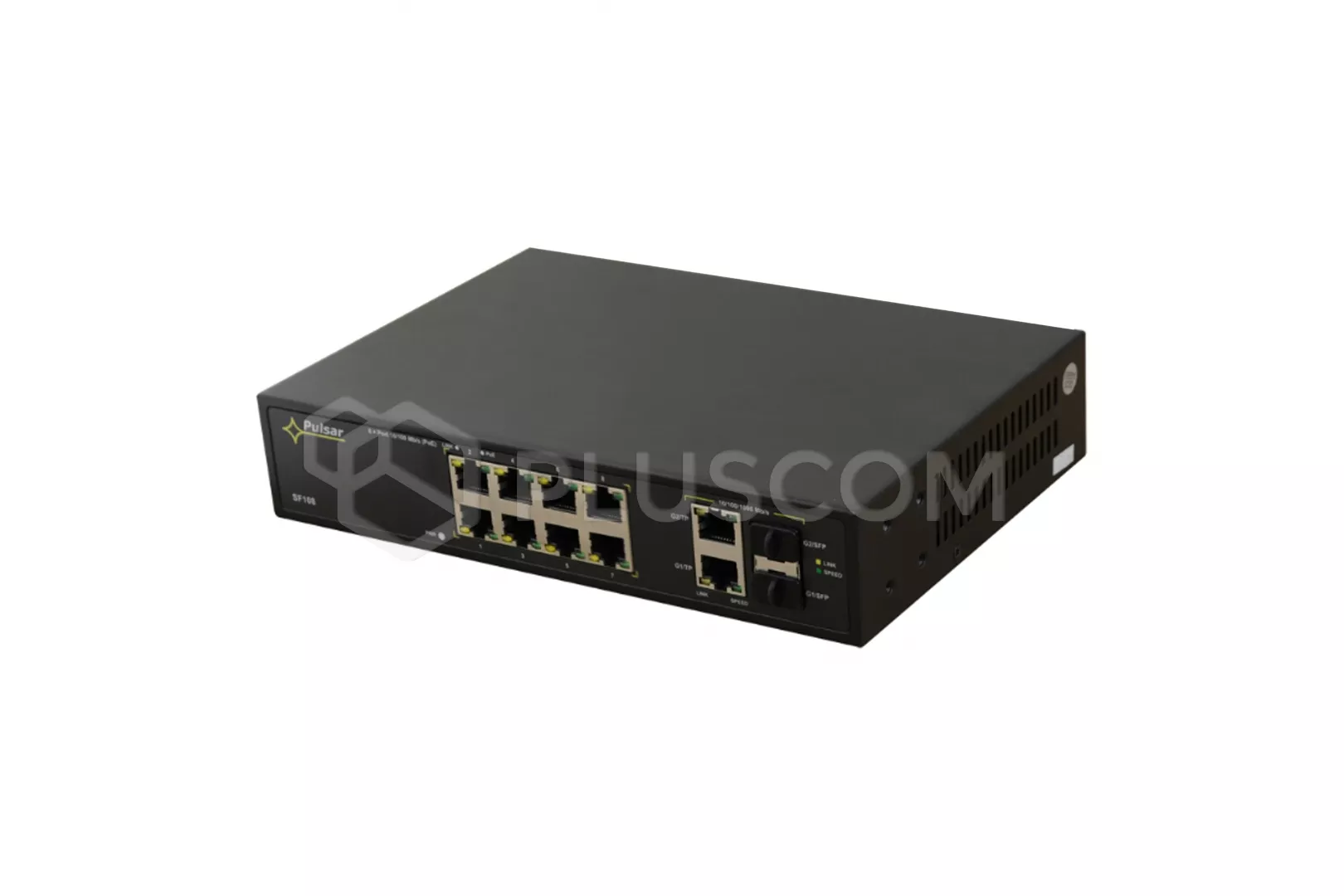

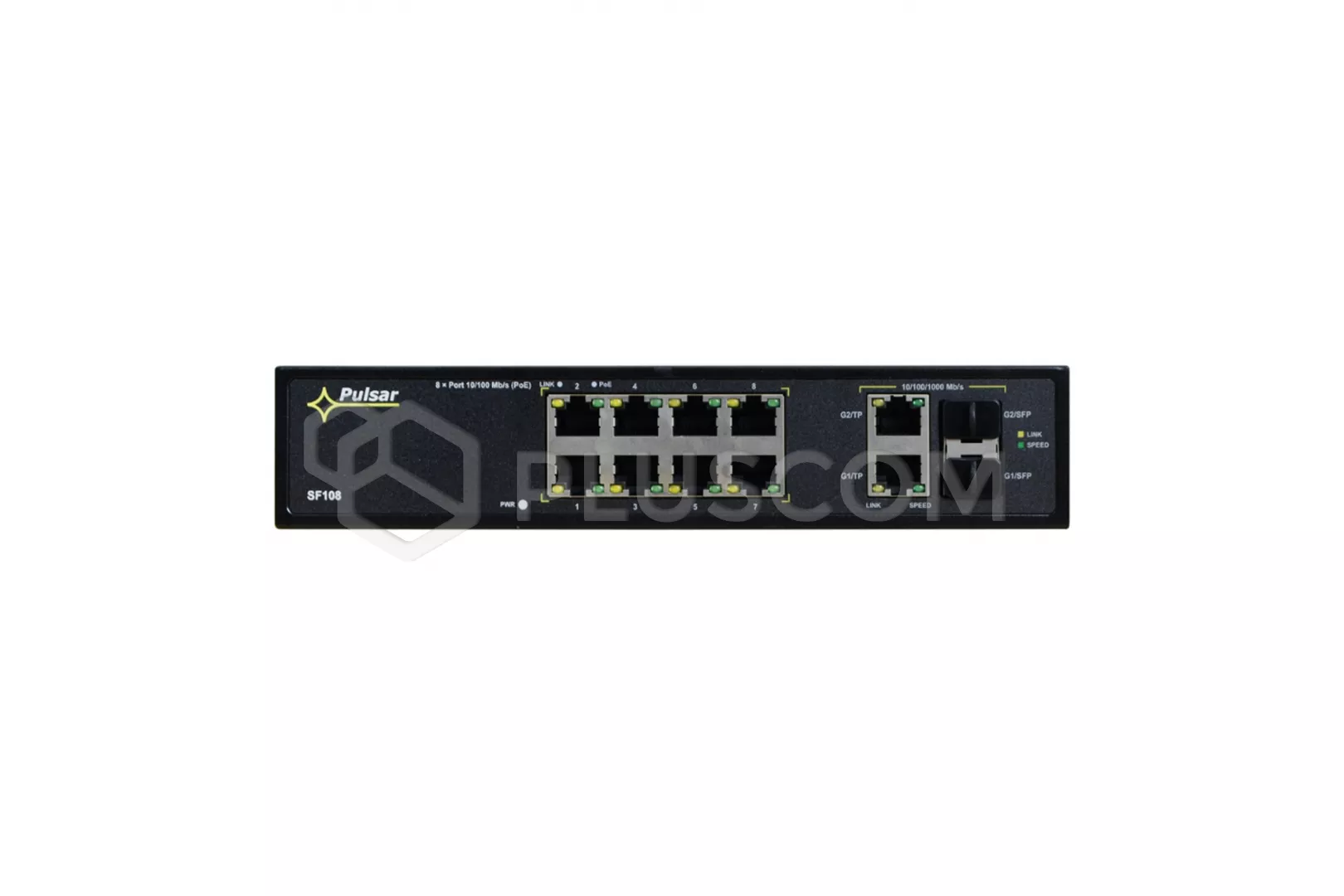

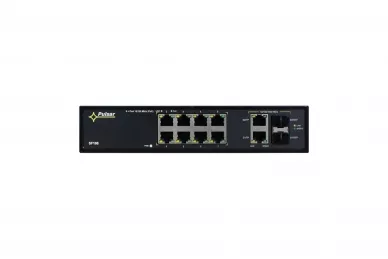

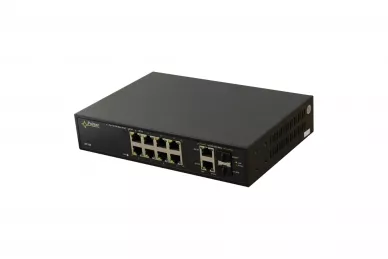

Switch PoE Pulsar SF108 for 8 IP cameras

184,65 EUR including 23.00% VAT
Product code: #10423
Manufacturer: Pulsar
  • The number of PoE ports: 8 + 2 UPLINK 1000Mb/s
  • PoE IEEE 802.3af 48V DC, 15.4W per port
  • in the box: power supply, retaining plates
  • the possibility to mount SFP optical modules
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Switch PoE Pulsar S108-90W do 8 kamer IP Switch PoE Pulsar SF108-90W do 8 kamer IP Switch PoE Pulsar SG108 do 8 kamer IP Switch PoE Pulsar S108 for 8 IP cameras Pulsar SG108WP SG108WP 10-port PoE switch for 8 IP cameras without power supply Pulsar SF108WP SF108WP 12-port PoE switch for 8 IP cameras without power supply Pulsar S108WP S108WP 10-port PoE switch for 8 IP cameras without power supply Pulsar SG108-90W 10-port switch for 8 IP cameras
Pulsar SF108 Switch 8x LAN PoE +2x UP-LINK

Pulsar SF108 is a 10-port PoE switch designed to power IP cameras and other network devices, eg. Routers, Access Points compliant with IEEE 802.3af
Switch PoE Pulsar SF108 for 8 IP cameras

Switch PoE Pulsar SF108 for 8 IP cameras


PoE is available on ports 1-8 Ports G1TP / G1SFP, G2 SFP marked UPLINK allows you to connect another device or recorder. Using the uplink port can be cascaded switches further increasing the number of connected cameras.

PoE technology allows data transfer and power supply using a single cable. This simplifies installation by eliminating additional power cables and reduces costs. Using PoE switch Pulsar company can install a camera where there is no possibility of connecting them to the power supply.

SPECIFICATIONS AND FEATURES:
  • 10 ports
  • 8 PoE ports
  • 1x UPLINK G1 TP / G1 SFP
  • 1x UPLINK G2 SFP
  • PoE IEEE 802.3af, DC 48V, 15.4W per port
  • LED indication PoE status and the state of the LAN
  • dimensions: 220x44x150mm
  • weight: 1,69kg
  • operating temperature: -10°C...+45°C
IN THE BOX:
In the box we find the power supply desktop PSD 480250 2,5A DC 48V 120W max. It has an integrated handle for easy to attach it to the ground.
Also included Switch using the fixing plate may be permanently affixed to the substrate.
Download
Datasheet 0.65 MB
Declaration 0.32 MB
User Manual 0.64 MB
