Switch PoE Pulsar S64 for 4 IP cameras

Pulsar S64 PoE Switch 4x PoE + 2x UPLINK

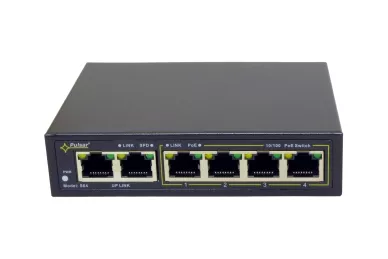

Pulsar S64 is a 6-port PoE switch designed to power IP cameras and other network devices, eg. Routers, Access Points compliant with IEEE 802.3af

PoE is available on ports 1-4 Port No. 5, 6 marked UPLINK allows you to connect another device or recorder. Using the uplink port can be cascaded switches further increasing the number of connected cameras.

PoE technology allows data transfer and power supply using a single cable. This simplifies installation by eliminating additional power cables and reduces costs. Using PoE switch Pulsar company can install a camera where there is no possibility of connecting them to the power supply.

SPECIFICATIONS AND FEATURES:

• 6 port 10/100Mbit
• 4 PoE ports 10/100Mbit

• PoE IEEE 802.3af/at, DC 52V, 30W per port
• LED indication PoE status and the state of the LAN
• dimensions: 118x28x85mm
• weight: 0,5kg
• operating temperature: -10°C...+40°C

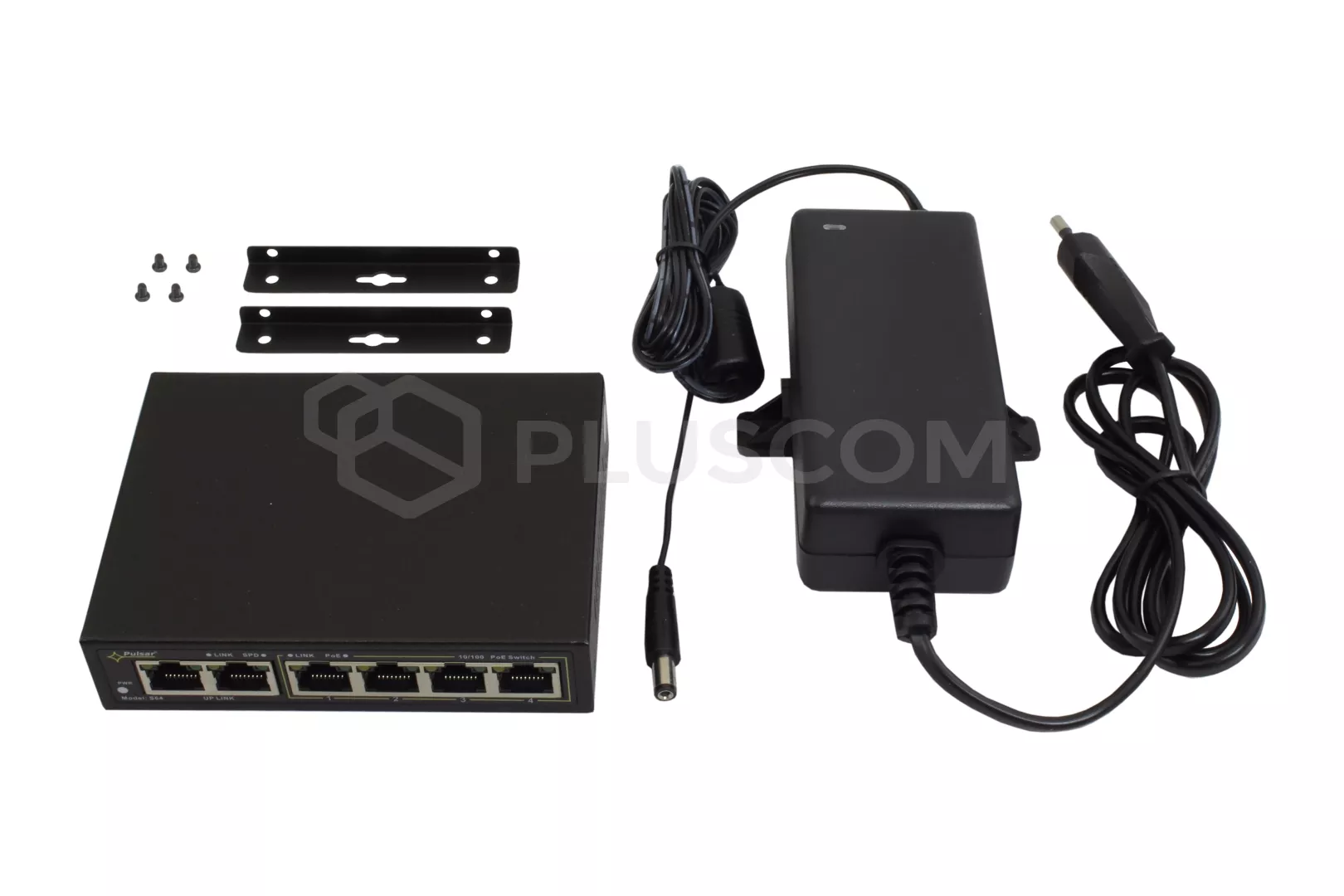

IN THE BOX:
In the box we find the power supply desktop PSD 520115 DC 52V 60W max. It has an integrated handle for easy to attach it to the ground.
Also included Switch using the fixing plate may be permanently affixed to the substrate.
