ATTE IPUPS-16-20-H Buffer set for 16 IP cameras

ATTE IPUPS-16-20-H Buffer set for 16 IP cameras

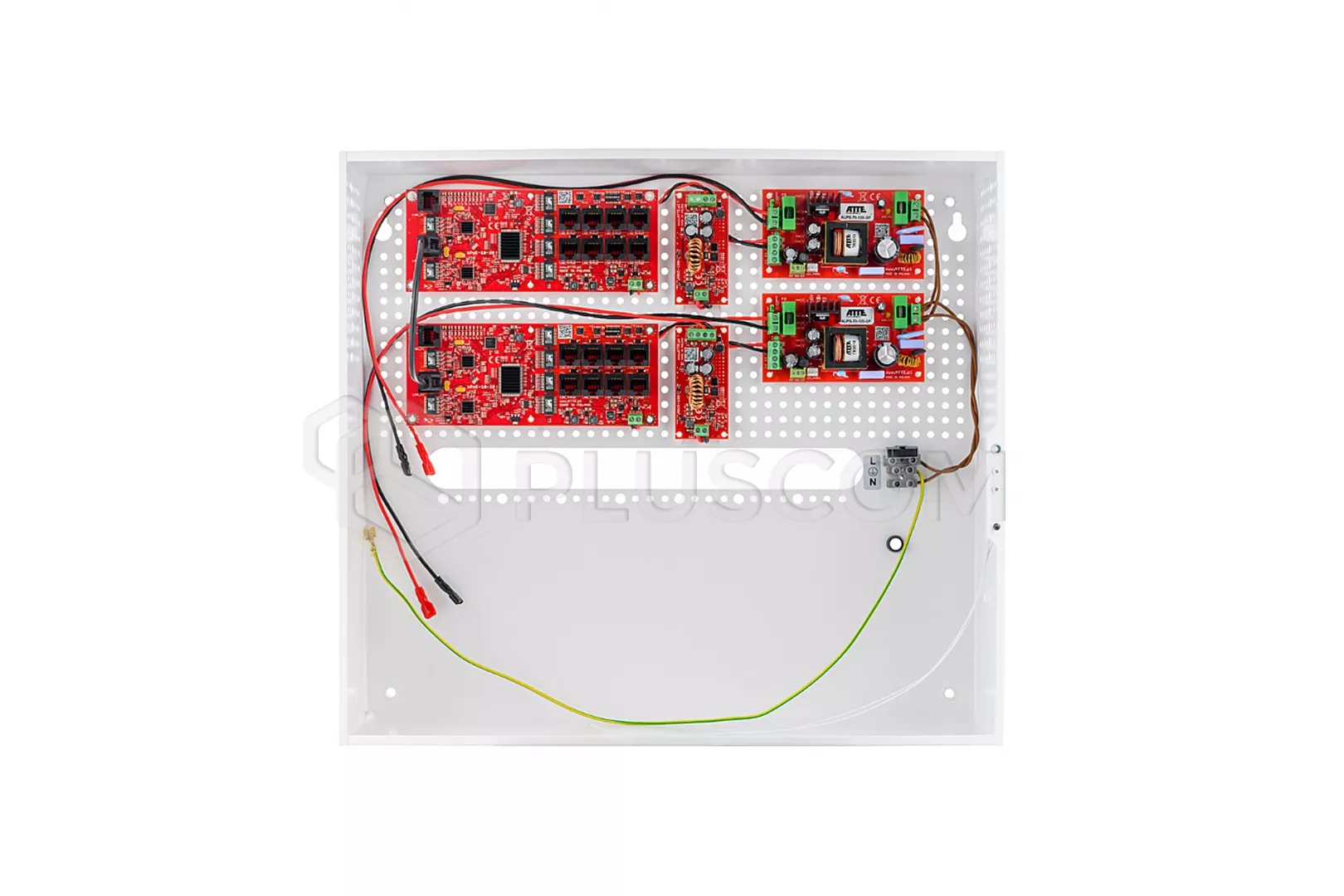

The kit includes:

• housing ABOX-H
• 2 x Power Supply AUPS-70-120-OF
• 2 x converter ASUC-100-480-OF
• 2 x switch xPoE-10-20-OF

ATTE IPUPS-16-20-H is a ready set to be able to power up buffer 16 IP cameras or other network devices powered by PoE 802.3at / af and PoE PASSIVE. It will be used in systems requiring increased network bandwidth such as 4K Ultra HD CCTV monitoring.

The ABOX-H enclosure has space for two 18Ah batteries and a video recorder (NVR). Maximum dimensions of the recorder mounted inside the housing: 390x390x60mm. Thanks connecting the batteries, we ensure uninterrupted operation of the power supply at periodic intervals power outages. The housing is comfortable solution to the problem of aesthetic installation of devices and termination of wiring inside buildings. It is equipped with a screw closure, removable door and tamper opening

The most important features of the set:

• Optional power off on selected PoE ports
• Clear optical signaling of power and data transmission
• Output voltage = input voltage
• Up to 40W of power on PoE ports
• Powered by a screw terminal (Vin) or another PoE PASSIVE switch (PoE IN/OUT port)
• Easy and fast start-up without configuration parameters
• high efficiency of the PSU module (90%)
• two supply voltage values available: 12VDC i 48VDC
• easy and quick installation service due to modular design
• easy expansion and scaling of the system by adding additional ones series switches xPoE / IP and IPB / IPUPS
• space for 2 18Ah batteries
• place for video recorder (NVR)
• option to keep a supply of cables inside the casing
• cable entries on the back of the housing
• distance to wall / mounting surface
