Switch PoE ATTE IP-9-11-L2 for 9 cameras IP not buffer with power supply in the outer casing

235,09 EUR including 23.00% VAT
Product code: #13775
Manufacturer: Atte
  • Unmanaged switch PoE
  • Number of ports: 9x PoE + 1x Uplink
  • Long Range mode
  • Input voltage: 180~240V AC
  • Inner housing: ABOX-L2
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Switch IP-9-11-L2 for 9 IP cameras

FUNCTIONS:
  • Power to 9 PoE 802.3at / af or PASSIVE receivers
  • Data transfer capability of 280m (in Long Range mode)
  • Electronic fuse independently for each PoE (auto return)
  • Optional power off on selected PoE ports
  • Clear, optical signaling of power status, and data transmission
  • up to 70W power at LAN_5 PoE IN / OUT port
  • Up to 40W of power on other PoE ports
  • Easy and fast start-up without configuration parameters
  • High efficiency of power supply module (> 90%)

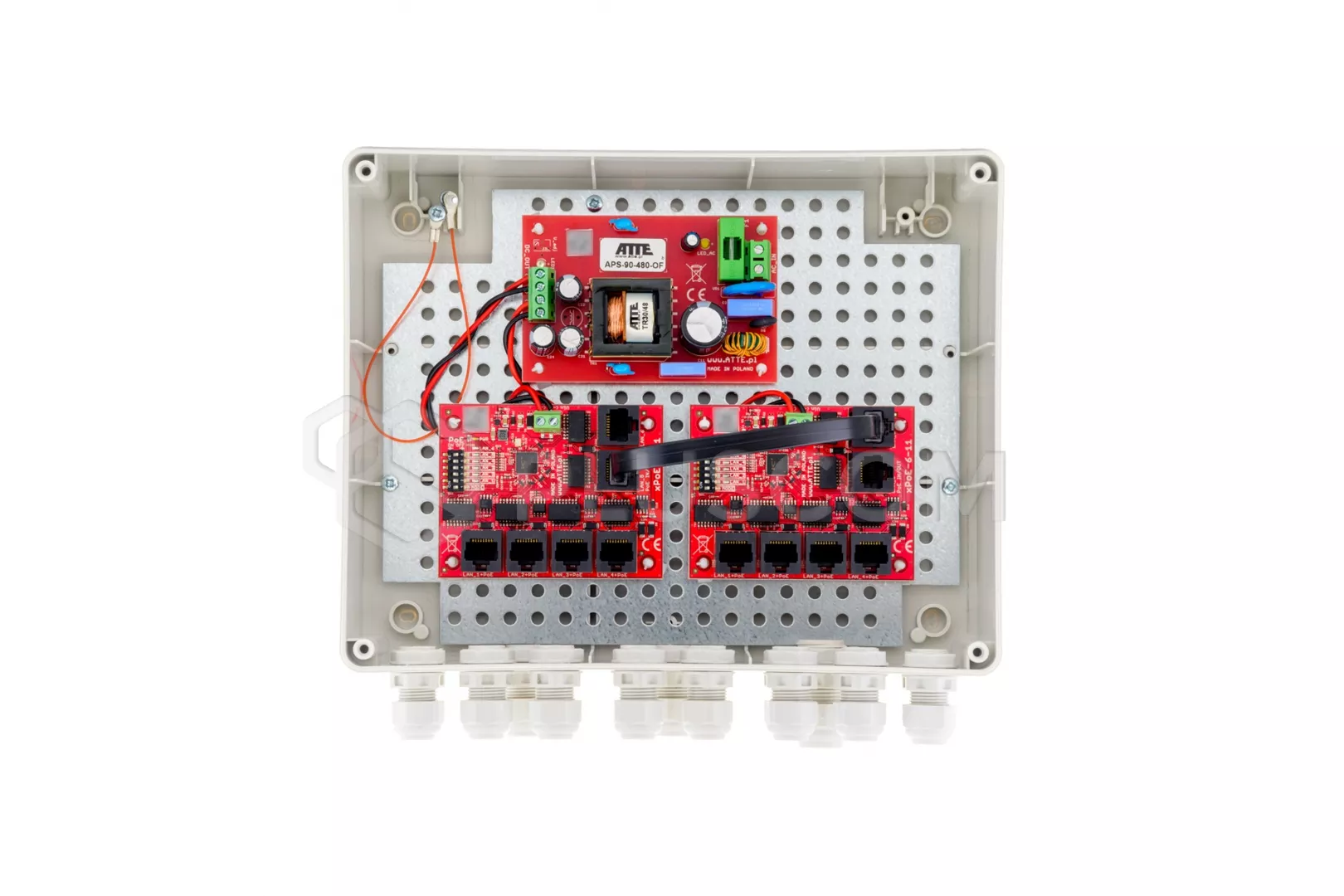

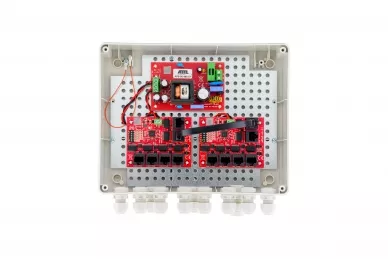

  • Easy and fast installation service thanks to modular design
  • Easily expand and scale your system by adding additional xPoE / IP and IPB / IPUPS switches
  • Assembly of modules in any open sheet metal part (raster system)
  • Cover and housing connected by a line to facilitate service
  • Possibility of keeping cables inside the casing
  • Cable entry through the housing glands: 10xM16 and 1xM20
  • Includes 4 handles to assemble the housing without compromising IP56 protection
  • Optional ADD-000 adapter allows easy mounting of the enclosure on posts or lanterns
  • external housing ABOX-L2
Download
Instruction 0.06 MB
Datasheet 0.61 MB
