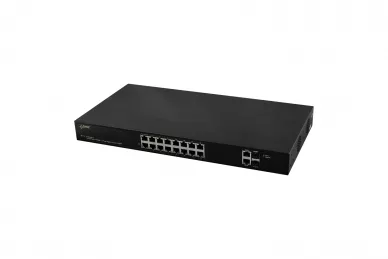

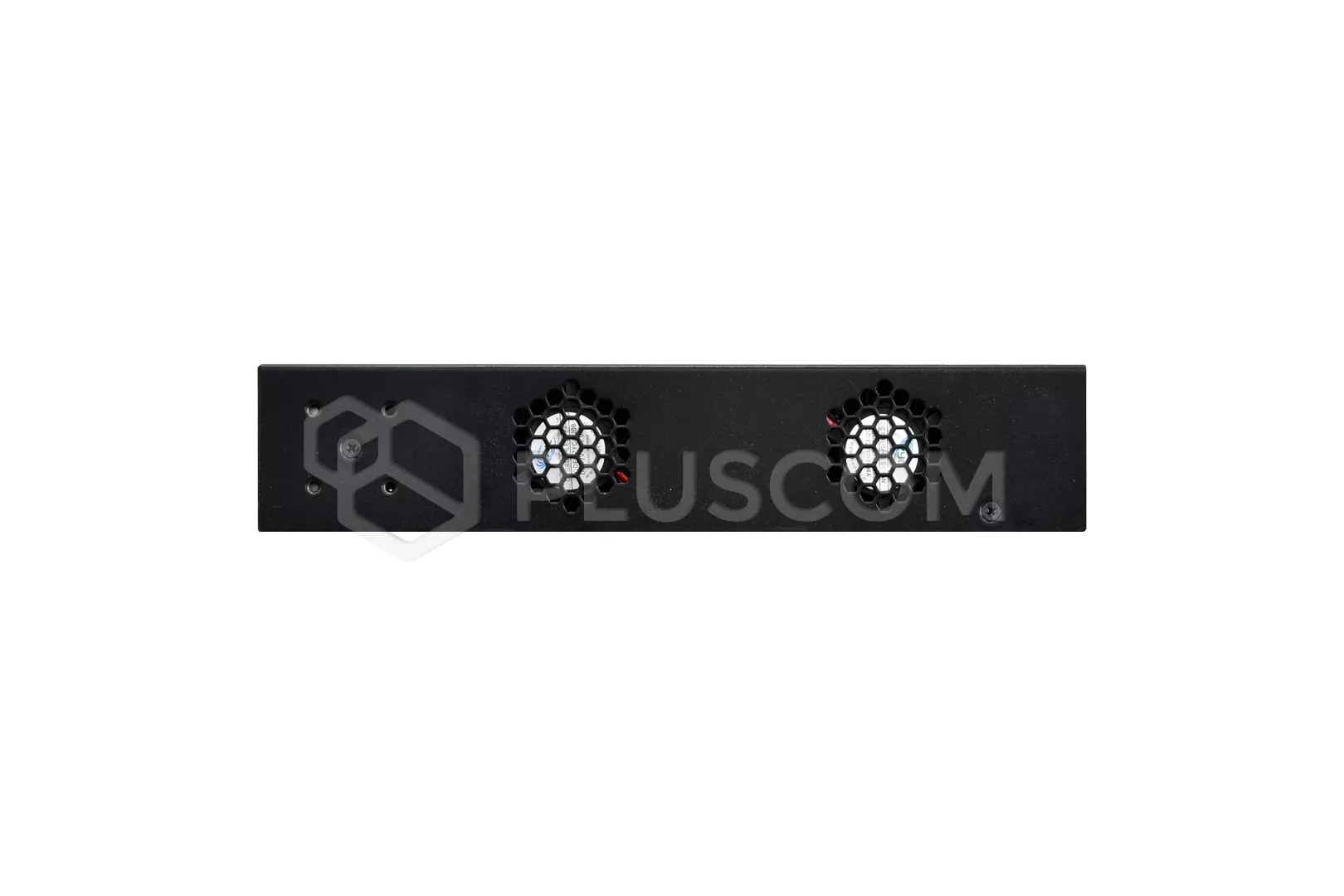

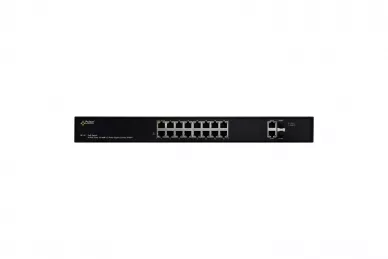

Pulsar SF116WP SF116WP 16-port PoE switch for 16 IP cameras without power supply

235,09 EUR including 23.00% VAT
Product code: #24617
Manufacturer: Pulsar
  • Switch type: standard
  • Power supply: 48 - 54 V DC, detachable power socketpower supply unit is not included
  • Ports: 18
  • PoE ports: 16 x 10/100 Mb/s - IEEE 802.3af/at (30W), PoE+48÷54V DC, 30W/port, 240W/all ports
  • UPLINK ports: 2 x 1Gb/s - G1/TP, G2/TP
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar S116WP S116WP 16-port PoE switch for 16 IP cameras without power supply Switch PoE Pulsar S116 for 16 IP cameras Switch PoE Pulsar SF116 for 16 IP cameras

Pulsar SF116WP SF116WP 16-port PoE switch for 16 IP cameras without power supply


Technical parameters:

  • Destination: SF116WP is a 16-port PoE designed to supply IP cameras operating in the IEEE 802.3af/at standard. Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 16 ports of the switch.
  • Switch type: standard

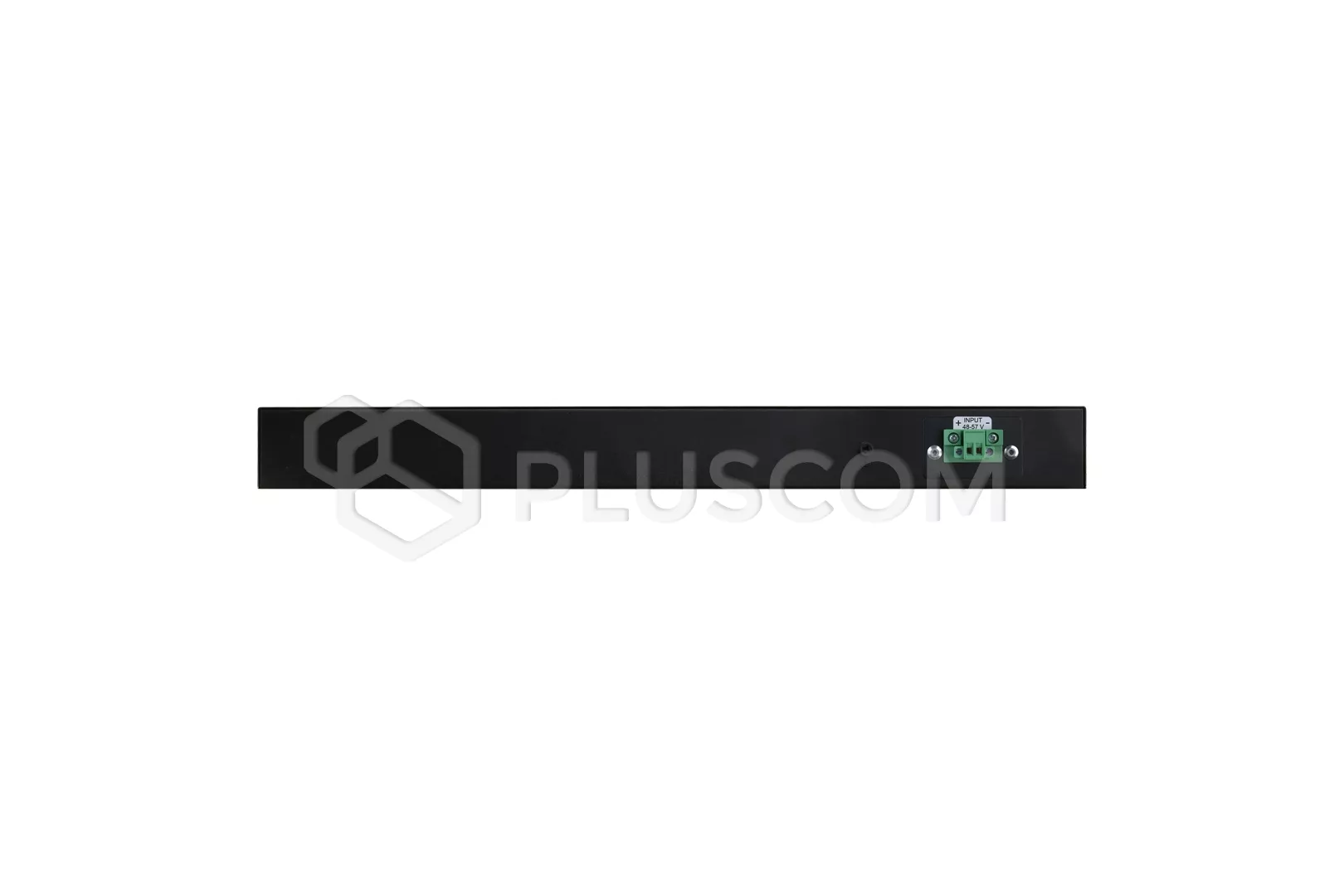

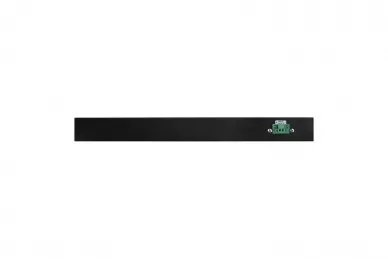

  • Power supply: 48 - 54 V DC, detachable power socketpower supply unit is not included
  • Ports: 18
  • PoE ports: 16 x 10/100 Mb/s - IEEE 802.3af/at (30W), PoE+48÷54V DC, 30W/port, 240W/all ports
  • UPLINK ports: 2 x 1Gb/s - G1/TP, G2/TP
  • SFP UPLINK sockets: 2 x 1Gb/s - G1/SFP, G2/SFPG1/TP and G1/SFP – can not operate simultaneouslyG2/TP and G2/SFP – can not operate simultaneously
  • Mounting dimensions: 1U
  • Dimensions: 442 x 44 x 224 [+/-2 mm]
  • Installation: standard / RACK 19"
  • Indication: LED optical indication
  • Warranty: 2 years
  • Notes: - additional mounting elements – mount brackets ing for RACK
Download
Data sheet 0.48 MB
Instruction 1.06 MB
