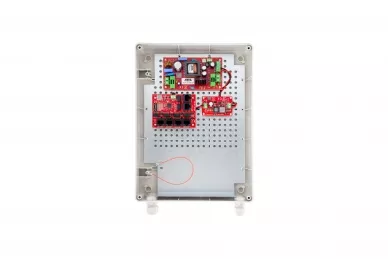

Switch PoE ATTE IPUPS-5-11-XL2 for 5 cameras IP buffer with power supply in the outer casing

223,87 EUR including 23.00% VAT
Product code: #13782
Manufacturer: Atte
  • Unmanaged switch PoE
  • Number of ports: 5x PoE + 1x Uplink
  • Long Range mode
  • Input voltage: 180~240V AC
  • Inner housing: ABOX-XL2 (1x AKU 7Ah)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Switch PoE IPUPS-5-11-XL2 for 5 IP cameras

FUNCTIONS:
  • Buffer capacity of 5 PoE 802.3at/af or PASSIVE receivers
  • Data transfer capability of 280m (for long range)
  • Electronic fuse for each PoE (auto return)
  • Optional power off on selected PoE ports
  • Data signaling and data release signaling
  • up to 40W power on PoE ports
  • Cleaning and installation without parameters
  • High efficiency of power supply module (90%)
  • Availability of two supply voltage values: 12VDC and 48VDC
  • Quick and easy access to building modules
  • Easy expansion and scaling of the system via xPoE/IP and IPB/IPUPS

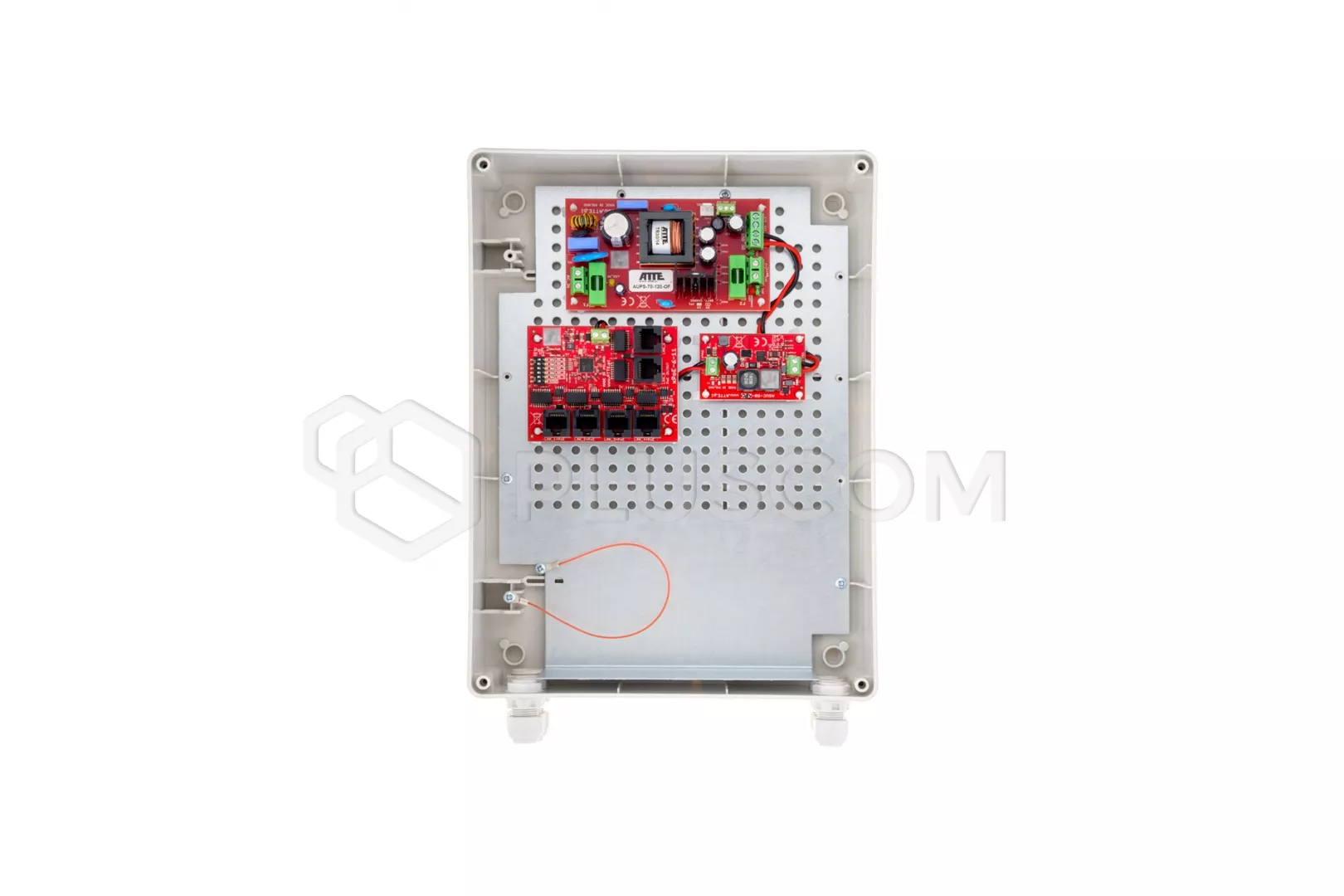

  • assembly of modules in an enclosed enclosure (raster system)
  • mounting plate with bent, "shelf" for 7Ah battery
  • Cover and housing connected by a line to facilitate service
  • Possibility of keeping cables inside the casing
  • Cable entry through the housing glands: 5xM16 and 1xM20
  • included 4 mounting brackets housing without IP56 protection
  • The ADD-001 optional adapter allows easy mounting of the enclosure on posts or lanterns

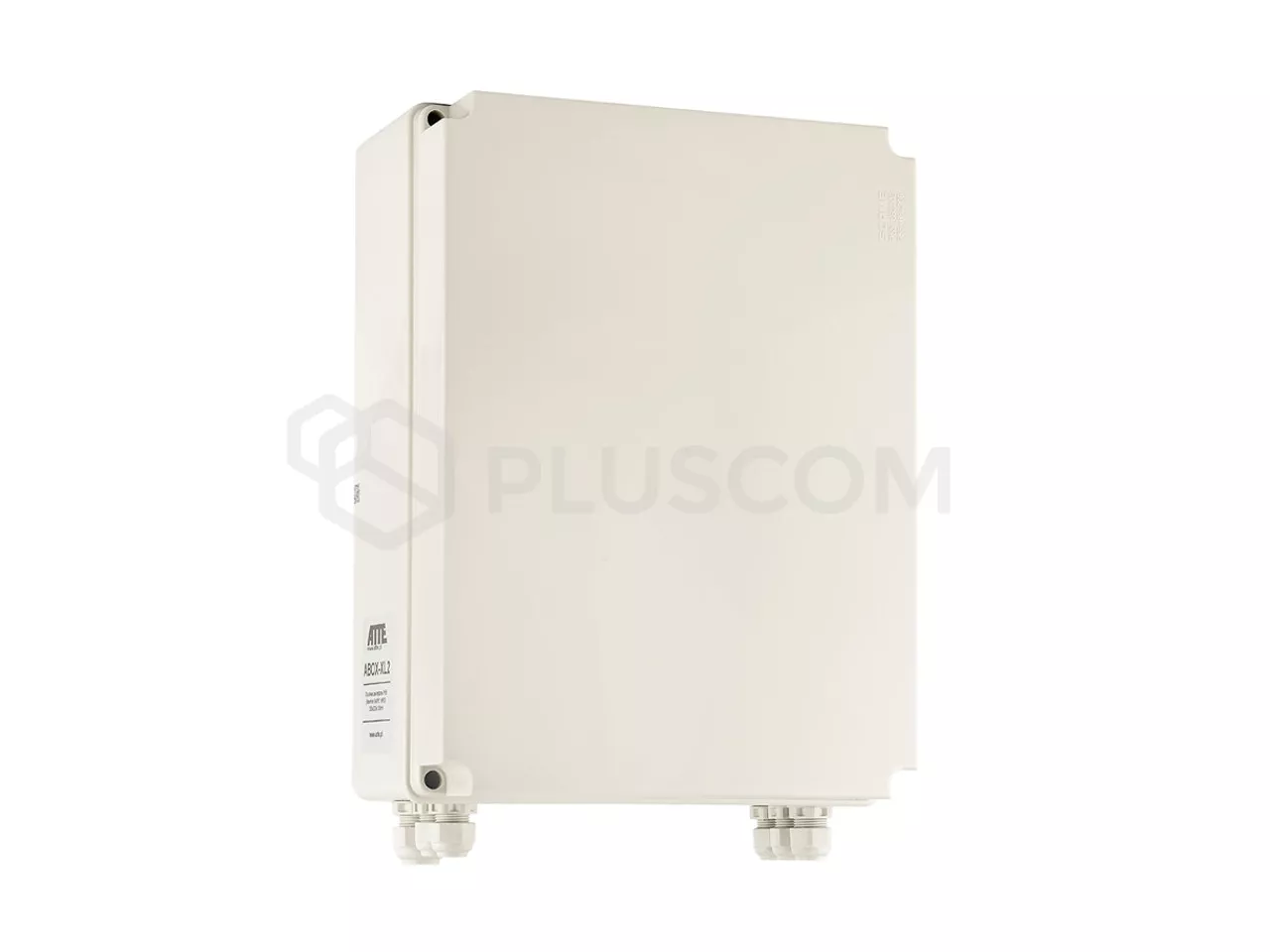

  • external enclosure ABOX-XL2
Download
Instruction 0.06 MB
Datasheet 0.41 MB
