ATTE IP-8-20-L2 Buffer set for 8 IP cameras

ATTE IP-8-20-L2 Set for 8 IP cameras

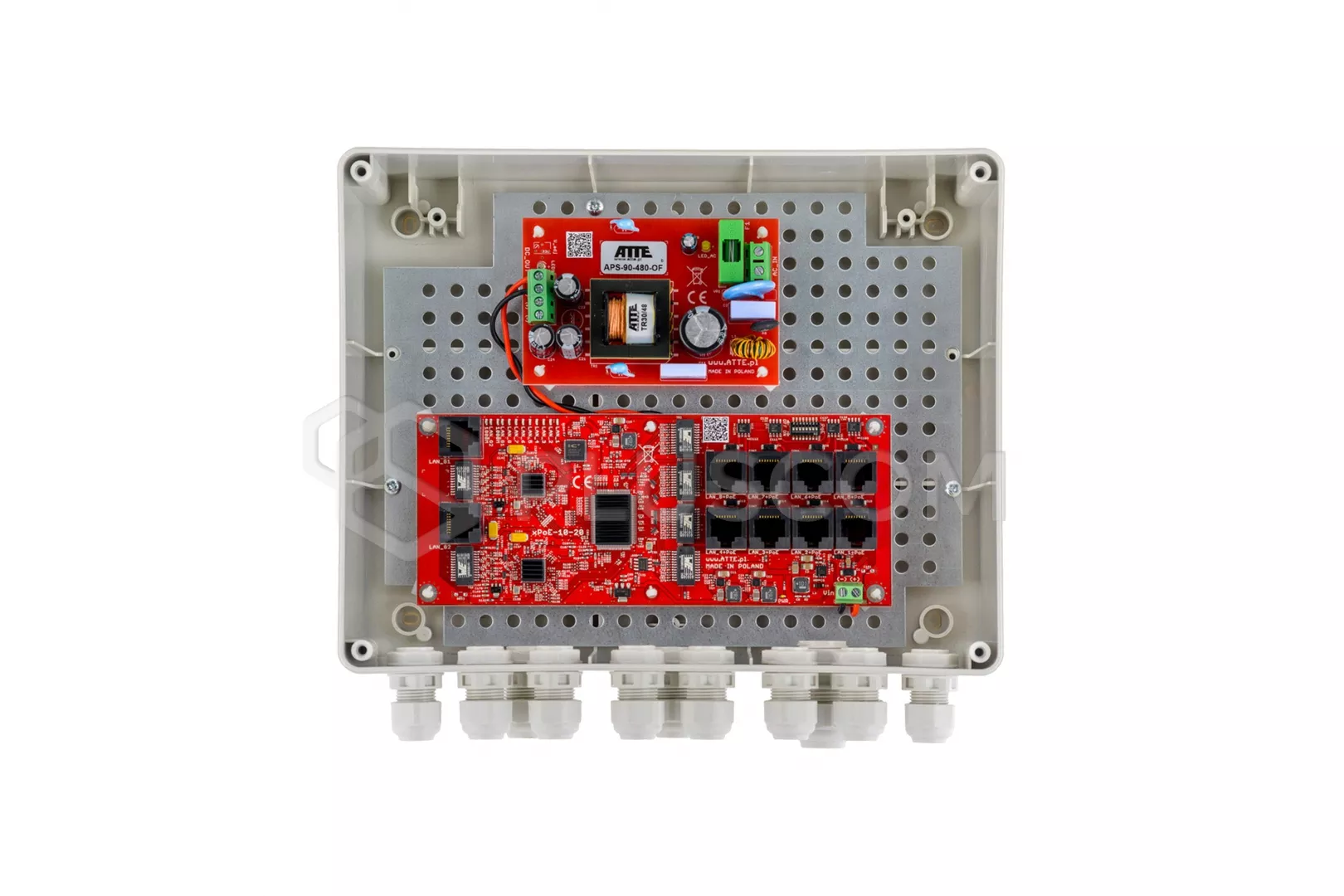

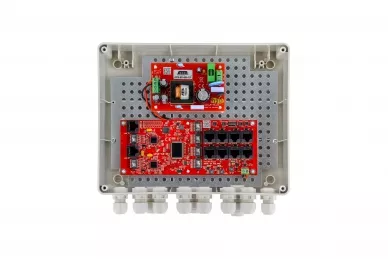

The kit includes:

• housing ABOX-L2
• Power Supply APS-90-480-OF
• switch xPoE-10-20-OF

ATTE IP-8-20-L2 is a ready set to be able to power up buffer 8 IP cameras or other network devices powered by PoE 802.3at / af and PoE PASSIVE. It will be used in systems requiring increased network bandwidth such as 4K Ultra HD CCTV monitoring.

The ABOX-L2 enclosure is a very convenient solution for cable connections mounted in external conditions. It is equipped with a mounting plate made of special hole in 10.8mm pitch. The housing is made of high quality plastic that provides UV and UV resistance other adverse weather conditions.

The most important features of the set:

• Optional power off on selected PoE ports
• Clear optical signaling of power and data transmission
• Up to 40W of power on PoE ports
• Easy and fast start-up without configuration parameters
• high efficiency of the PSU module (>90%)
• easy and quick installation service due to modular design
• easy expansion and scaling of the system by adding additional ones series switches xPoE / IP and IPB / IPUPS
• assembly of modules in any, perforated part of the mounting plate (system raster) </ li>
• cover and housing connected with a string for ease of service
• option to keep a supply of cables inside the casing
• cable entry through glands mounted in the housing: 10xM16 and 1xM20 </ li>
• 4 brackets included for assembly of the housing without breaking the step IP56 protection
• optional ADD-PMAL adapter enables easy mounting both on poles or lighthouses (sold separately)
