ATTE IPUPS-8-20-R5U0 Buffer set for 8 IP cameras

ATTE IPUPS-8-20-R5U0 Buffer set for 8 IP cameras

The kit includes:

• housing ABOX-R5U0
• Power Supply AUPS-70-120-OF
• converter ASUC-100-480-OF
• switch xPoE-10-20-OF

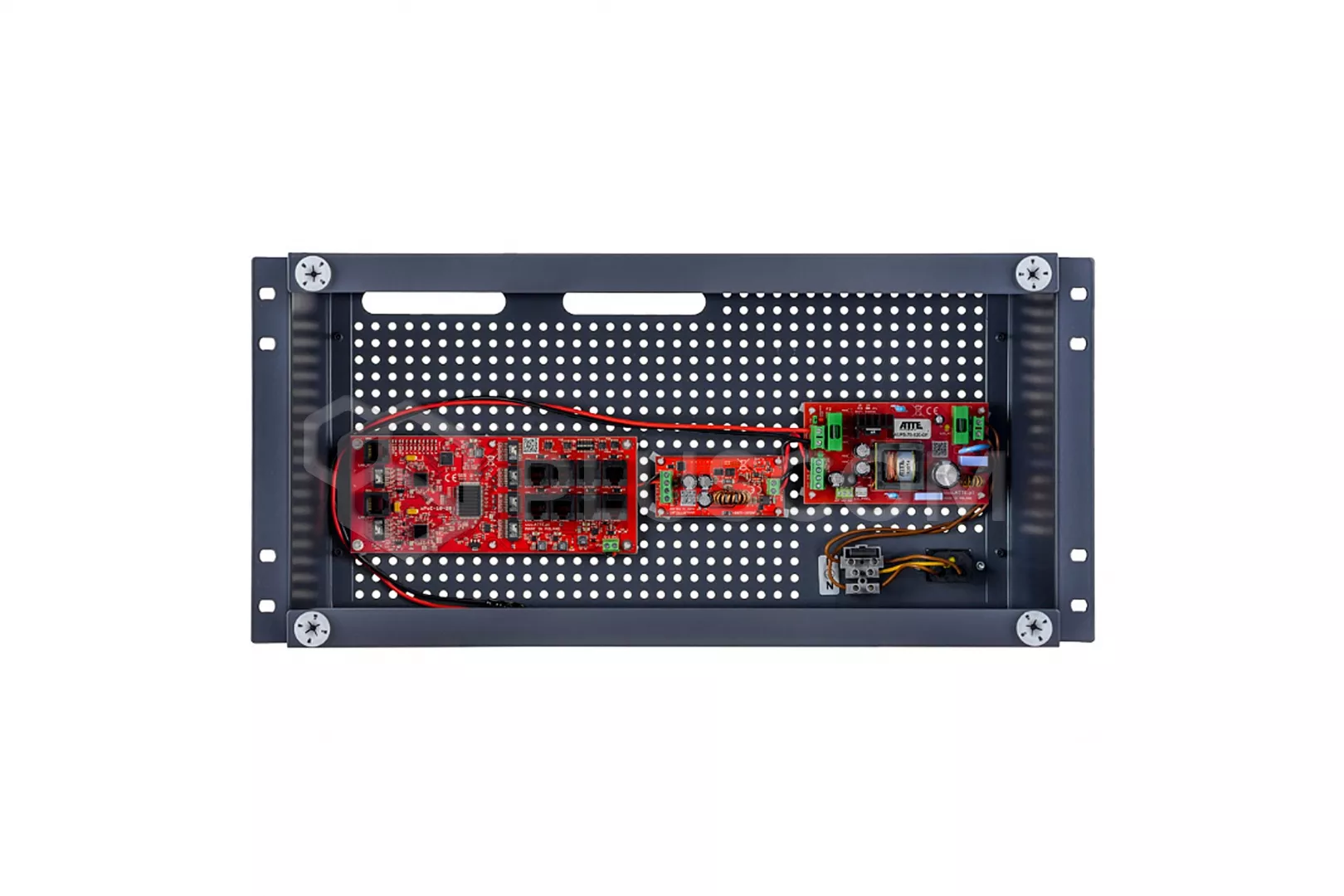

ATTE IPUPS-8-20-R5U0 is a ready set to be able to power up buffer 8 IP cameras or other network devices powered by PoE 802.3at / af and PoE PASSIVE. It will be used in systems requiring increased network bandwidth such as 4K Ultra HD CCTV monitoring.

The ABOX-R5U0 enclosure has space for two 18Ah batteries. Thanks to them connection, we ensure uninterrupted power supply operation at periodic intervals power outages. The housing allows for built-in wardrobe telecommunication RACK the entire range of ATTE products intended so far for internal and external casings of the ABOX series. The main cable glands are on the back of the housing and the additional cable gland is the distance between the body and housing cover. ABOX-R5U0 is equipped with a connector and an electric terminal with fuse.

The most important features of the set:

• Optional power off on selected PoE ports
• Clear optical signaling of power and data transmission
• Output voltage = input voltage
• Up to 40W of power on PoE ports
• Powered by a screw terminal (Vin) or another PoE PASSIVE switch (PoE IN/OUT port)
• Easy and fast start-up without configuration parameters
• high efficiency of the PSU module (90%)
• two supply voltage values available: 12VDC i 48VDC
• easy and quick installation service due to modular design
• easy expansion and scaling of the system by adding additional ones series switches xPoE / IP and IPB / IPUPS
