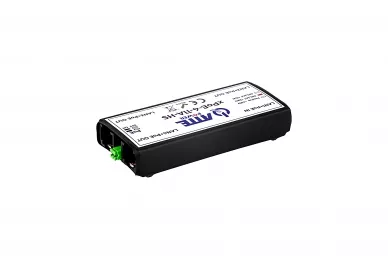

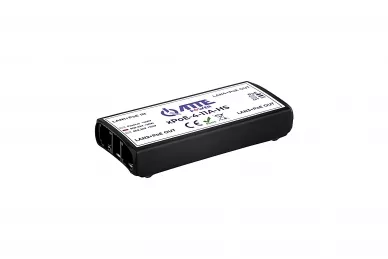

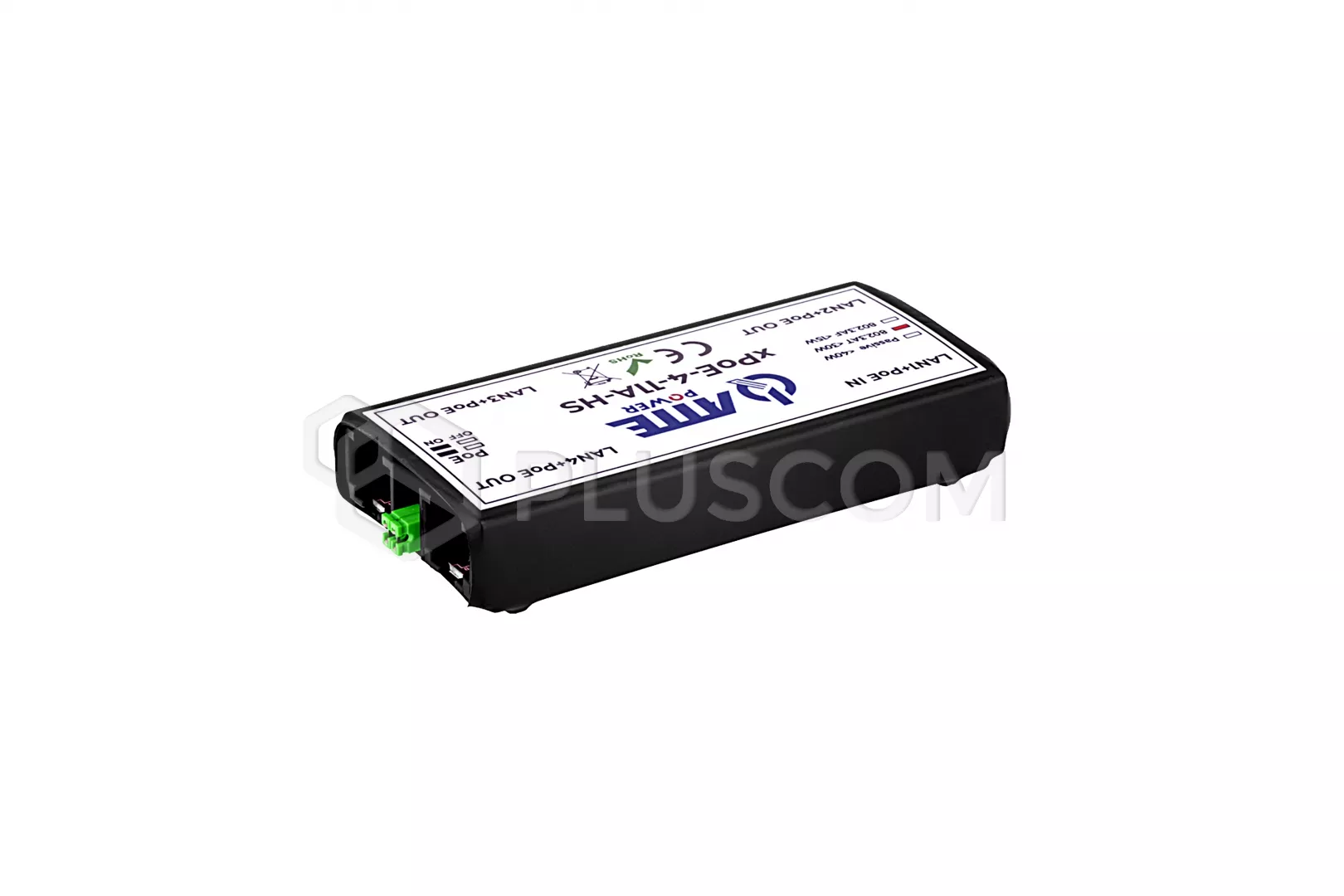

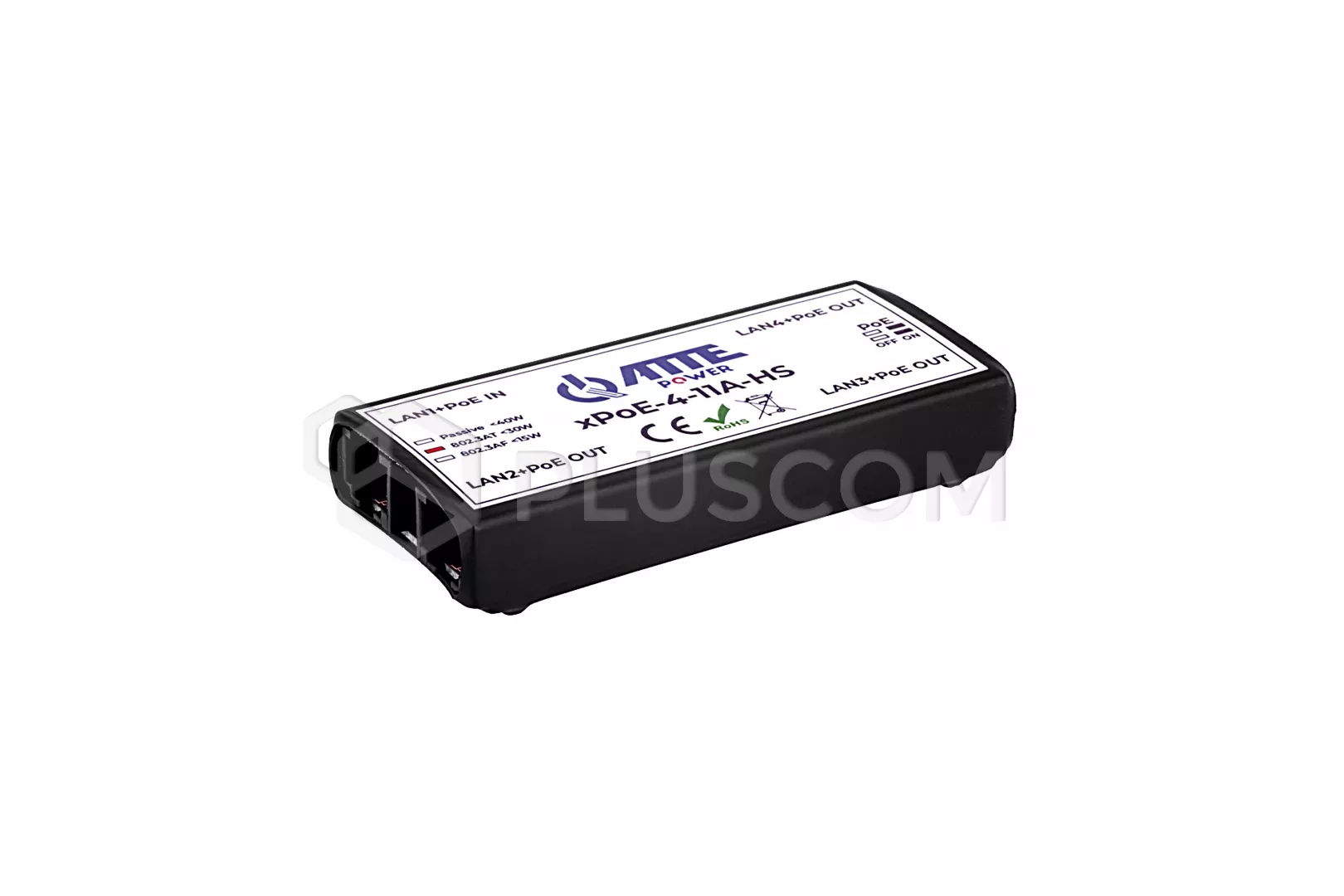

Extender, switch PoE ATTE xPoE-4-11-HS LAN repeater and PoE power supply

xPoE-4-11A-HS Extender (repeater) LAN network and PoE power supply for IP cameras

The module is designed to regenerate the network signal and transmit it PoE power supply to selected outputs. Also used as a strengthening element used to extend the network at sections longer than 100m. Abused also as an active splitter when we need one cable run several PoE receivers, or when we need to create additional ones network stub.


FEATURES:

• small device size
• Possibility to power up to 3 PoE 802.3at / af or PASSIVE receivers
• ability to turn off the power on selected PoE ports
• clear, optical signaling of power and transmission status data
• powered only from another 802.3at / af switch or PoE PASSIVE (PoE IN)
• sequential start of PoE OUT outputs
• up to 40W of total power for all ports
• possibility of cascading powering (one xPoE powers another)
• easy and quick commissioning without the need for configuration parameters
• selectable PoE standard (at / af)
• very low power consumption (<1.5W)

TECHNICAL DATA:

• 4 LAN ports (RJ45) 10 / 100Mbit auto MDI-MDIX, auto-negotiation
• LAN 1 PoE input (switch power supply): Passive (up to 40W) or 802.3at (up to 30W) or 802.3af (up to 15W); PoE PINS: 1.2 (V +/-) 3.6 (V +/-) and / or 4.5 (V +/-) 7.8 (V +/-)
• LAN2 PoE Out : (power another extender or camera): Passive PoE PINS: 1.2 (V-) 3.6 (V +) 4.5 (V +) 7.8 (V-)
• LAN 3 ... LAN 4:
• • INPUT PoE (switch power supply): Passive (up to 70W)
  • OUTPUT PoE (camera power): Passive
  • PoE PINs: 4.5 (V +) 7.8 (V-)
• LAN2 ... LAN4: Sequential switching of PoE outputs: LAN2 ... LAN3 ... LAN4 (during startup or short-circuit)
• supply voltage:
• • LAN1: 44 ... 56 VDC (Vin)
  • LAN3 ... LAN4: 12-56VDC (Vin)
• output voltage Vout = Vin (for PoE 802.3at / af Vin & gt; 44VDC)
• PoE input protection (overcurrent / short circuit) LAN1 port 0.75A electronic (auto-return)
• Supported PoE transmitters (standard / max power)

  • 802.3af - up to 13W LAN1
  • 802.3at - up to 25W LAN1
  • PoE PASSIVE - up to 40W LAN1

• working temperature: -25 ° C ... + 65 ° C
• dimensions: 93x42x19mm
• weight: 0.05kg
• degree of protection: IP20
