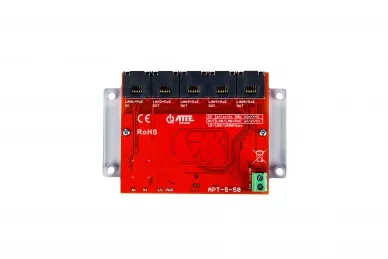

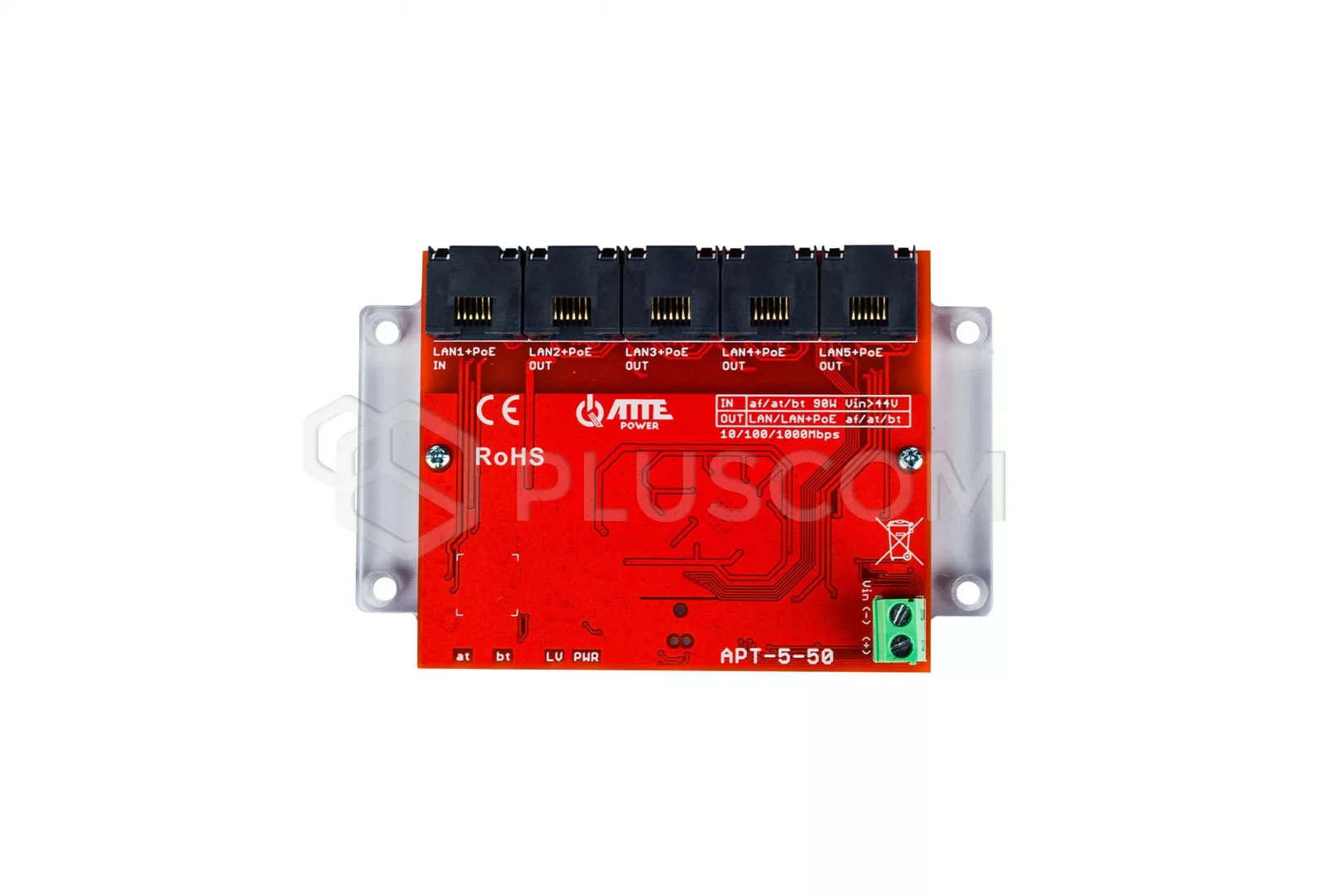

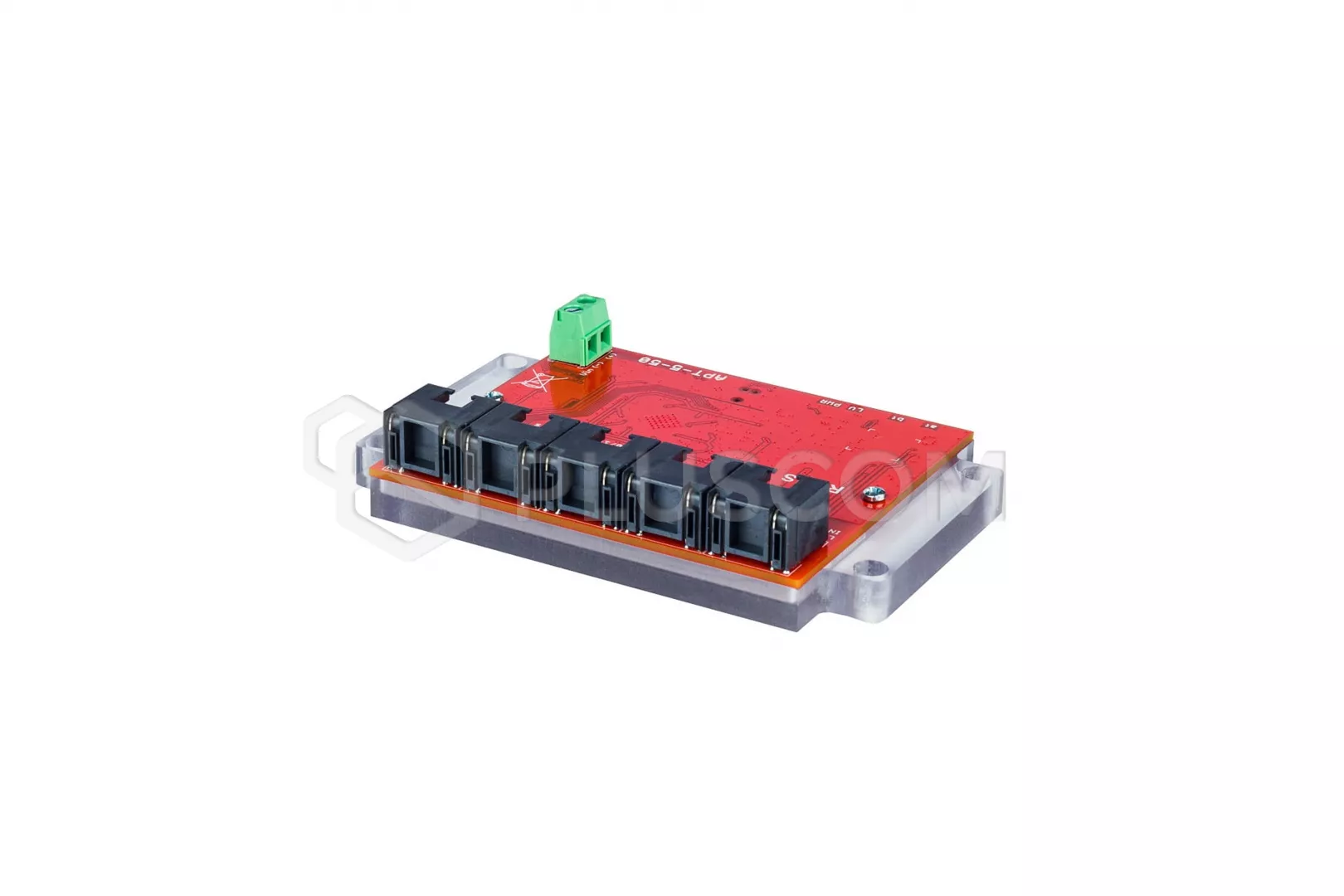

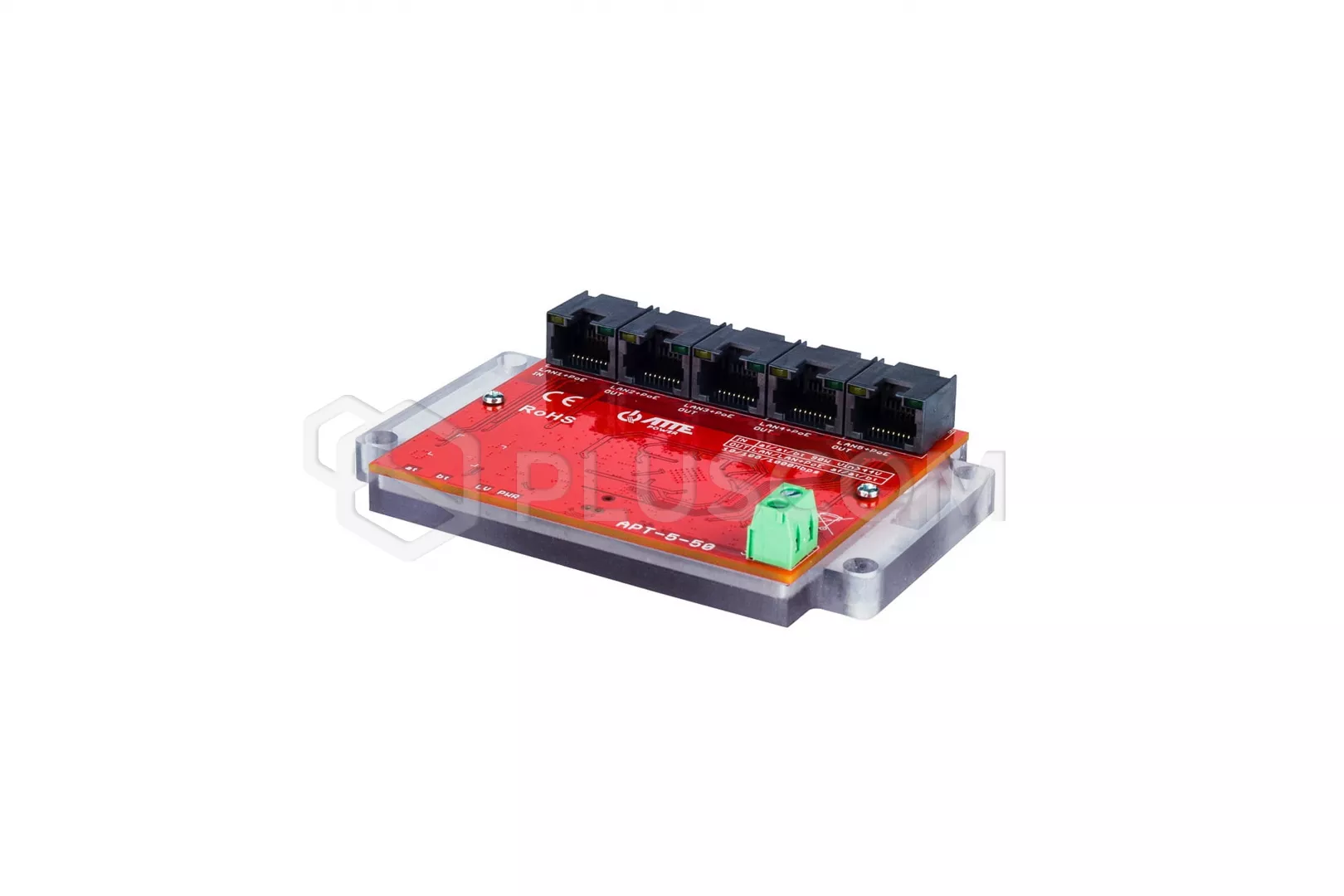

ATTE APT-5-50 PoE Switch 5 ports

ATTE APT-5-50 PoE Switch 5 ports 10/100/1000Mbps, extender

APT-5-50 is an unmanaged gigabit PoE network switch working as an extender (repeater) of the LAN network and PoE power supply. It is designed to work with any network devices, IP cameras and other devices powered by the PoE 802.3 at/af/bt standard.
ensure compatibility with the IEEE 802.3 at/af/bt90 standards as PoE power receivers and IEEE 802.3 at/af/bt60 on all output ports. After connecting the device to ports 2-5, the receiver is identified and if it is a powered device with PoE, power will be turned on in the port.

All ports provide a throughput of 1Gbps, which is important for connections in a bus topology.

TECHNICAL DATA

• Total number of ports: 1 PoE IN port, 4 PoE OUT ports
• PoE IN port: LAN 1 PoE 802.3af/at/bt90, PoE Passive
• PoE OUT ports: LAN 2 ... LAN 5 PoE 802.3af/at/bt60
• 1000Mbps LAN ports: LAN 1 ... LAN 5
• LAN ports + PoE OUT 1000Mbps: LAN 2 ... LAN 5
• Input voltage: 44 ... 58 V
• PoE output voltage: Vout = Vin
• Power consumption: 0.3 W
• Output power control: Autonegotiation
• Surge protection: LAN 1 ... LAN 5
• Overload protection: LAN 2 ... LAN 5 Overcurrent protection 1.4 A
• Power indication: LED PWR - power supply
• PoE signaling: LAN 2 ... LAN 5 (yellow) - presence of PoE power
• Transmission signaling: LAN 1 ... LAN 5 (green) - link and data transmission
• Housing structure: Mounting base
• Assembly: Mounting pins
• Protection rating: IP20
• Operating temperature range: -25°C...+65°C

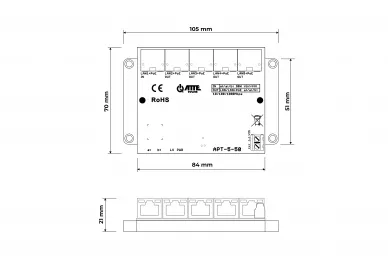

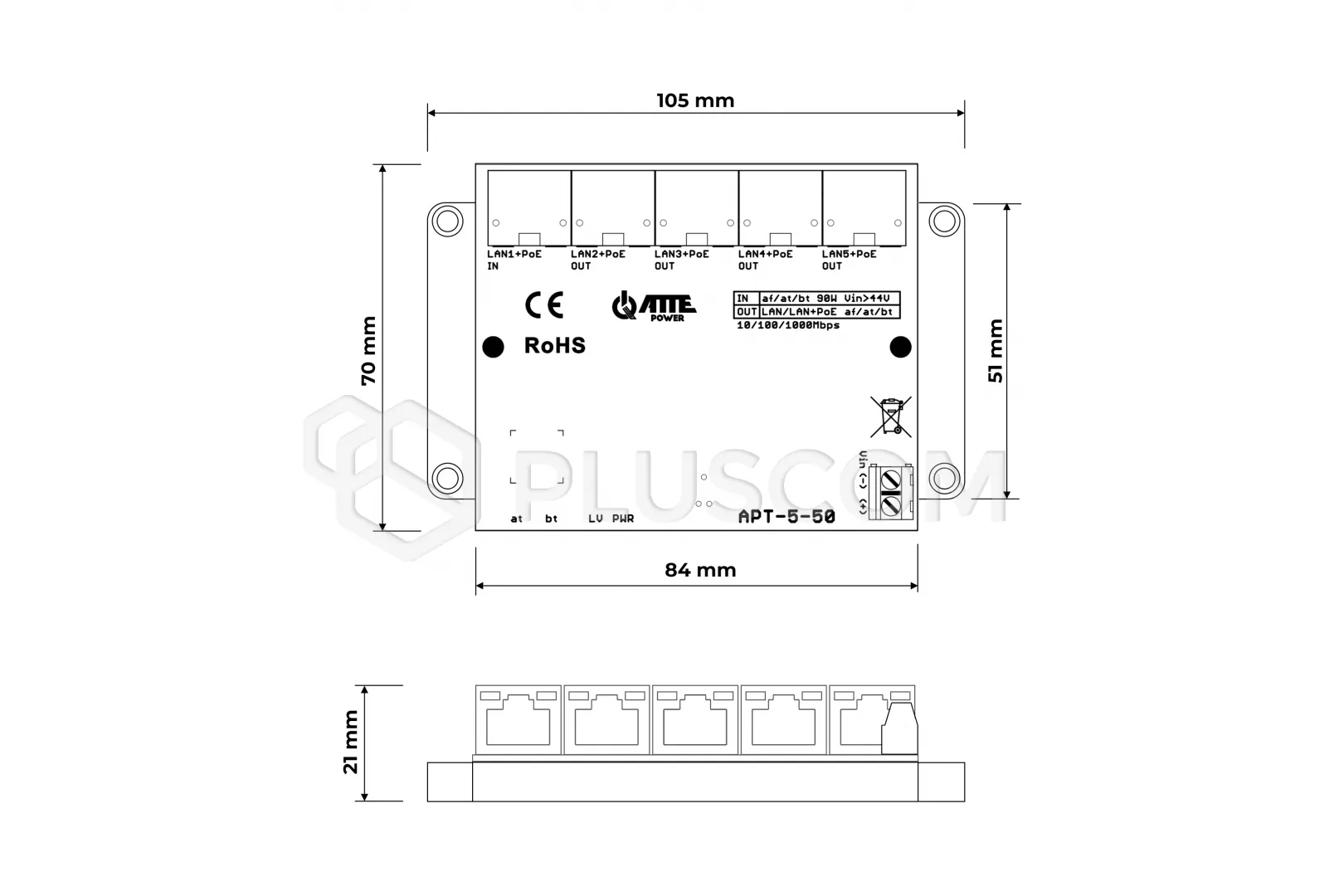

• Dimensions: 84 (105) x 70 x 21 mm
• Weight: 0.08 kg
