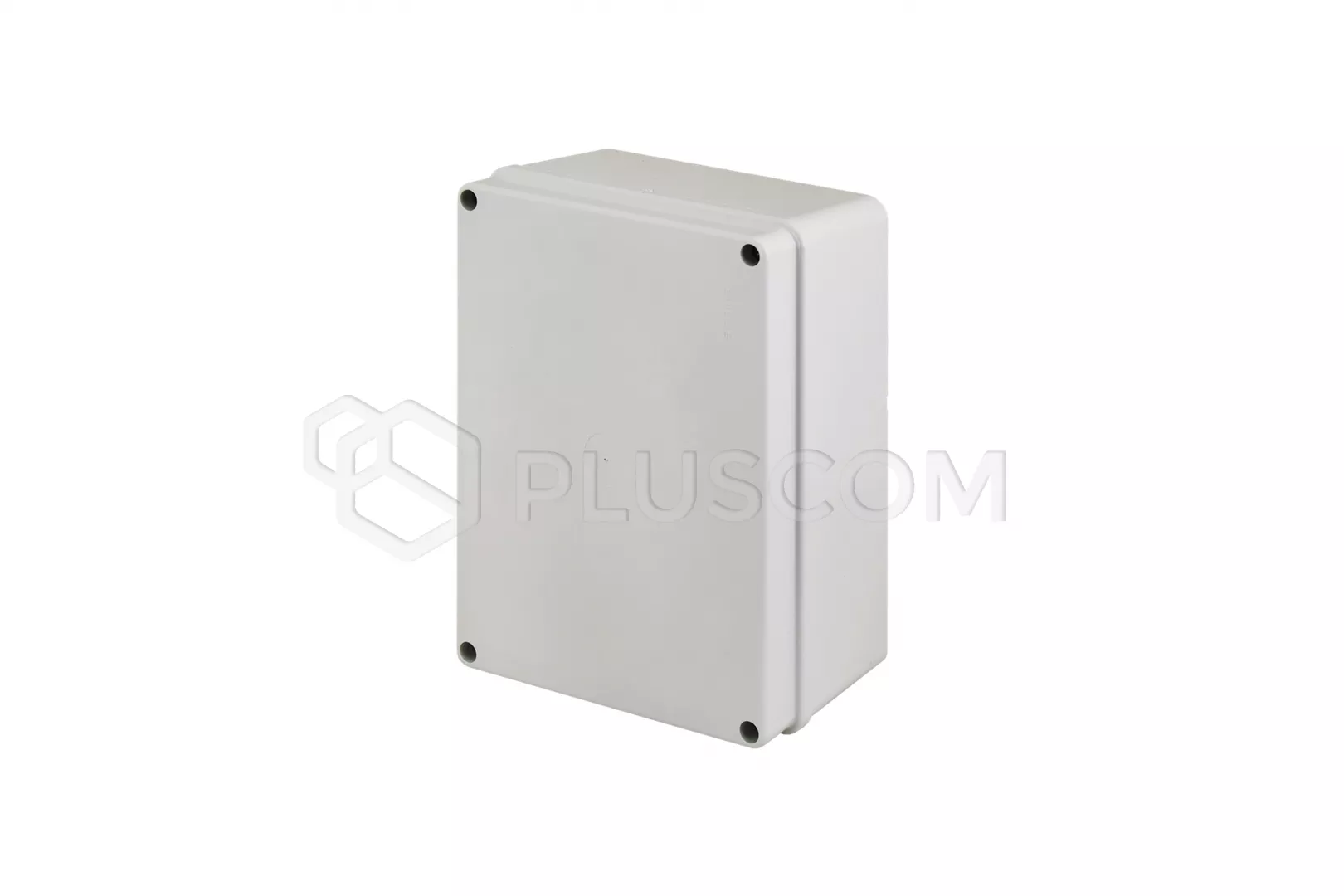

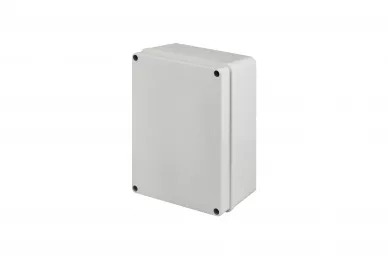

Extender Pulsar EXT-POE4H in hermetic enclosure

55,73 EUR including 23.00% VAT
Product code: #18253
Manufacturer: Pulsar
  • Increases range by 100 meters
  • Ports: PoE IN 1x, PoE OUT 2x
  • Input voltage: DC 44-57V (802.3af/at)
  • LED optical signalization
  • power source Extendera: PoE IN or an internal power supply
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pole mount bracket OZB1 Extender Pulsar EXT-POE3H in hermetic enclosure Extender Pulsar EXT-POE2H in hermetic enclosure

Extender Pulsar EXT-POE4H in hermetic enclosure

The EXT-POE3H extender is a device designed to increase the PoE and Ethernet range by additional 100
meters using UTP Cat. 5/5e cable.

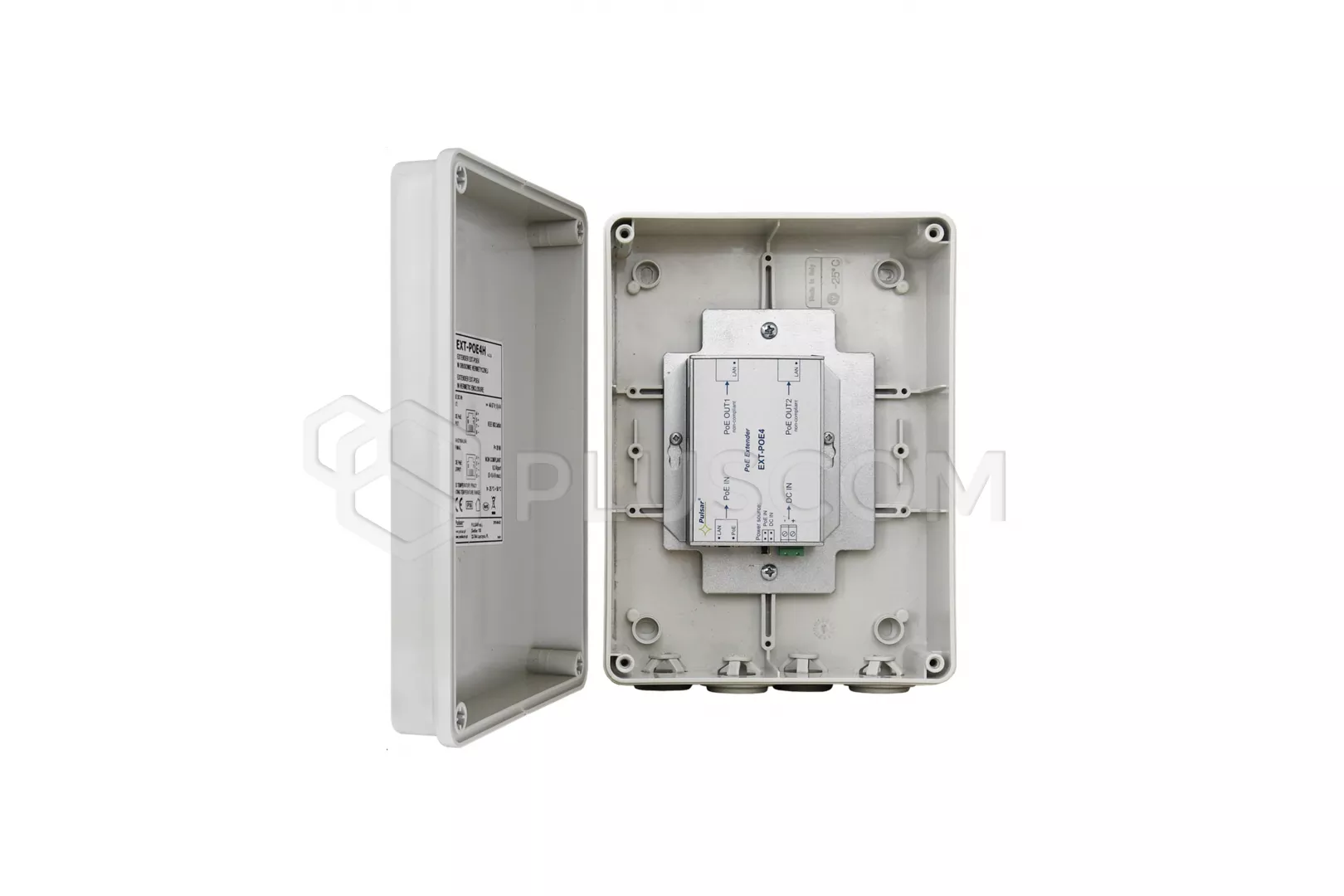

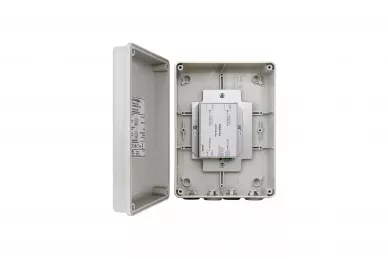

Extender Pulsar EXT-POE4H in hermetic enclosure

Extender Pulsar EXT-POE4H in hermetic enclosure


The Extender can be powered using a PoE switch or another PoE-compliant device (PoE IN input). The output voltage and data are available at the PoE OUT1 and OUT2 outputs designed for connecting cameras or other IP devices using PoE power supply. The maximum load current is 0,3A. The PoE OUT1, PoE OUT2, PoE OUT3 port are supplied over 4/5 (+) and 7/8 (-) pairs, which, according to the Ethernet standard, are not used for data transmission (data transmission uses 1/2 and 3/6 twisted pairs).

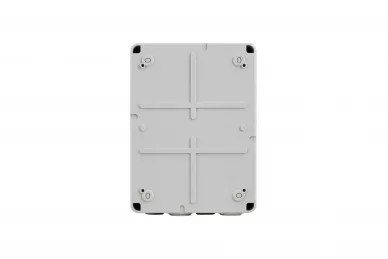

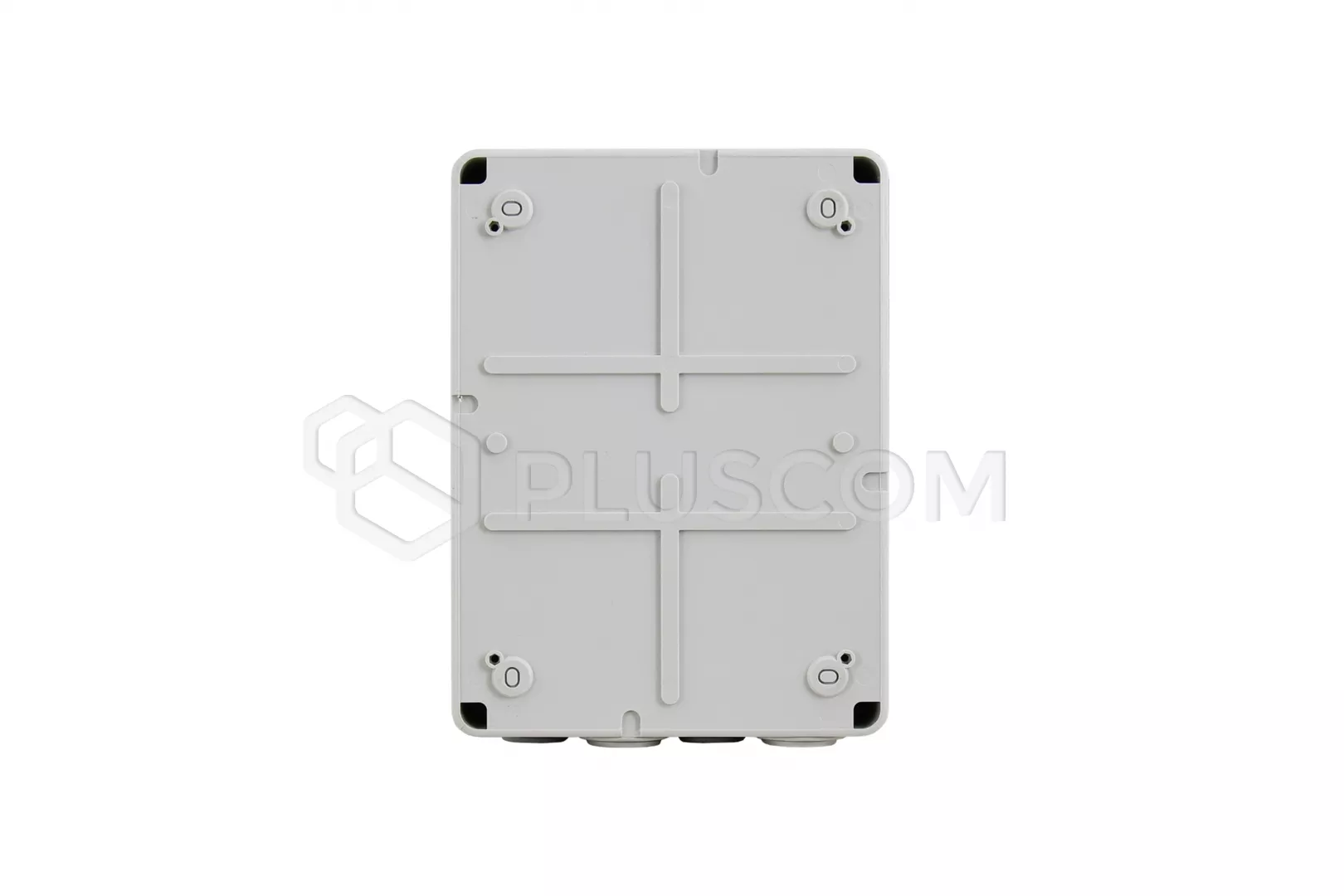

Back view:

Back view:

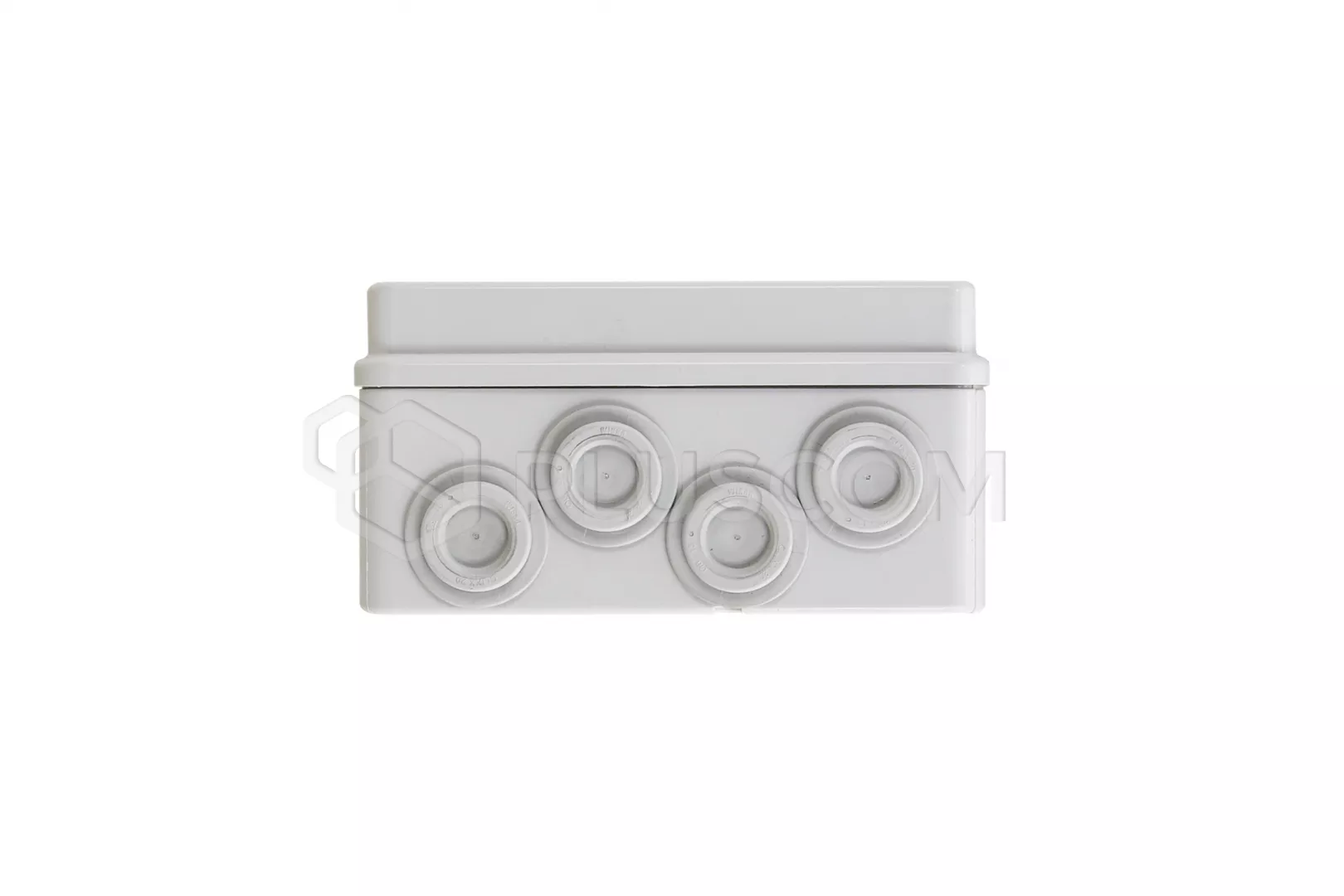

Bottom view of the housing:

Bottom view of the housing:

FEATURES:

  • Application: increases Ethernet range by 100 meters
  • PoE input: PoE IN - compliant with IEEE802.3af/at
  • PoE output: PoE OUT1, PoE OUT2  not compliant with the IEEE802.3af
  • Output current PoE OUT:  0,3A/port (Ʃ0,4A max.)
  • Protections: OLP, SCP*
  • Dimensions: 198x148x78 +/- 2mm
  • Installation: mounting screws
  • Notes: designed for 10Mbit/s and 100Mbit/s network
Download
Datasheet 1.46 MB
Declaration CE 0.32 MB
Instruction 0.6 MB
