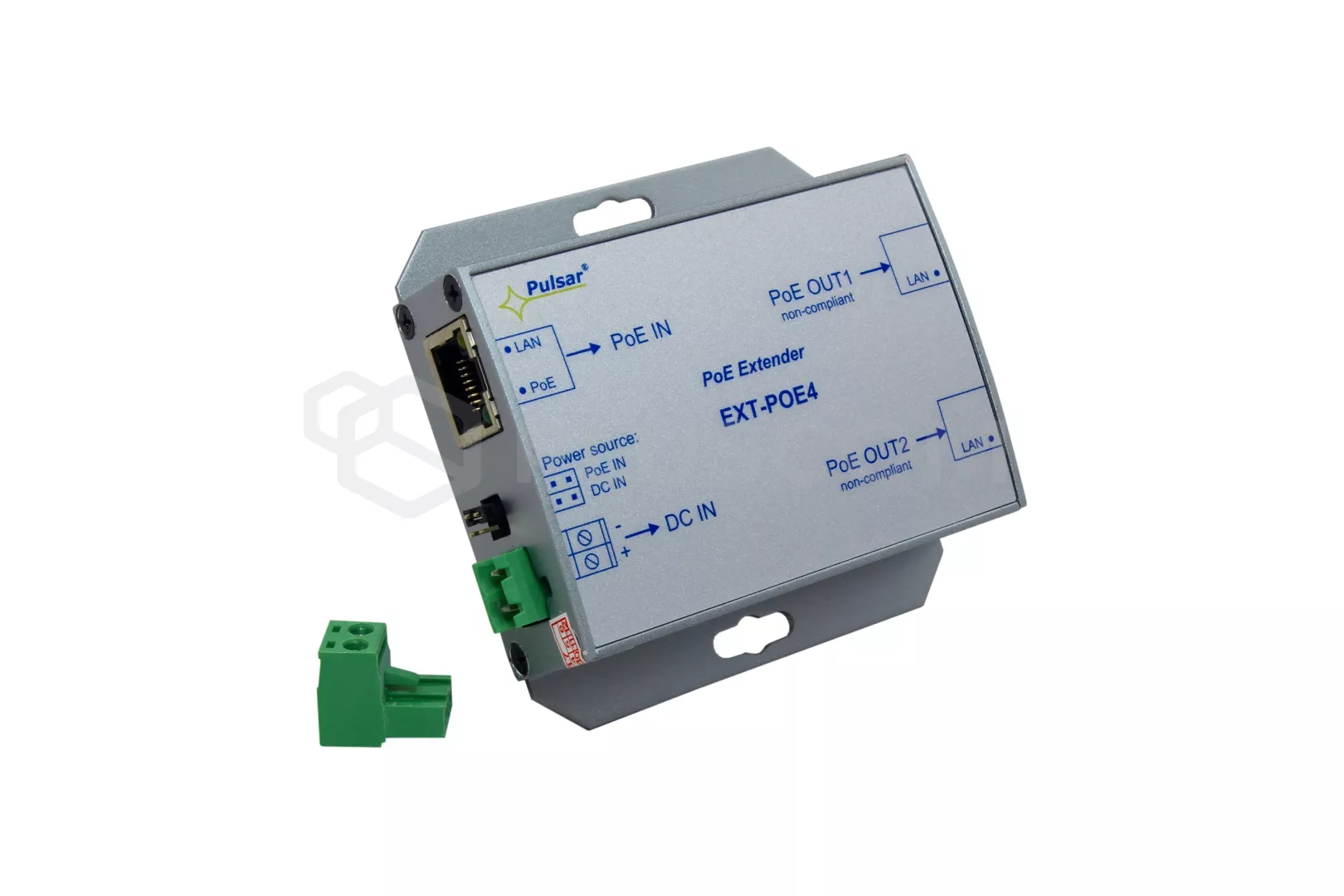

Extender Pulsar EXT-POE4 LAN repeater and PoE power supply

34,87 EUR including 23.00% VAT
Product code: #15311
Manufacturer: Pulsar
  • Increases range by 100 meters
  • Ports: PoE IN 1x, PoE OUT 2x
  • Input voltage compatible with the power supply voltage
  • LED optical signalization
  • power source Extendera: PoE IN, DC IN

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Extender Pulsar EXT-POE2 LAN repeater and PoE power supply Extender Pulsar EXT-POE3

Extender EXT-POE4
  •  Application: increases Ethernet and PoE power range by 100 meters
  •  Power input: 44÷57VDC
  •  PoE input: PoE IN - compliant with IEEE802.3af/at
  •  PoE output: PoE OUT1 / PoE OUT2 - not compliant with IEEE802.3af
  •  Output current PoE OUT: 0,3A/port (Ʃ0,4A max.)
  •  Protections: OLP, SCP*
  •  Dimensions: L=81 W=77 H=26 [+/- 2mm]
  •  Installation: mounting screws
  •  Notes: designed for 10Mbit/s and 100Mbit/s network

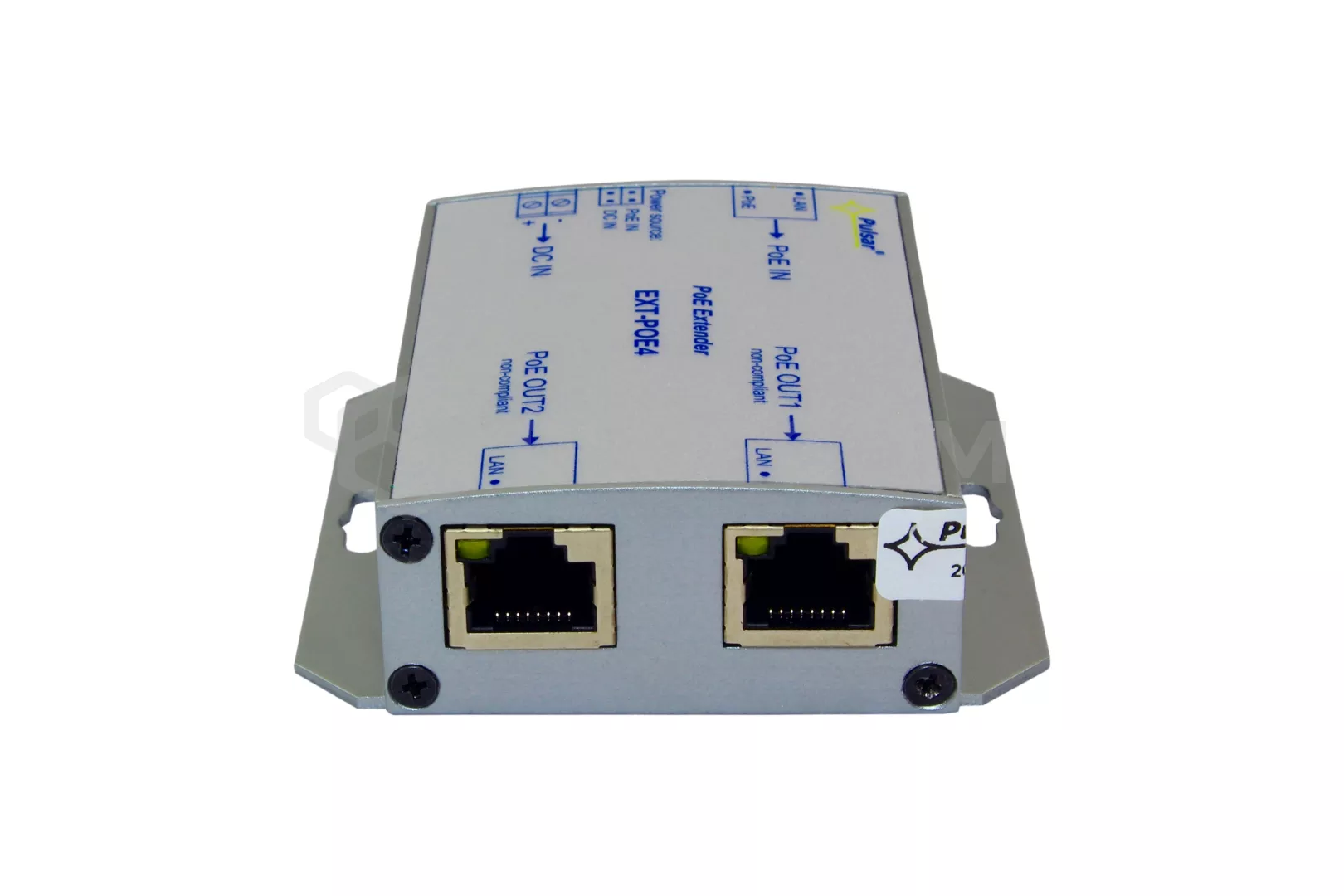

PoE output ports:

PoE output ports:

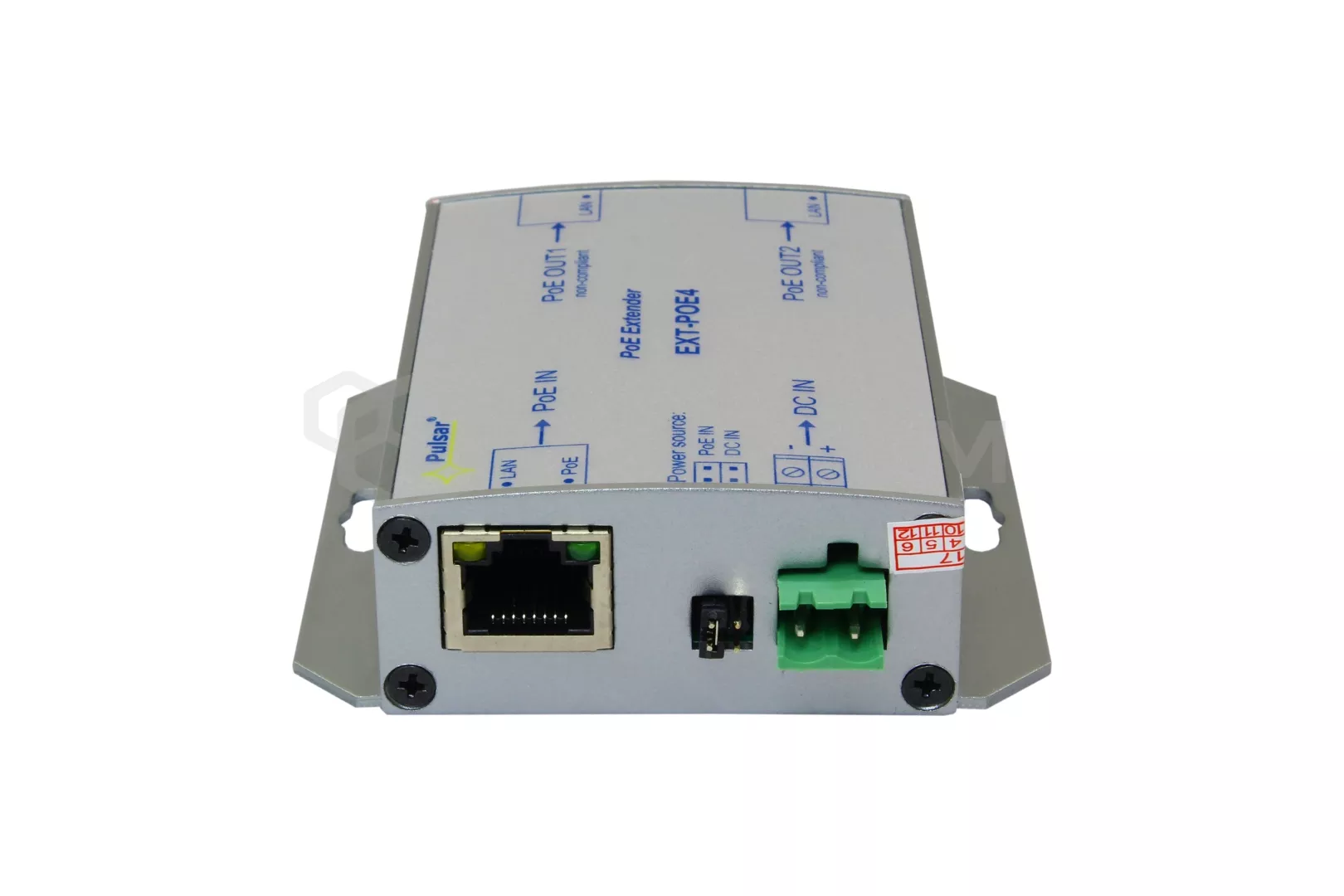

PoE input port, power selection jumper, DC input:

PoE input port, power selection jumper, DC input:


Download
Data sheet 0.25 MB
Instruction 0.68 MB
