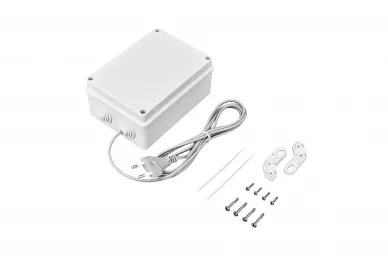

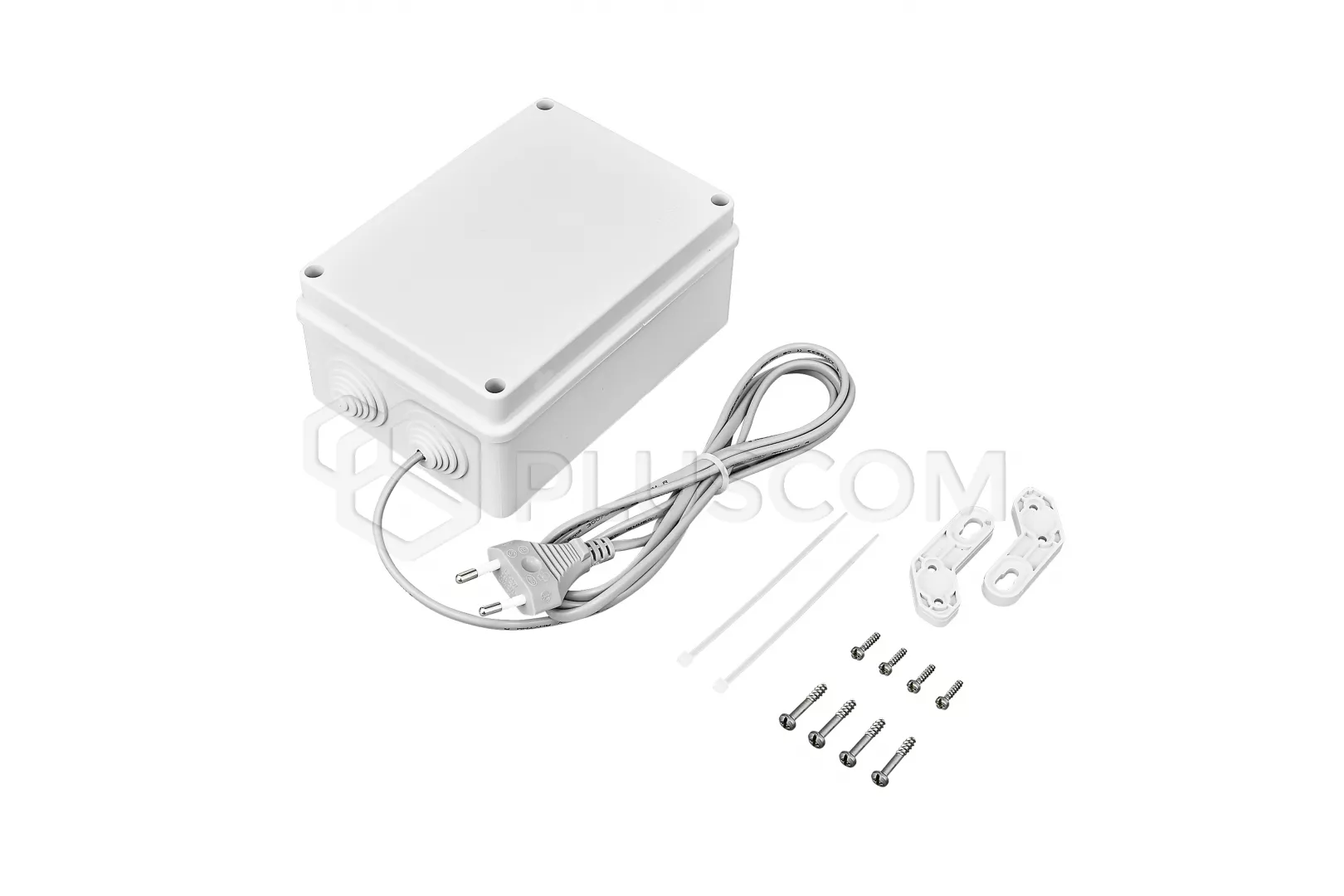

BCS-IP5/E-S Switch passive PoE for 5 IP cameras

99,02 EUR including 23.00% VAT
Product code: #22134
Manufacturer: BCS
  • Number of ports: 5x PoE + 1x Uplink
  • Supply voltage: 190-260 VAC, 50 Hz
  • Output voltage: 48V
  • Up to 36W of power on PoE ports
  • Hermetic enclosure IP55
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BCS-IP5/E-S Switch passive PoE for 5 IP cameras


Professional PoE switch to power 5 IP cameras and other devices powered by 48V. It is designed independently for each channel polymer fuse (auto repeat) and we have the ability to turn off the power on selected PoE port.
We can deliver up to 36W mats for each PoE port.

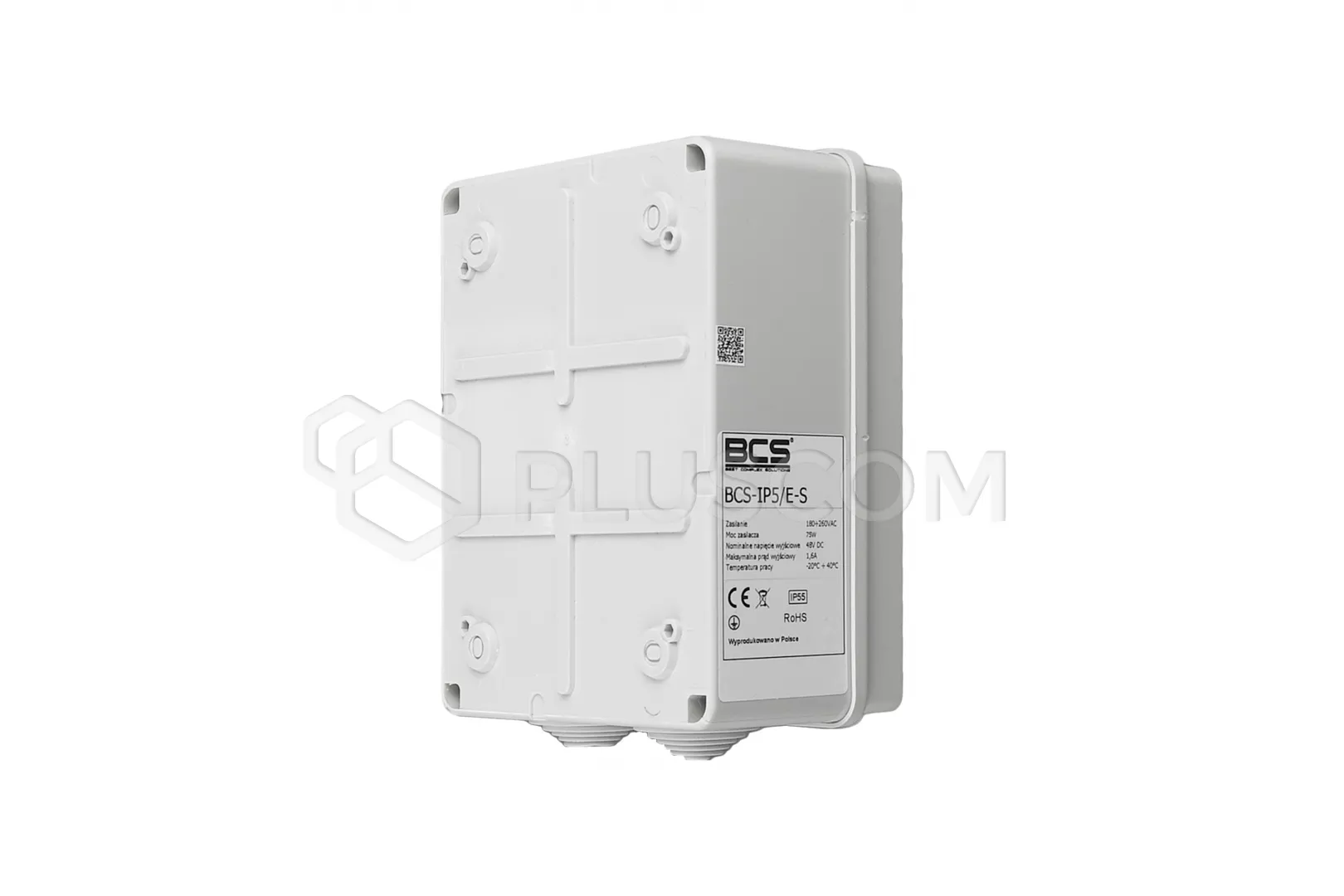

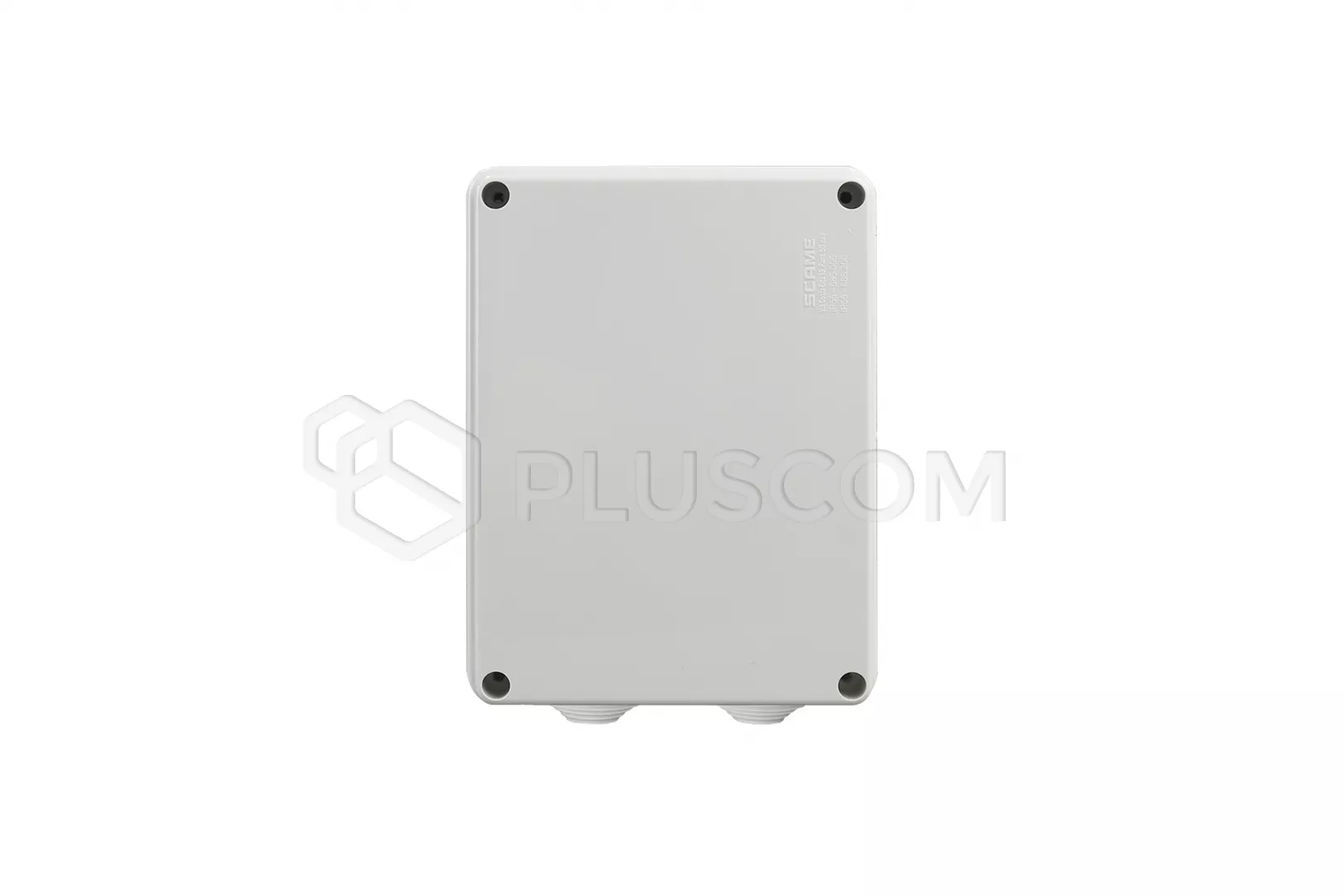

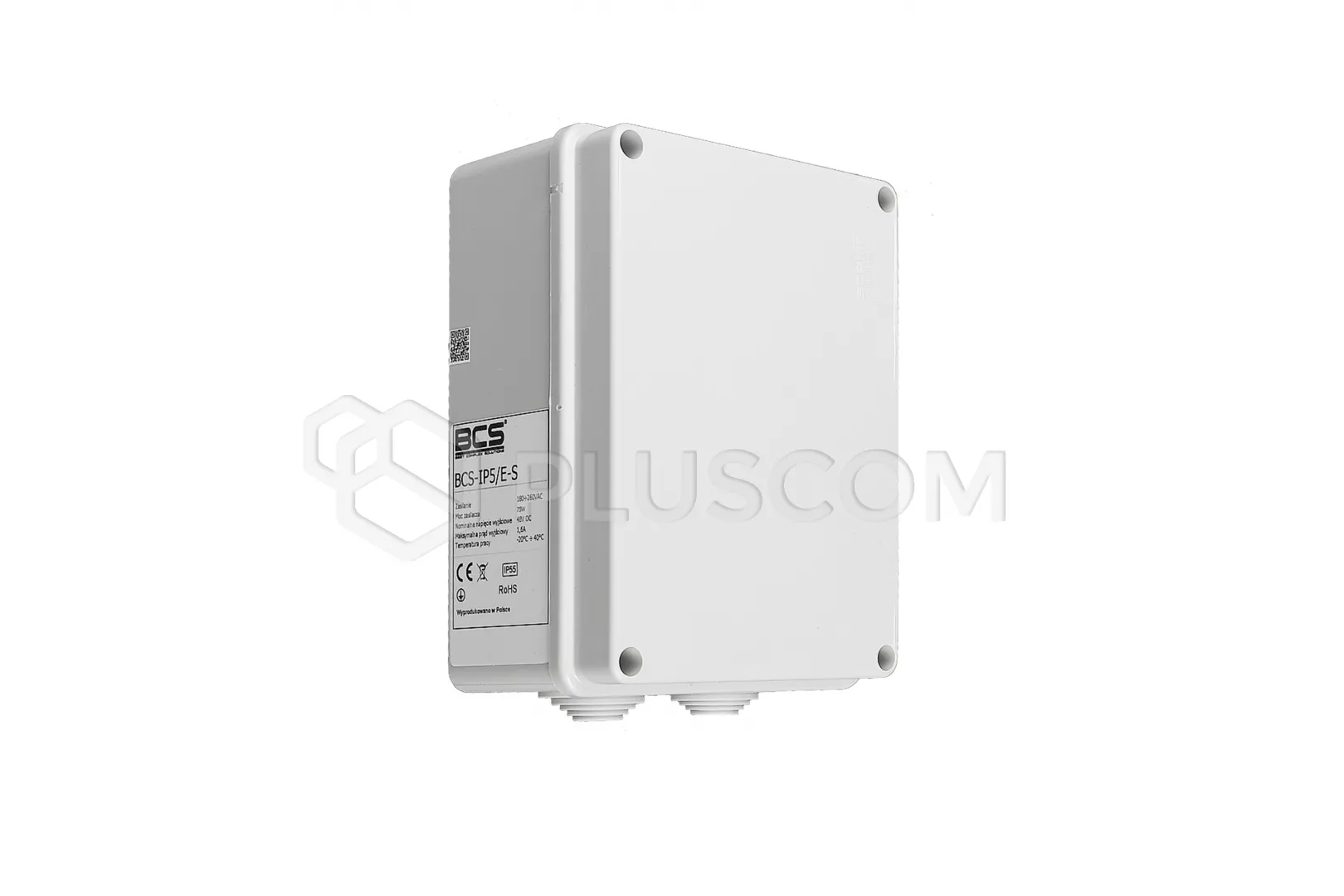

BCS-IP5 / E-S is placed in an external casing with IP55 tightness class. It provides high protection of devices inside it. It protects both against UV radiation and other weather conditions. Behind due to the high efficiency power supply (about 90%), the housing shows low heating inside the housing.

Characteristic:
  • possibility of power supply 5 802.3at PoE receiver / af PoE PASSIVE
  • up to 70W of power on the LAN_5 PoE IN / OUT port
  • up to 40W of power on other PoE ports
  • possibility to turn off the power on selected PoE ports
  • independent electronic fuses for each PoE channel (auto back)
  • powered by connection (Vin) or from another PoE PASSIVE switch (PoE IN / OUT port)
  • possibility of cascading power supply - one xPoE supplies the next (PoE IN / OUT port)
  • easy and quick commissioning without the need to configure parameters
  • very low power consumption (<1.5W)
  • small size of the module
TECHNICAL DATA:

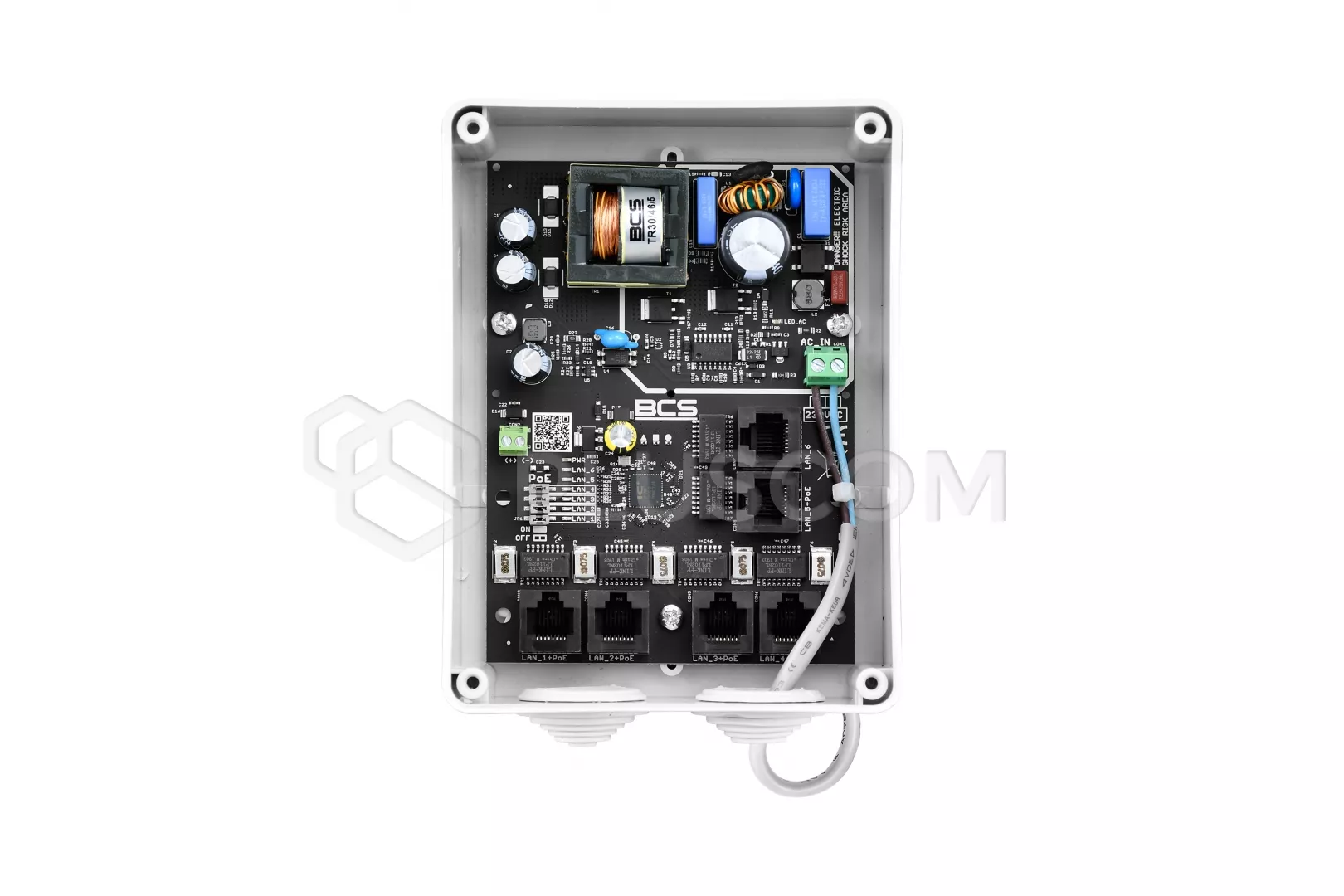

  • LAN ports: 6 RJ45 ports: 5 x PoE 10 / 100Mbps 1 x UpLink
  • functions of LAN 1 ... LAN 5 ports: PoE OUTPUT - for PoE PASSIVE receivers (up to 36W) and 802.3af (up to 15.4W), 802.3at (up to 30W)
  • output voltage: 48V +/- 2%, PoE supply voltage available on the connector screw CON2
  • efficiency: 91%
  • power: 75 W
  • supply voltage: 190 ~ 260 VAC, 50 Hz
  • PSU protection:
    • short circuit protection 9A (restart may be required after short circuit adapter)
    • 130 ° C thermal protection (requires restart)
    • PoE output short-circuit protection 0.75A (requires restart power supply)
  • port power control
    • PoE ON ​​/ OFF switch - positions 1 ... 4 (LAN 1 ... LAN 4)
    • PoE OFF on port - switch in OFF position
    • PoE ENABLED on the port - switch set to ON
  • housing material: plastic, color gray (RAL7035)
  • rubber plugs: 2 x 29 mm
  • assembly: wall, mounting brackets
  • protection class: IP55
  • working temperature: -25 ... + 50 ° C
  • dimensions: 160 x 110 x 70 mm
  • weight: 0.43kg
Download
Datasheet 0.47 MB
