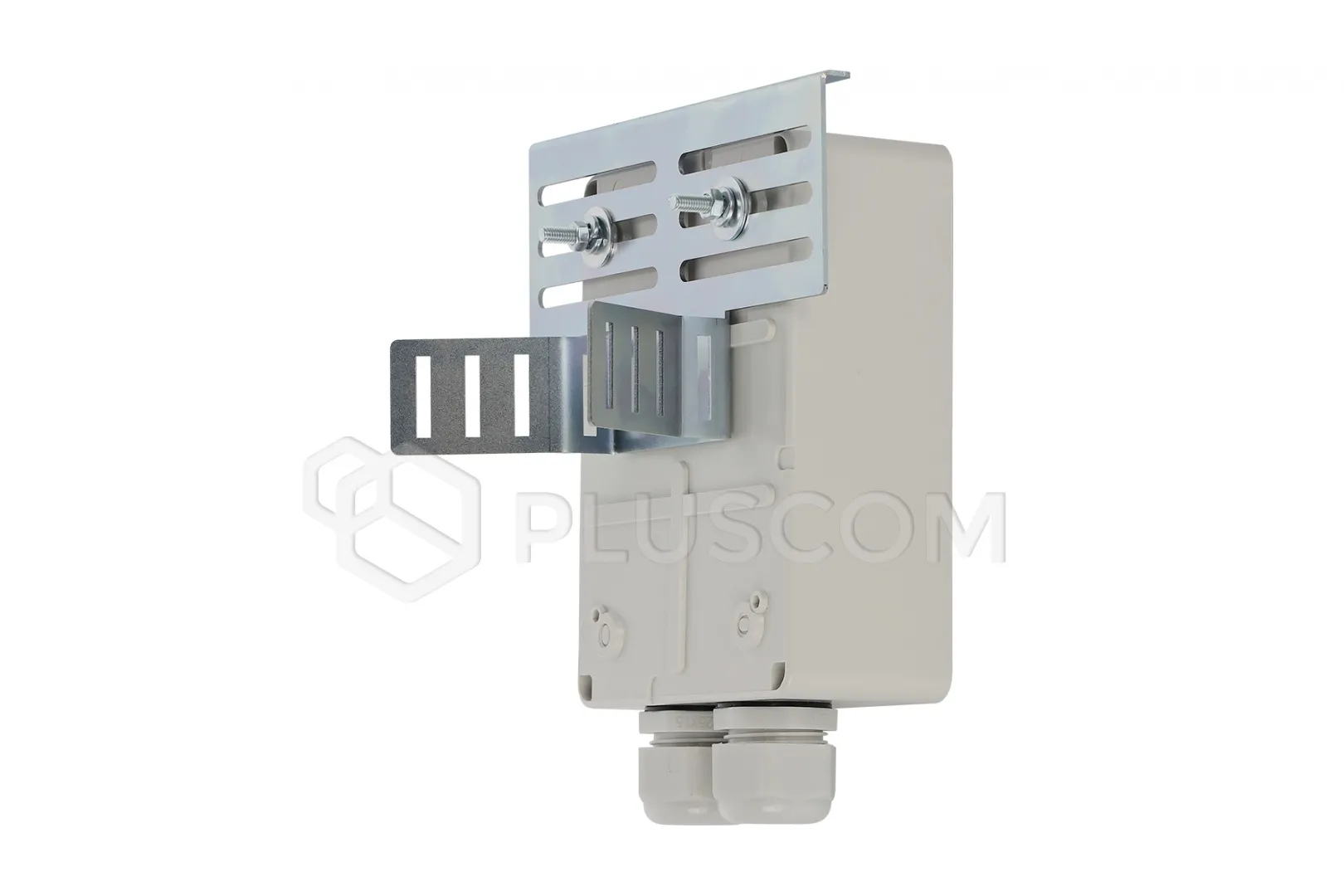

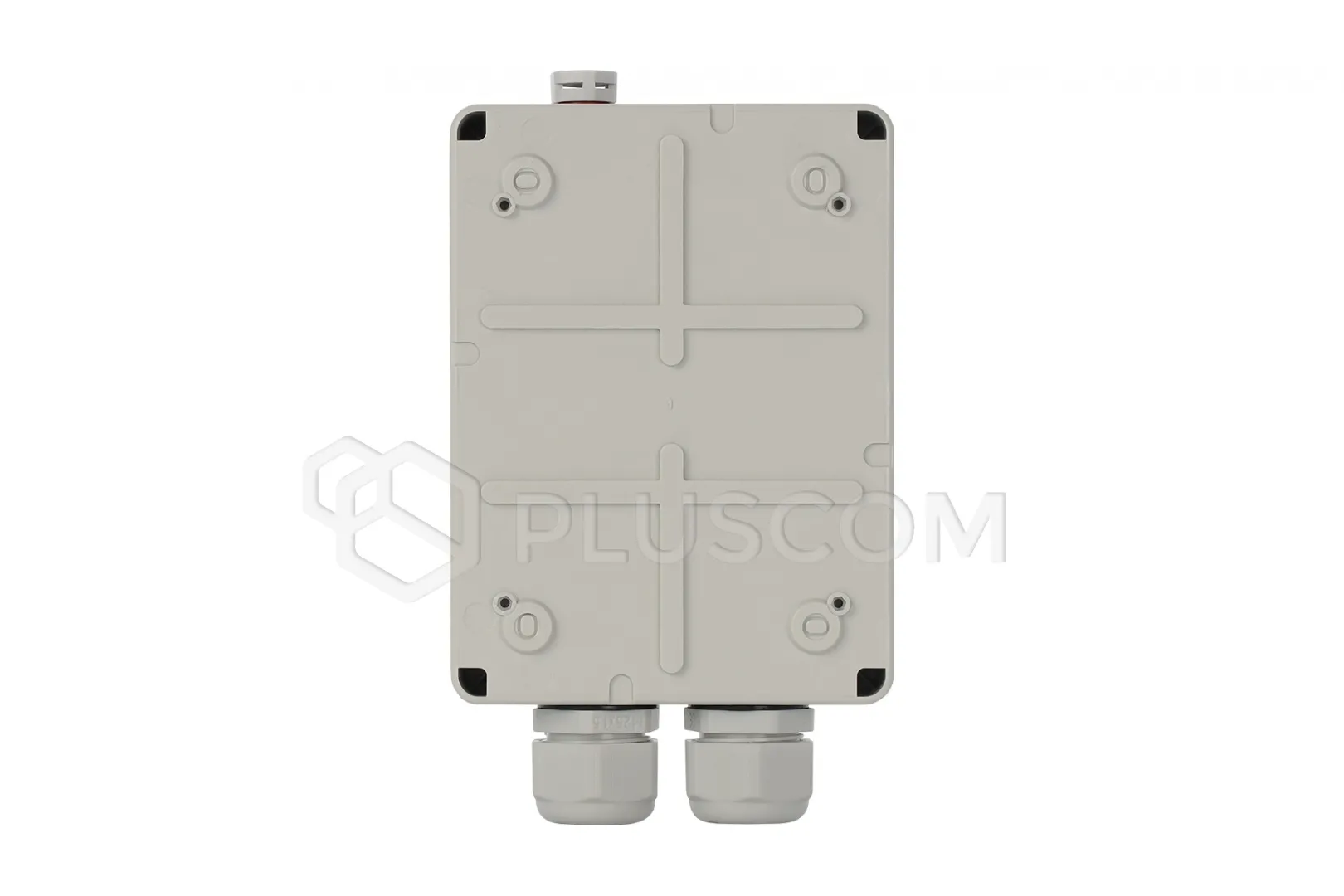

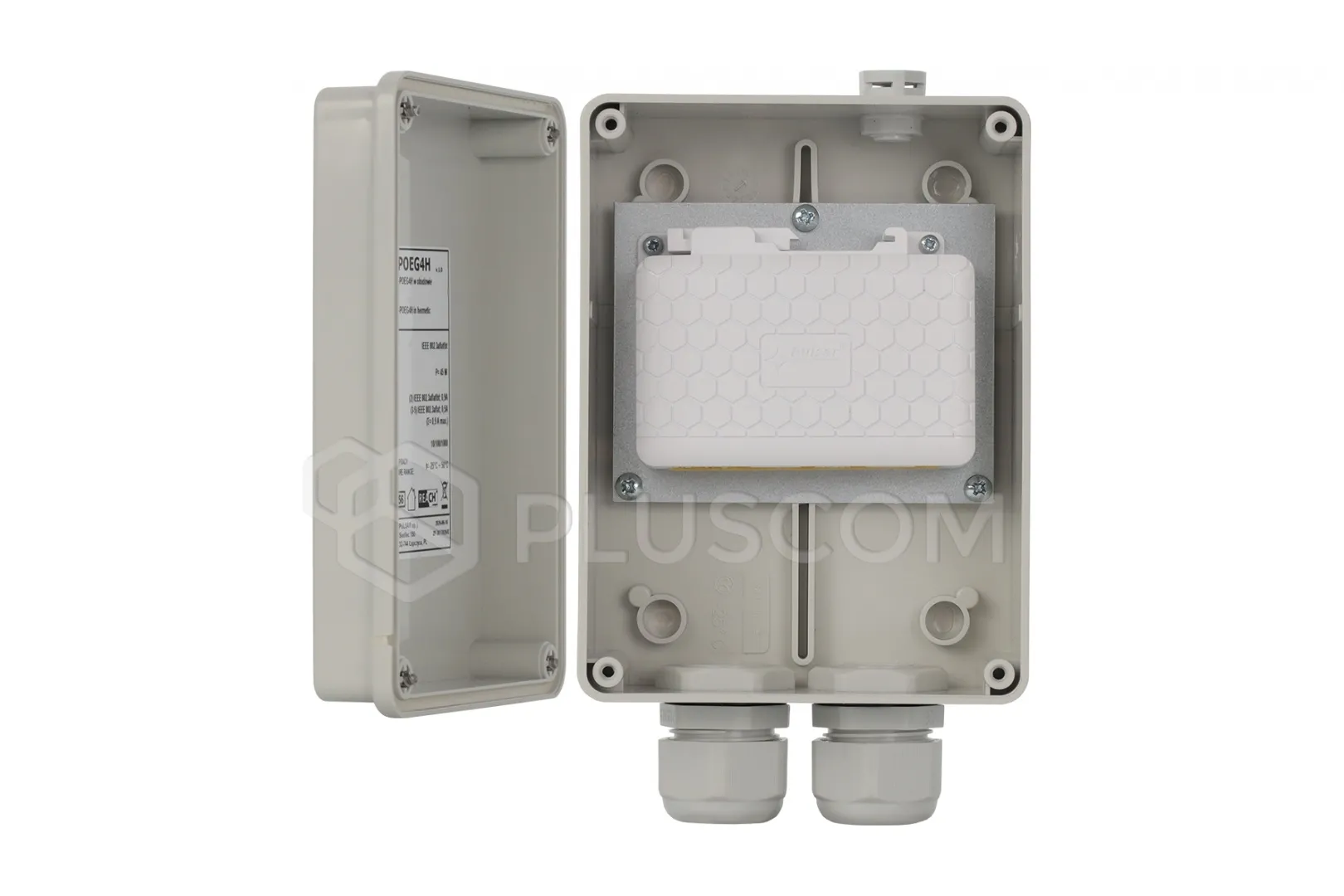

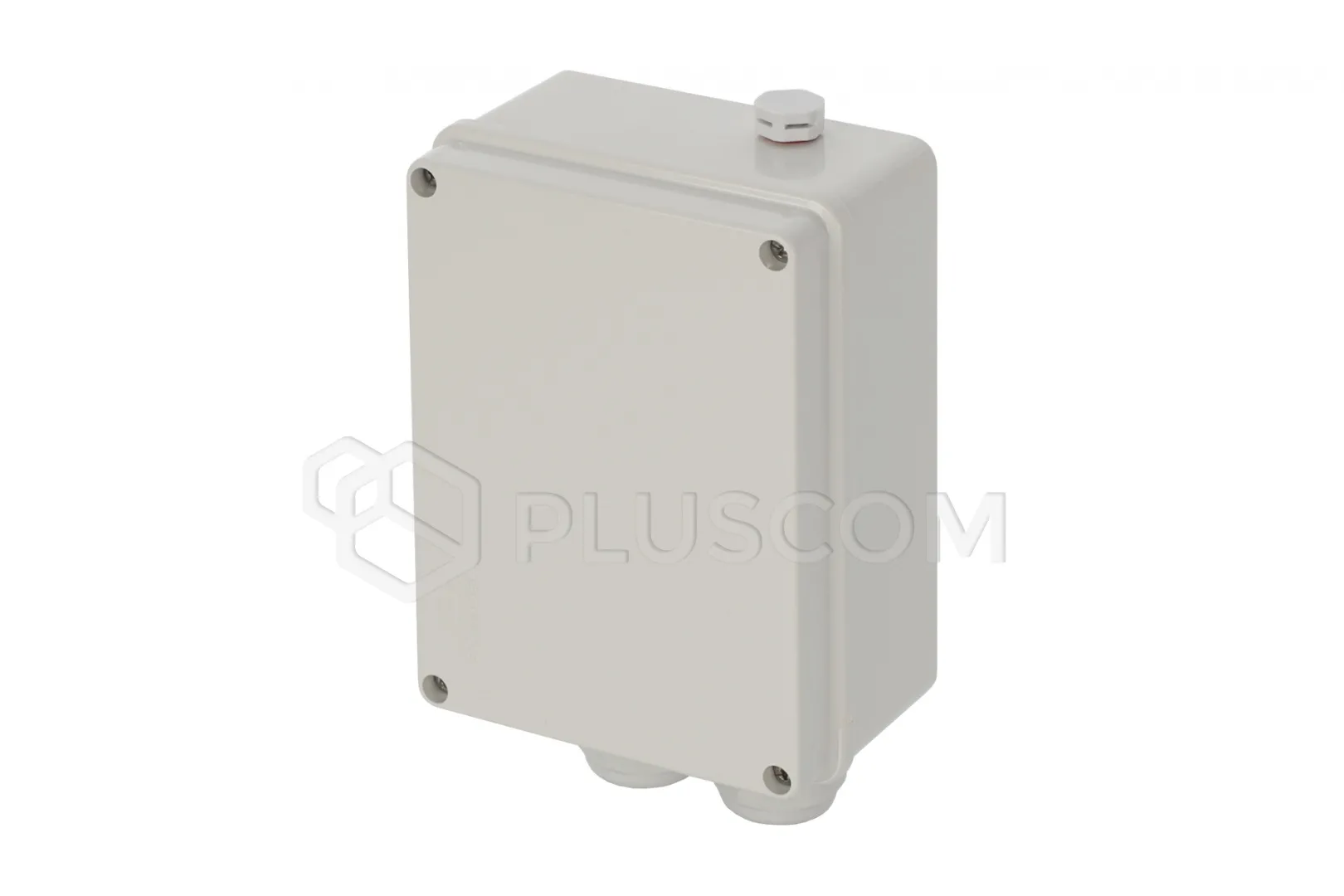

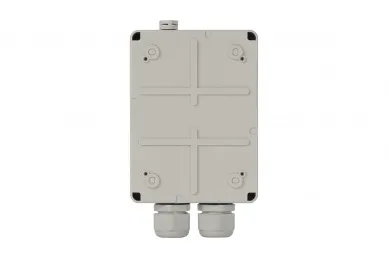

Pulsar EXT-POEG4H Extender EXT-POEG4H in hermetic enclosure

57,45 EUR including 23.00% VAT
Product code: #45043
Manufacturer: Pulsar
  • Destination: Increases Ethernet and PoE power range by 100 meters. Allows connection of four PoE…
  • Power supply: 48 - 57 V DC; power supply from PoE switch
  • Dimensions: 158 x 118 x 77 [+/-2 mm]
  • Glands: 2 x Φ=13÷18mm
  • Operating conditions: -25°C ÷ 50°C
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,46 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar EXT-POEG4H Extender EXT-POEG4H in hermetic enclosure

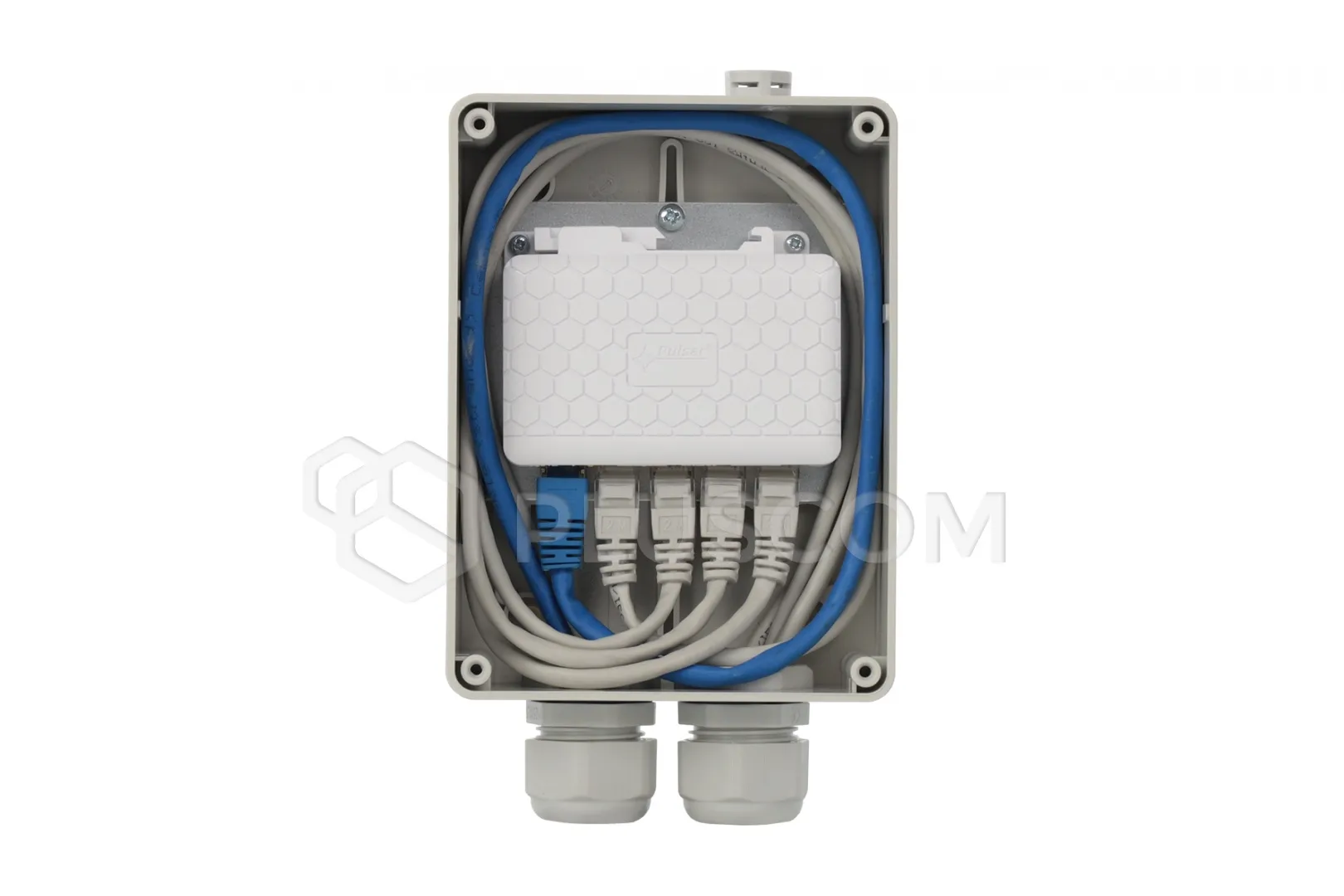

Increases Ethernet and PoE power range by 100 meters. Allows connection of four PoE IP cameras using one cable

TECHNICAL DATA:

  • Power supply: 48 - 57 V DC; power supply from PoE switch

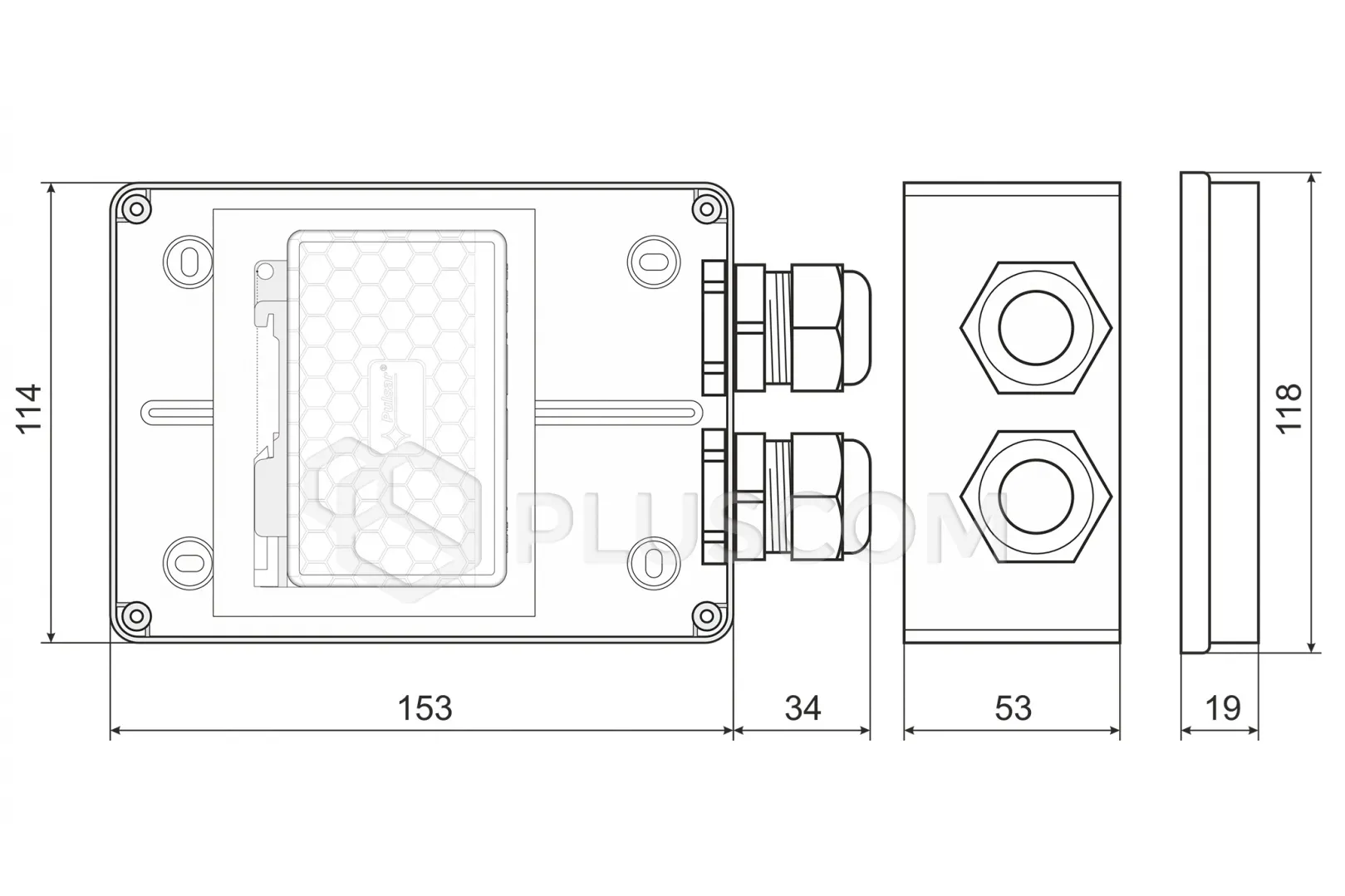

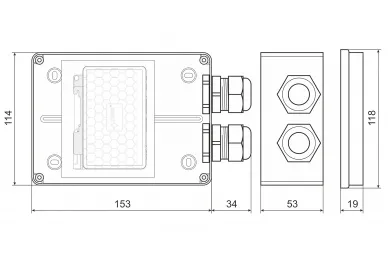

  • Dimensions: 158 x 118 x 77 [+/-2 mm]
  • Glands: 2 x Φ=13÷18mm
  • Operating conditions: -25°C ÷ 50°C
  • Protections: OLP, SCP
  • PoE input: PoE IN: IEEE 802.3af/at/bt
  • PoE output: PoE OUT2: IEEE 802.3af/at/bt; PoE OUT3: IEEE 802.3af/at; PoE OUT4: IEEE 802.3af/at; PoE OUT5: IEEE 802.3af/at; VLAN mode switch
  • Total output power: 45W
  • Protection grade EN60529: IP 56
  • Warranty: 2 years
  • Notes:
    • designed for use in 10/100/1000 Mb/s networks
    • possibility of pole mounting (requires USH-1 adapter -optional accessory)
