Atte APT-3-50 PoE Switch 3 ports

65,97 EUR including 19.00% VAT
Product code: #27285
Manufacturer: Atte
  • Cooperation with any devices powered by the PoE 802.3 at/af standard
  • Number of PoE ports: 1x
  • Input voltage: 44 - 58 VDC
  • For built-in
  • IP20
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

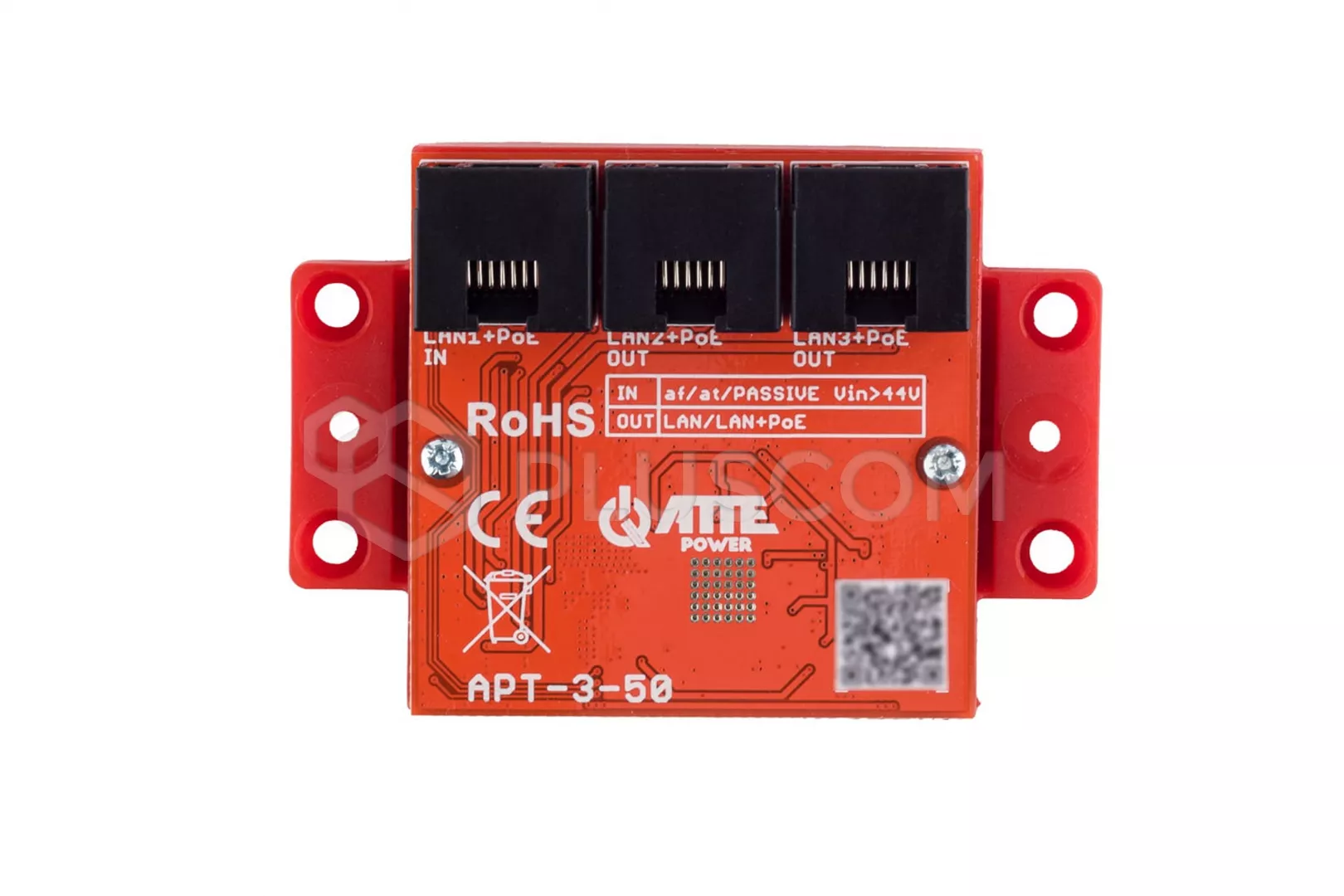

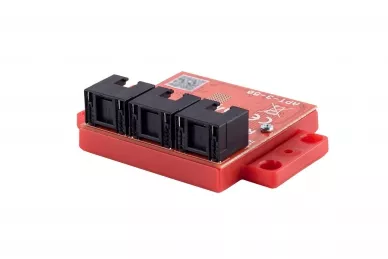

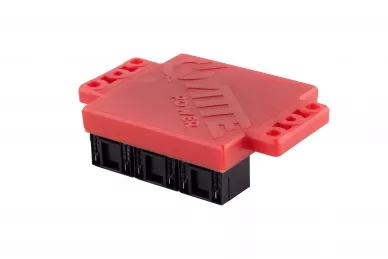

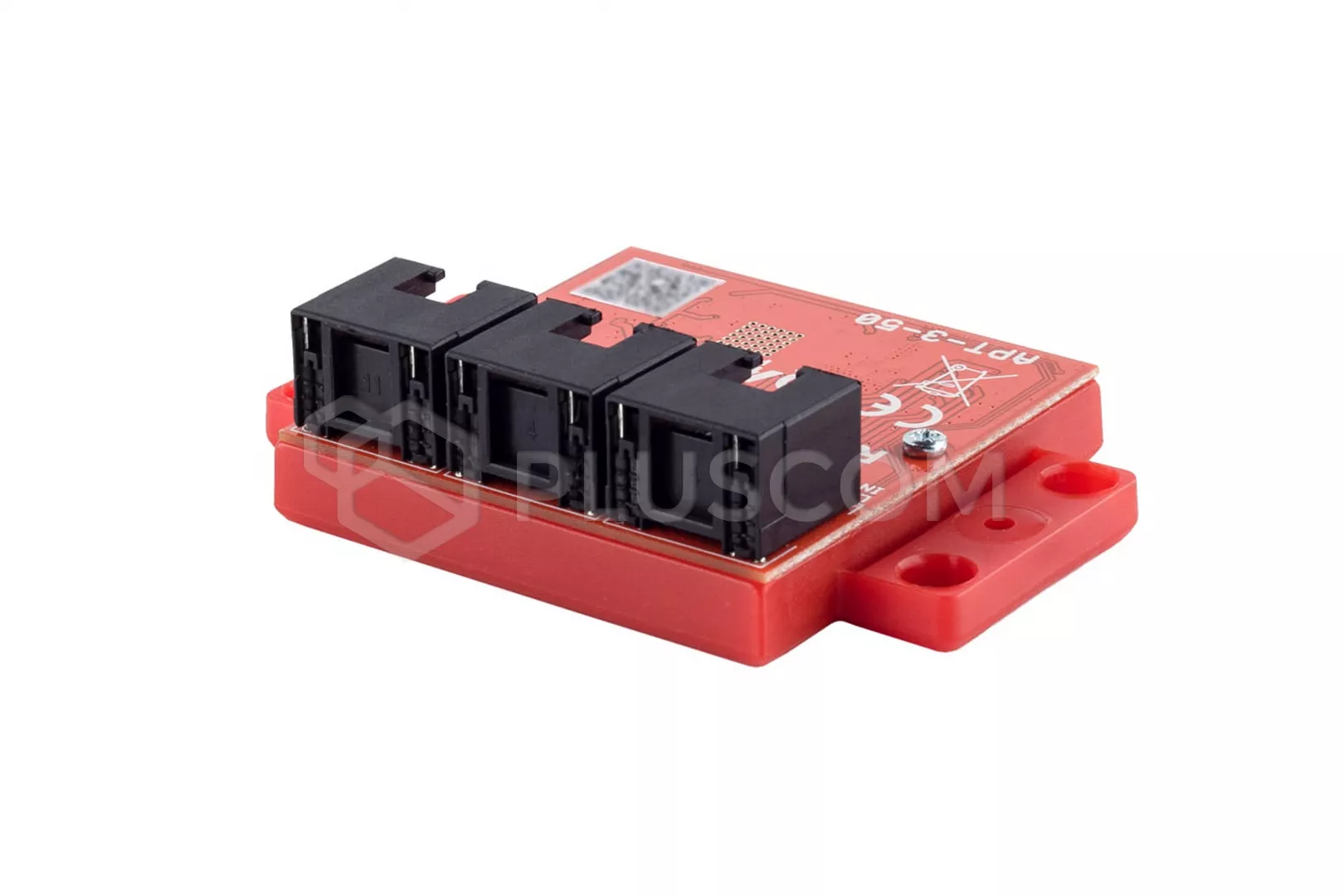

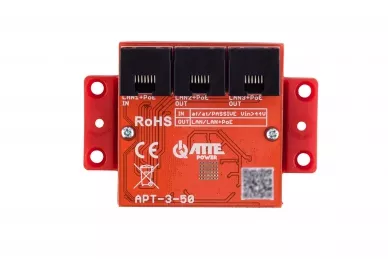

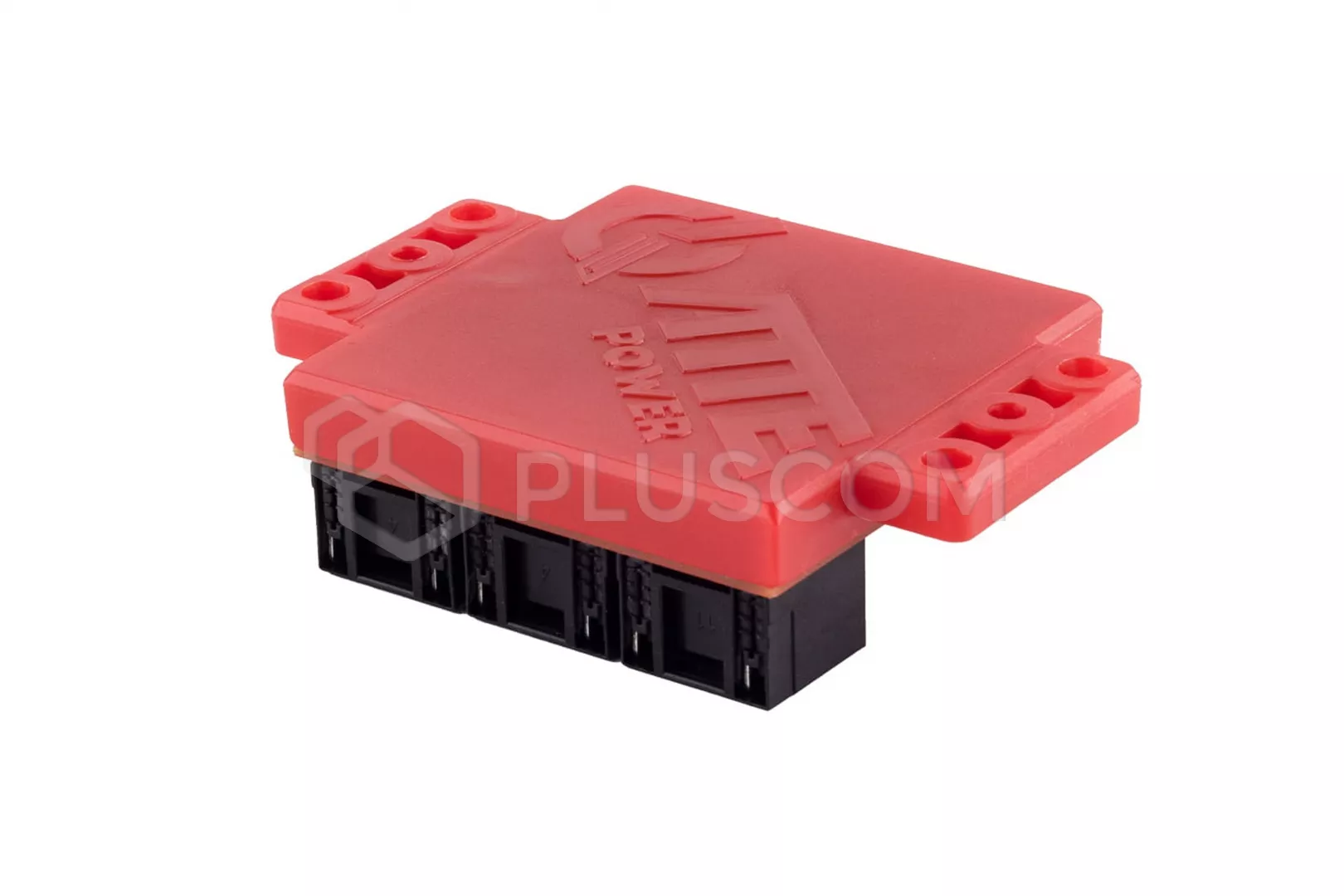

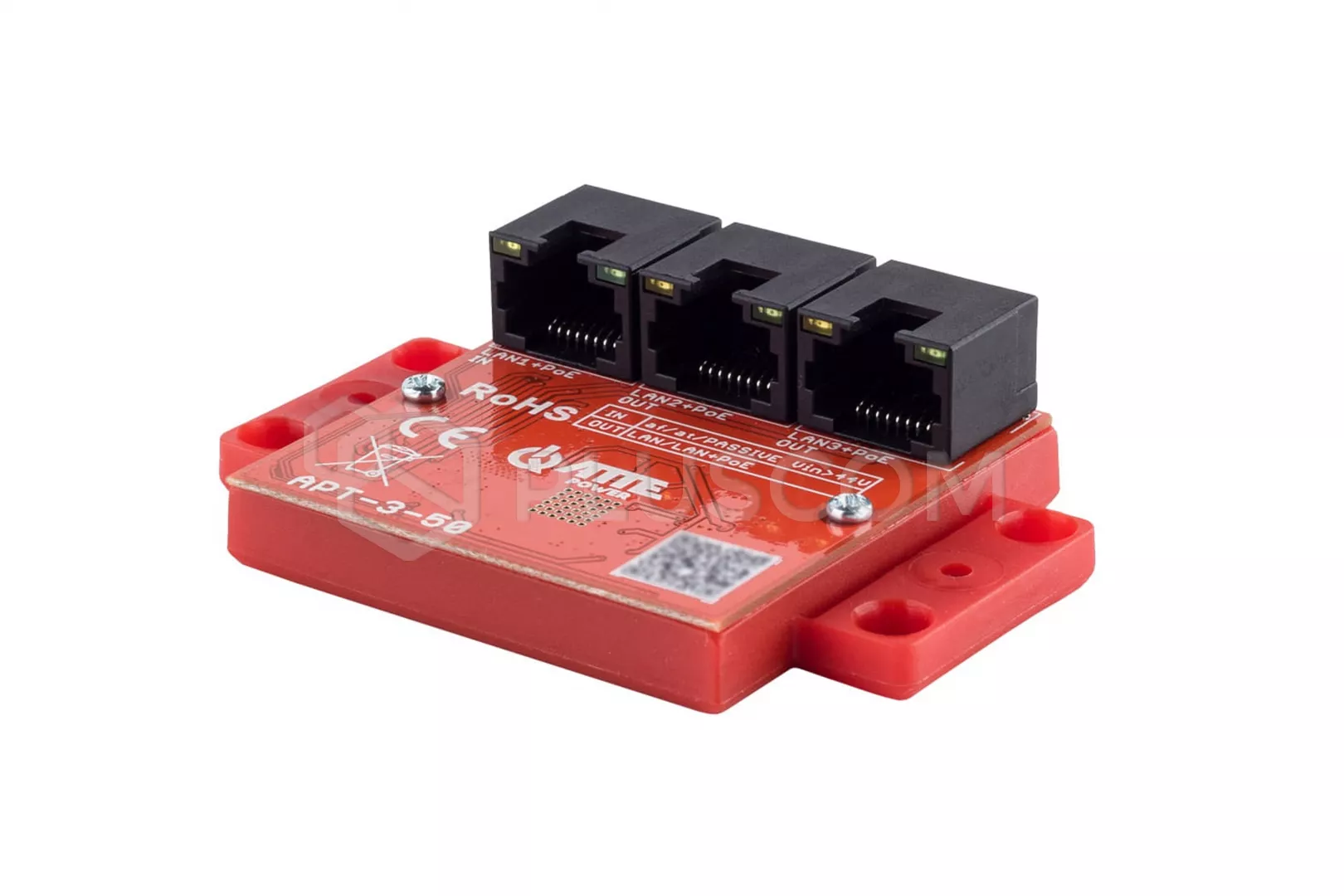

Atte APT-3-50 Switch PoE 3-port 10/100/1000Mbps, extender


APT-3-50 is an unmanaged Gigabit PoE network switch working as an extender (repeater) of the LAN network and PoE power supply. Most often used as an "active splitter" in situations where on one we need to run several network devices (e.g. several IP cameras) using a UTP cable or when an additional network branch is necessary.
It is designed to work with any network devices and cameras IP and others powered in the PoE 802.3 at/af standard.
The device ensures compatibility with the IEEE 802.3.at/af standards both as PoE power receivers as well as on all output ports. After When the device is connected to ports 2-3, the receiver is identified if it is a device powered by PoE, power will be turned on in the port.
All ports provide 1Gbps bandwidth which is important when connecting in a bus topology.

APT-3-50 has a very small size, which allows for easy installation in small spaces, e.g. in the camera base or installation box.
It allows you to connect system elements in a tree topology. APT devices can be powered directly from PoE. Power transmitted over a single UTP cable allows you to power several IP cameras.

TECHNICAL DATA:
  • Total number of ports: 1 PoE IN port, 2 PoE OUT ports
  • PoE IN port: LAN 1 PoE 802.3af/at, PoE Passive
  • PoE OUT ports: LAN 2 ... LAN 3 PoE 802.3af/at
  • 1000Mbps LAN ports: LAN 1 ... LAN 3
  • LAN ports + PoE OUT 1000Mbps: LAN 2 ... LAN 3
  • Input voltage: 44 - 58 V
  • PoE output voltage: Vout = Vin
  • Power consumption: 0.3 W
  • Output power control: Autonegotiation
  • Surge protection: LAN 1 ... LAN 3
  • Overload protection: LAN 2 ... LAN 3 Overcurrent protection 0.7 A
  • Power indication: LAN 1 (yellow) - device power
  • PoE signaling: LAN 2 ... LAN 3 (yellow) - presence of PoE power
  • Transmission signaling: LAN 1 ... LAN 3 (green) - link and data transmission
  • Housing design: universal mounting base
  • Mounting: mounting pins, additional adapters available for TH-35 and RACK rails
  • Operating temperature range: -25°C...+65°C
  • Dimensions: 51 x 51 x 21 mm
  • Weight: 0.026 kg
  • Protection rating: IP20
