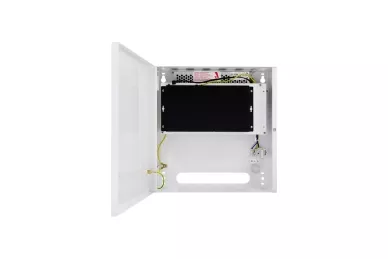

Switch PoE Pulsar S108-C for 8 IP cameras in the enclosure

160,92 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #18281
Manufacturer: Pulsar
  • The number of PoE ports: 8 + 2 UPLINK
  • PoE IEEE 802.3af 52V DC, 30W per port
  • 120W – max. total power for all PoE ports
  • LED indication
  • Metal enclosure
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Pulsar S108-C Switch 8x LAN PoE + 2x UP-LINK for 8 IP cameras in the enclosure

Pulsar S108-C is a 10-port PoE switch  in metal enclosure, designed to power IP cameras. Surface mounted enclosure, locking – bolted x 1 (lock assembly possible) and the enclosure does not adjoin 14mm the mounting surface so that cables can be led.

Switch PoE Pulsar S108-C for 8 IP cameras in the enclosure

Switch PoE Pulsar S108-C for 8 IP cameras in the enclosure


PoE is available on ports 1-8 Ports UPLINK allows you to connect another device or recorder. Using the uplink port can be cascaded switches further increasing the number of connected cameras.

PoE technology allows data transfer and power supply using a single cable. This simplifies installation by eliminating additional power cables and reduces costs. Using PoE switch Pulsar company can install a camera where there is no possibility of connecting them to the power supply

Switch PoE Pulsar S108-C

Switch PoE Pulsar S108-C

Switch PoE Pulsar S108-C

Switch PoE Pulsar S108-C

FEATURES:

  • 10 port 10/100Mbit
  • 8 x PoE (10/100Mb/s) (RJ-45)
  • 2 x UPLINK (10/100/1000Mb/s) (RJ-45)
  • PoE IEEE 802.3af/at, DC 52V, 30W per port
  • LED indication the operation status
  • Dimensions: 275x281x102+14mm
  • weight: 3.3kg
  • operating temperature: -10°C...+40°C

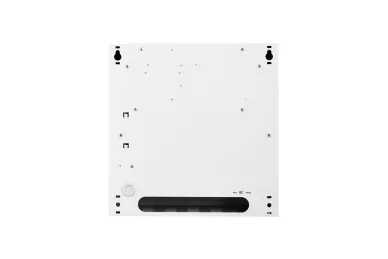

View from the back:

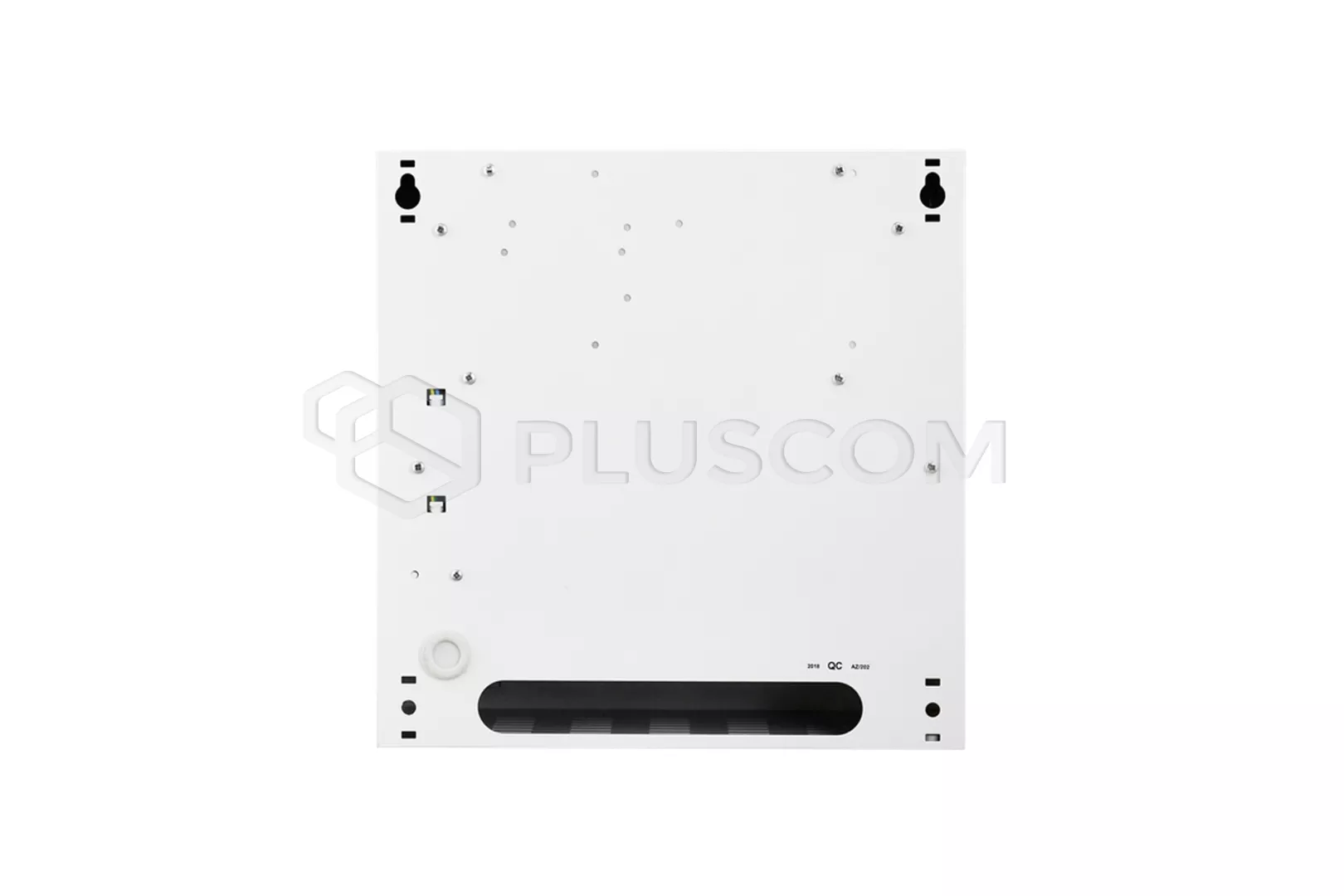

View from the back:

Download
Datasheet 0.19 MB
Declaration CE 0.32 MB
Instruction 0.84 MB
