Switch PoE ATTE IPUPS-17-11-R5U0 for 17 cameras IP buffer with power supply in the RACK 19

566,38 EUR including 23.00% VAT
Product code: #13780
Manufacturer: Atte
  • Unmanaged switch PoE
  • Number of ports: 17x PoE + 1x Uplink
  • Long Range mode
  • Input voltage: 180~240V AC
  • Inner housing: ABOX-R5U0 (2x AKU 18Ah)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

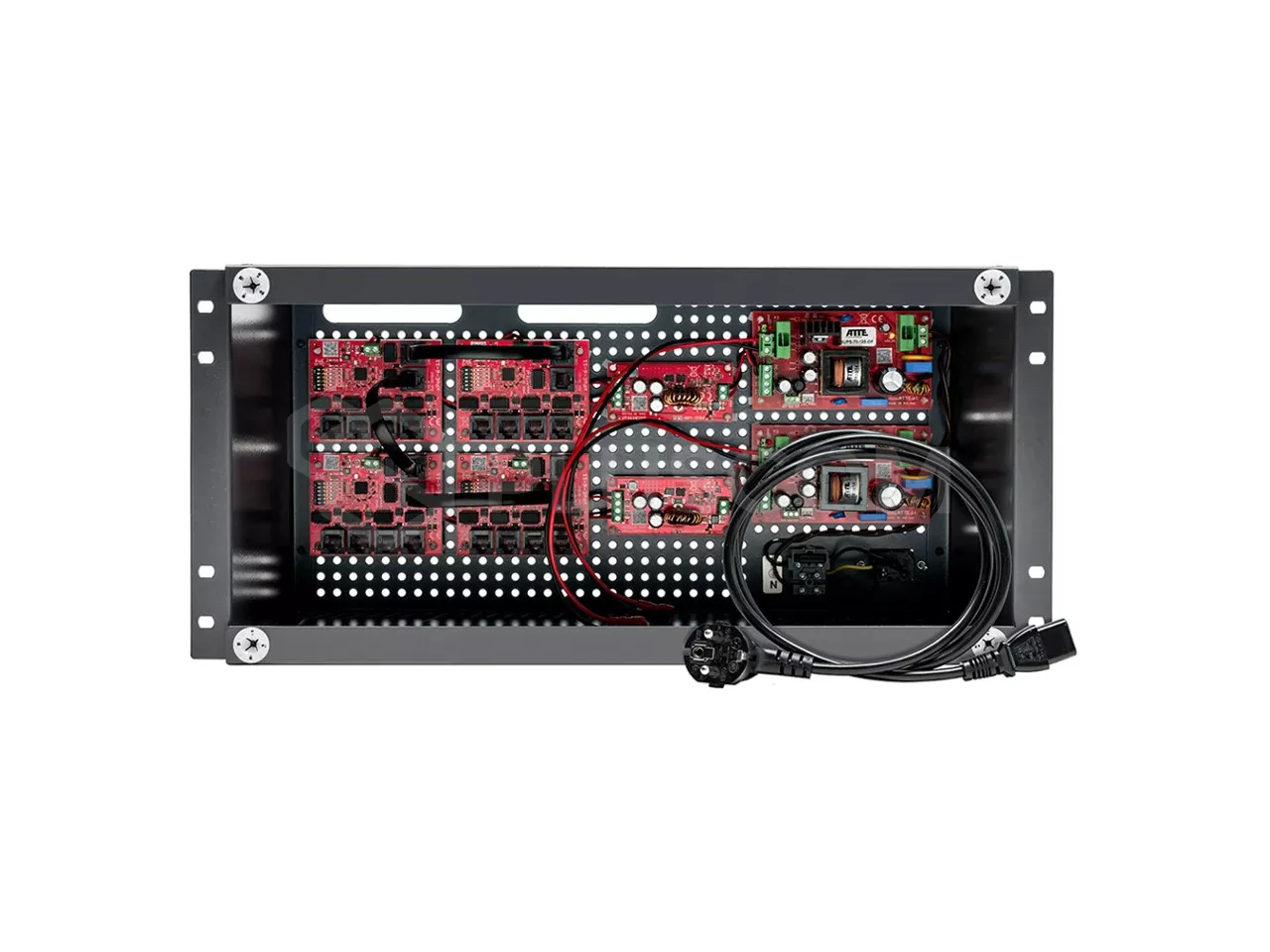

Switch PoE IPUPS-17-11-R5U0 for 17 IP cameras

FUNCTIONS:
  • Buffer capacity for 17 PoE 802.3at/af or PASSIVE receivers
  • Data transfer capability of 280m (in Long Range mode)
  • Electronic fuse independently for each PoE (auto return)
  • Optional power off on selected PoE ports
  • Clear optical signaling of power and data transmission
  • Up to 65W of power at the PoE IN/OUT port
  • Up to 40W of power on other PoE ports
  • Easy and fast start-up without configuration parameters
  • High efficiency of power supply module (90%)
  • Two supply voltage values ​​are available: 12VDC and 48VDC
  • Easy and fast installation service thanks to modular design
  • Easily expand and scale your system by adding additional xPoE/IP and IPB/IPUPS switches
  • assembly of modules in any open housing (raster system)
  • space for 2 batteries 18Ah
  • main cable entries on the back of the case
  • An additional cable entry is the distance between the body and the housing cover
  • comfortable, no tool mounting and disassembly of the cover (for compression)
  • graphite color matched in such a way that the casing fits both dark and light racks simultaneously
  • enclosure with fused connector and cube
  • Possibility of keeping cables inside the casing

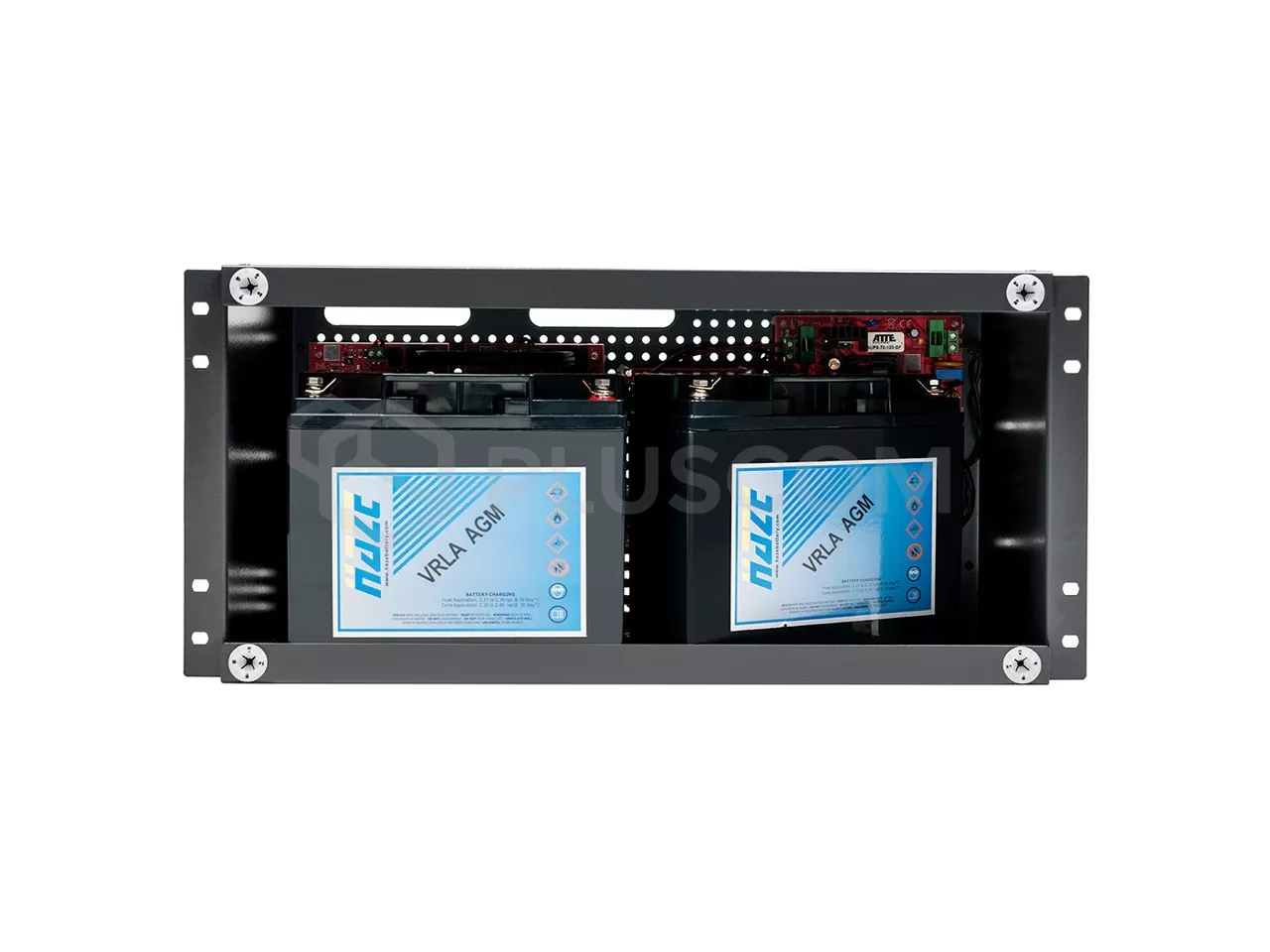

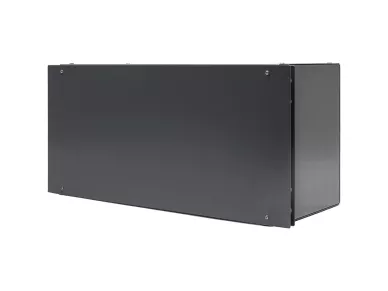

  • ABOX-R5U0 rack housing
