Extender Pulsar EXT-POE3H in hermetic enclosure

87,71 EUR including 22.00% VAT
Product code: #18252
Manufacturer: Pulsar
  • Increases range by 100 meters
  • Ports: PoE IN 1x, PoE OUT 3x
  • Input voltage: DC 44-57V (802.3af/at)
  • LED optical signalization
  • power source Extendera: PoE IN

Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pole mount bracket OZB1 Extender Pulsar EXT-POE4H in hermetic enclosure Extender Pulsar EXT-POE2H in hermetic enclosure

Extender Pulsar EXT-POE3H in hermetic enclosure

The EXT-POE3H extender is a device designed to increase the PoE and Ethernet range by additional 100 meters using UTP Cat. 5/5e cable.

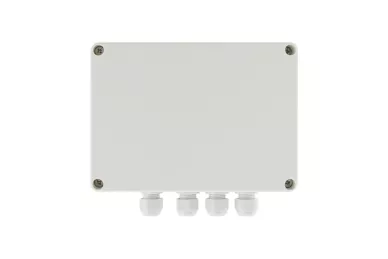

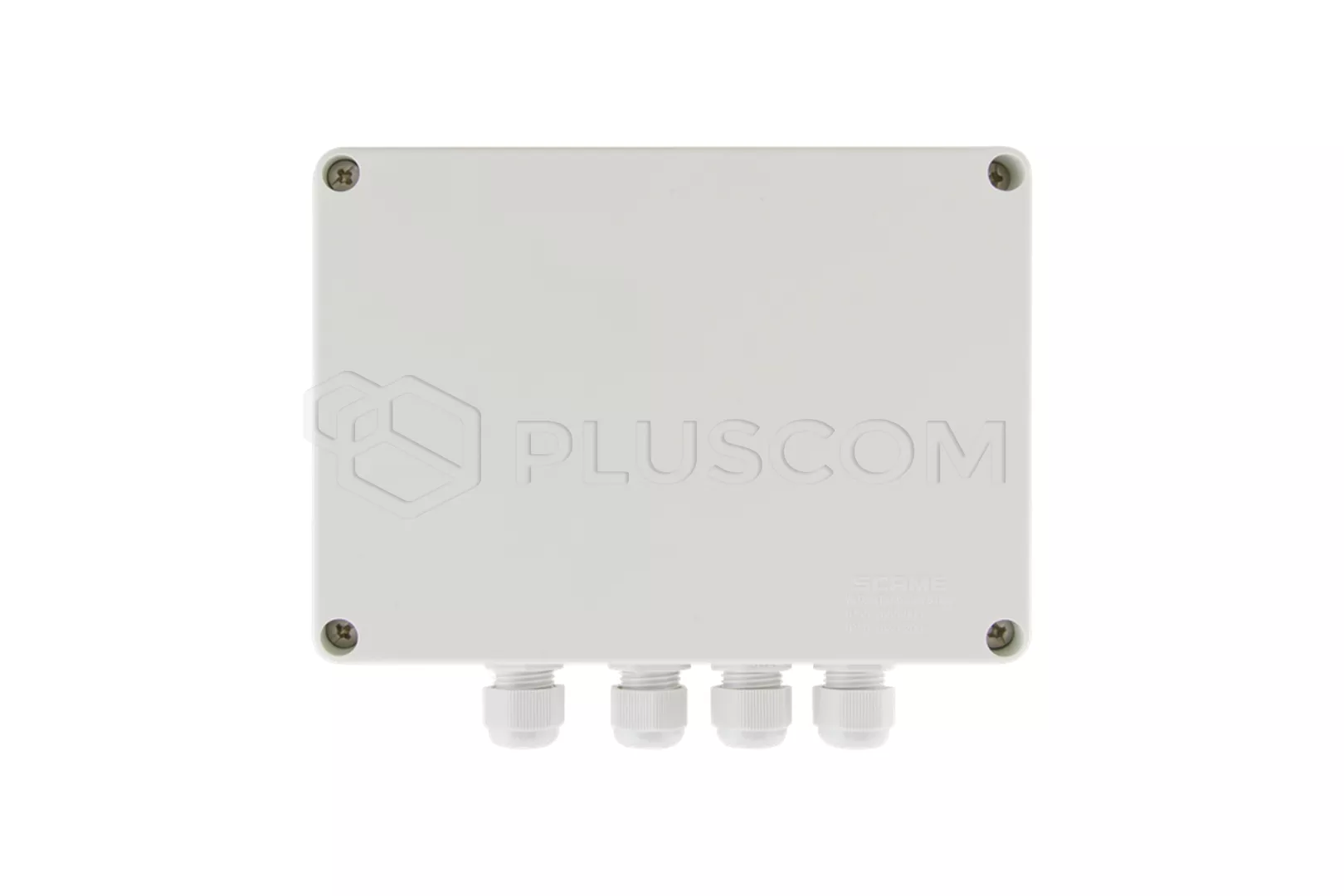

Extender Pulsar EXT-POE3H in hermetic enclosure

Extender Pulsar EXT-POE3H in hermetic enclosure

The Extender can be powered using a PoE switch or another PoE-compliant device (PoE IN input). The output voltage and data are available at the PoE OUT1 output designed for connecting cameras or other IP devices compliance with IEEE802.3af. The maximum load current is 0,4A porty PoE OUT1/2, 0,3A/port. The PoE OUT port are supplied over 4/5 (+) and 7/8 (-) pairs, which, according to the Ethernet standard, are not used for data transmission (data transmission uses 1/2 and 3/6 twisted pairs).

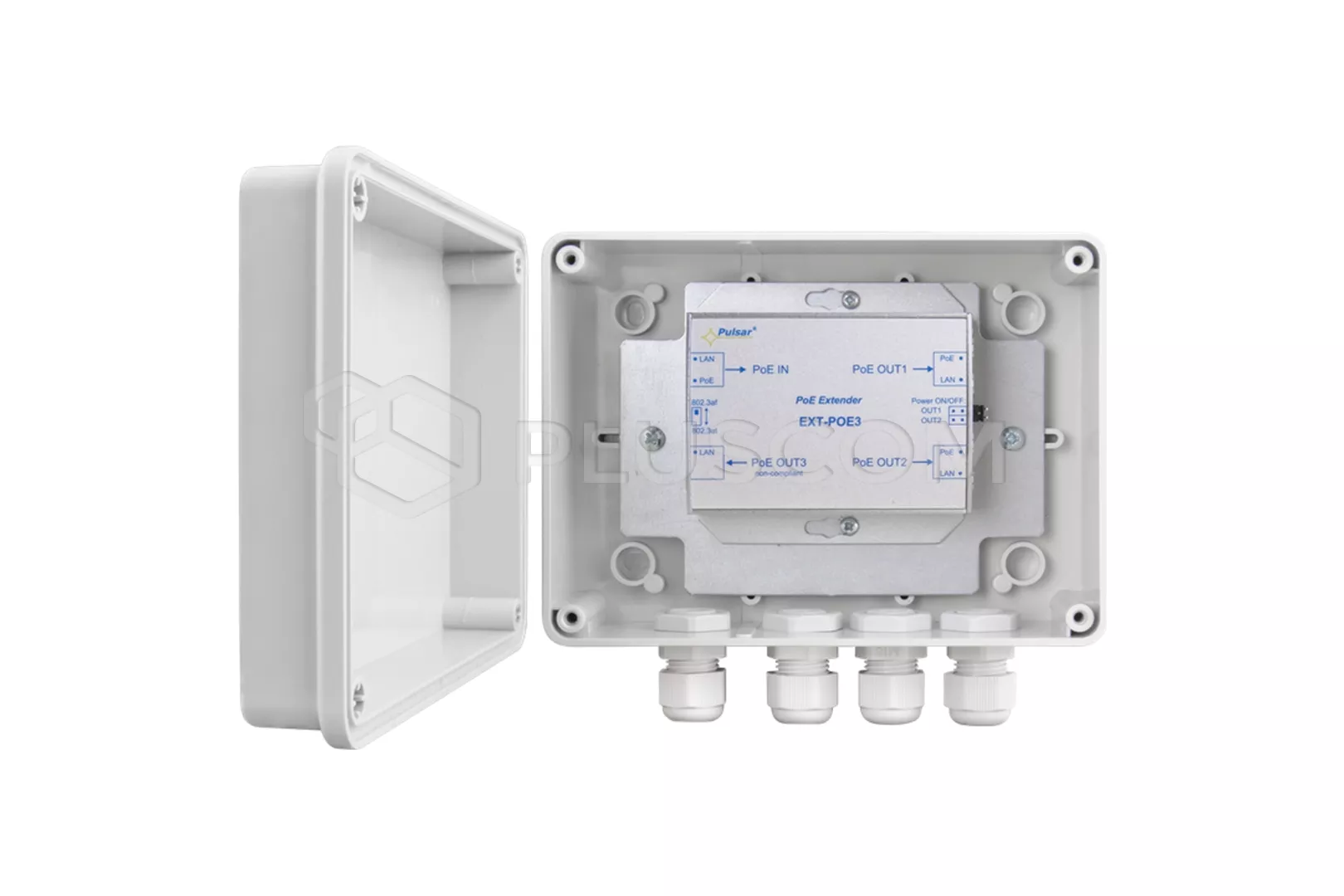

Extender Pulsar EXT-POE3H

Extender Pulsar EXT-POE3H

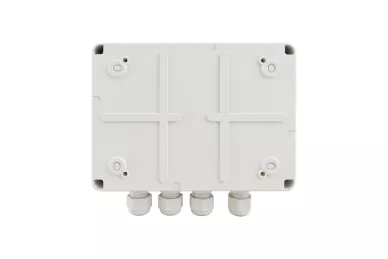

View from the back:

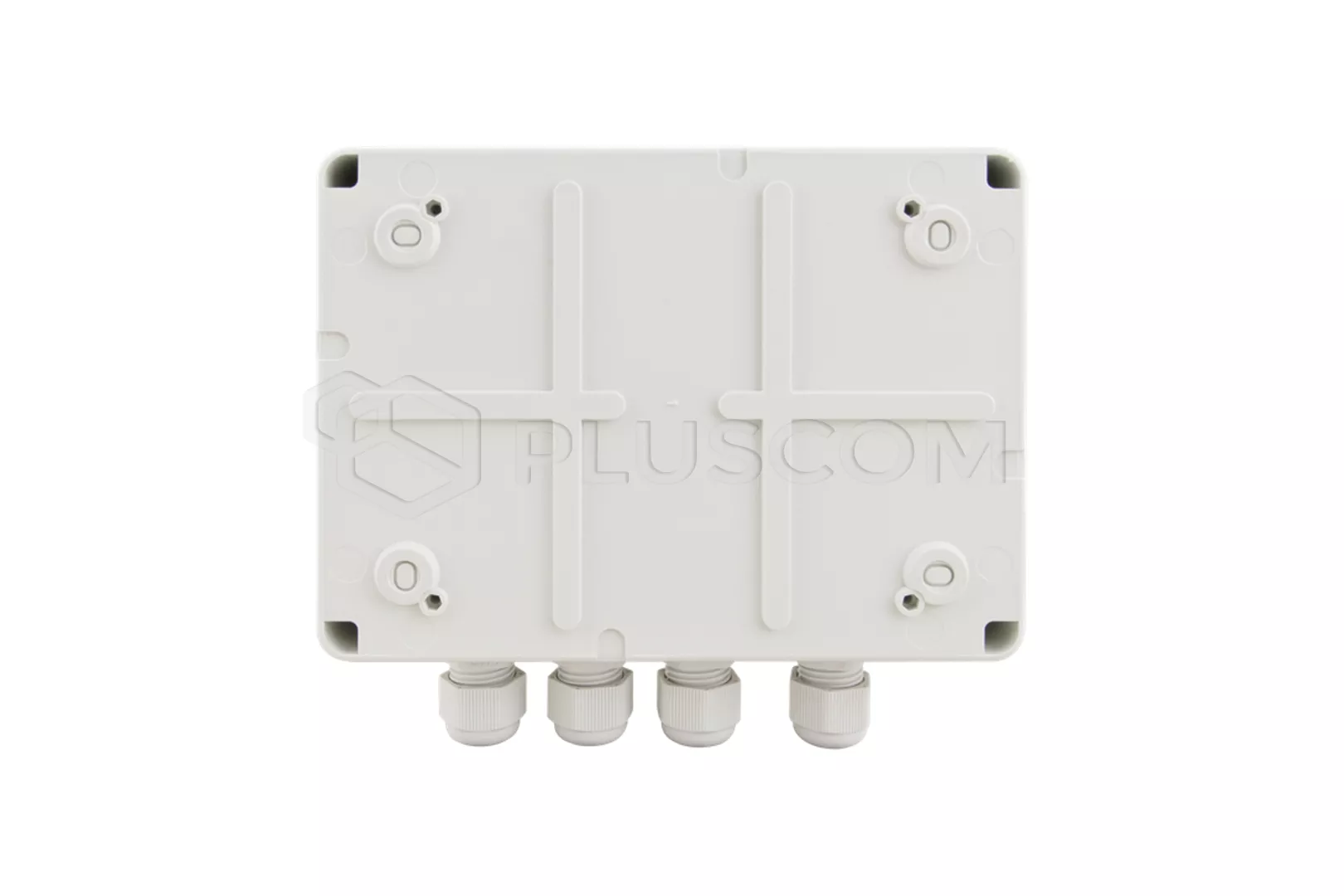

View from the back:

FEATURES:

  • Application: increases Ethernet range by 100 meters
  • PoE input: PoE IN - compliant with IEEE802.3af/at
  • PoE output: PoE OUT1  compliant with IEEE802.3af
  • Output current PoE OUT: 0,4A porty PoE OUT1/2, 0,3A/port
  • Protections: OLP, SCP*
  • Dimensions: 158x118x77 +/- 2mm
  • Installation: mounting screws
  • Notes: designed for 10Mbit/s and 100Mbit/s network

Extender Pulsar EXT-POE3H

Extender Pulsar EXT-POE3H


Download
Datasheet 0.17 MB
Declaration CE 0.32 MB
Instruction 0.81 MB
