| Image Sensor |
1/2.8'' megapixel progressive scan CMOS |
| Lens |
2.8-12mm |
| Max. Resolution |
1920x1080 |
| Shutter time: |
1/3s to 1/100 000s |
| view angle |
H113°-32° V59°-18° D137°-37° |
| Min. Illumination: |
Color: 0.005 Lux @ (F1.2, AGC ON),0.007 Lux @ (F1.4, AGC ON) |
| Video Compresion |
H.265/H.264, H.265/H.264/MJPEG |
| operating mode |
| Main stream: |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 ×
1080, 1280 × 960, 1280 × 720) |
| Sub Stream: |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480,
640 × 360, 320 × 240) |
| Video bit rate: |
32 Kbps - 16 Mbps |
| IR Range |
30m |
| Interface |
Communication Interface - 1 RJ45 10M/100M self adaptive Ethernet
port |
| On-board Storage |
Built In microSD/SDHC/SDXC slot, up to 128 GB |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Functions: |
Day/Night, WDR 120dB, 3D DNR, BLC, AGC, Heartbeat, Mirror, Password
protection, One key reset, anti flicker, Privacy mask, Watermark, IP
address filter |
| Moution detection |
no |
| Tampering alarm |
yes |
| Power suply |
12 V DC 11W |
| Power suply PoE |
PoE(802.3af, class) 12.9W |
| Operating Conditions |
-30..60 °C |
| Ingress Protection |
IP67, IK10 |

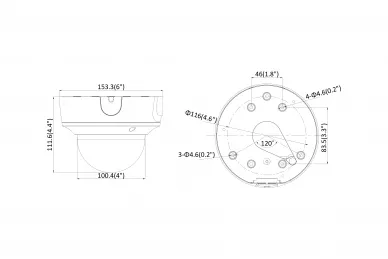

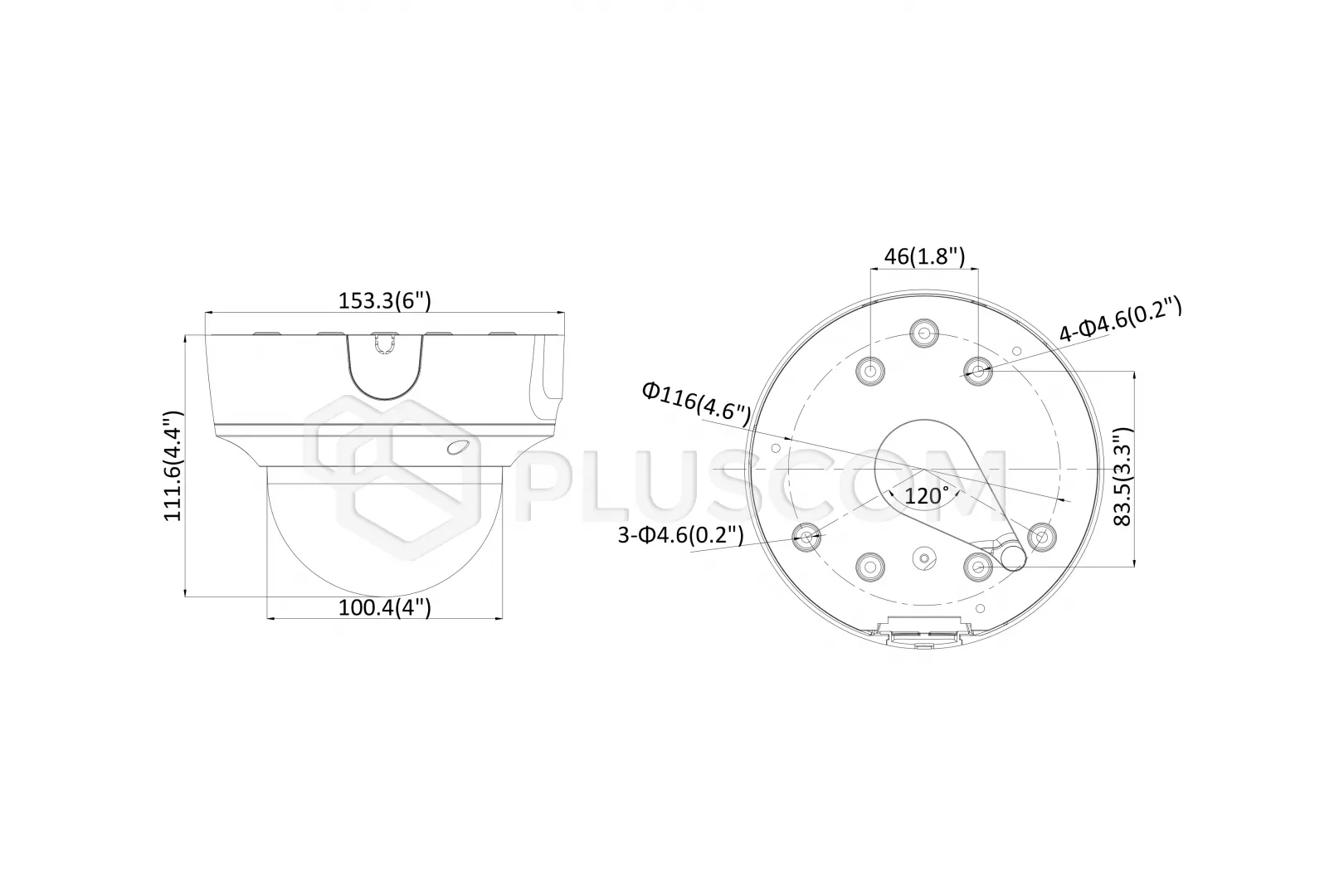

| Dimensions |
Ø 153.3 × 111.6 mm |
| Weight |
0.89kg |
