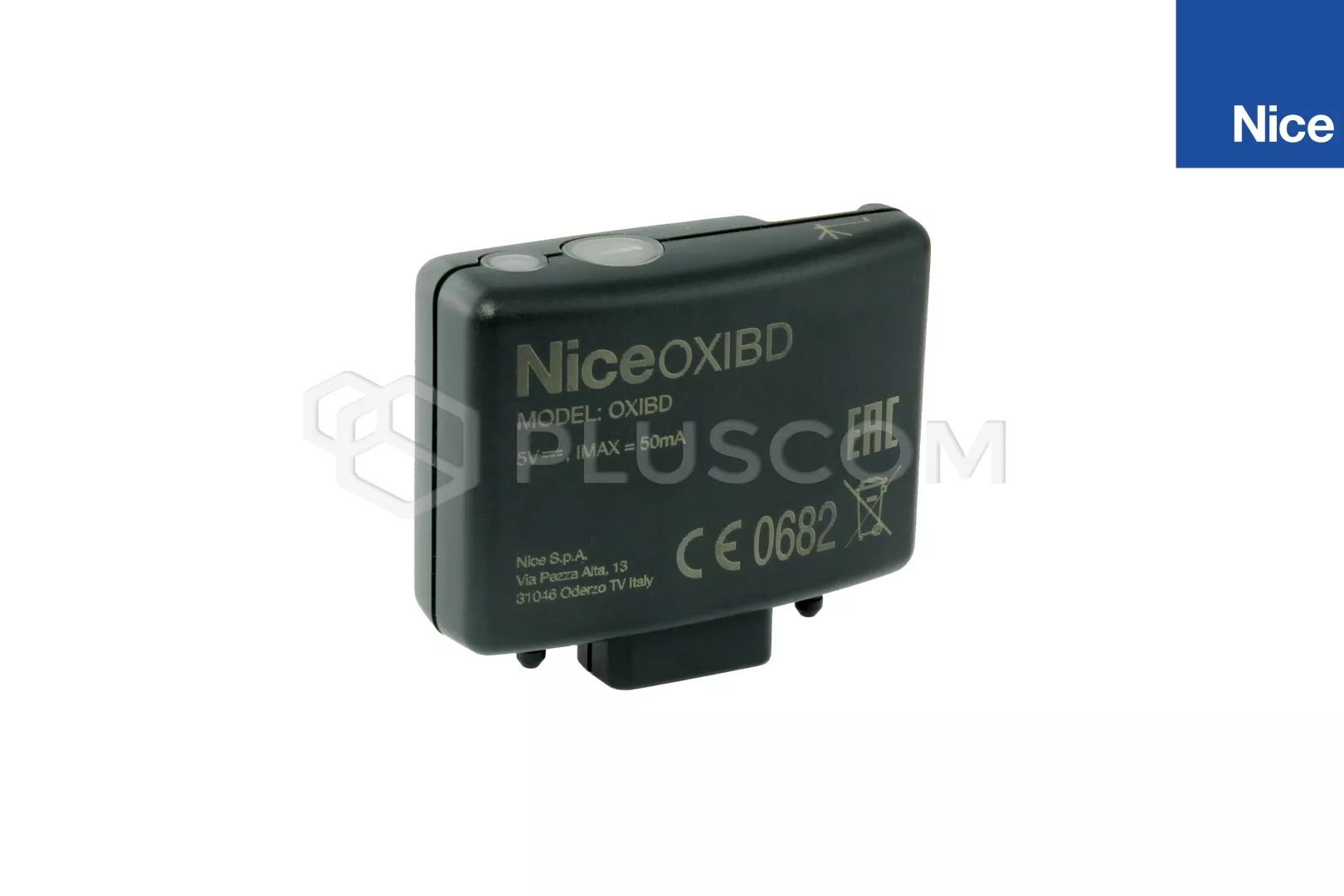

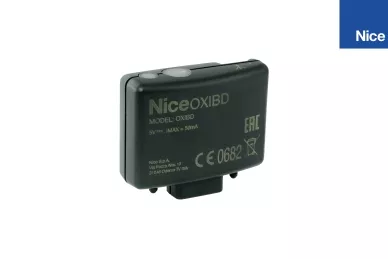

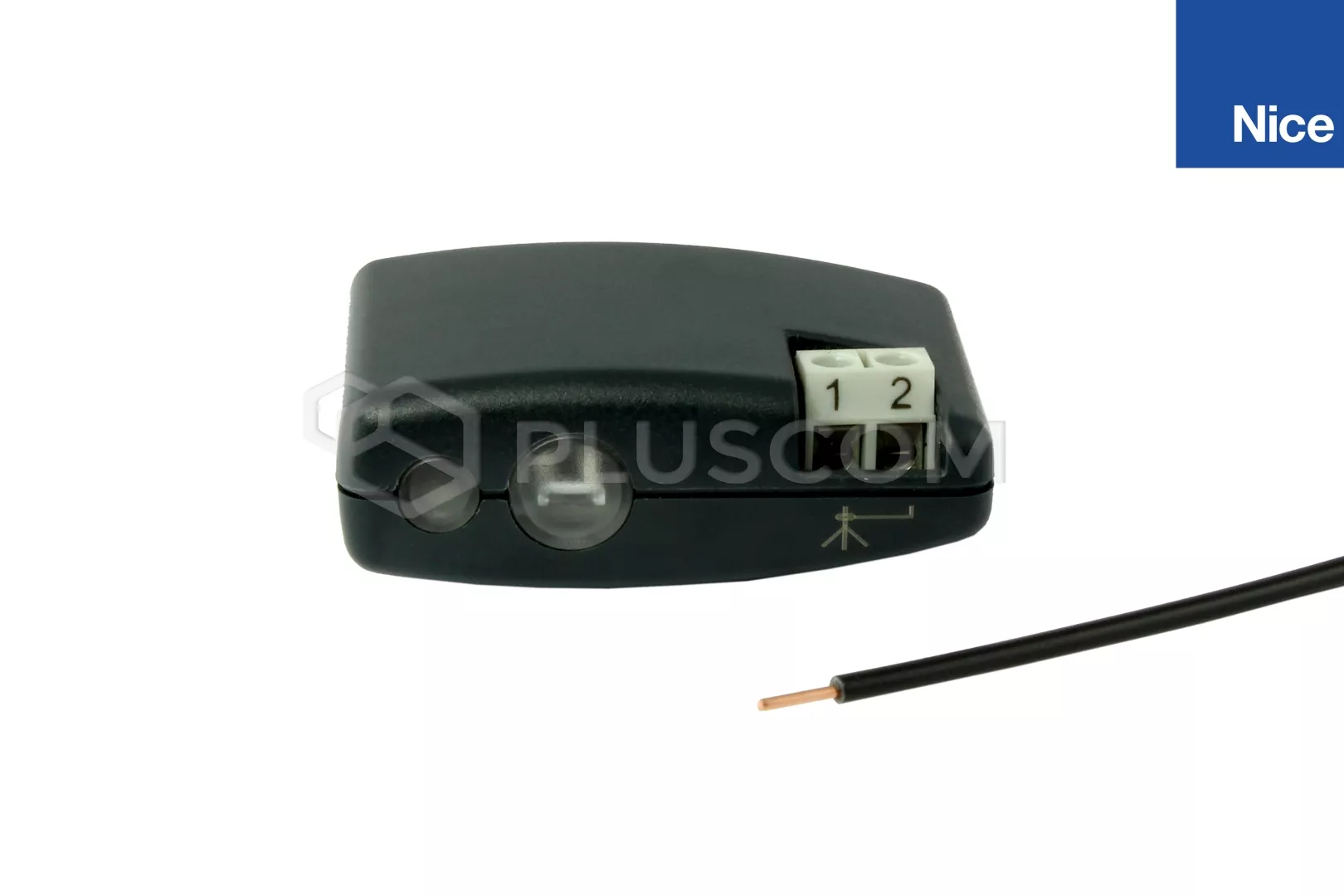

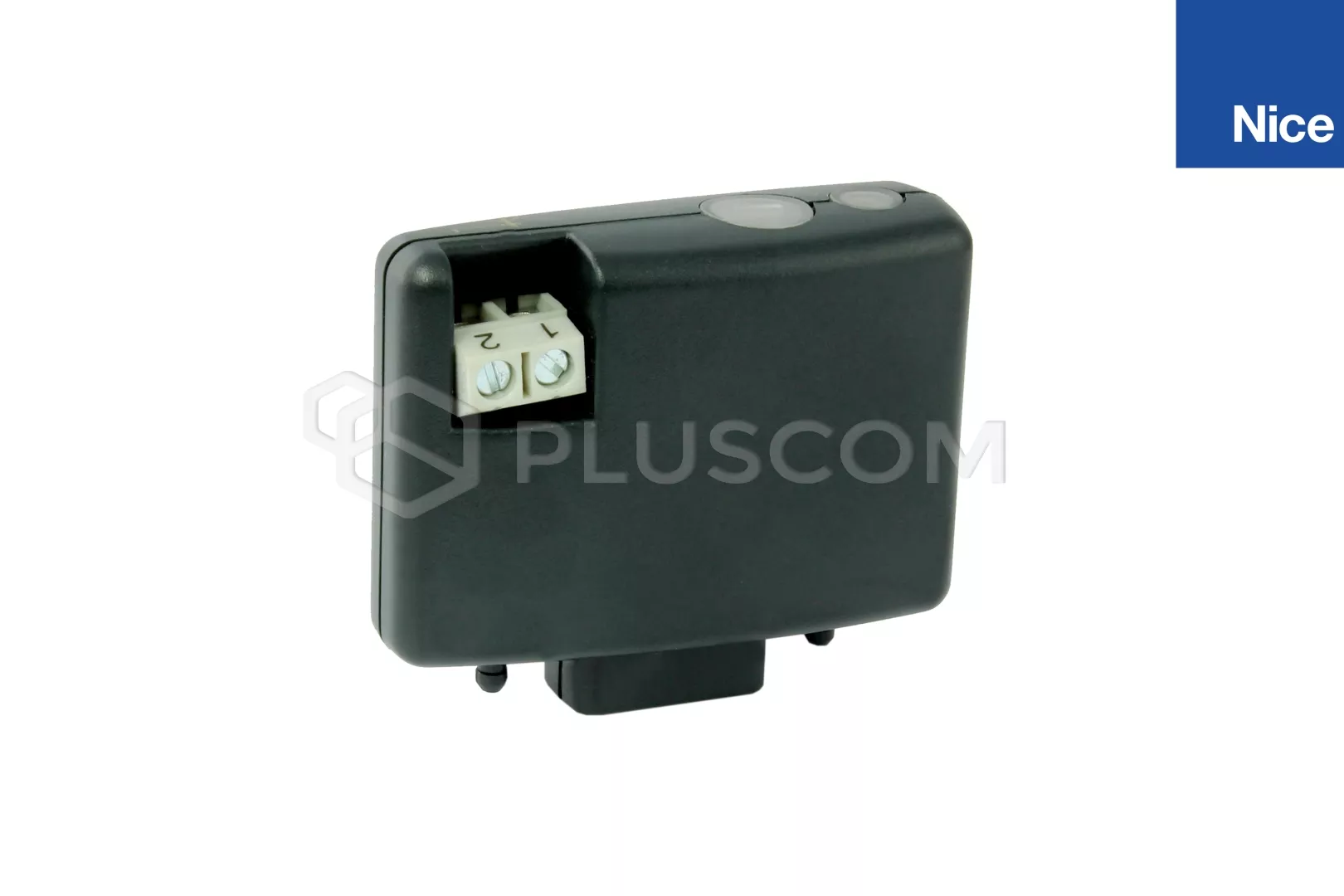

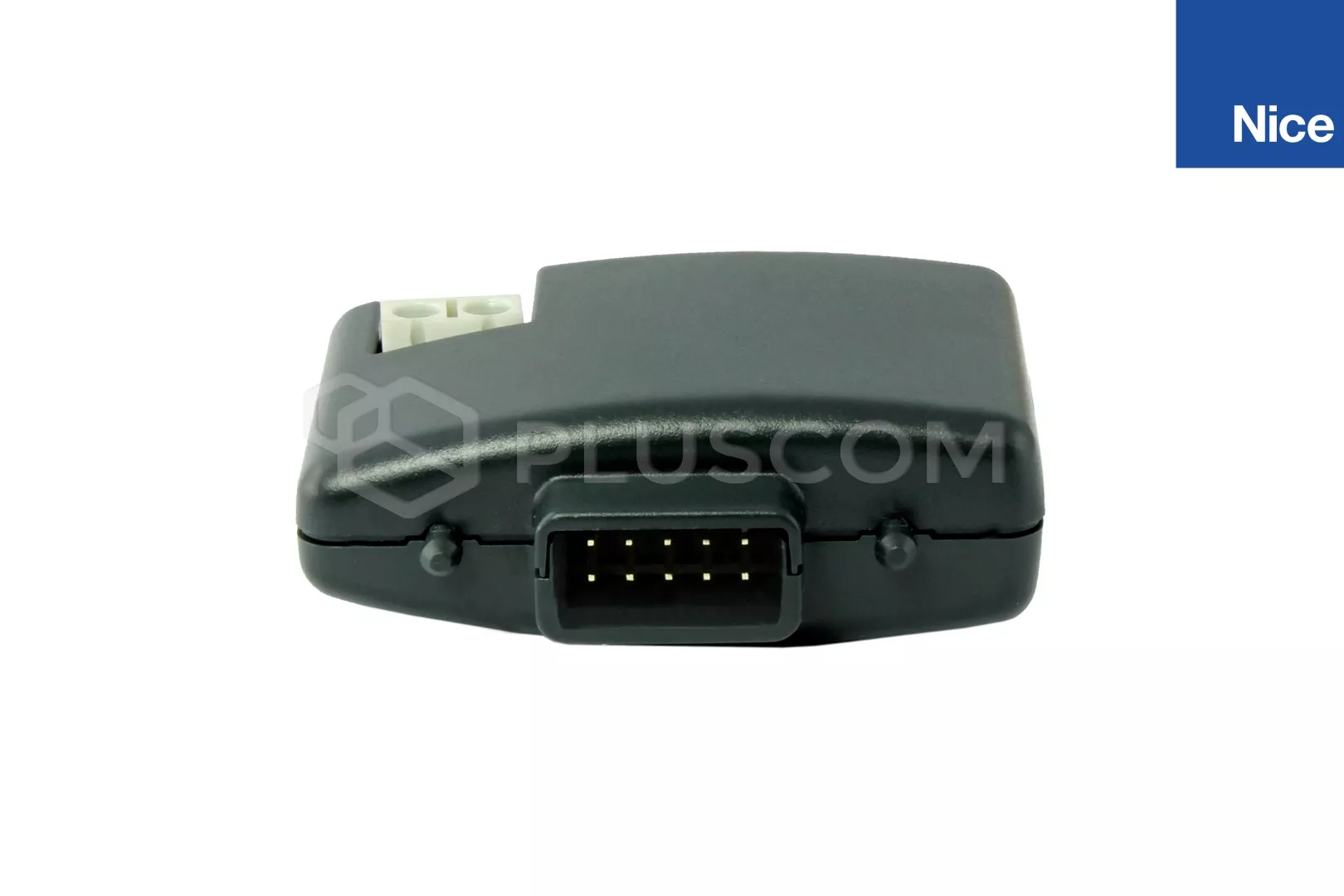

Nice OXIBD 4-channels receiver two-way

OXIBD is a radio receiver designed for being installed on a control unit for automating gates, garage doors and road barriers. The OXIBD is compatible with all Nice control units with SM connector and so can also make existing Nice automations bidirectional. OXIBD automatically recognizes the characteristics of the control unit in which it was installed.

The OXIBD receiver is compatible with the “O-Code”, “FloR”, “TTS”, “Smilo” and “Flo” one-way radio encoding systems, and with the “BD” two-way encoding system. In particular, the “O-Code” and “BD” encoding systems allow for exploiting all the advanced and exclusive functions of the “NiceOpera” system.

The receiver, if it contains one-way transmitters only, can manage 1024 memory locations at the most: one location can alternatively memorise a single transmitter (if its keys are memorised as a “single set”, with the Mode 1 procedures), or a single key (if memorised with the Mode 2 procedures). If the receiver contains two-way transmitters only, a maximum of 750 two-way transmitters can be memorised.

The Nice bidirectional radio protocol with mesh technology
has numerous advantages:

• extension of the radio range to 500m (max.10 Hops)
• confirmation by the automation of correct command reception
• the possibility of checking automation status at any moment
• high security, thanks to the encrypted communication
• low energy consumption in standby
