Nice SFAB2124B dual swing gate kit with BLUEBUS control unit

1603,55 EUR including 23.00% VAT
Product code: #20717
Manufacturer: Nice
  • Maximum leaf width 2,3m
  • Maximum leaf weight 400kg
  • 230V AC power supply, 24V motor with encoder
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
4,56 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice PS124 24 V battery with integrated battery charger Nice PLA10 Electric lock vertical Nice PLA11 Electric lock horizontal Nice PS324 24V battery with integrated battery charger

Nice S-FAB 2124 Set up to 2.3m


The kit contains:

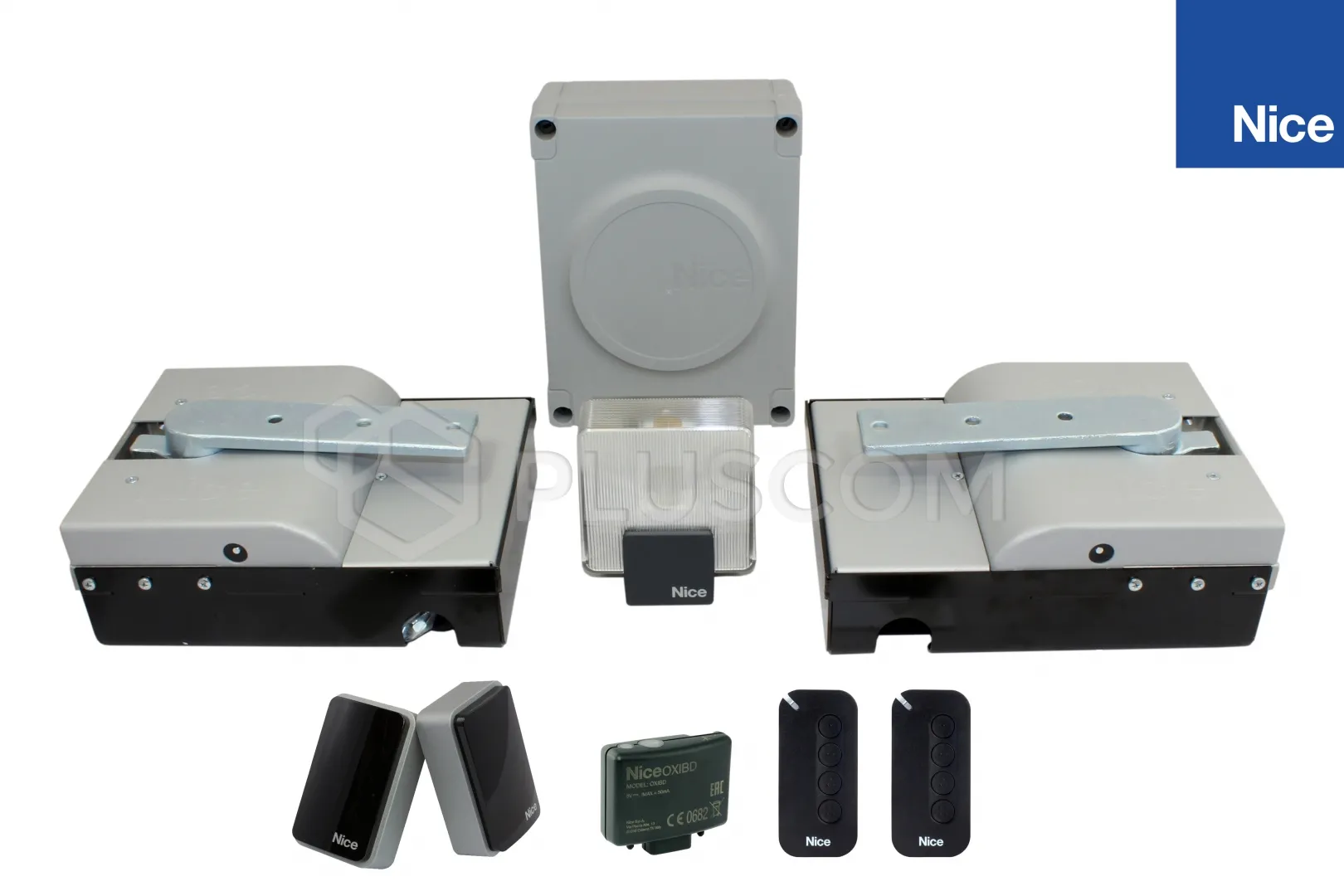

Nice S-FAB 2124 ERA ONE BLUEBUS Set

Nice S-FAB 2124 ERA ONE BLUEBUS Set
For swing gates with leaves up to 2,3m, underground installation, ultra compact.
Irreversible electromechanical 24 Vdc gear motor, ideal for intensive use.

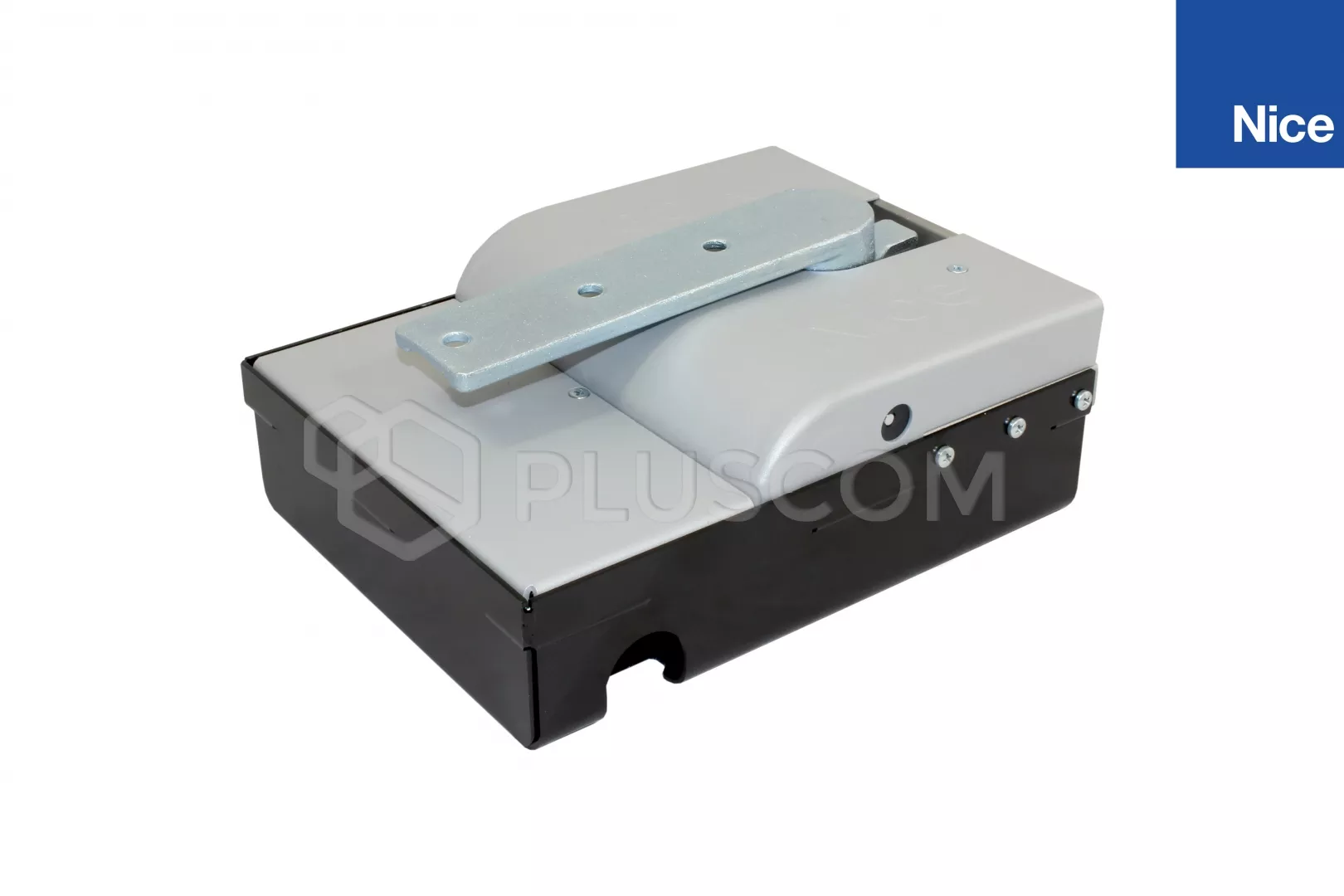

Sturdy and discreet: compact foundation box with a height of only 81 mm. Steel with cataphoresis paint fi nish guarantees optimal resistance to corrosion, and thickness of 2,5 mm guarantees strength. All this in just 52 mm of protrusion from the ground.

Practical and quick installation thanks to the exit lever on the gear motor attached directly on the leaf.Opening up to 180° as standard.

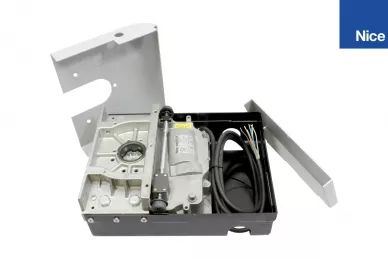

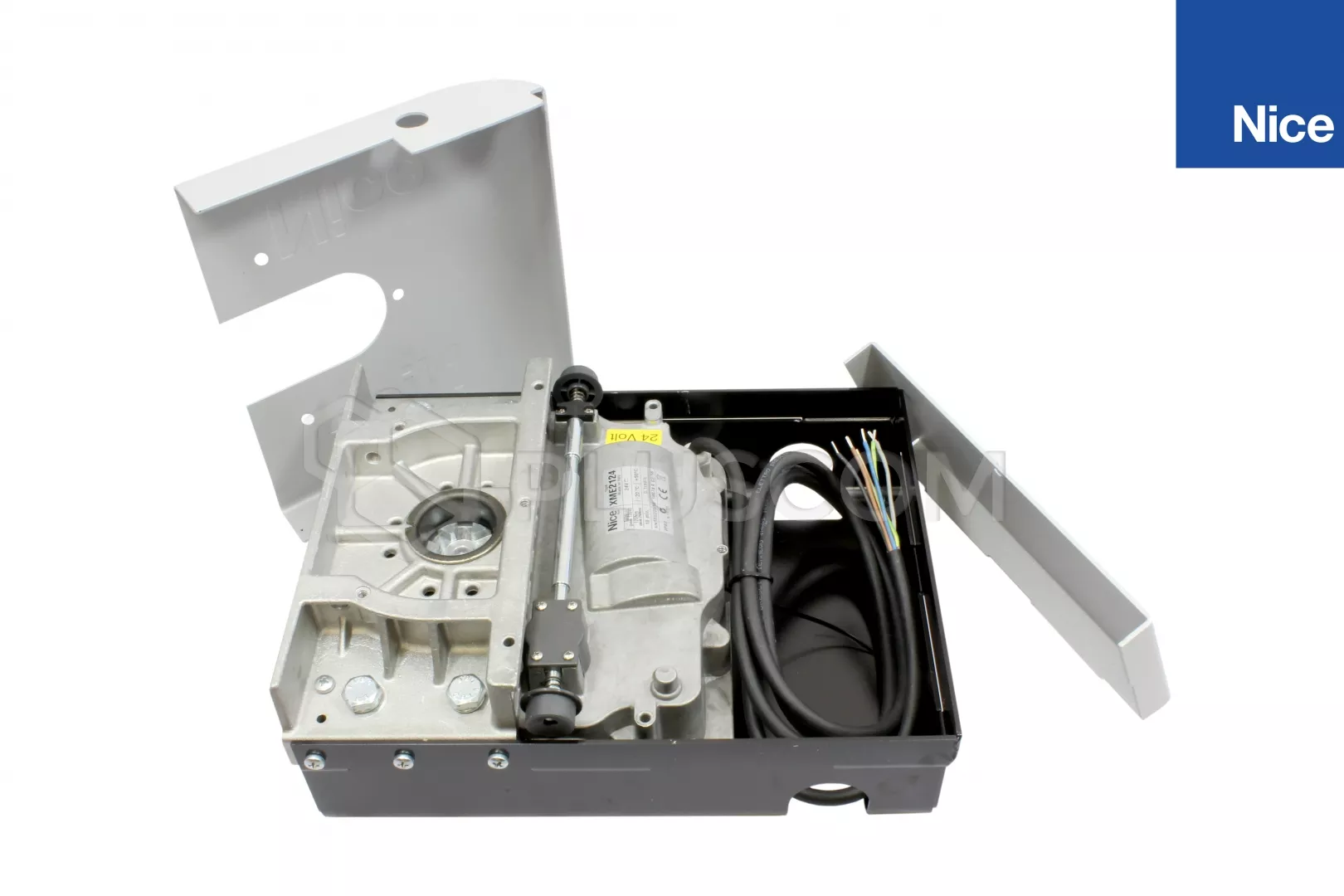

Reliable and sturdy: the gear motor, in IP67 pressure die cast aluminium, suspended inside the housing to enable drainage of any deposits, ensures optimal water resistance.Load-bearing foundation box with adjustablemechanical stops on opening and closing:the gear motor can also be installed later as required.

Practical release easy to operate from inside and outside, acting directly on the gear motor, easy to operate by means of the special key.

XME2124, compatible with the control unit MC824HR10:
  • controlling the operation of two 24V actuators with an encoder
  • manual, semi-automatic, automatic operation
  • built-in radio
  • SM type connector for plug-in radio receivers
  • IBT4N connector for connecting BusT4 devices
  • BLUEBUS technology
  • auto programming during the first programming the control panel automatically determines and memorises the end positions of the gate
  • gentle start and release at closing
  • regulation of the speed of the actuators
  • function of partial opening of the gate - wicket
  • possibility of connecting the PS124 battery thanks to which the gate will open even when the mains power supply is disconnected
  • possibility of connection to the '' Solemyo '' solar power system
  • service of an electric lock

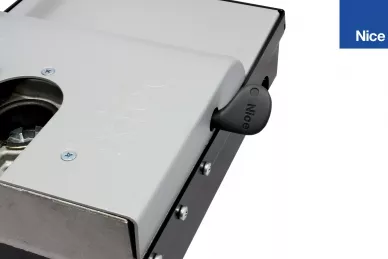

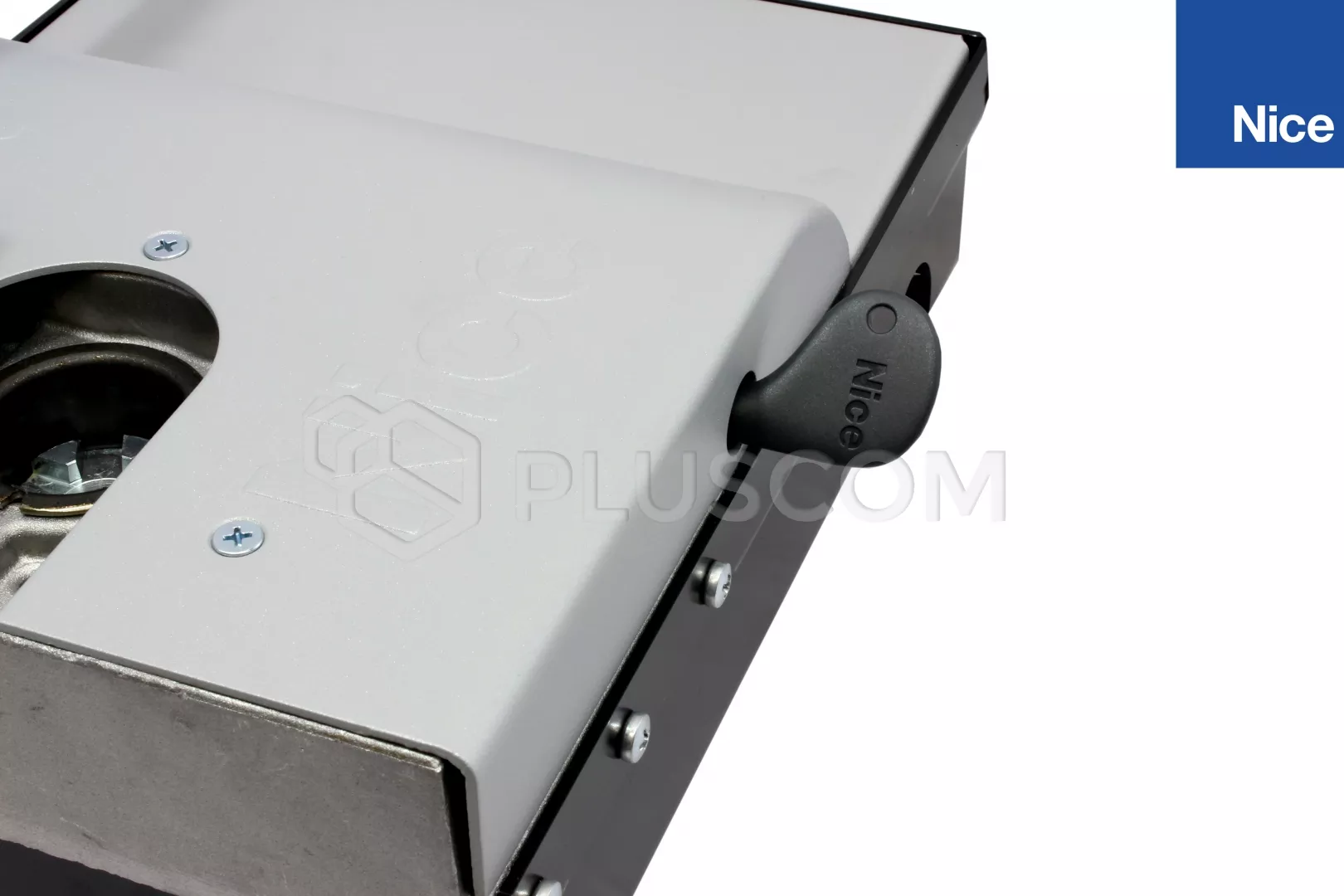

Release key:

Release key:

Download
User Manual 3.43 MB
