Nice ROBUS600 MYGO Set

Nice ROBUSKIT600 R10 ERA ONE for sliding gates weighing up to 600 kg.

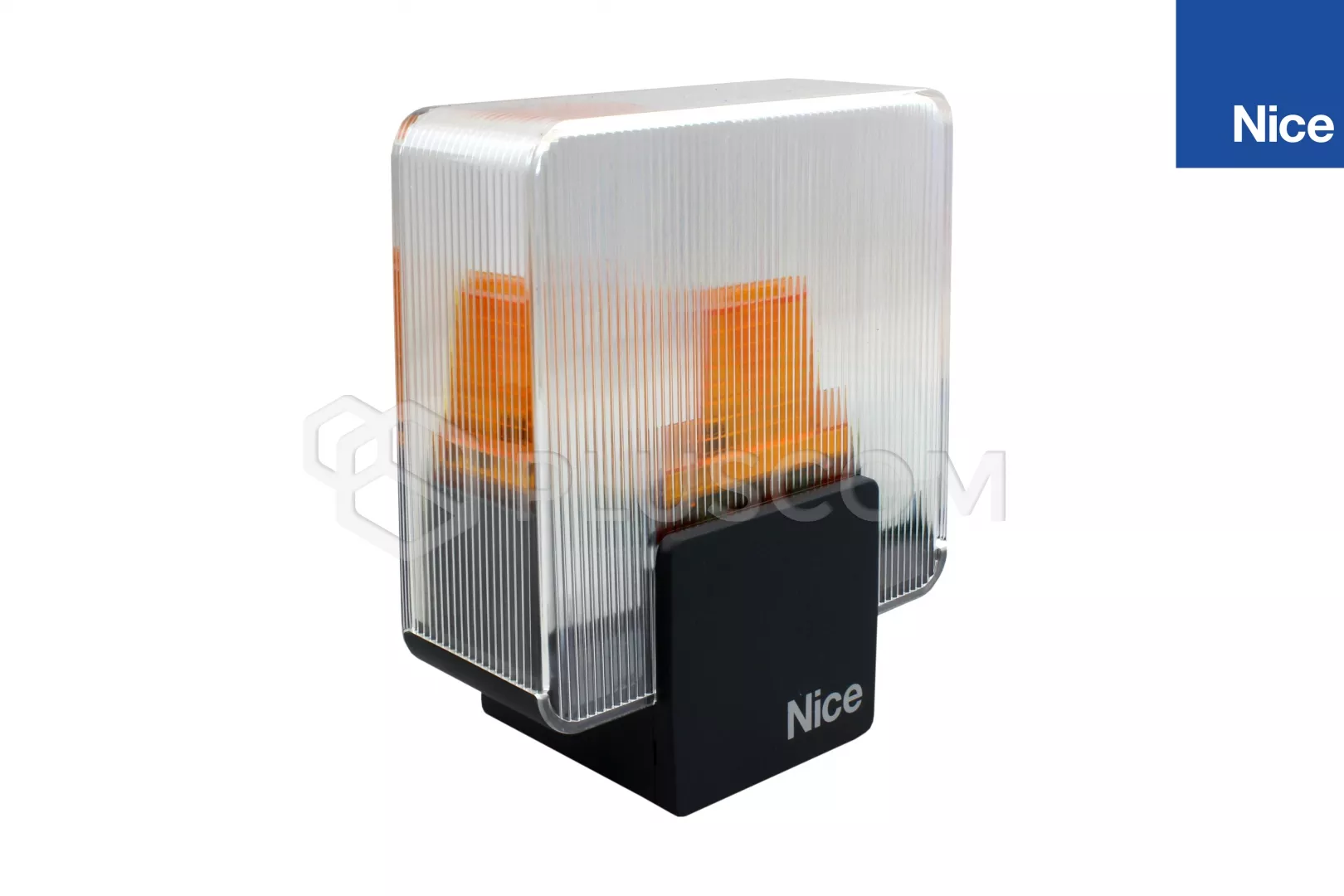

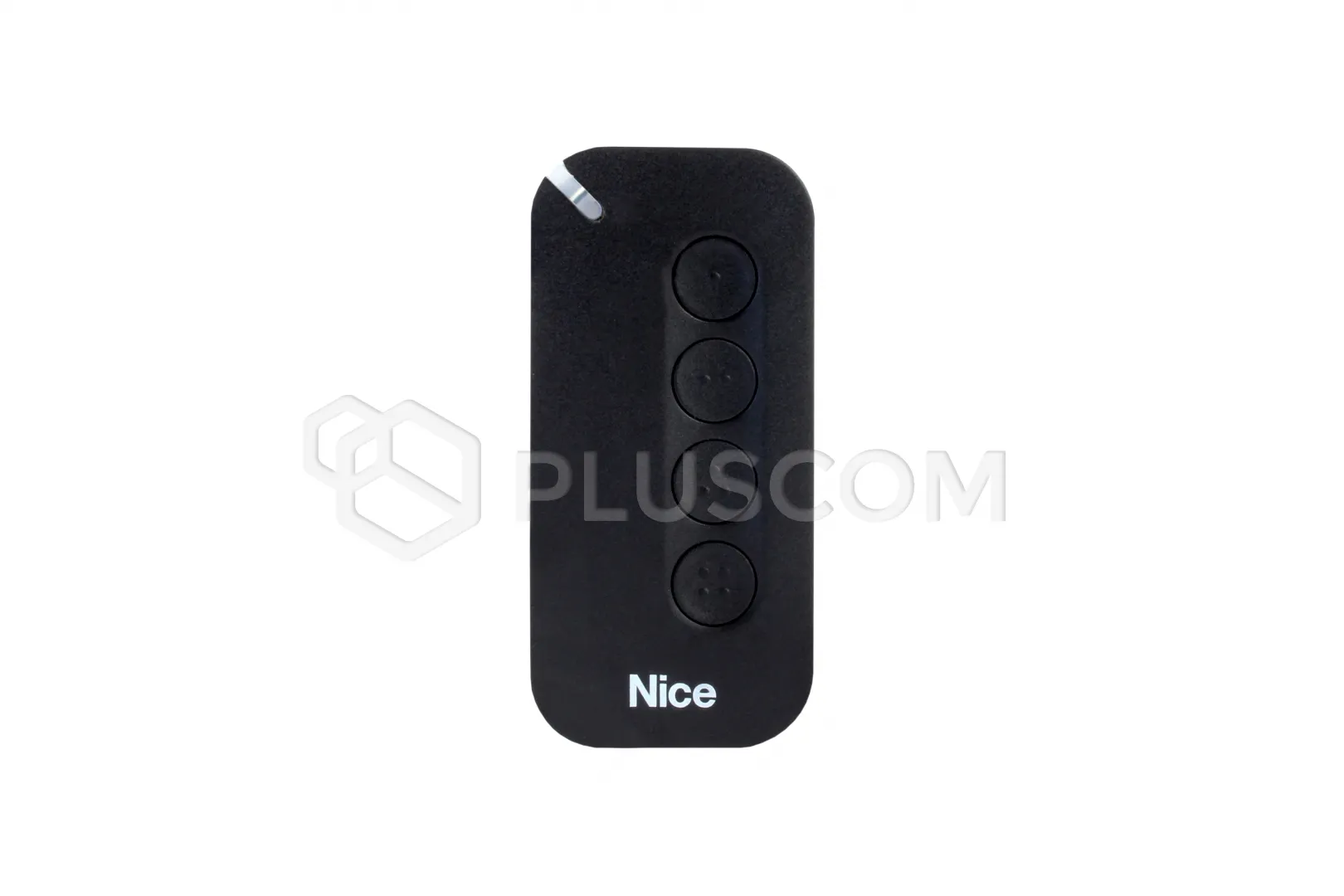

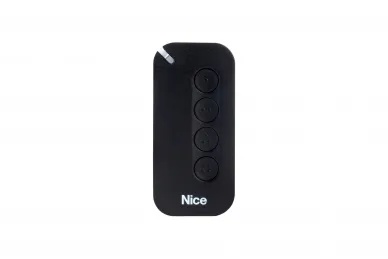

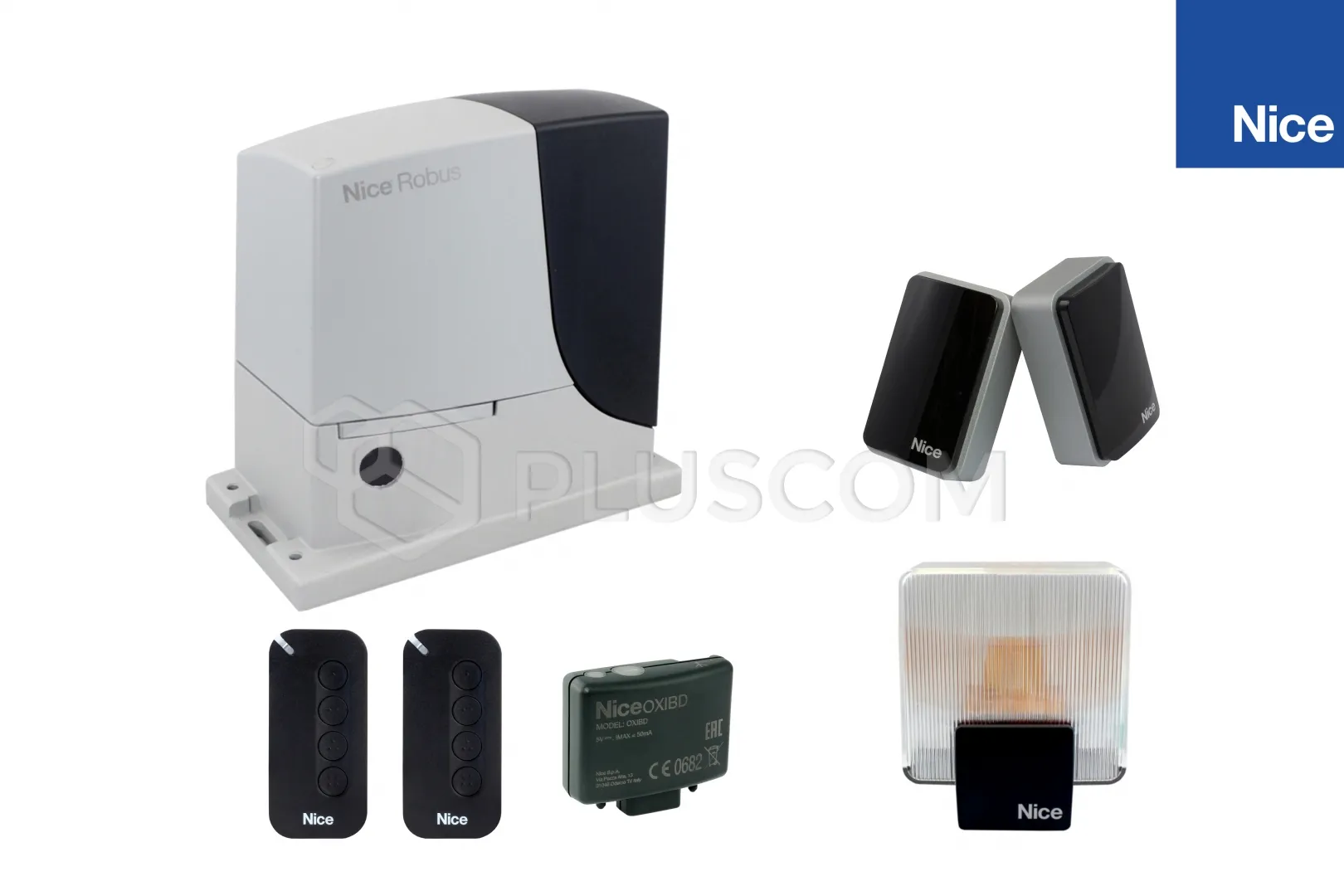

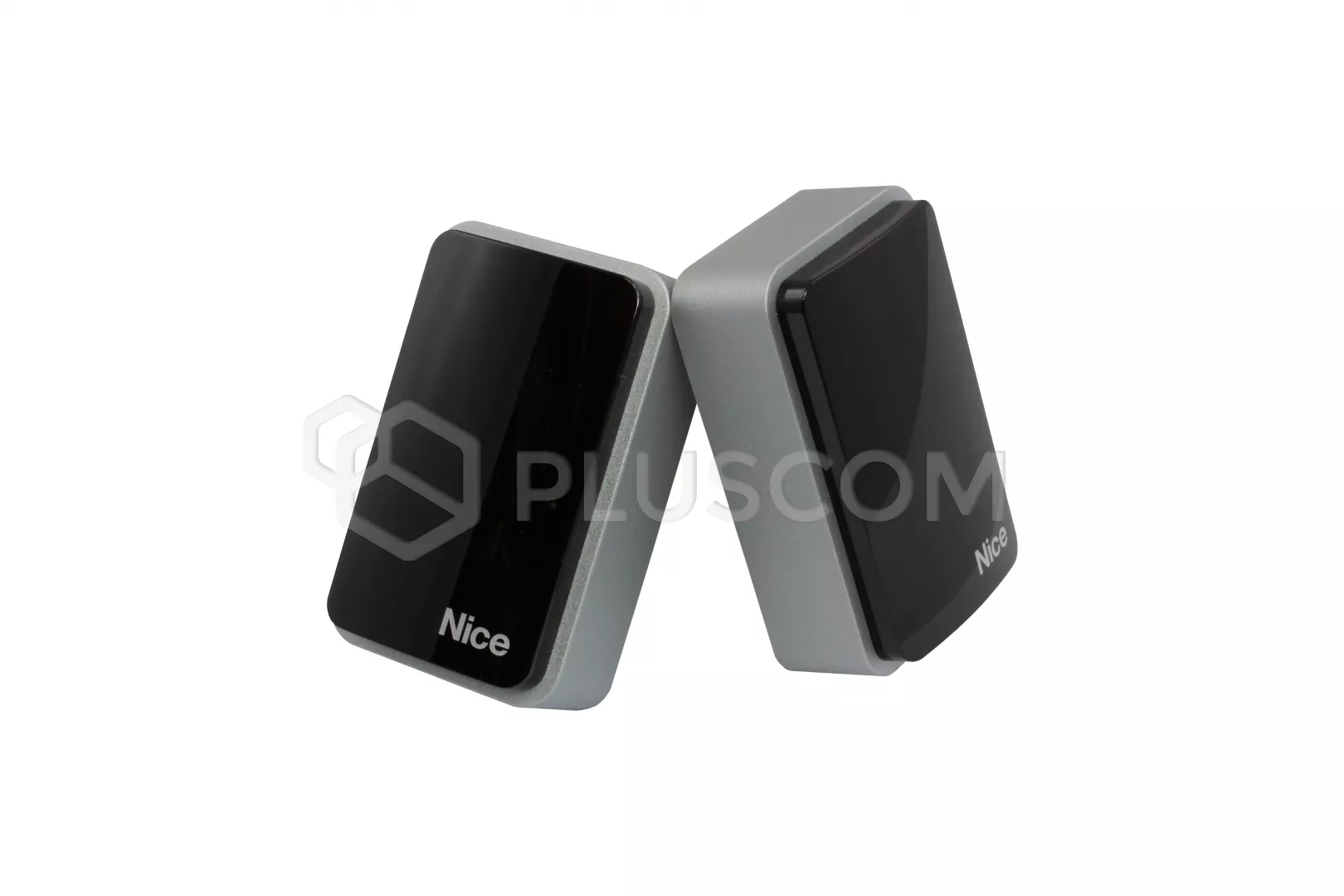

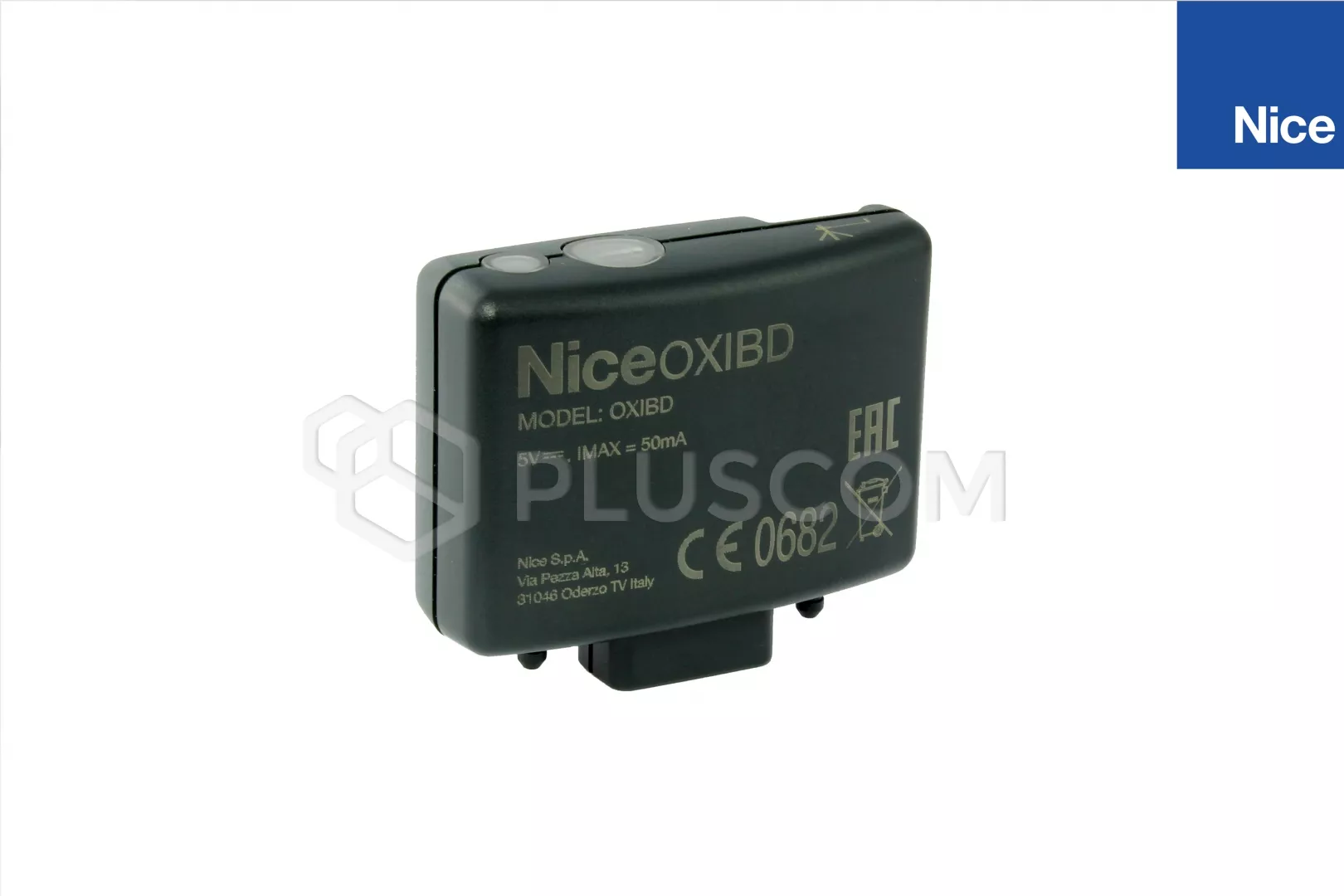

PACKAGE CONTAINS Nice Robus 600 R10 gear motor with built-in control unit Nice OXIBD 4-channels receiver two-way Nice MYGO4 4-channel remote black- 2pcs Photocell Nice EPMB ERA Medium BLUEBUS Nice ELDC LED flashing signal light 12/24V

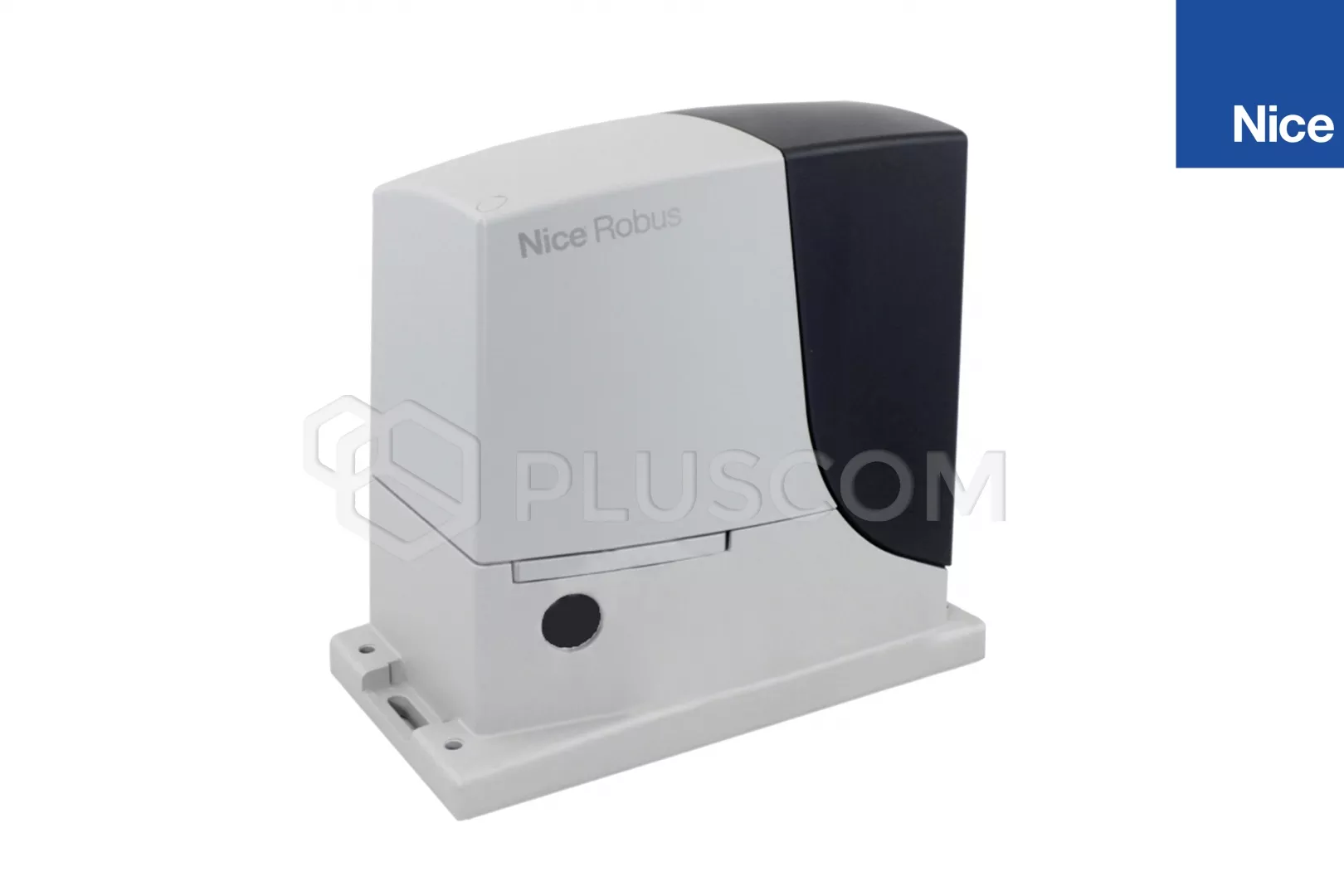

Nice ROBUS 600 R10 ERA ONE Set

Nice ROBUS is one of the most popular drives. End customers installers praise it for its reliability, solidity and high culture appreciate it for its ease of installation and programming.

The most important advantages of the drive and the set include:

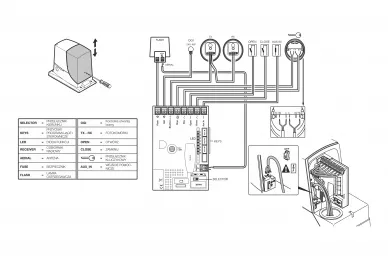

User-friendly: thanks to the BlueBUS system, allowing the control unit to be connected to up to 7 pairs of photocells and control, security and signalling devices with just two wires.

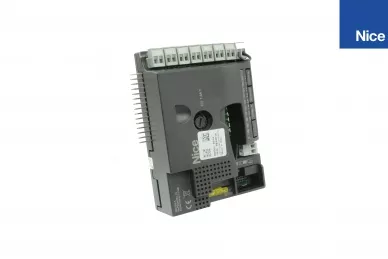

Practical: control unit and optional PS124 buffer batteries can be connected by means of practical guided - connector.
Advanced: RB600 is equipped with a temperature sensor adapt the motor power to the climatic conditions and at the same time thermal cut-out. A master/slave selection automatically synchronises two motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.
Intelligent: thanks to the obstacle detection system and automatic programming of the working times. Self-diagnosis by means of a flashing light. 8 programming levels.
Safe: acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre.

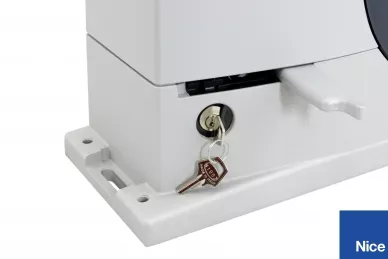

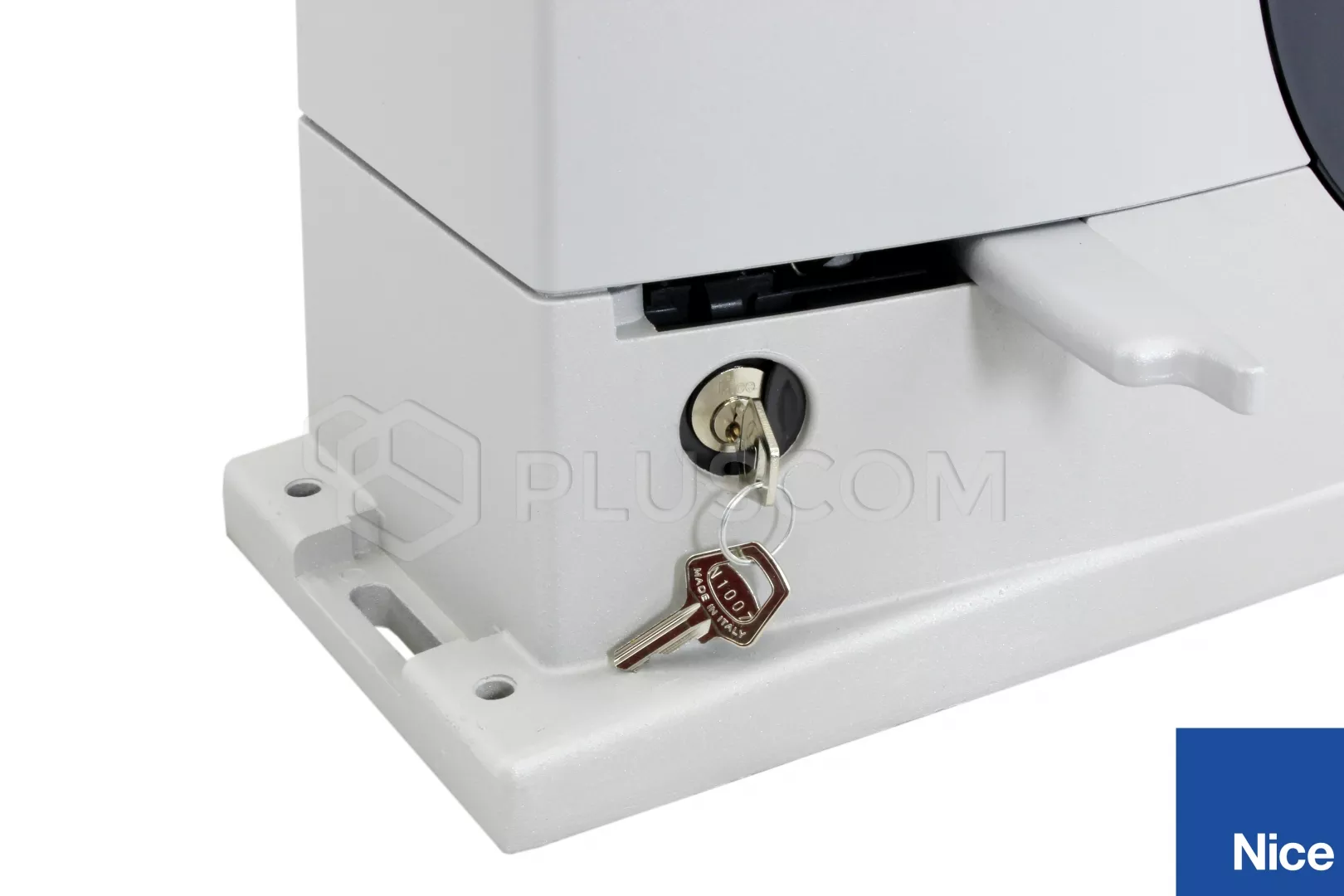

Sturdy: base and release in pressure die cast aluminium and epoxy paint finish.
Very quiet: gear motor on bearings.

TECHNICAL SPECIFICATIONS

ELECTRICAL DATA
power supply (Vac 50/60 Hz): 230V
absorption (A): 2,5
power (W): 515

PERFORMANCE DATA
speed (m/s): 0,31
force (N): 600
work cycle (cycles/hour): 40

DIMENSIONAL AND GENERAL DATA
protection level (IP): 44
working temp: (°C min/max): -20...+50
dimensions (mm): 330x210x303(h)mm
weight (kg): 11
