Nice TITAN3724HS MYGO set for a double-leaf gate with a leaf length of 3.7m
and a weight of 450kg HI-SPEED
version

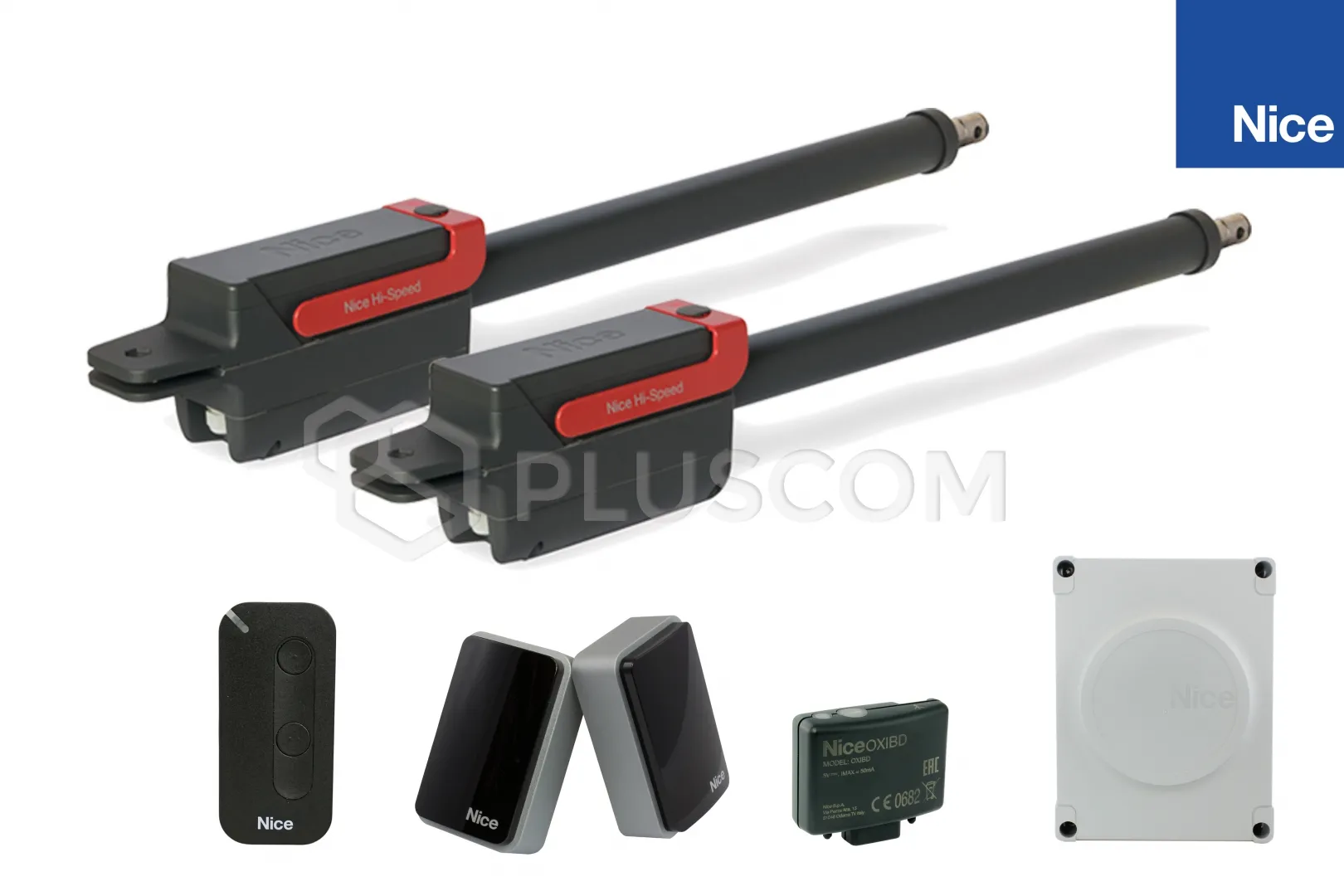

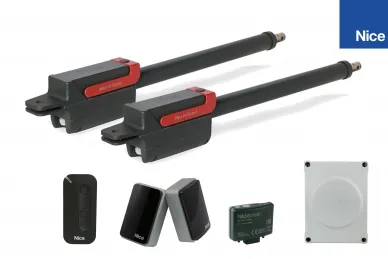

THE SET INCLUDES:
|
Nice TITAN3724HS MYGO set for swing gates up to 3.7m
|
Titan 3724HS is from a family of actuators characterized by high speed
gate opening and closing (12s). It is ideal for places where entry or exit from
the gate must be efficient and fast (urban area with increased traffic). A
major advantage of the actuator is its ease of installation, thanks to free
access to the terminals from the top of the actuator.
The Titan 3724HS actuator is designed for continuous
operation.
It is ideal for places where entry or exit from the gate must be efficient and
fast (urban area with increased traffic).
The operation of the actuators is controlled by the Nice MC824HR10
control unit, which performs a number of useful functions:
- control of the operation of two 24V actuators with an encoder
- manual, semi-automatic, automatic operation
- IBT4N interface for connecting BusT4 devices
- BLUEBUS technology
- auto programming during the first programming the control unit
automatically determines and remembers the gate's end positions
- soft start and slowdown when closing
- regulation of the actuators' operation speed
- partial gate opening function - wicket gate
- possibility of connecting the PS124 battery, thanks to which the gate
will open even in the absence of mains power
- possibility of connecting to the system solar powered
''Solemyo''
- electric lock operation
The MYGO2 remote control provides radio control with a
dynamically changing code, with a frequency of 433.92 MHz, which provides a
high level of user safety and makes the code impossible to copy.
MYGO2 has a secret code, the so-called "SWITCHING CODE". By
transferring this code from the memorized transmitter to the new transmitter,
the latter is recognized (and remembered) automatically by the receiver.
The MYGO2 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with "O-Code" radio
coding.
The EPMB photocell is equipped with "BlueBus"
technology. The connection and communication between the photocells and the
control unit is carried out using a 2-wire cable. The power supply is also
provided directly from the control unit using the same cable.
EPMBs do not have the ability to adjust the angle of inclination. Therefore, it
is important that they are mounted on vertical and parallel walls. For
installation, you can use aluminum columns with a height of 50 or 100 cm PPH3,
PPH4.
The photocell housing protects against the ingress of dust and rain, which
means that they can be installed outdoors and operate in the temperature range:
-20°C...+50°C.
TECHNICAL DATA:
- engine power supply: 24V
- current consumption: max 6A
- power consumption: 150W
- speed: 3.2cm/s
- stroke: 510mm
- force: max 1900N
- work intensity: continuous cycle
- working temperature: -20°C...+55°C
- protection class: IP54
- weight: 8
