Nice HOPP MYGO dual swing gate kit

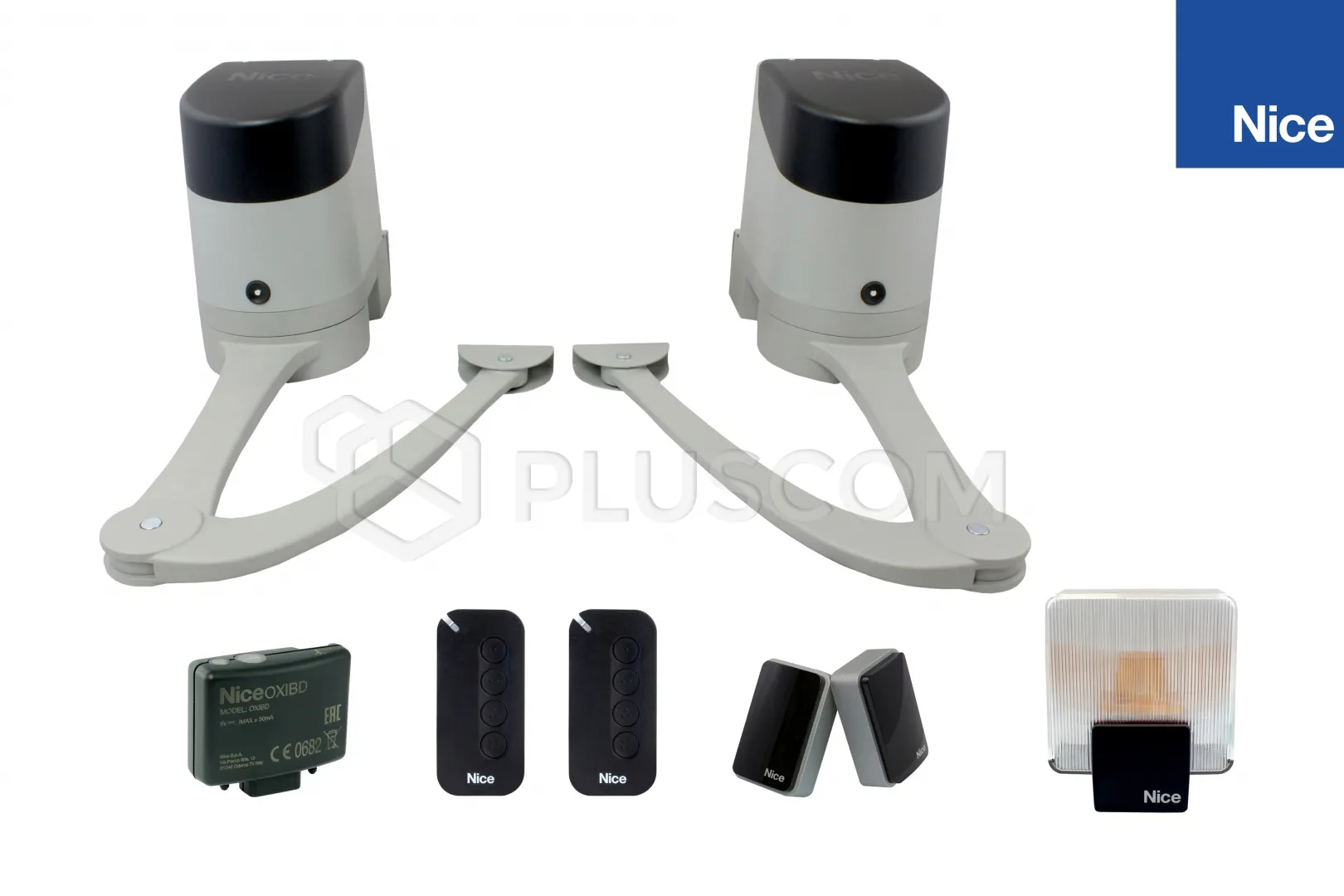

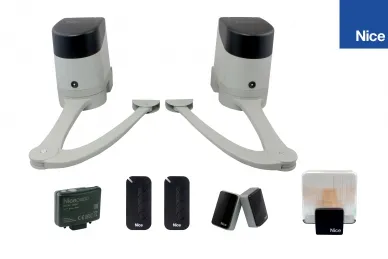

Nice HOPPR10 ERA ONE Kit for the automation of swing gates with leaves up to 2.4m 24VDC externally mounted

HOPP by Nice is Irreversible electromechanical 24 Vdc gear motor  with articulated arm, surface mounted.  Ideal for intensive use for swing gates with leaves up to 2,4m, and for large columns.

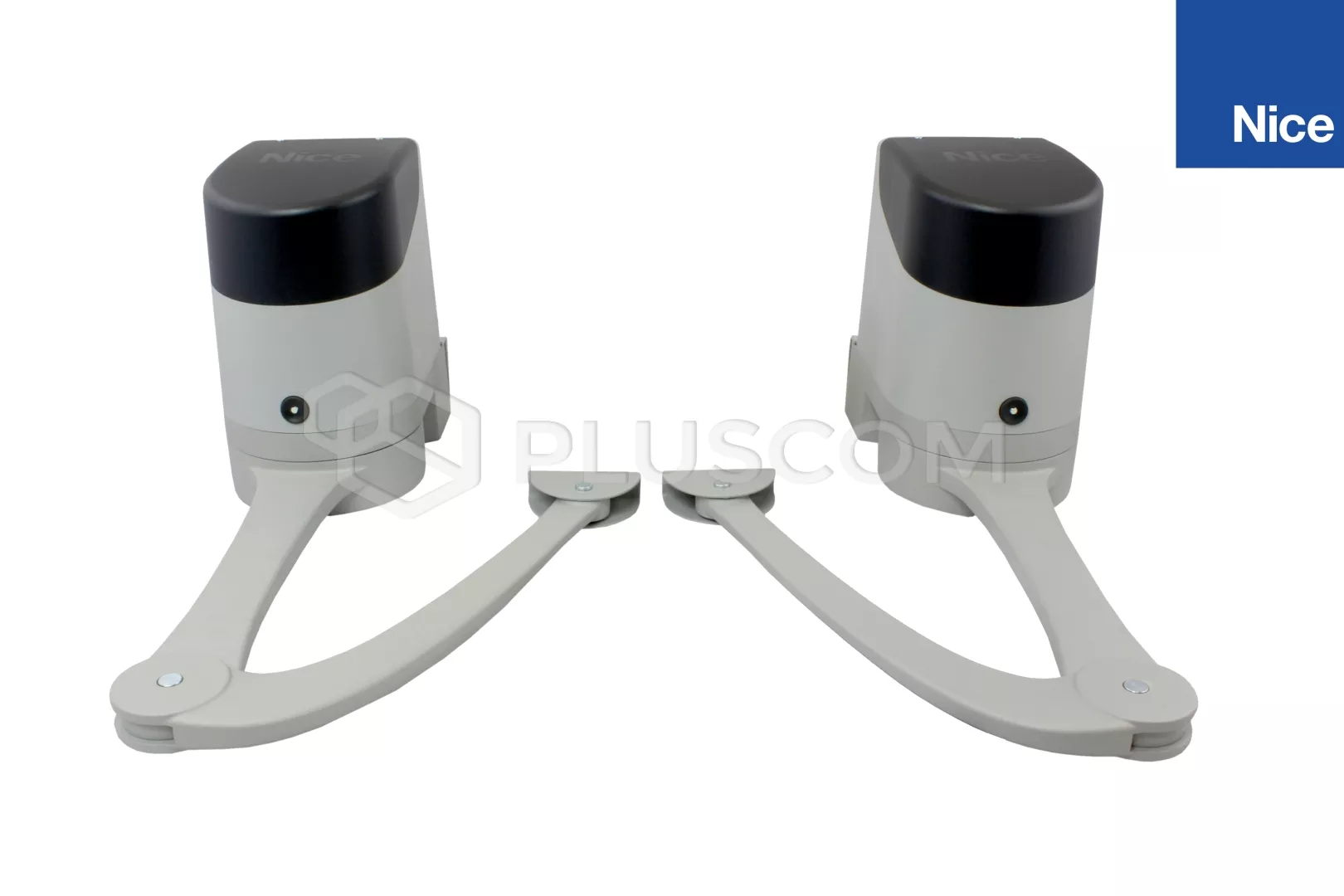

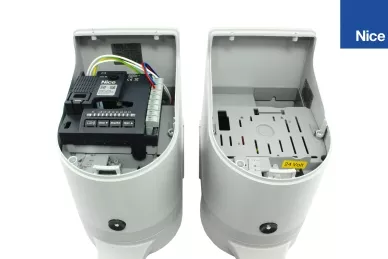

Two irreversible 24 Vdc in set: with micrometric adjustment mechanical stops on opening and closing: with built-in control unit (HO7124) and without control unit (HO7224).

Powerful thanks to the 250 Nm torque.

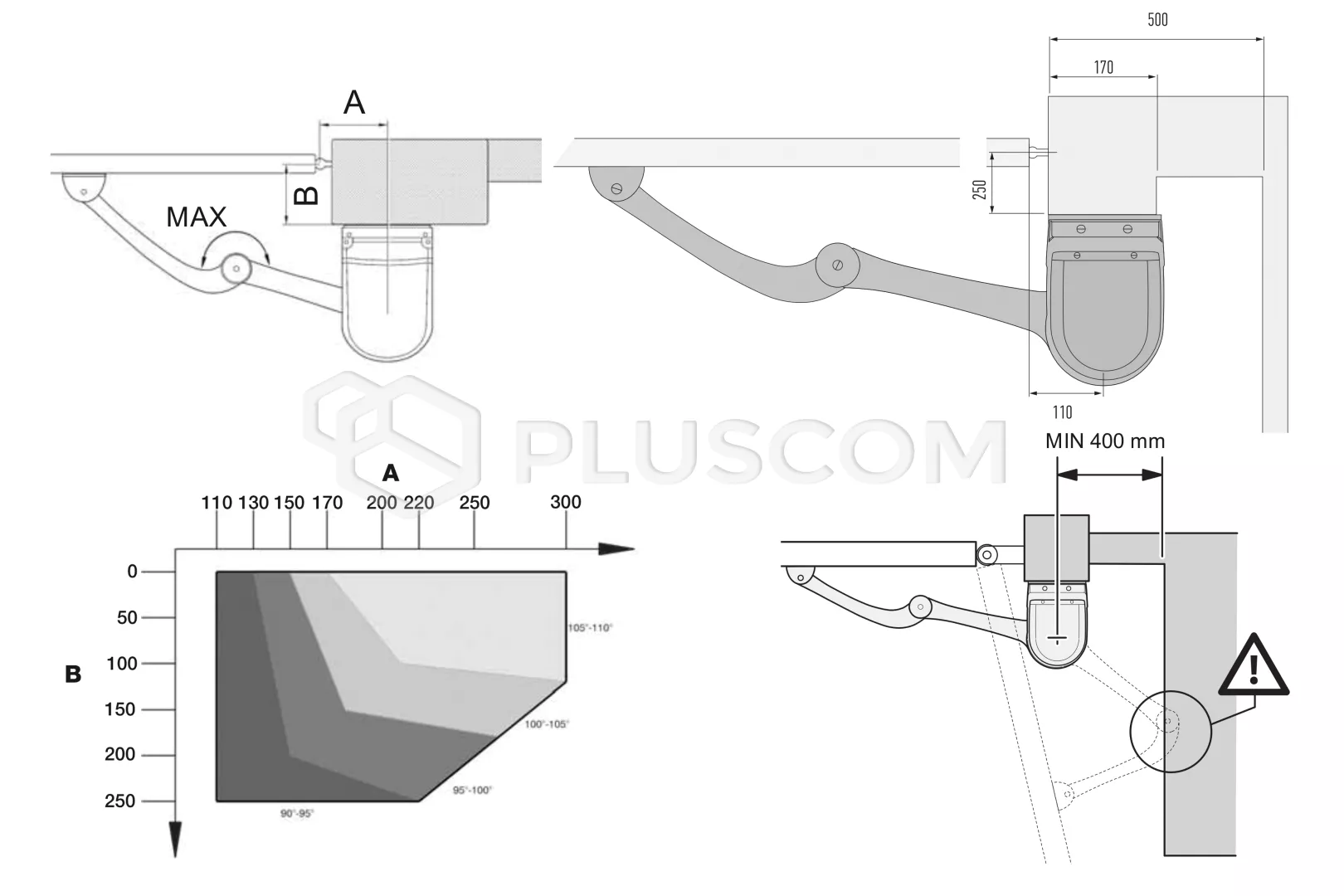

Resistant and compact: 180mm in width, ideal for any kind  of post. Small shockproof body with aluminium base. Sturdy, aluminium anti-shearing arm.

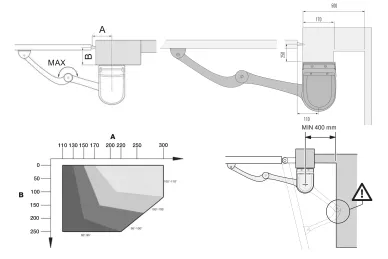

Easy to install: thanks to the new fixing bracket with quick connector for the motor. No welding.

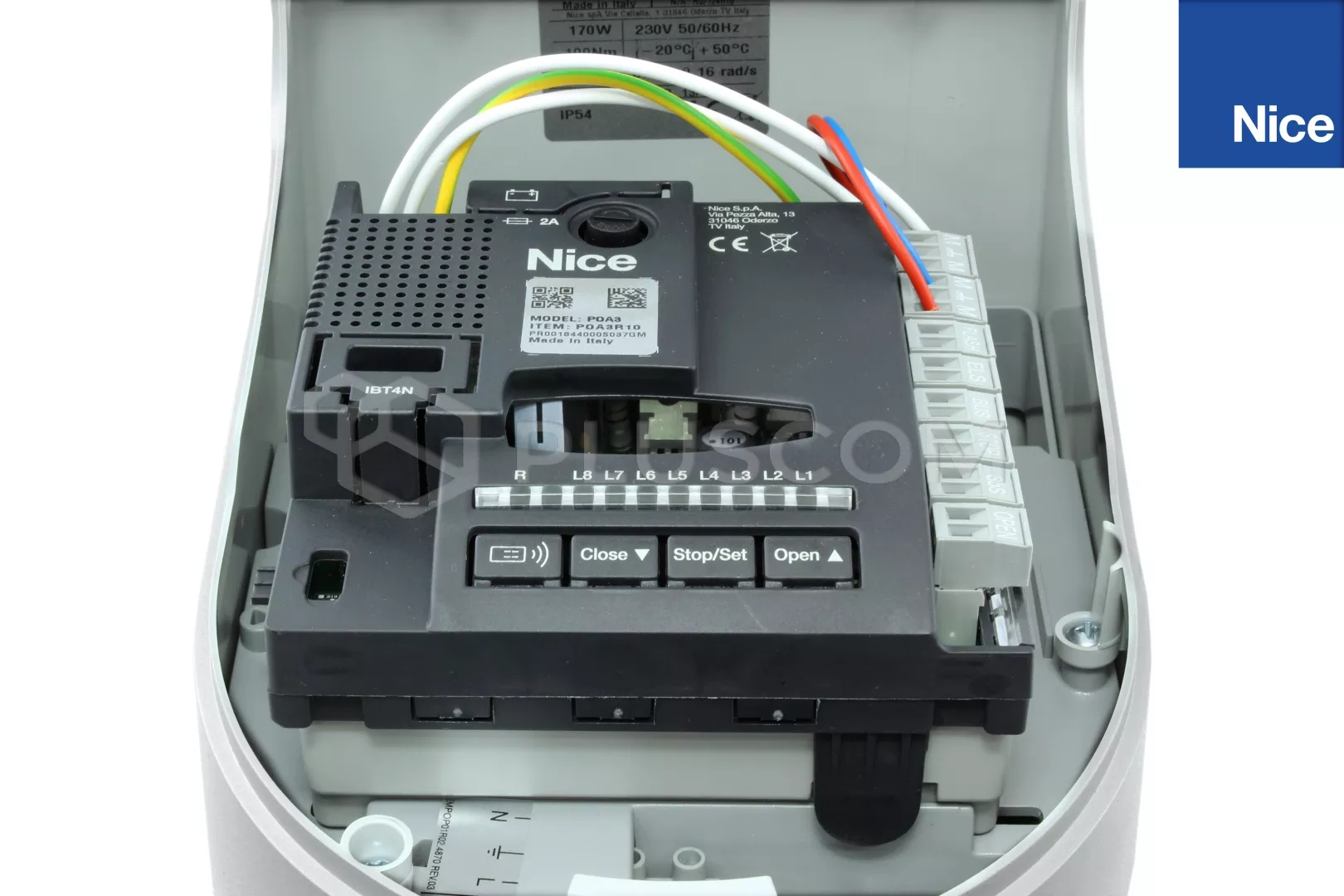

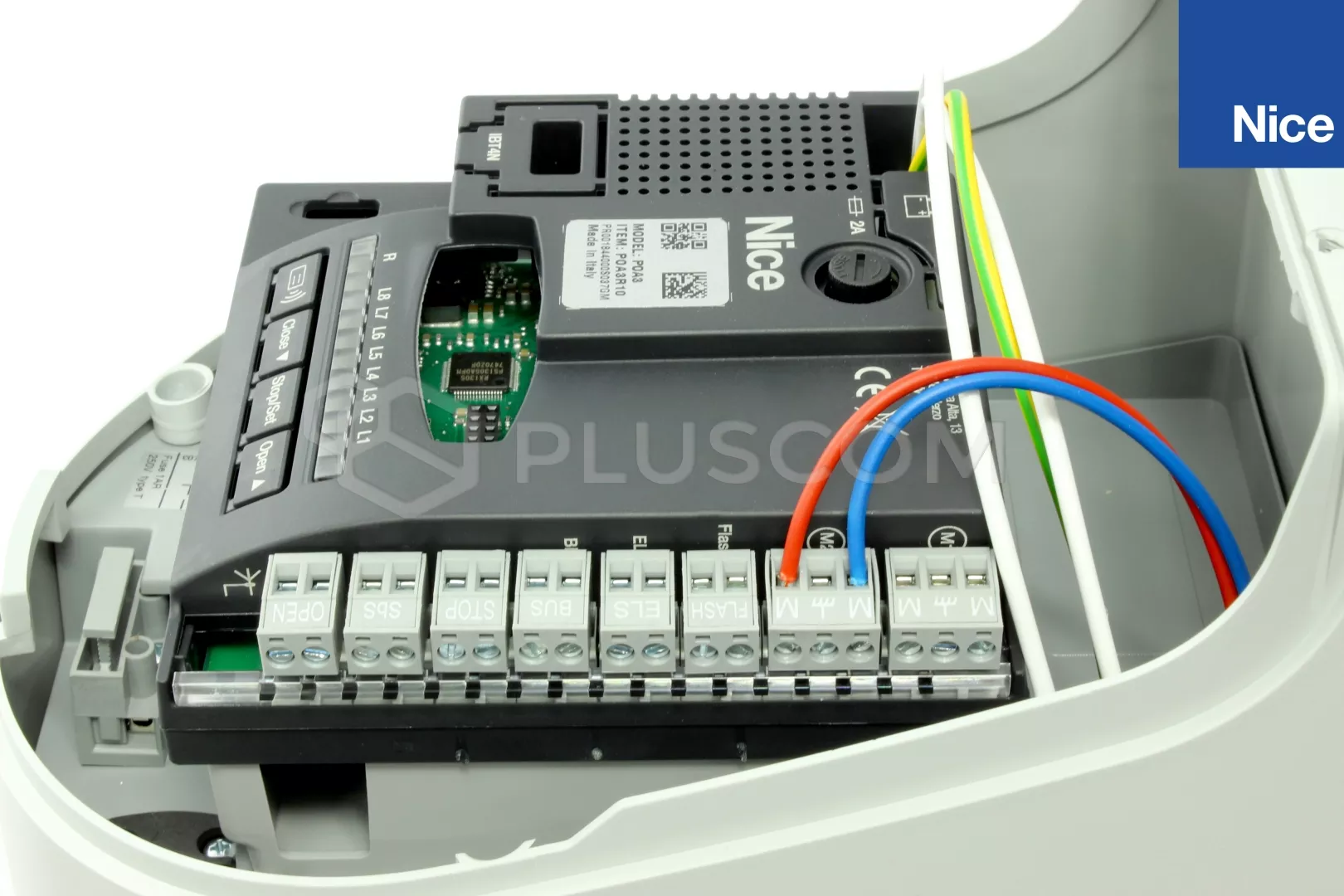

Sophisticated electronics with the built-in control unit,  just 3 keys to manage all programming operations:

• obstacle detection and possibility of connecting to 8,2KΩ sensitive edge, fototest
• automatic fault diagnostics
• memorisation of opening and closing travel limits   in self-learning mode
• possibility of configuring the stop input in self-learning mode, NO, NC and the latest generation 8,2 KΩ resistive sensitive edges
• deceleration on opening and closing
• simple connection of pairs of additional photocells, foto2
• programming of pause time
• pedestrian open and partial open
• clutch with anti-crushing safety mechanism

Energy saving with no black outs: 3 standby modes to reduce mains consumption, or battery power consumption if connected to the Solemyo kit.  Operation in the event of a power failure thanks to the optional  batteries (PS124).

Everything under control: thanks to compatibility  for operation with Opera system bus T4, the unit can be used to expand the options of programming, control  and diagnostics of the automation on site and remotely.
