Nice TOO3000 Set

Nice TOO3000 Set for a double-leaf gate with a leaf length of 3m and weighing 300 kg.

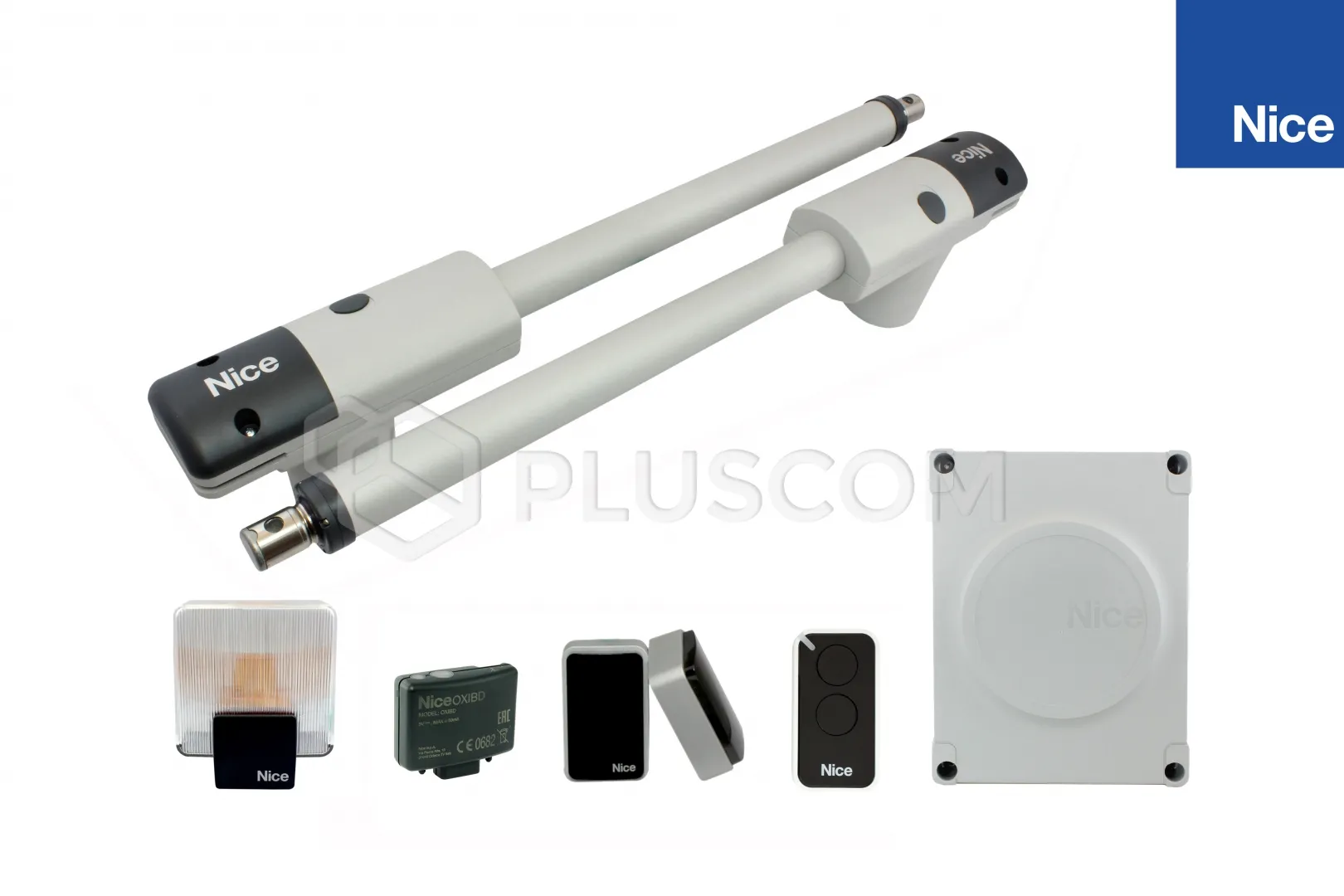

KIT INCLUDES: Nice TOO3000 230V actuator wing up to 3m/300kg - 2 pcs Nice MC800 control unit for 230V gates motors (replaces A60) Nice OXIBD 4-channels receiver two-way Nice Inti2 black 2-channel remote Photocell Nice EPM ERA Medium Nice ELAC LED flashing signal light 230V mounting accessories, handles, screws, release key drive

Nice TOO3000 ERA FLOR Set

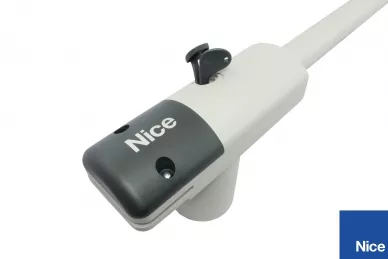

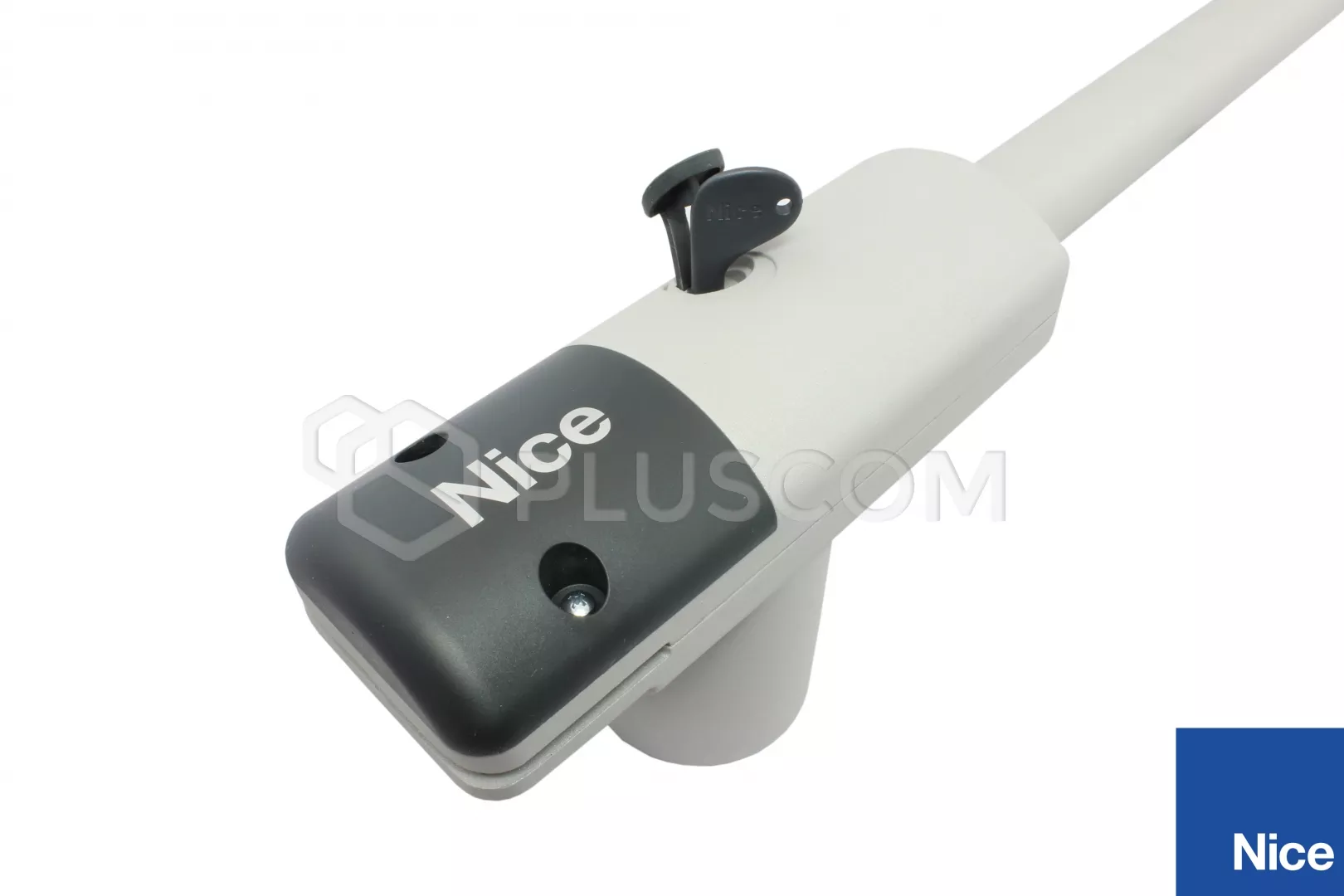

TOO3000 is a self-locking actuator after the gate is finished locked, it cannot be opened manually, eliminating the need to use it additional locks. In the event of a power failure for emergency release a Nice triangular key lock is used. By turning the key 90° clockwise by turning it clockwise, we release the lock and it is then possible to open it manually Gates. Turning the key counterclockwise additionally we block the drive.

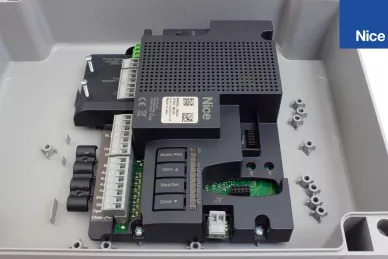

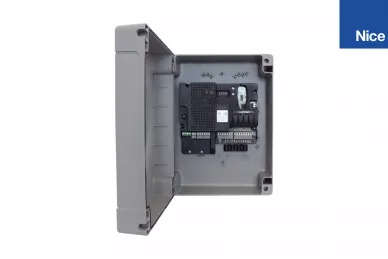

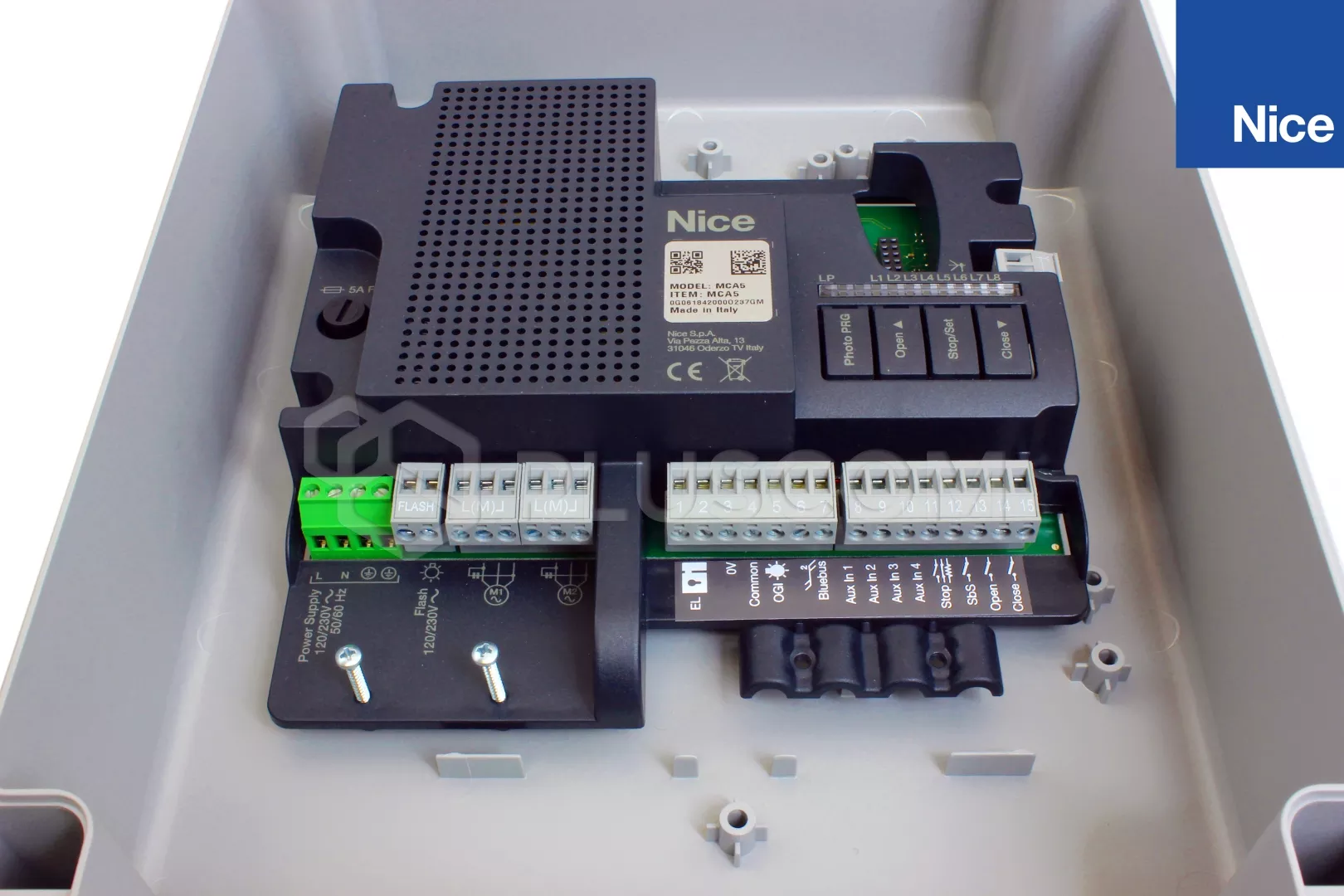

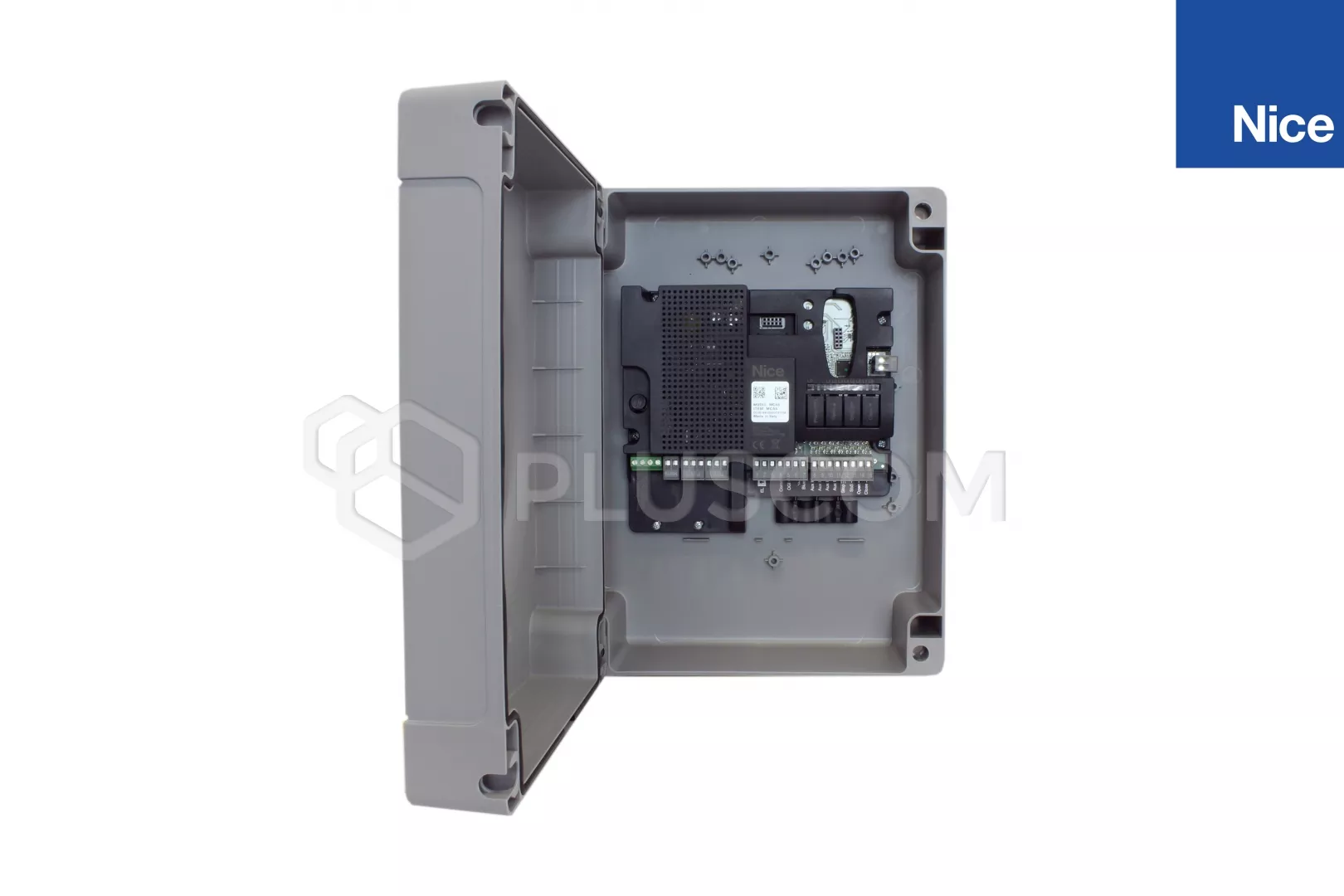

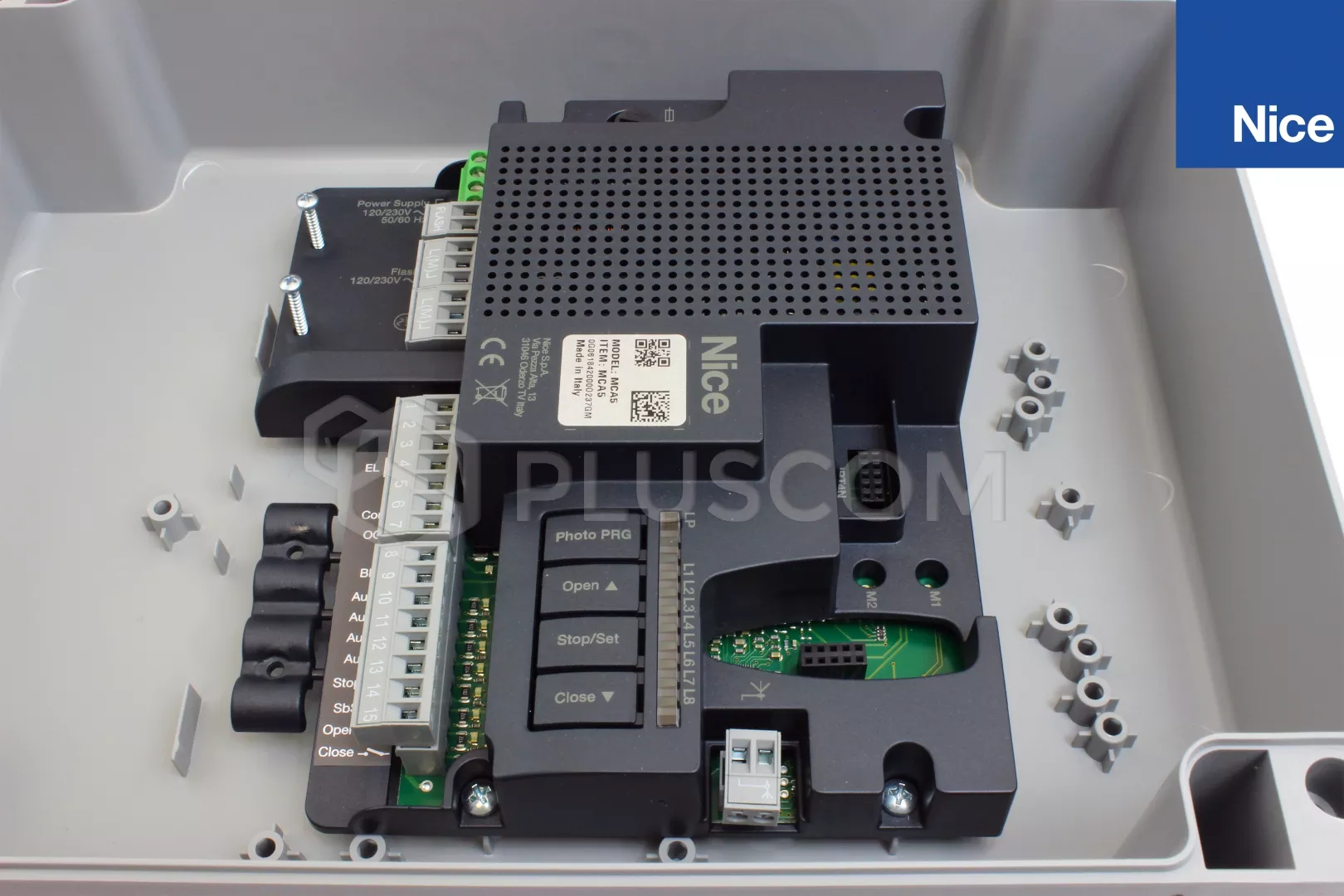

The actuators are connected and controlled from the MC800 control panel, which is modern BLUEBUS exchange. Works both with photocells BLUEBUS (MOFB, EPMB, etc.) as well as with classic photocells relays (BF, FK, EPM, etc.). Relay photocells are connected to the AUX1 to AUX3 inputs (PHOTO, PHOTO1 and PHOTO2 logic). The center also has PHOTOTEST function.

MC800 FUNCTIONS

• cooperation with the Oview programmer (using the IBT4N interface)
• simple programming, friendly two-level programming method 8 first level functions (ON-OFF) and 8 parametric functions
• soft start and slow down on closing

• partial gate opening function - wicket
• control of two 230V actuators
• semi-automatic, automatic operation
• auto programming during the first programming of the control panel automatically determines and stores the end positions of the gate

• operating the electric lock

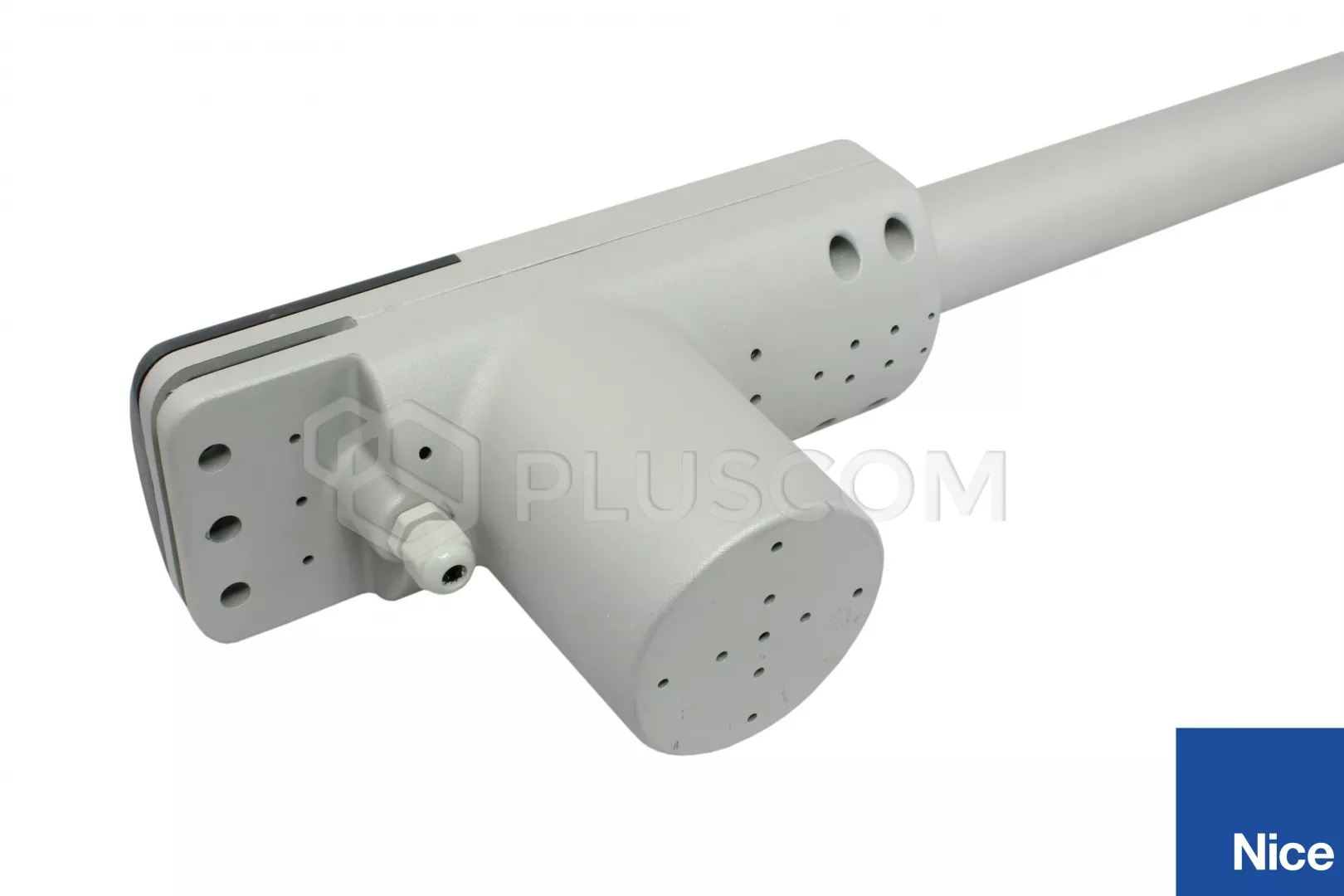

CONSTRUCTION AND ASSEMBLY:

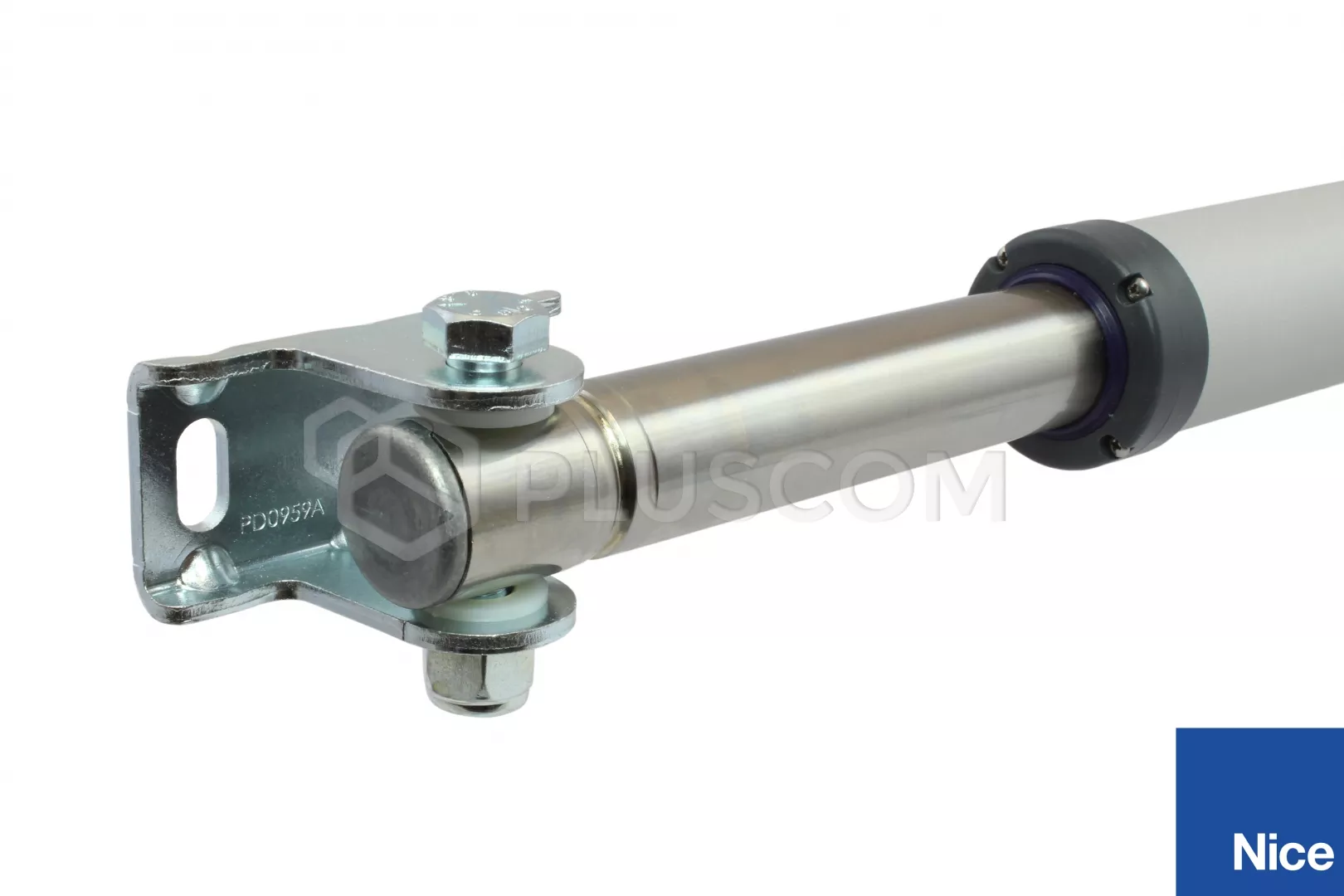

The housing provides IP54 protection. The strong body is made of die-cast aluminum and protected with an epoxy coating. I guarantee is high resistance to changing weather conditions occurring in our Polish climate. To prevent jamming due to corrosion foci piston rods in the drive are made of stainless steel.

The set includes handles and mounting screws. Assembly is not required welding.

PARAMETERS:

• maximum leaf length: 3m
• maximum sash weight: 300kg
• working cycles: 24 cycles/h
• stroke of telescopic cylinder: 400mm
• motor voltage: 230V
• control panel voltage: 230V
• nominal force: 300N, max 2000N
• power consumption: 250W, max 340W
• current consumption: 1.1A, max 1.5A
• operating temperature: -20°C...50°C
• dimensions: 700x100x177(h)mm

• weight: 5.5kg

Compose your own set, starting with actuators with the control unit and select accessories needed.
