Nice WINGO3524HS dual swing gate kit for gates up to 3m/200kg (Set)

Nice Wingo 3524HS R10 HI-SPEED ERA ONE gate set double-leaf with a leaf length of 3m and a weight of 200kg

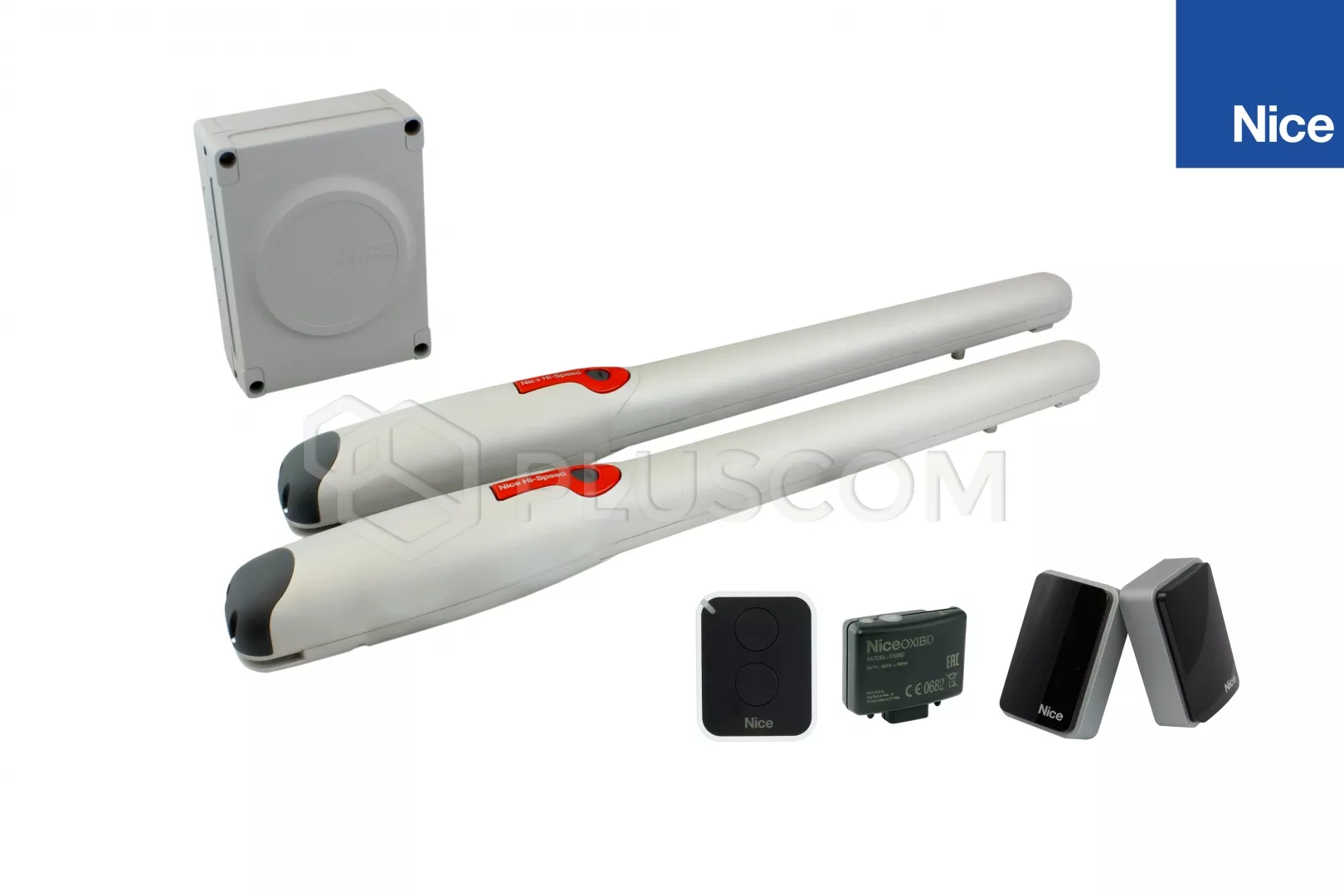

KIT INCLUDES Nice WG3524HS actuator for a wing gate up to 3m/200kg - 2 pcs Nice MC824H R10 BLUEBUS control unit Nice OXIBD 4-channels receiver two-way Nice ON2E 2-channel remote Photocell Nice EPMB ERA Medium BLUEBUS

Nice Wingo 3524HS R10 HI-SPEED BiDi kit

WINGO 3524HSR10 - HI-SPEED is a new faster version of the drive in which slide speed is 40-60% higher than the standard product. Leaf opening up to 90° may take about 10 seconds (with the soft start function turned off and release).
The most important advantages of the Wingo 3524HSR10 model:

• improved performance

• thanks to the use of a patented arrangement of internal components fewer moving parts ensures quiet operation and reliability

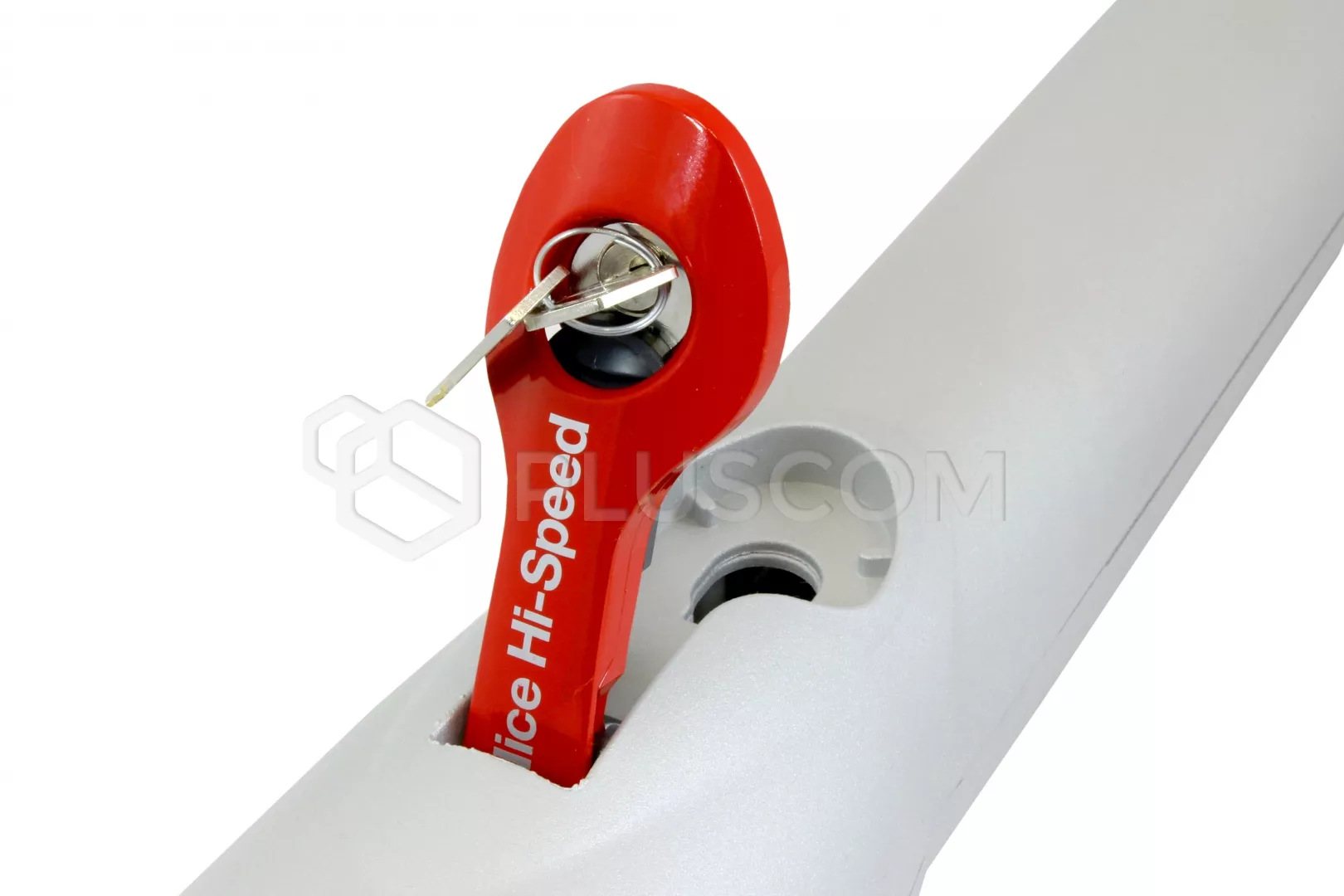

• equipped with a convenient emergency unlocking mechanism in case of failure mechanical power that allows the gate to open and close in mode manual in the event of a power failure or abnormal condition functioning of the gate
• amperometric obstacle detection system - used for detection any obstacles that may occur during the normal movement of the gate. Thanks to this function, when an obstacle is encountered, the drive stops the gate changes its direction
• smooth release function during closing and soft start - consists on reducing the speed so as to avoid a strong jerk at the moment opening or closing the gate. Thanks to this, the gate works smoothly and not makes noise during operation.
• PHOTOTEST function - the control panel automatically before each movement of the gate checks whether the photocells are operational and when everything works as it should, the gate is set in motion.
• the function of the wicket, i.e. partial opening of the gate or one leaf – thanks to it, when you go on foot or ride a bike, you do not have to wait for the gates will fully open and close
• self-locking drive, which means that the gate locks mechanically after stopping the engine. Thanks to this, there is no need for an additional one mechanically locking the gate with a lock, nor is it possible to lock it manual opening

Elongated body design. Wide installation possible posts.

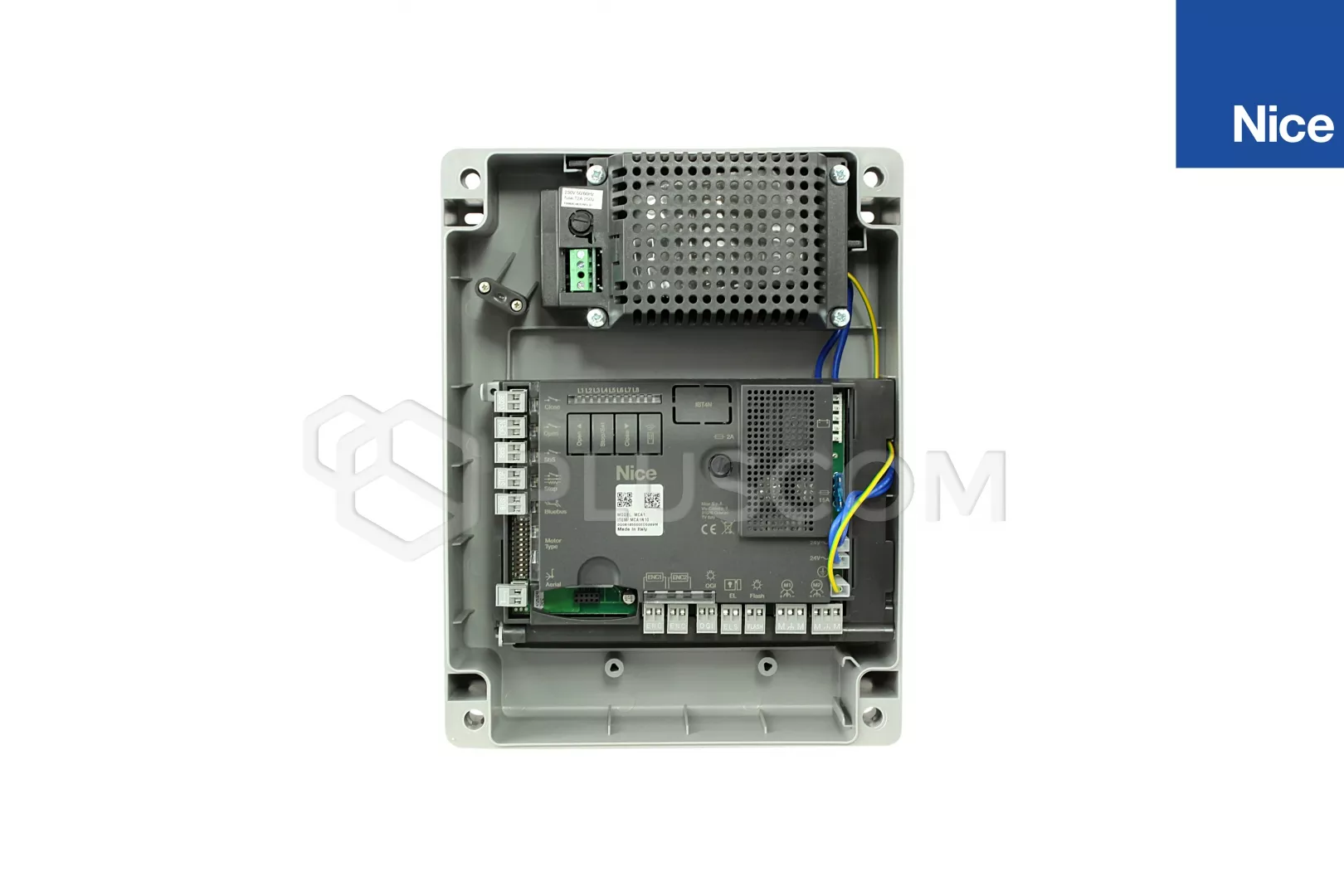

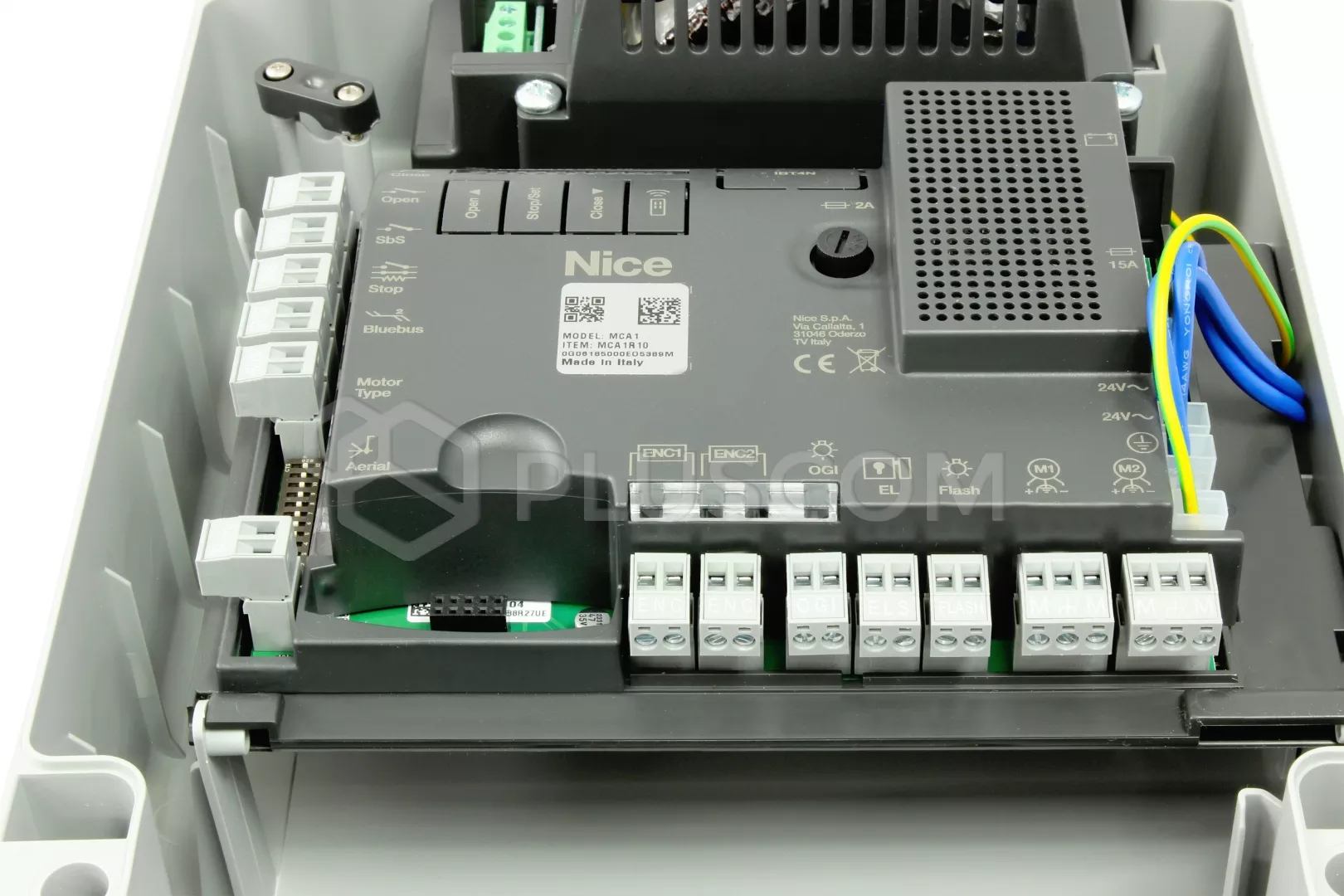

Characteristics of the MC824HR10 control panel:

• control of two 24V actuators with an encoder
• manual, semi-automatic, automatic
• built-in radio
• SM connector for pluggable radio receivers
• IBT4N connector for connecting BusT4 devices

• BLUEBUS technology
• auto programming during the first programming of the control panel automatically determines and stores the end positions of the gate

• soft start and slow down on closing

• regulation of the speed of the actuators

• the function of partial opening of the gate - wicket


Sophisticated electronics: amperometric sensing system obstacles, possibility of connecting an 8.2KΩ resistance strip, programmable pause time, partial opening of the gate (pedestrian function), release during closing and soft start when opening. Possibility to operate the electric lock.

Always working: thanks to PS124 backup battery (option), actuators will open and close the gate, even in the event of a power failure.

The technology used makes it possible to use a solar power system ''Solemyo''.

List of accessories that can stay used with drive:

BLUEBUS photocells

Signal lamps:

Additional remote controls (Flor series):
