Nice RUN1500 MYGO kit for sliding gates weighing
up to 1500 kg

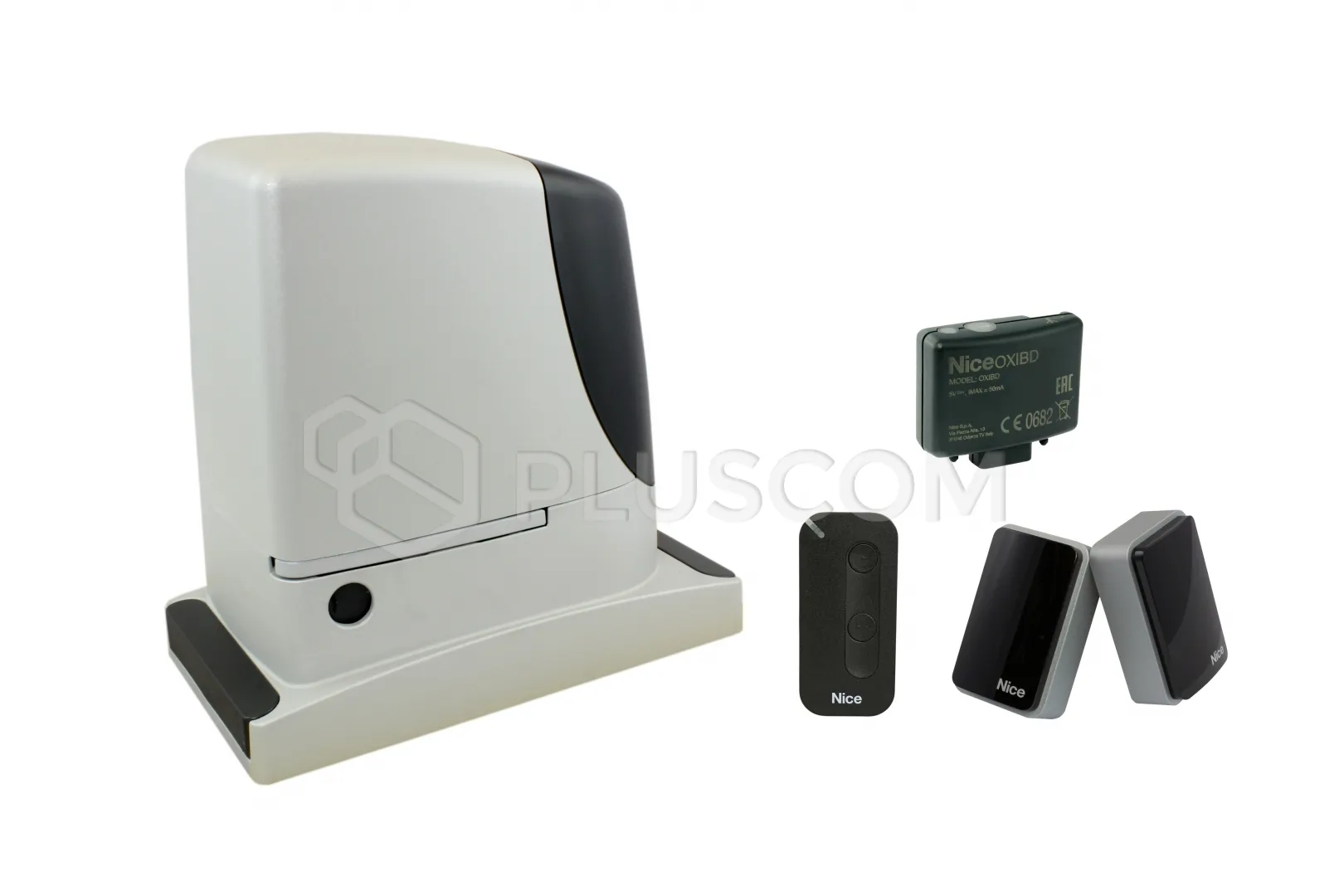

THE KIT INCLUDES
|
Nice RUN1500 MYGO Set for sliding gates up to 1500kg
|
Drive for sliding gates weighing up to 1500 kg, 24V engine, with
built-in BLUEBUS control unit. Ideal for industrial applications. It has
different levels of work intensity and a wide range of functions allowing it to
be perfectly adapted to individual conditions and place of use.
The built-in control unit works in
BLUEBUS technology,
allowing accessories (including photocells) to be connected using a 2-wire
cable.
It has a built-in
temperature sensor that adjusts the power of
the engine and the security threshold.
The controller
remembers the gate's end positions ensuring
a soft start and release before the end of the maneuver. Different levels of
work intensity and a wide range of functions allow it to be perfectly adapted
to individual conditions and place of use.
FEATURES:
- self-locking drive, thanks to which there is no need for additional
mechanical locking of the gate using a lock
- self-diagnosis function, thanks to which the lamp signals the malfunction
of the system and determines the type of error by the number of flashes
- function of constant monitoring of connected devices
- overload obstacle detection system
- possibility of synchronizing the operation of two actuators
- multi-level adjustment of the drive operation
- support for two signal lamps
- function of smooth release during closing and soft start
Two-way radio receiver OXIBD for mounting directly in the
drive unit.
The receiver can memorize up to 750 bidirectional transmitters or 1024
unidirectional ones.
The bidirectional radio protocol has many advantages
(function
available only with ON3EBD remote controls):
- extension of radio range up to 500 m (max. 10 jumps)
- confirmation by automation of correct command reception
- possibility to check the automation status at any time
- high security thanks to encrypted communication
- low power consumption in standby mode
provides radio control with a
dynamically variable code, with a frequency of 433.92 MHz, which provides a
high level of use safety and makes the code impossible to copy.
MYGO2 has a secret code called "SWITCHING CODE". By transferring this
code from a memorized transmitter to a new transmitter, the latter is
recognized (and remembered) automatically by the receiver.
The MYGO2 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with radio coding
"O-Code".
