Nice RUN1200HS MYGO Set for sliding gates
weighing 1200kg

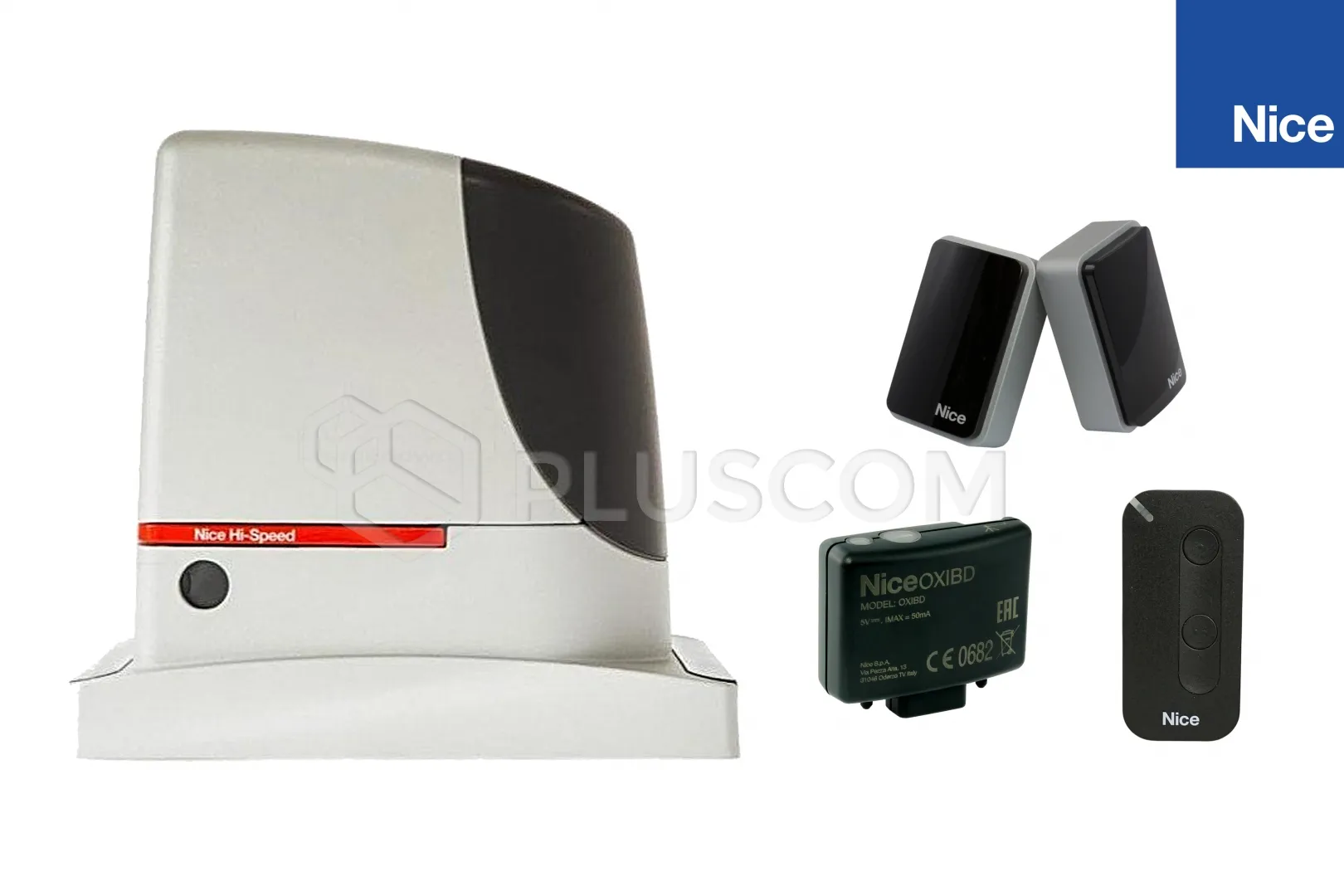

SET INCLUDES:
|
Nice RUN1200HS MYGO sliding gate kit
|
RUN 1200HS -
HI-SPEED is a drive version in which the
travel speed is higher
by 40-60% than the standard product.
Maximum linear speed of
19m/min means that a 7m wide gate will be opened in about
18s.
SPEED OF OPERATION COMBINED WITH SAFETY
The drive has a number of functions that ensure safety during gate operation:
- amperometric obstacle detection system. The control unit
analyzes the current intensity, in case of encountering an obstacle the motor
load and current intensity increase. In this case, the actuator is stopped
and the direction of the gate movement changes.
- self-locking drive, the gate locks mechanically after
the engine stops, it is not possible to open it manually and it does not need
to be additionally locked
- actuator "remembers" gate end positions knows
how much the gate can open at each movement
- temperature sensor will not allow the engine to
overheat during intensive work on hot days;
-
- adjusts the thermal protection threshold for the engine depending on
the current climatic conditions,
- controls the intensity of internal cooling
- self-diagnosis function, the control unit checks the
status of connected devices, errors are reported via a signal lamp with an
appropriate number of flashes

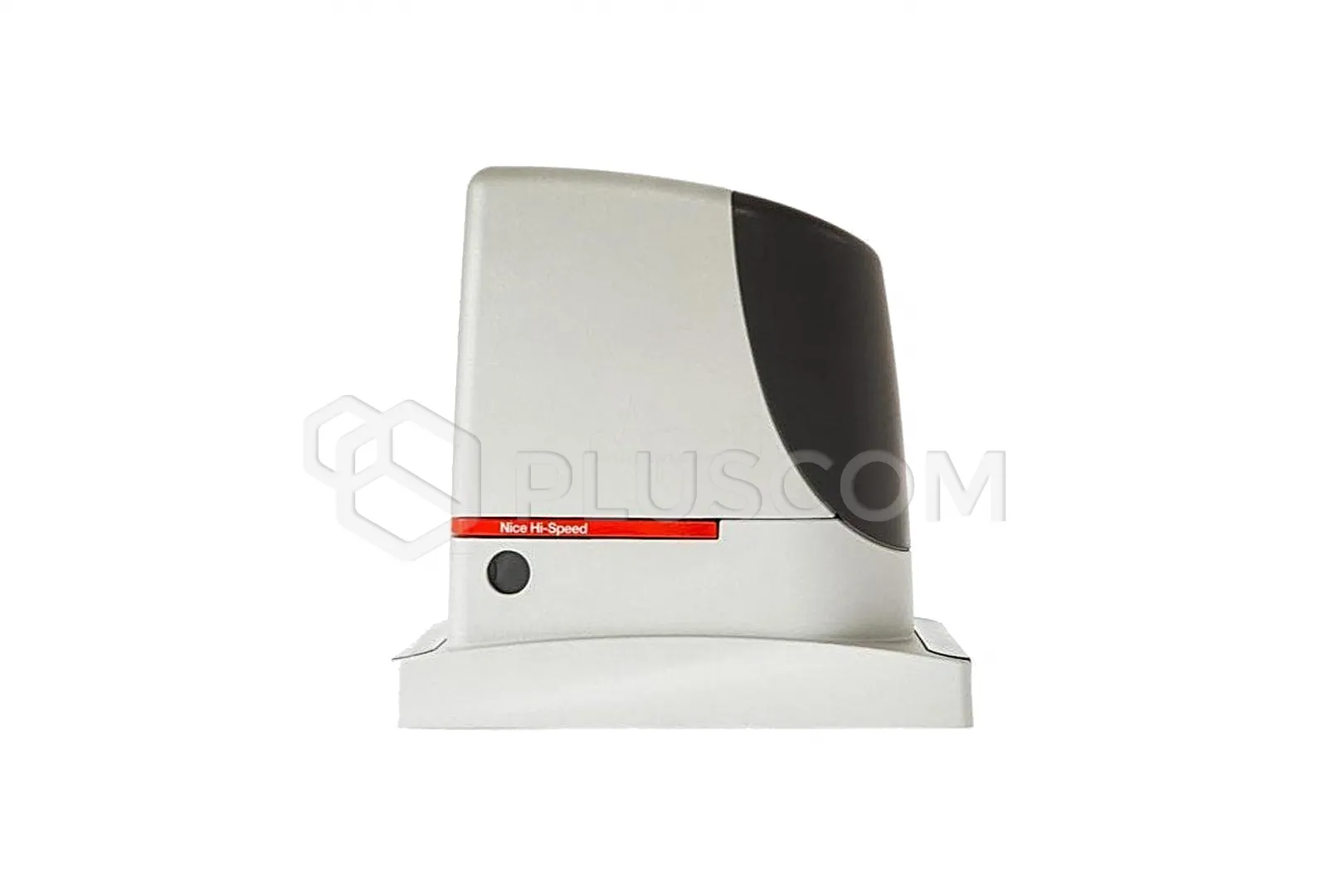

RUN 1200HS is a reliable drive for sliding gates with a 24V
engine. It has many configurable parameters and functions, including:
- wicket function, partial opening gates
- automatic closing, speed and sliding force which can be adjusted on 6
levels.
- when not in use it goes into "sleep" mode, reducing energy
consumption
- has space for an optional battery enabling operation in the absence of
mains power
- soft start and smooth release during closing make the drive work quietly
and without strong jerks.
- possibility of synchronizing the operation of two drives

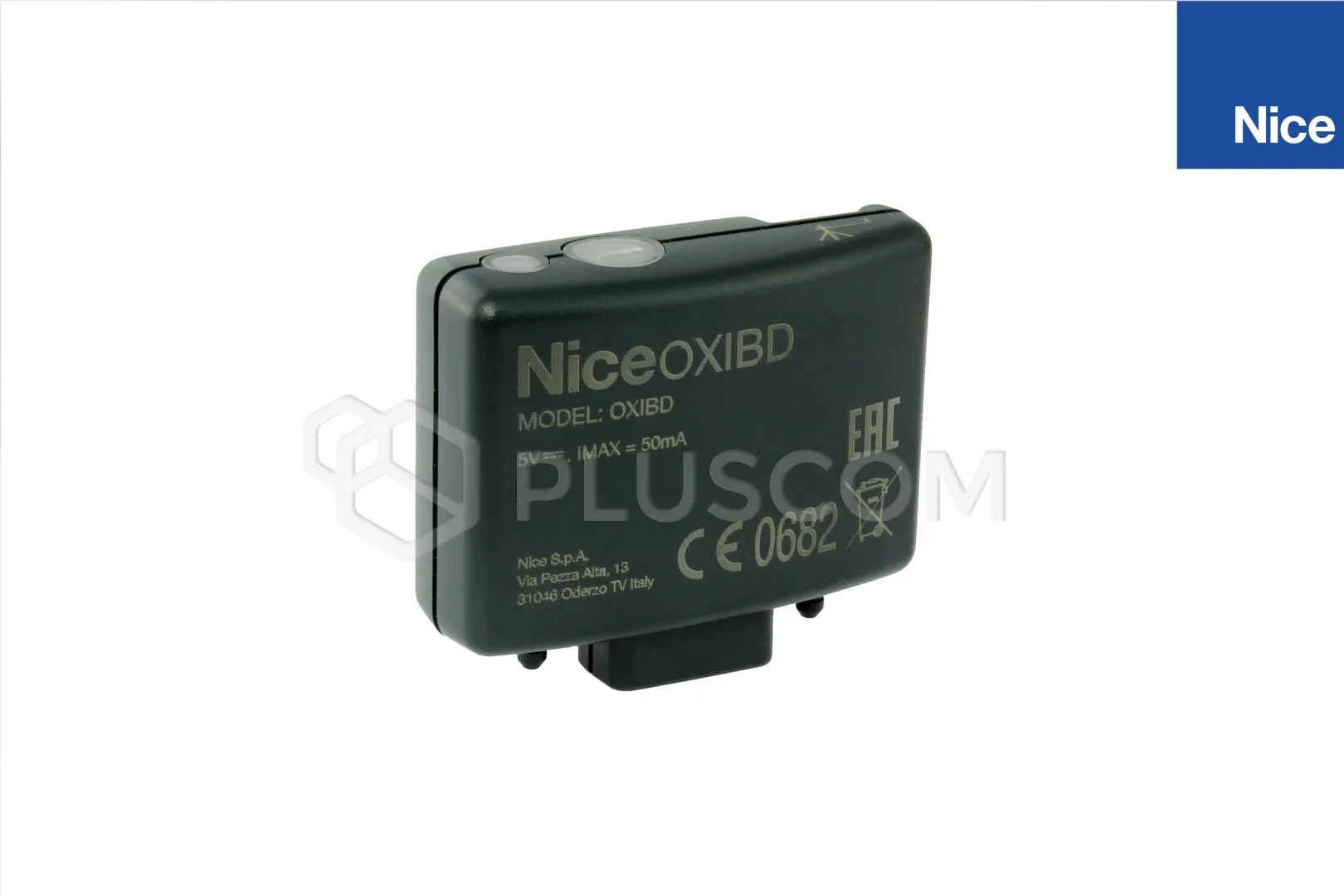

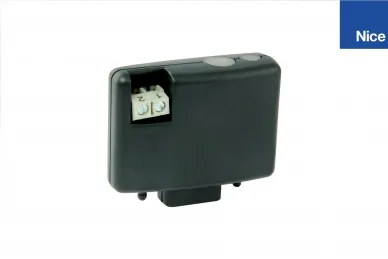

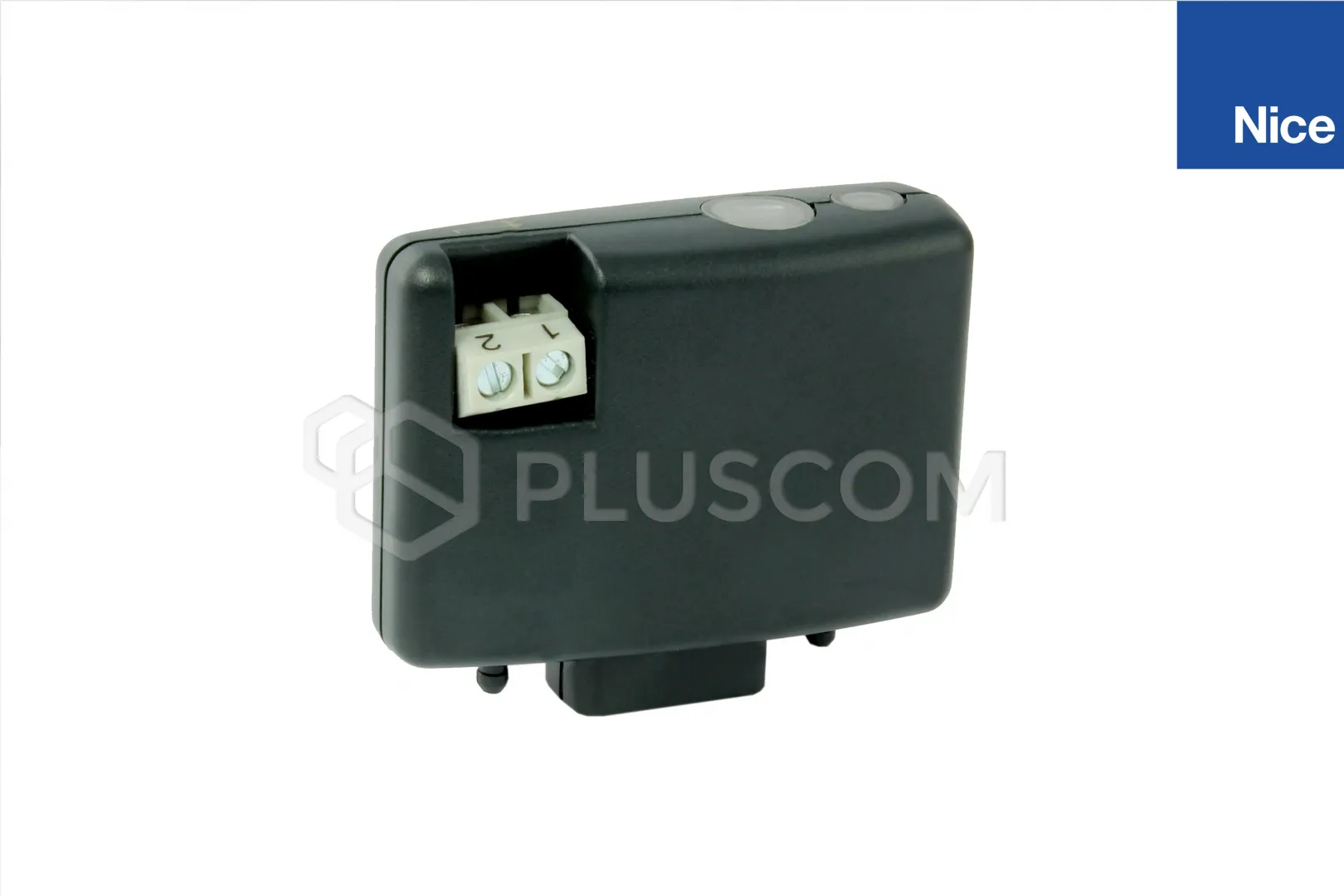

OXIBD bidirectional radio receiver for installation
directly in the drive control unit.
It is connected to the electronics using an SM type connector, which is
available in most Nice drives and control units.
OXIBD automatically recognizes the characteristics of the control
unit in which it was installed.
The receiver is compatible with O-Code unidirectional radio coding, FloR,
TTS, Smilo, Flo and with BD bidirectional coding.
Thanks to O-Code and BD coding, we fully use all the advanced functions of
the ''NiceOpera' system.
The receiver can store up to 750 bidirectional transmitters or 1024
unidirectional transmitters.
This coding system
allows you to use all advanced functions of the “NiceOpera” system.

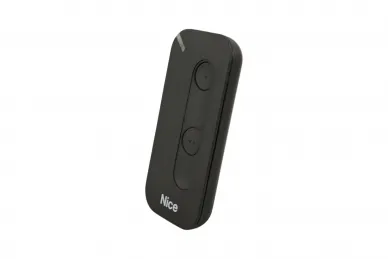

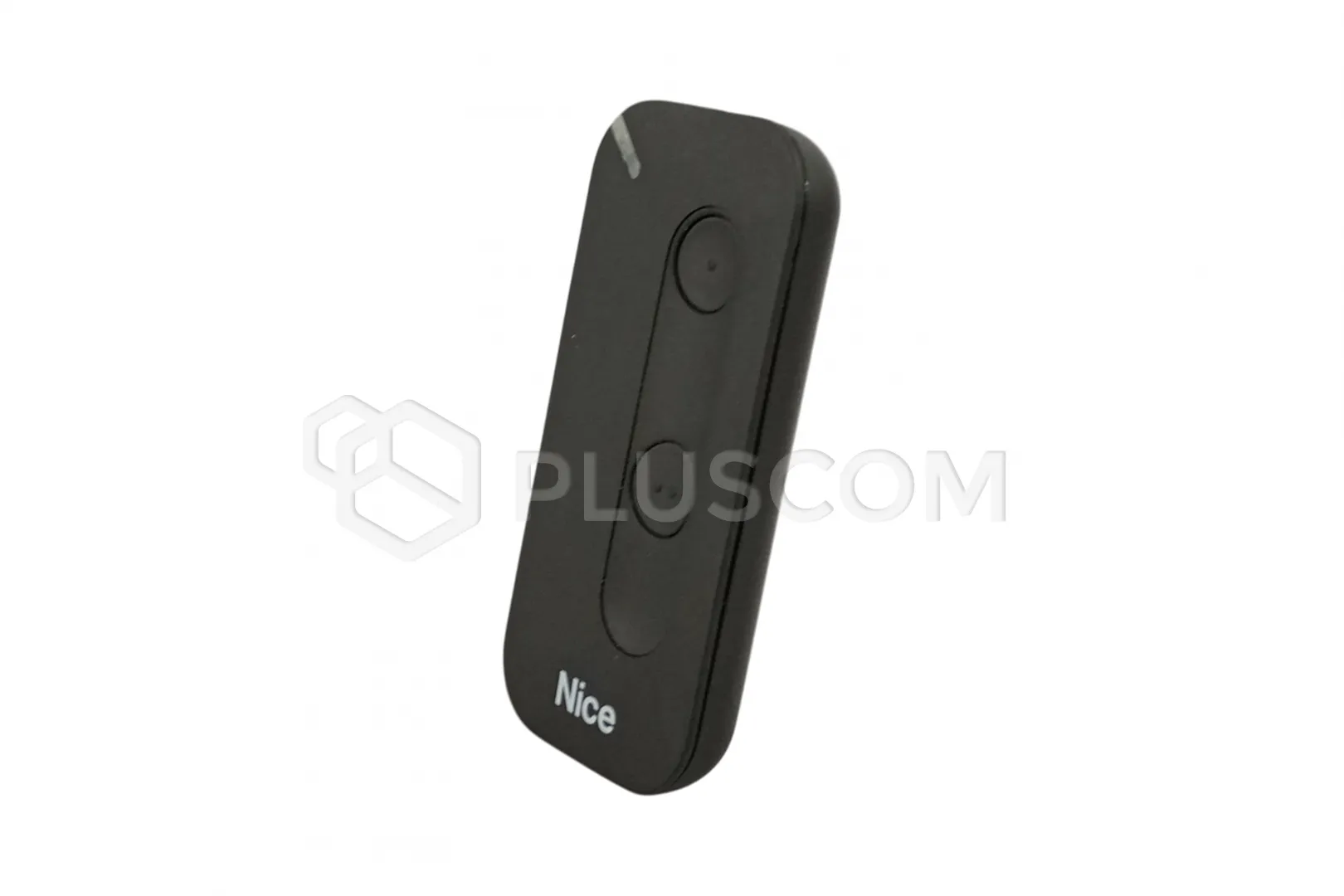

The remote control provides radio control with a dynamically changing code, at
a frequency of 433.92 MHz, which provides a high level of safety of use and
makes the code impossible to copy.
MYGO2 has a secret code, the so-called “ENABLE CODE”. By transferring this code
from the memorized transmitter to the new transmitter, the latter is recognized
(and memorized) automatically by the receiver.
The MYGO2 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with radio coding
"O-Code".

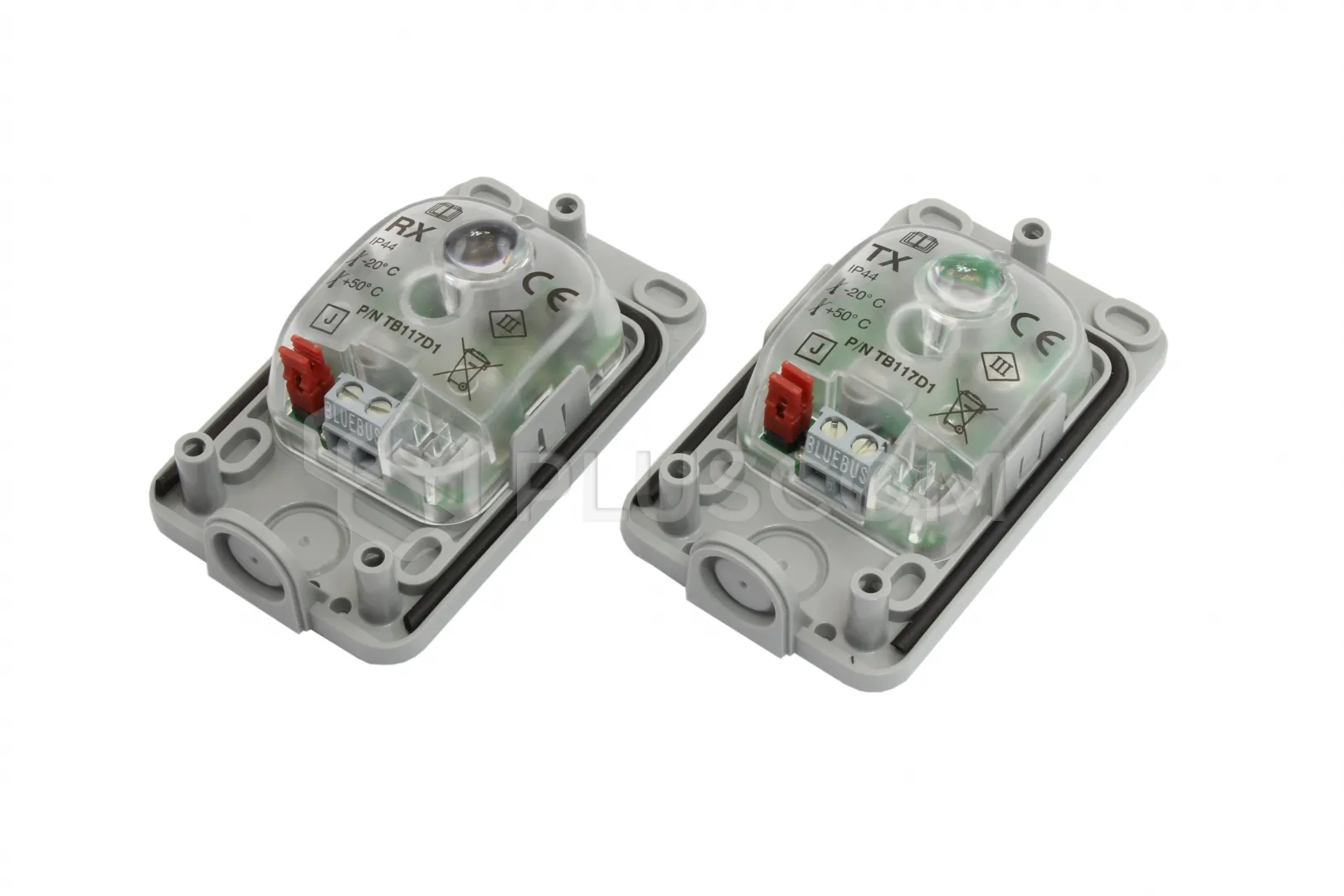

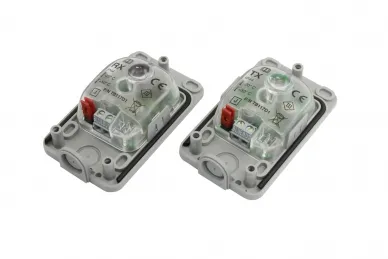

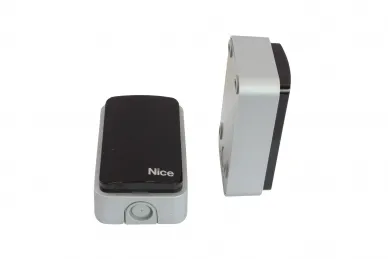

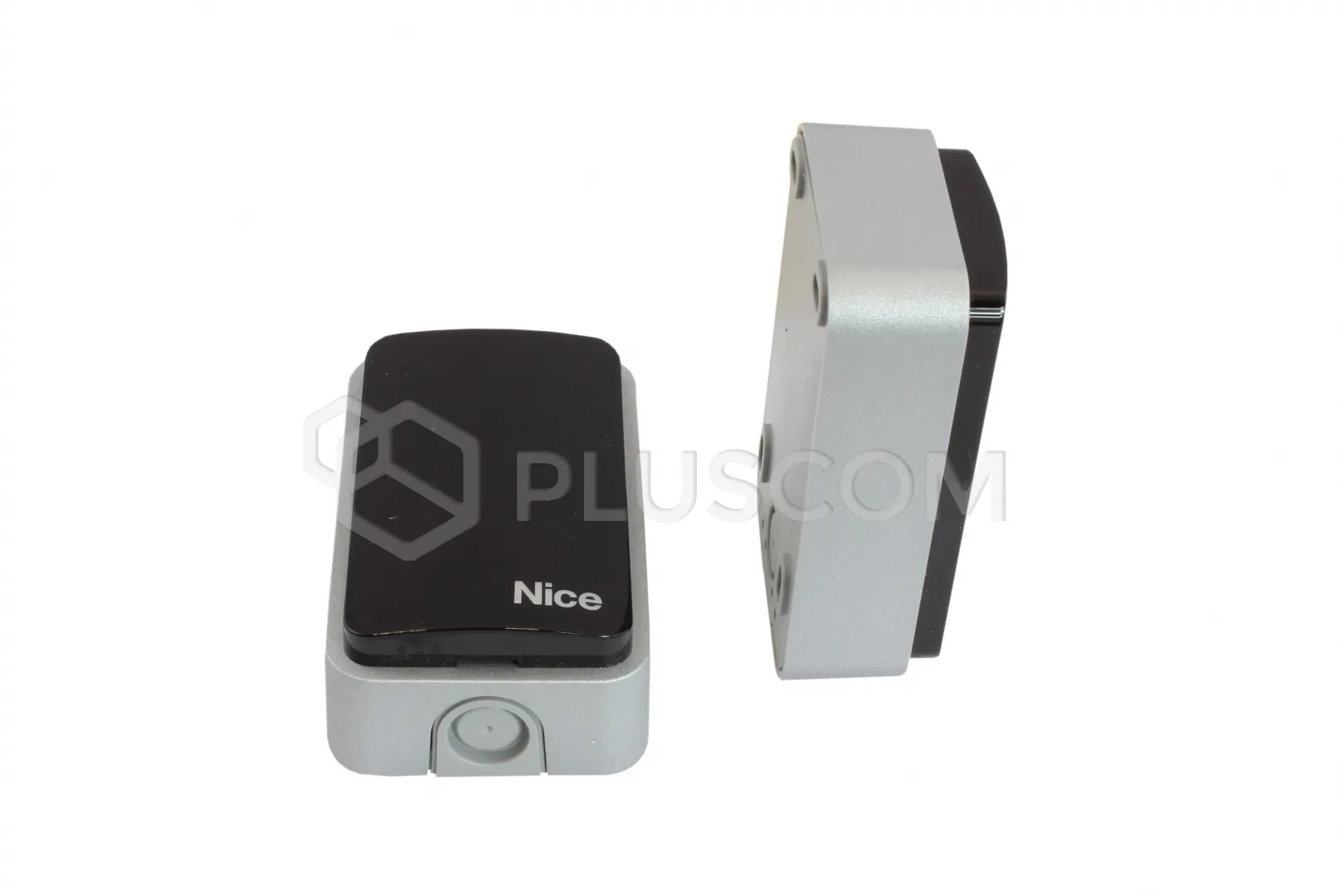

EPMB photocells, for external installation, are a combination
of excellent technical parameters and excellent design. The operating range of
the devices is up to 30 m.
They are equipped with modern BlueBus technology, thanks to which the
connection to the control unit is made using a 2-wire cable, which is
significantly easier during installation and significantly shortens its time.
The photocell housing protects against the ingress of dust and rain, which
means they can be installed outdoors and operate in the temperature range:
-20°C...+50°C.
TECHNICAL PARAMETERS:
- power supply: 230V AC
- current consumption 1.8A
- power: 700W
- engine power supply: 24V DC
- maximum torque: 27.4Nm
- nominal torque: 10.3Nm
- speed: 19m/min
- work intensity: 15 cycles per hour
- protection class: IP44
- operating temperature: -20°C...50°C
- dimensions: 400x255x387mm
- weight: 24.5
