Nice TOONA5015 MYGO set for a double-leaf gate with a leaf length of 5m and
a weight of 200kg

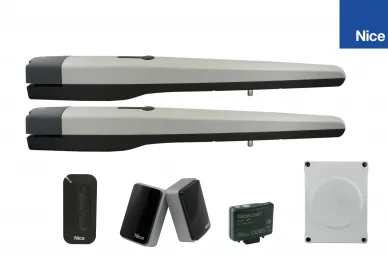

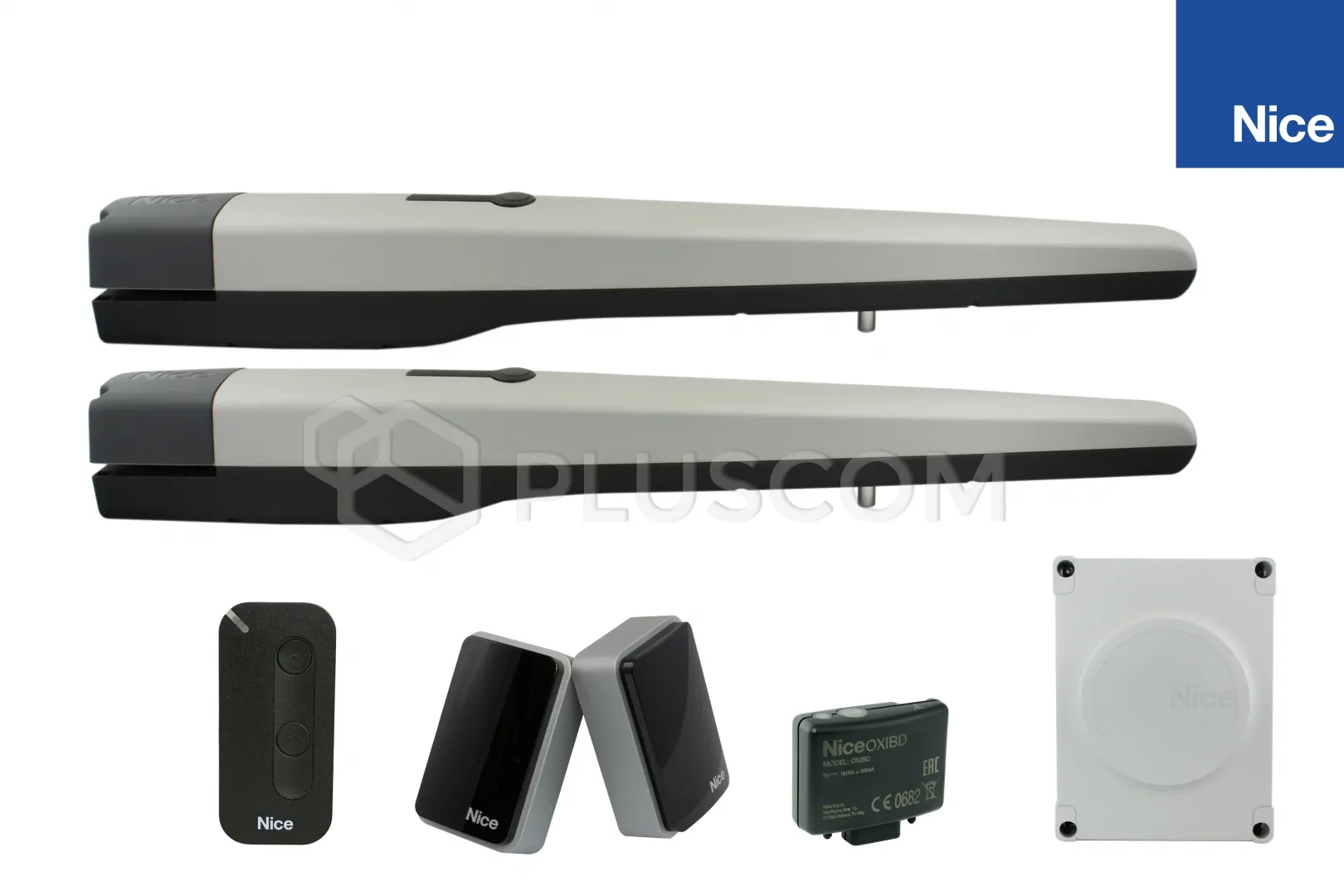

THE SET INCLUDES:
|
Nice TOONA5015 MYGO set for swing gates up to 3m
|

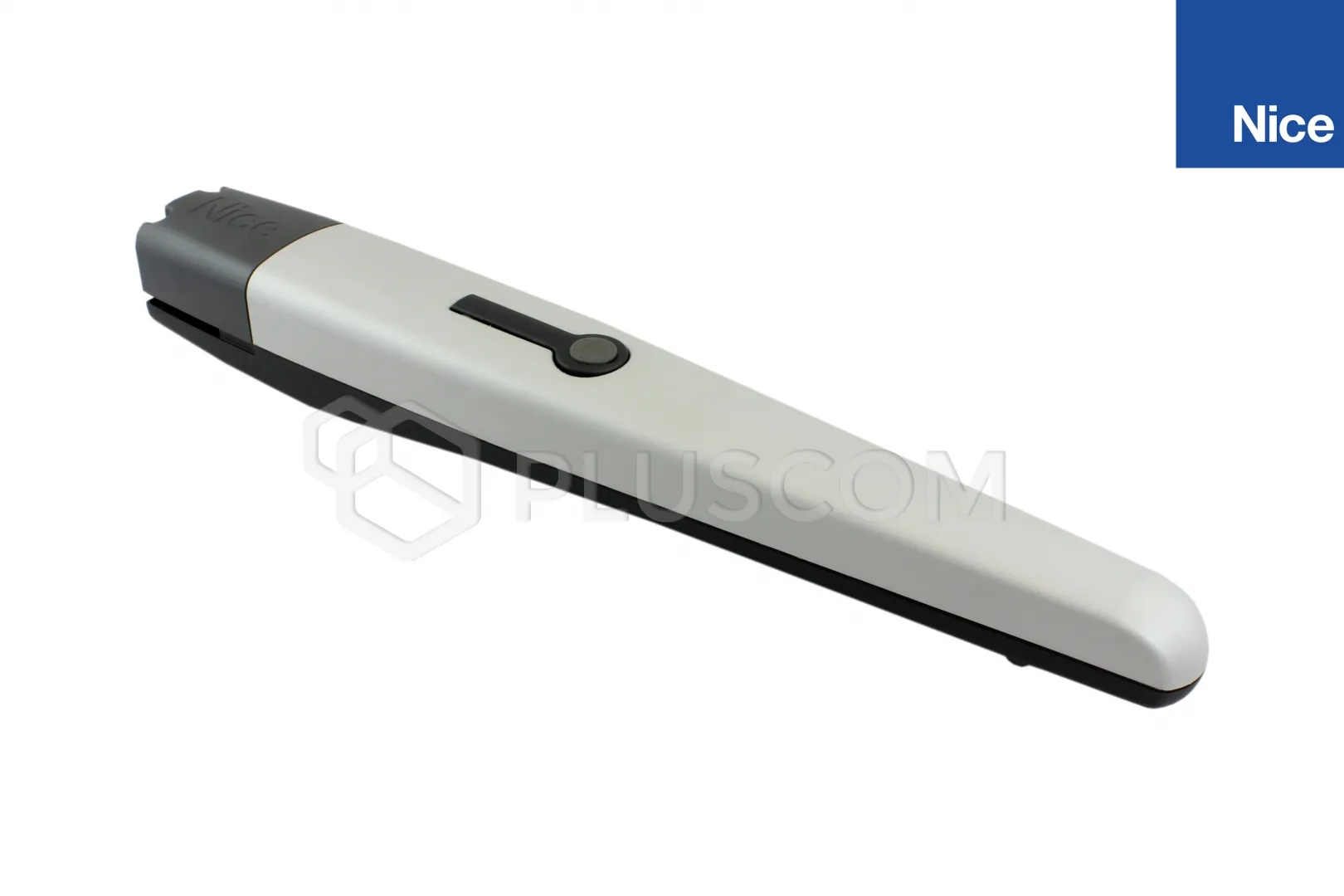

TOONA is an actuator for double-leaf gates with a leaf length of up to
5 m. This modern, third-generation drive will ensure failure-free operation of
the gate for many years. Thanks to the use of light alloys and technopolymers
in the production of the actuator and the housing covered with polyester
varnish, we can guarantee its durability, regardless of the prevailing climatic
conditions.

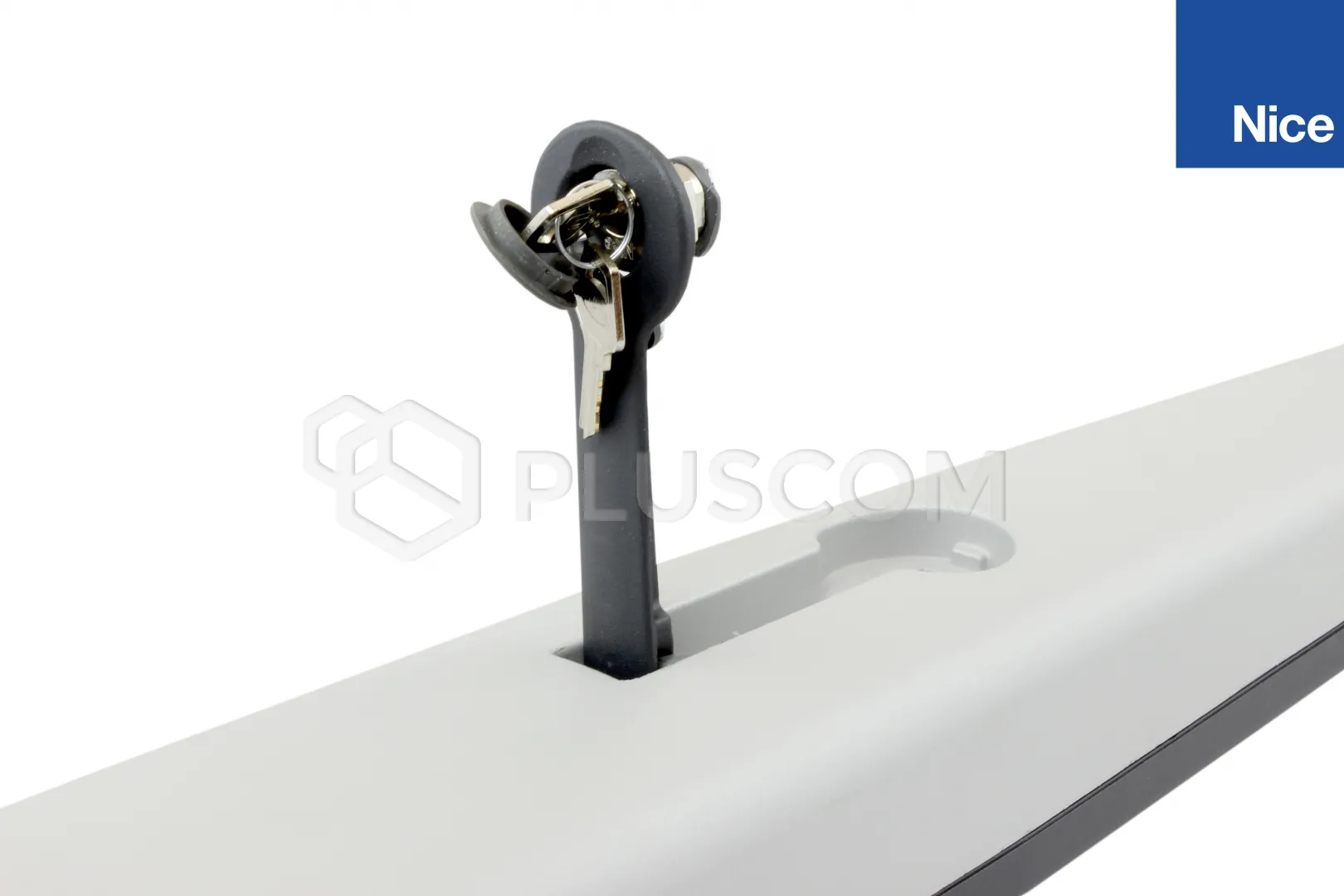

The actuator is equipped with a limit stop when opening. An
aluminum lever is used for emergency disengagement of the drive. The actuator
is accompanied by brackets for mounting the actuator on the post and to the
gate leaf. The brackets require welding.
The actuator is equipped with a limit stop when opening. An
aluminum lever is used for emergency disengagement of the drive. The actuator
comes with brackets for mounting the actuator on the post and to the gate leaf.
The brackets require welding.
The operation of the actuators is controlled by the MC800 control
unit, which performs a number of useful functions:
- recognition of BLUEBUS line devices (including - STOP input status)
- recognition of the range of movement of each gate leaf
- cooperation with the Oview programmer (using the IBT4N
interface)
- simple programming, user-friendly two-level method of programming 8
first-level functions (ON-OFF) and 8 parametric functions
- soft start and slowdown when closing
- partial gate opening function - wicket
- control of the operation of two 230V actuators
- semi-automatic, automatic operation
- auto programming during the first programming control unit automatically
determines and remembers the gate's end positions
- electric lock support
CONTROL UNIT PARAMETERS:
- control unit power supply: AC 230V
- rated power drawn from the mains 900W
- warning lamp output: 120/230V,21W
- protection class: IP54
- operating temperature -20°C...+50°C
- dimensions: 310x232x122mm
- weight: 4.1kg
The MYGO2 remote control provides radio control with a
dynamically changing code, with a frequency of 433.92 MHz, which provides a
high level of use safety and makes the code impossible to copy.
MYGO2 has a secret code, the so-called "SWITCHING CODE". By
transferring this code from a memorized transmitter to a new transmitter, the
latter is recognized (and remembered) automatically by the receiver.
The MYGO2 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with radio coding
"O-Code".
EPM relay photocell, used for devices with a classic
PHOTO/STOP input. The device does not have the ability to adjust the angle of
inclination. Therefore, it is important that they are mounted on vertical and
parallel walls. Aluminum columns 50 or 100 cm high PPH3, PPH4 can be used for
mounting
The photocell housing protects against the ingress of dust and rain, which
means that they can be installed outdoors and operate in the temperature range:
-20°C...+50°C.
TECHNICAL DATA:
- engine power supply: 230V
- current consumption: max 1.5A
- power consumption: 340W
- built-in capacitor 7uF
- speed: 0.013m/s
- stroke: 540mm
- force: max 1800N
- work intensity: 54 cycles/h
- weight: 7kg
