Nice TOO3024 INTI Dual swing gate kit

731,71 EUR including 23.00% VAT
Product code: #17925
Manufacturer: Nice
  • Maximum leaf width 3m
  • Maximum leaf weight 300kg
  • 24V engine power supply
  • Control unit MC424L
  • INTI2 2-channel remote control, EPM photocells, ELDC lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice PLA10 Electric lock vertical Nice PLA11 Electric lock horizontal Nice BiDi WiFi module for programming and configuration of control panels

Nice TOO3024 Set for a double-leaf gate with a leaf length of 3m and a weight of 300kg


SET INCLUDES:

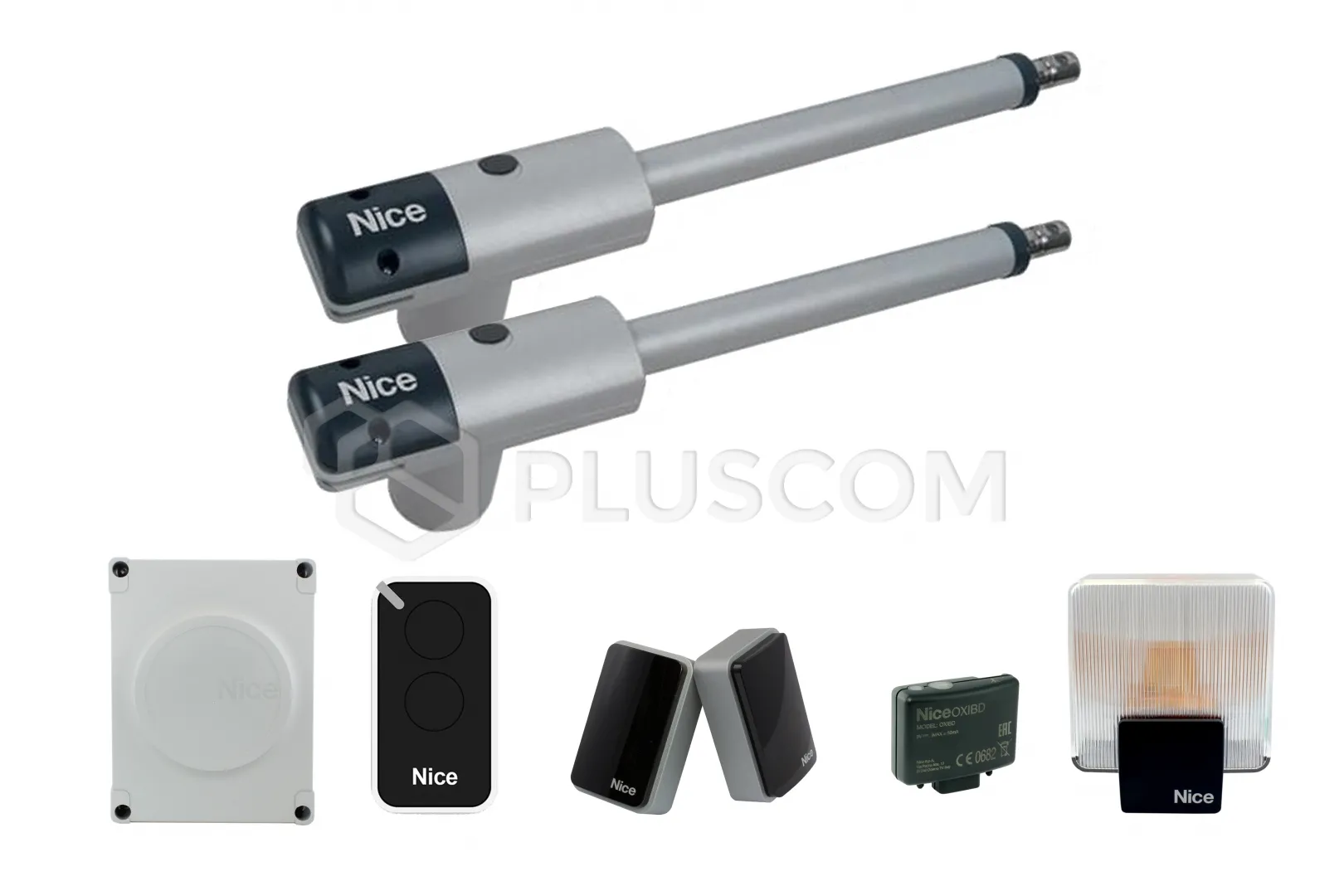

Nice TOO3024 INTI Dual swing gate kit

Nice TOO3024 INTI Dual swing gate kit

A set of telescopic actuators for swing gates, mounted on posts, with a leaf length of up to 3m and a weight of up to 300kg. The drive is powered by an external control unit, to which it must be connected.
After work is completed, the gate is locked and cannot be opened manually, which eliminates the need to use additional locks. In the event of a power failure, the Nice triangular key lock is used for emergency release. By turning the key 90° clockwise, we release the lock and it is then possible to manually open the gate. By turning the key counterclockwise, we additionally lock the drive.

The actuators are connected and controlled from the MC424L control unit, which is a modern BLUEBUS control unit.
After installation, the control unit is ready to work with factory-set functions that are most frequently used.

CONTROL UNIT FUNCTIONS:

  • automatic programming of end positions
  • advanced: only three programming buttons, operating mode adjustment, opening time, LED diodes indicate enabled functions - programming logic as in Bluebus control units
  • adjustment of force, pause time, speed, leaf relaxation, offset when closing
  • possibility of connecting the Oview programmer using IBT4N
  • built-in multi-system radio, memory of 100 transmitters (read in Mode 1)
  • radio connector for SM, OXIBD receivers
  • “Stand by” function, saving emergency battery energy
  • “Phototest” function, increasing safety automation
  • "Photo" and "Photo 1" input for connecting classic photocells
  • programmable “AUX” input
The actuator set is enriched with a 2-channel INTI2 remote control compatible with other remote controls from the Nice offer, such as One, Flor, operating at a frequency of 433.92MHz, a set of EPM photocells, used for devices with a classic PHOTO/STOP input and an ELDC signal lamp.

TECHNICAL DATA:

  • power supply: 24V
  • current: 1.1A
  • power: 120W
  • speed: 0.014m/s
  • force: 300N
  • stroke: 400mm
  • duty cycle: 24 cycles/h
  • protection class: 54IP
  • operating temperature: -20°C - 50°C
  • dimensions: 700x100x177mm
  • weight: 5.5kg
