Nice S-FAB 2024 BiDi Set up to 2.3m

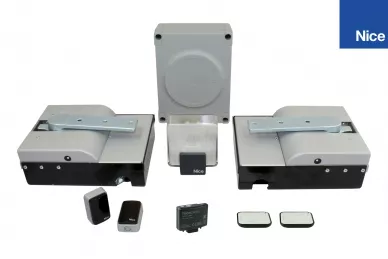

The kit contains:
- 2 irreversible actuators XME2024
- 2 externally foundation boxes XMBOX
- MC424LR10 control unit
- OXIBD receiver
- 2 ON3EBD 3-channel remote
- EPM photocells
- ELDC flashlight
Nice S-FAB 2024 BiDi Set up to 2.3m
For swing gates with leaves
up to 2,3m, underground
installation,ultra compact.
Irreversible electromechanical 24 Vdc gear motor, ideal for intensive use.

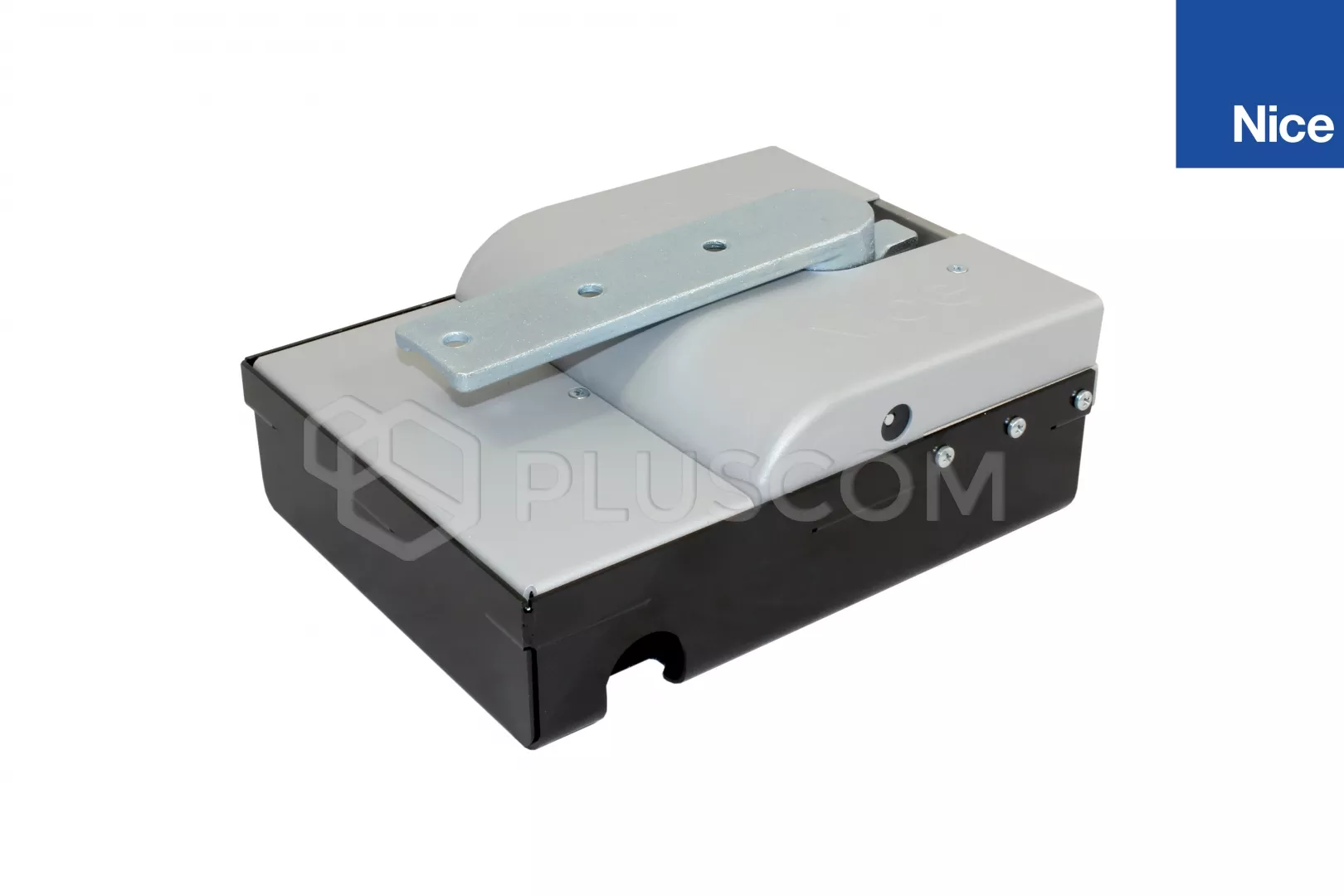

Sturdy and discreet: compact foundation
box with a height of only 81 mm. Steel with cataphoresis paint fi nish
guarantees optimal resistance to corrosion, and thickness of 2,5 mm guarantees
strength. All this in just 52 mm of protrusion from the ground.
Practical and quick installation thanks to the exit lever on the gear
motor attached directly on the leaf.Opening up to 180° as standard.
Reliable and sturdy: the gear motor, in
IP67 pressure die cast aluminium, suspended inside the housing to enable
drainage of any deposits, ensures optimal water resistance.Load-bearing
foundation box with adjustablemechanical stops on opening and closing:the gear
motor can also be installed later as required.
Practical release easy to operate from
inside and outside, acting directly on the gear motor, easy to operate by means
of the special key.

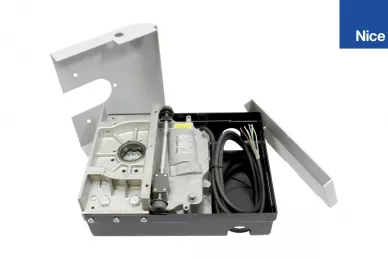

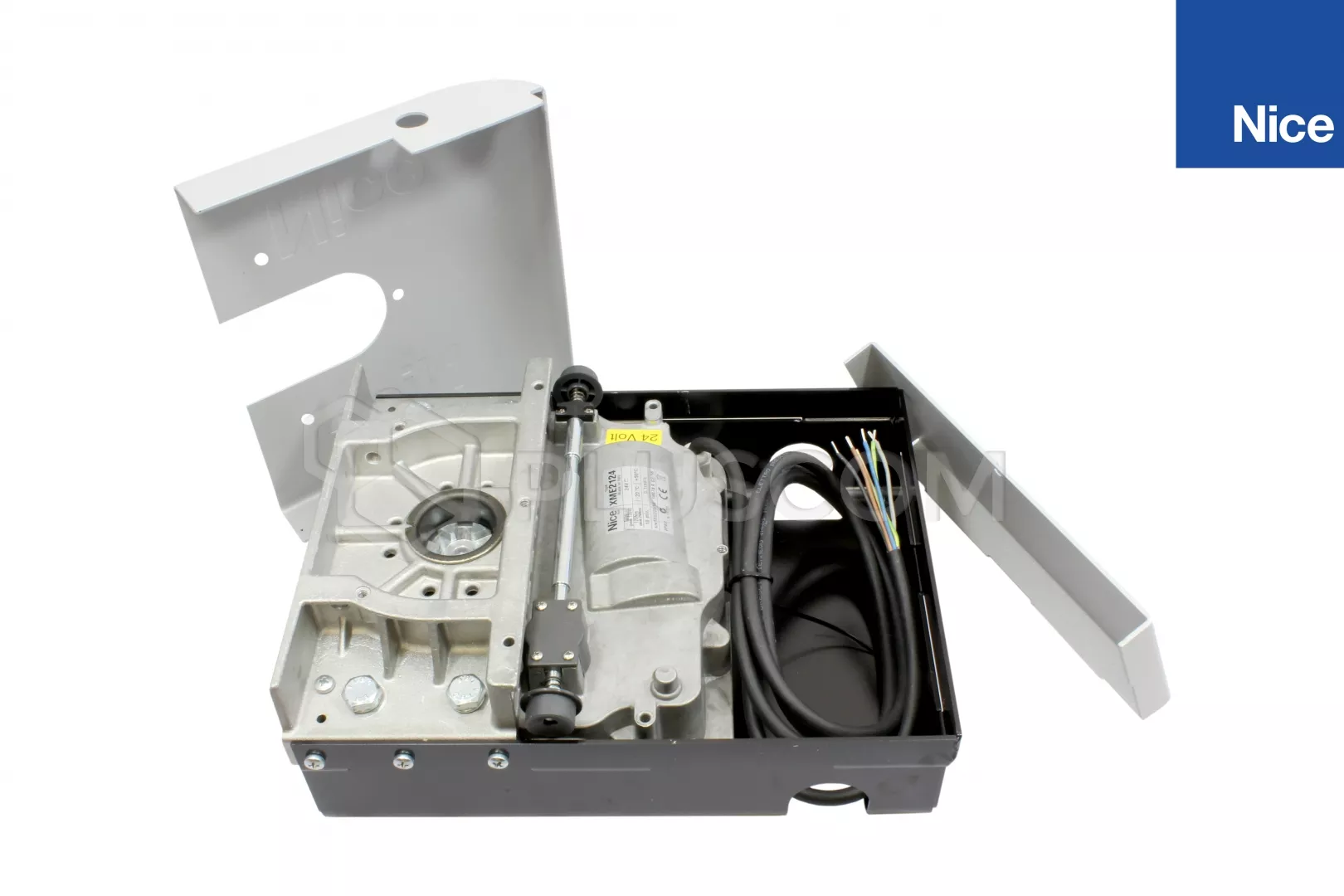

XME2024, compatible with the control
unit MC424LR10:
- simple programming, wirks with Oview programmer
- built-in radio receiver FLO FLOR SMILO OPERA
- clutch with anti-crush safety feature
- automatic memorization of limit switches on opening and closing with
self-learning function
- programming of pause time
- pedestrian pass door
- deceleration on opening and closing
- obstacle detection system
- can be linked to the 8.2 KOhm resistive sensitive edge
- continues to work even during power failures using optional (PS124)
batteries that fit inside the control unit

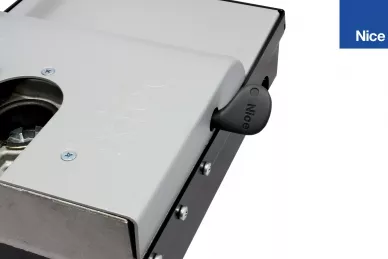

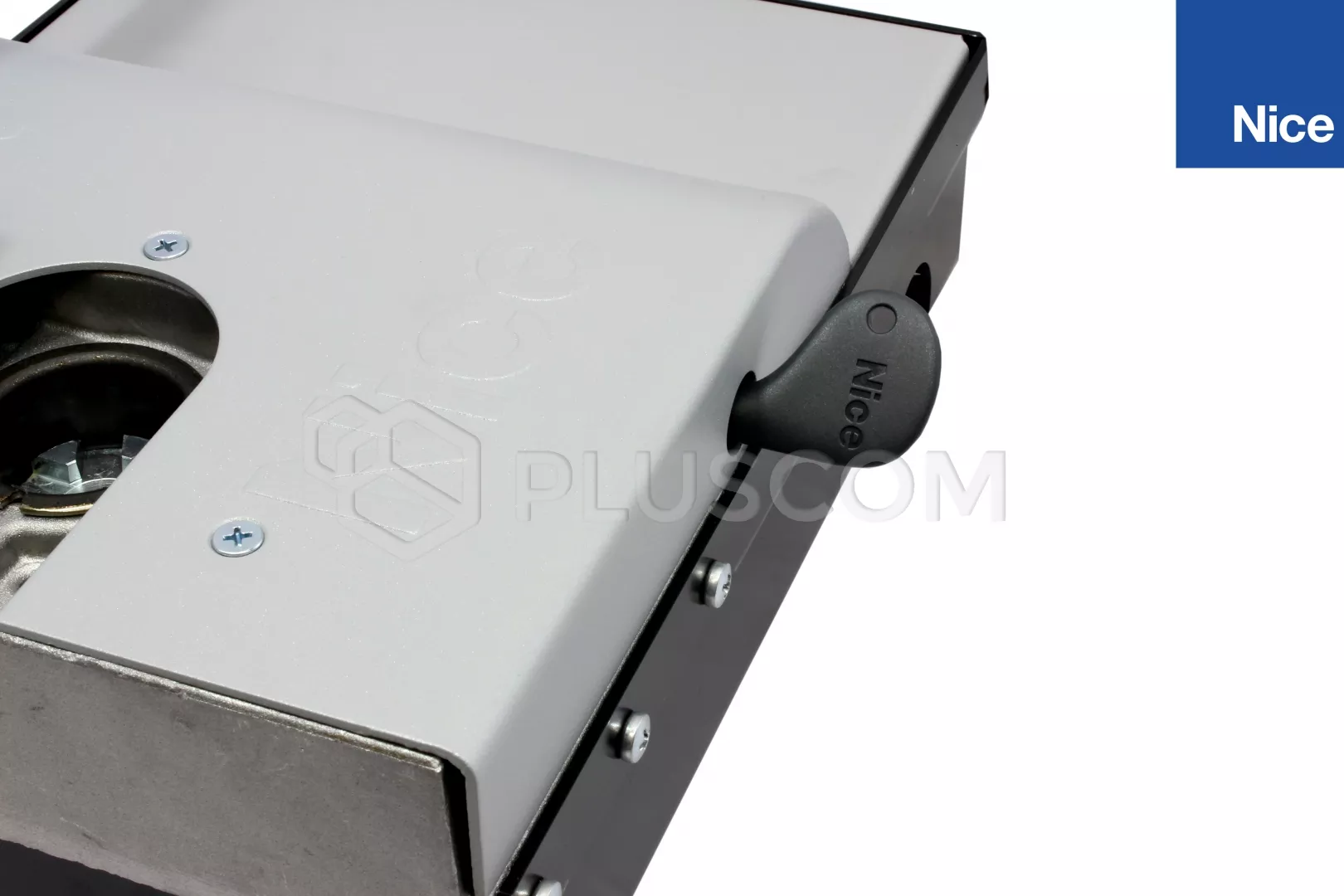

Release key:
