Nice TOONA5024 MYGO set for a double-leaf gate with a leaf length of 5m and
a weight of 200kg

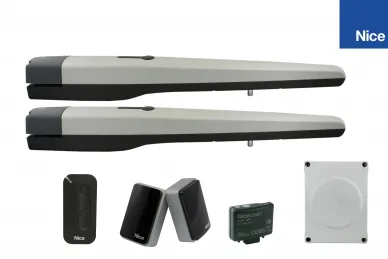

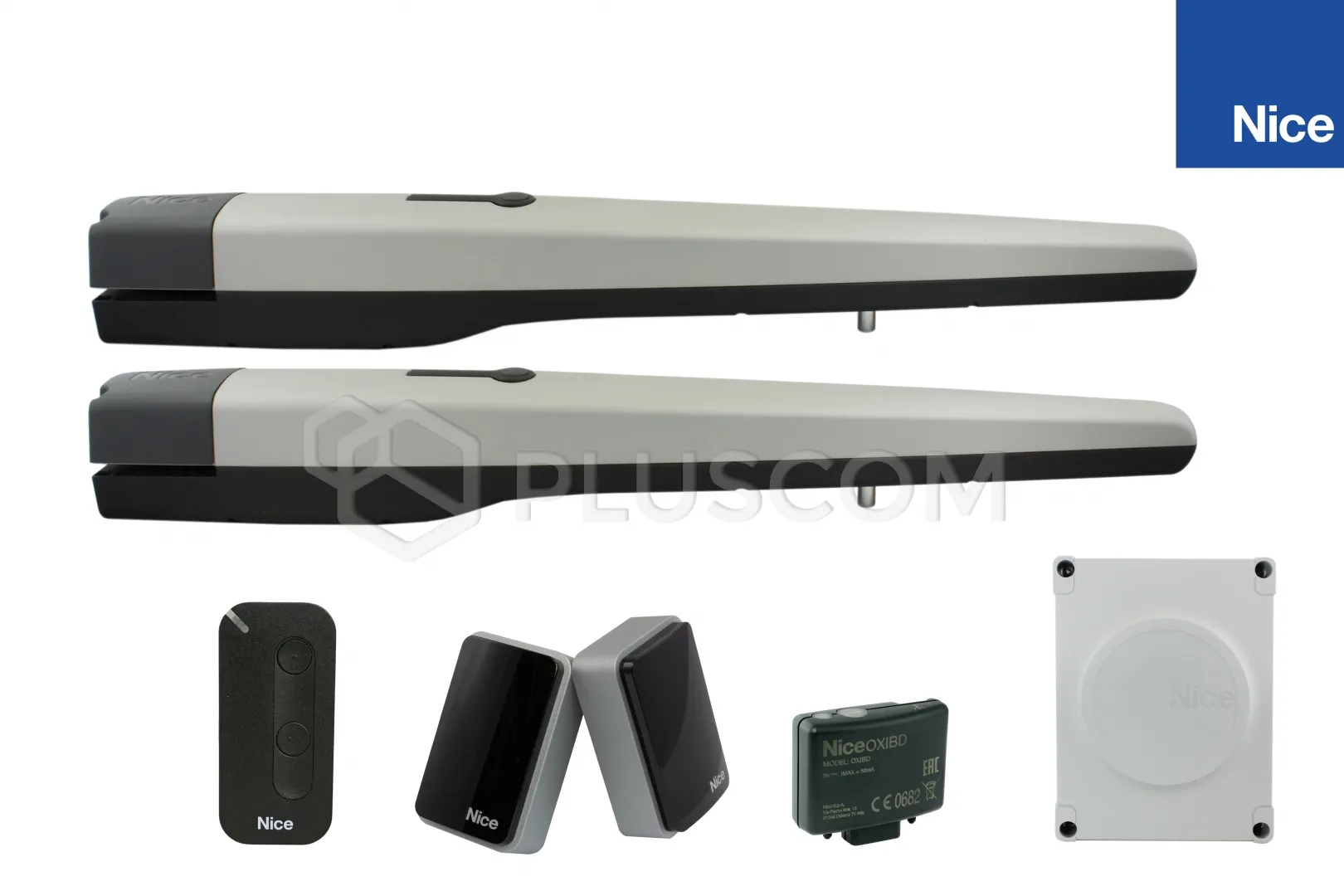

THE SET INCLUDES:
|
Nice TO5024 MYGO set for swing gates up to 5m
|

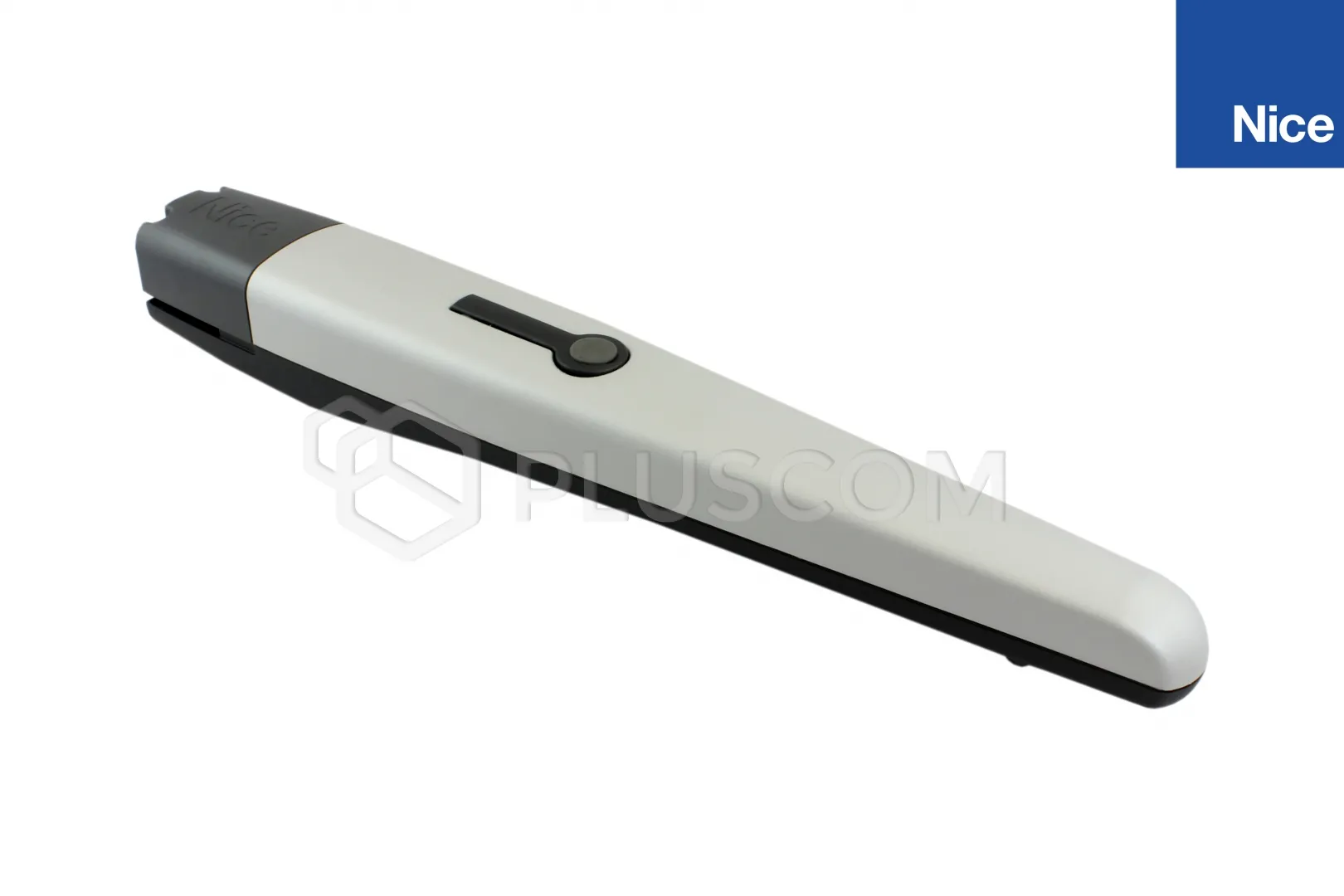

TOONA is an actuator for double-leaf gates with a leaf length of up to
5m. This modern, third-generation drive will ensure failure-free operation of
the gate for many years, thanks to the housing consisting of two solid aluminum
covers covered with polyester paint. The internal moving components are made of
steel, light alloys and technopolymers.
Bronze gear enabling safe closing and durability of use.
The operation of the actuators is controlled by the MC824HR10 control
unit, which performs a number of useful functions:
- control of the operation of two 24V actuators with an encoder
- manual, semi-automatic, automatic operation
- IBT4N interface for connecting BusT4 devices
- BLUEBUS technology
- auto programming during the first programming the control unit
automatically determines and remembers the gate's end positions
- soft start and slowdown when closing
- regulation of the actuators' operation speed
- partial gate opening function - wicket
- possibility of connecting the PS324 battery so that the gate will open
even in the absence of mains power
- possibility of connecting to the ''Solemyo'' solar power
supply system
- electric lock operation
CONTROL UNIT PARAMETERS:
- control unit power supply: AC 230V
- rated power drawn from the mains 200W
- protection class: IP54
- operating temperature -20°C...+50°C
- dimensions: 310x232x122mm
- weight: 4.1kg
The MYGO2 remote control provides radio control with a
dynamically changing code, with a frequency of 433.92 MHz, which provides a
high level of user safety and makes the code impossible to copy.
MYGO2 has a secret code, the so-called "SWITCHING CODE". By
transferring this code from the memorized transmitter to the new transmitter,
the latter is recognized (and remembered) automatically by the receiver.
The MYGO2 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with "O-Code" radio
coding.
The EPMB photocell is equipped with "BlueBus"
technology. The connection and communication between the photocells and the
control unit is carried out using a 2-wire cable. The power supply is also
provided directly from the control unit using the same cable.
EPMBs do not have the ability to adjust the angle of inclination. Therefore, it
is important that they are mounted on vertical and parallel walls. For
installation, you can use aluminum columns with a height of 50 or 100 cm PPH3,
PPH4.
The photocell housing protects against the ingress of dust and rain, which
means that they can be installed outdoors and operate in the temperature range:
-20°C...+50°C.
TECHNICAL DATA:
- engine power supply: 230V
- current consumption: max 1.5A
- power consumption: 340W
- built-in capacitor 7uF
- speed: 0.013m/s
- stroke: 540mm
- force: max 1800N
- work intensity: 54 cycles/h
- weight: 7kg
