Nice ROBUS400 MYGO Set

Nice ROBUSKIT400 R10 ERA ONE for sliding gates weighing up to 400 kg.

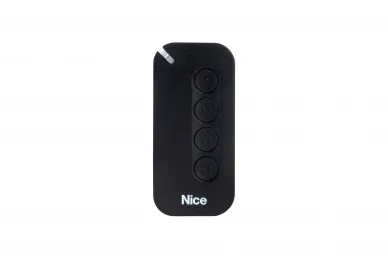

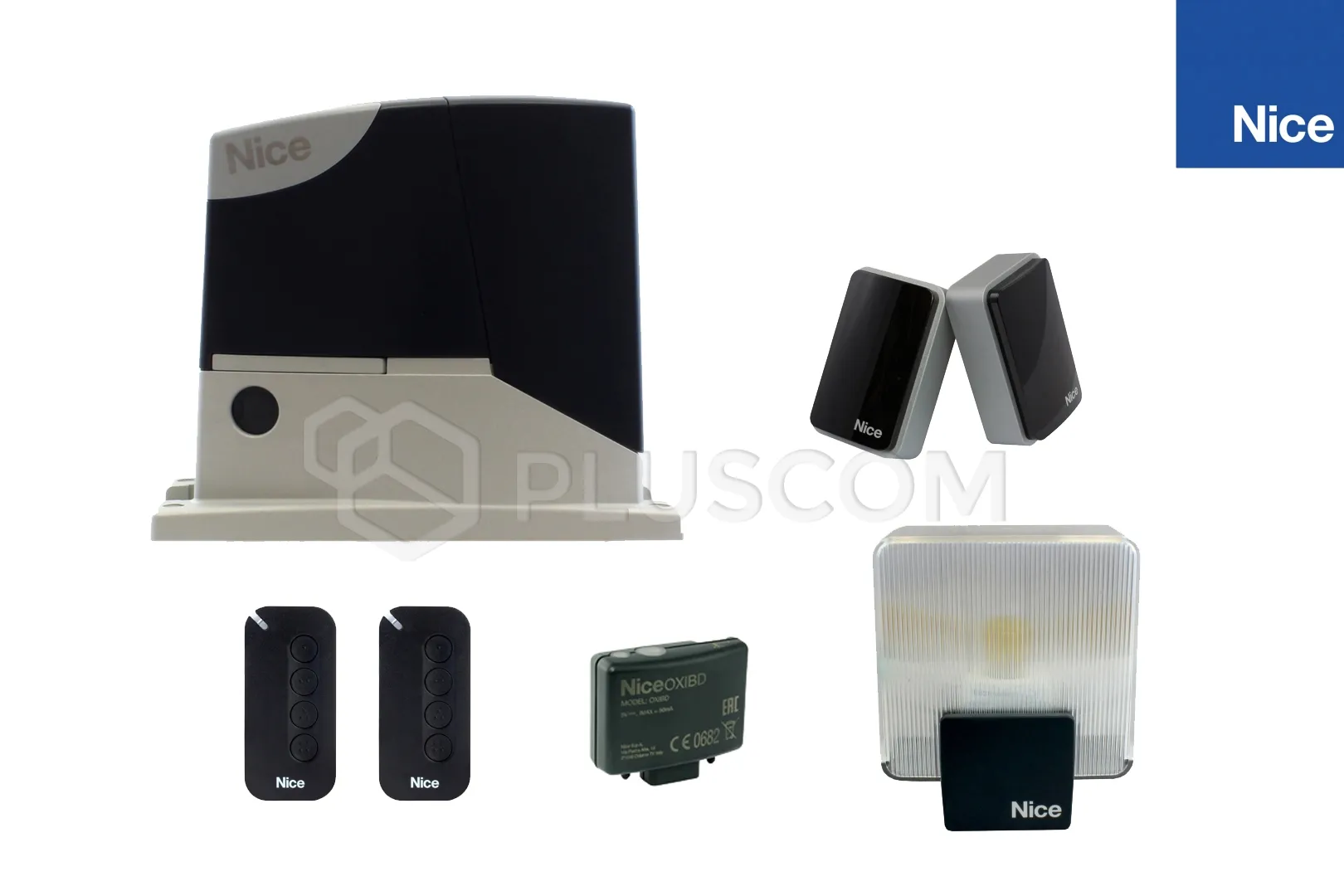

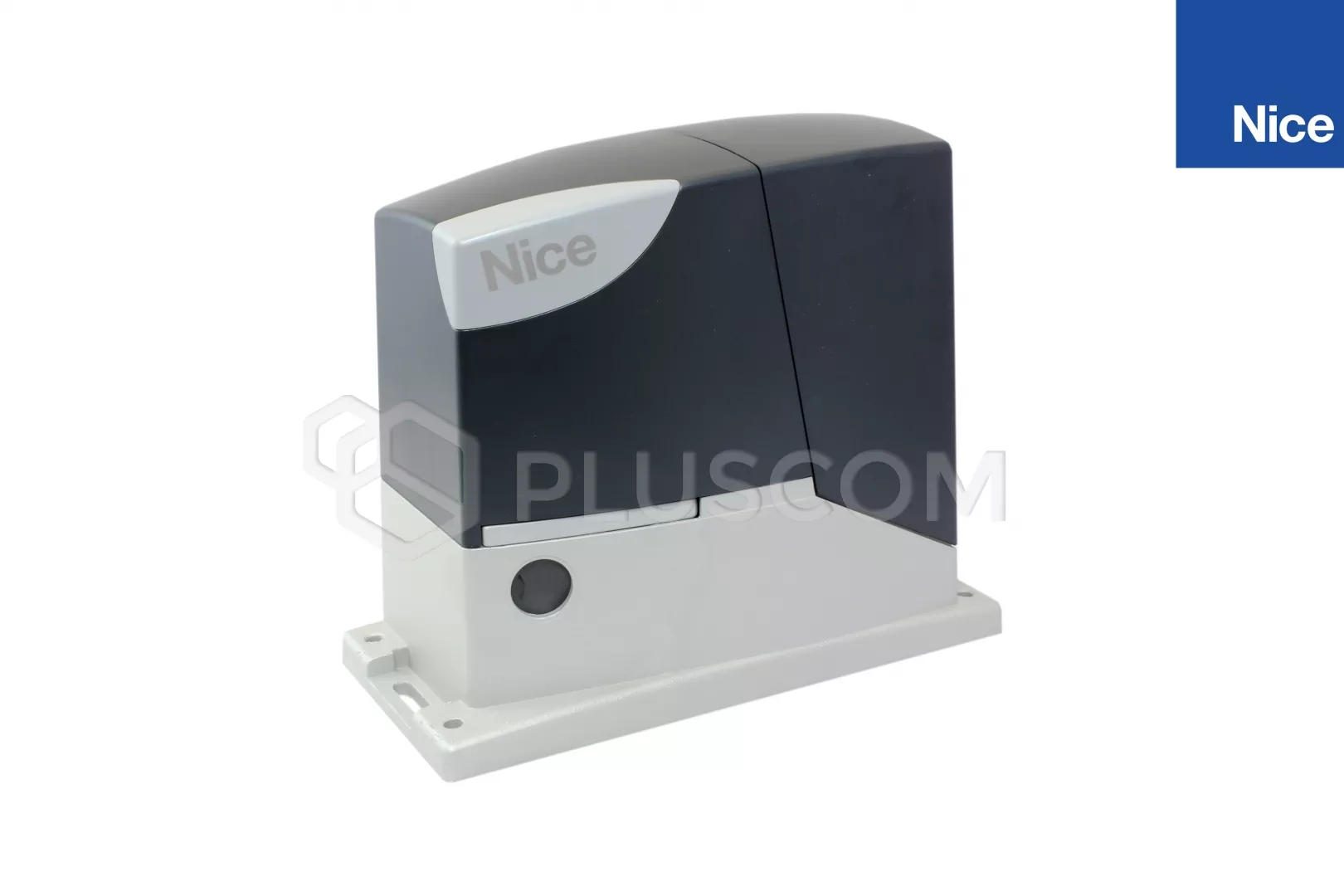

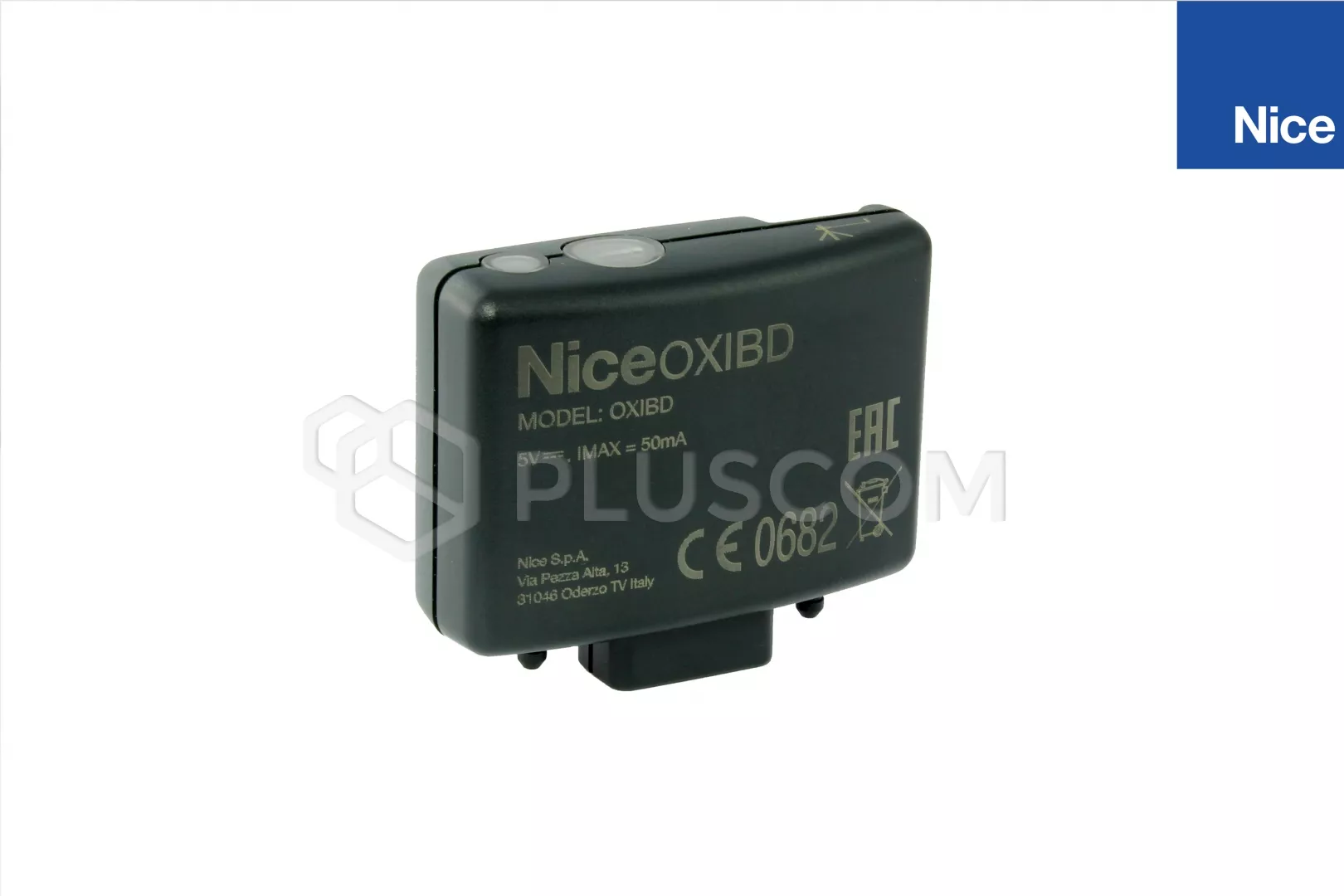

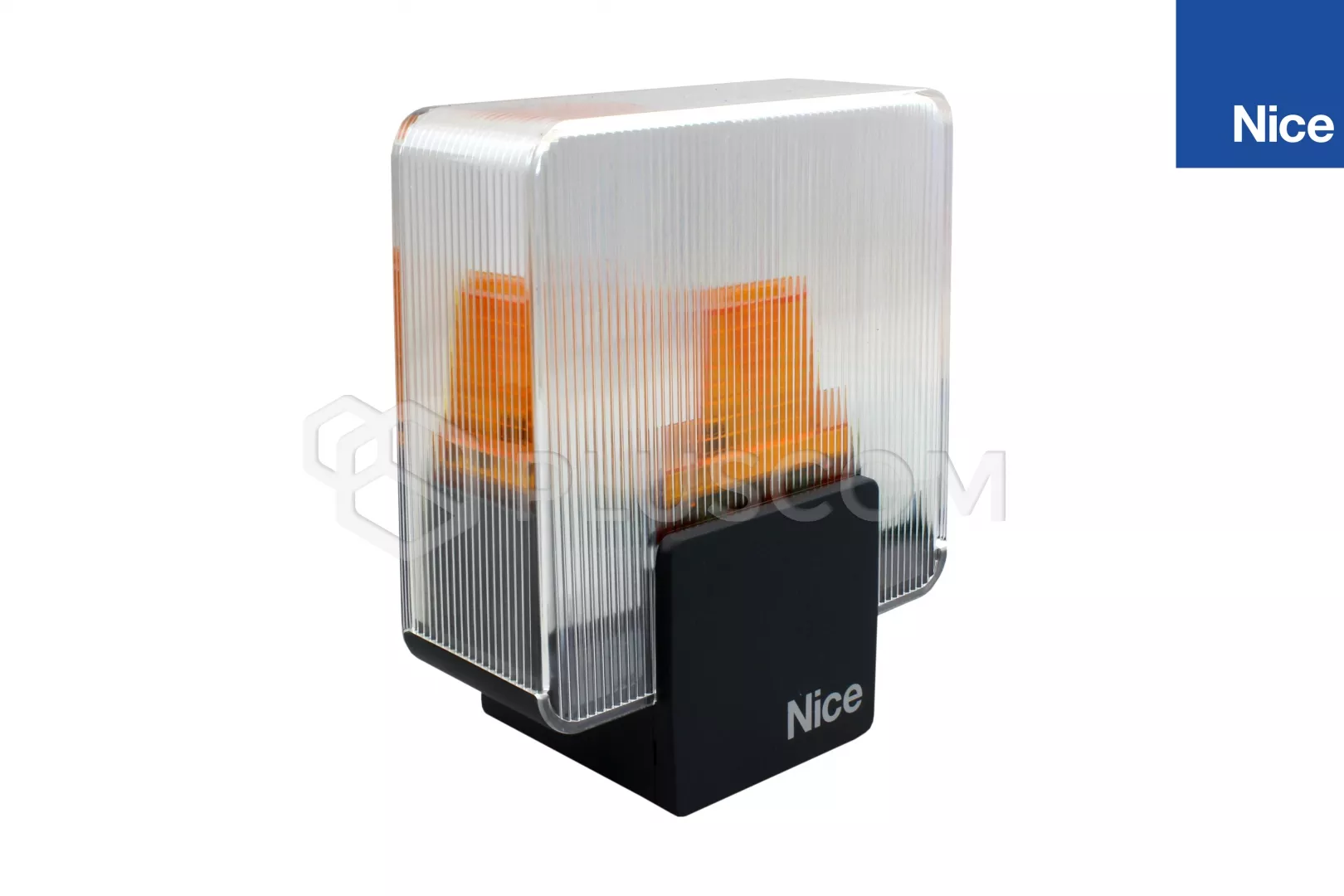

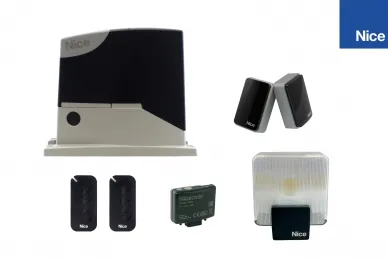

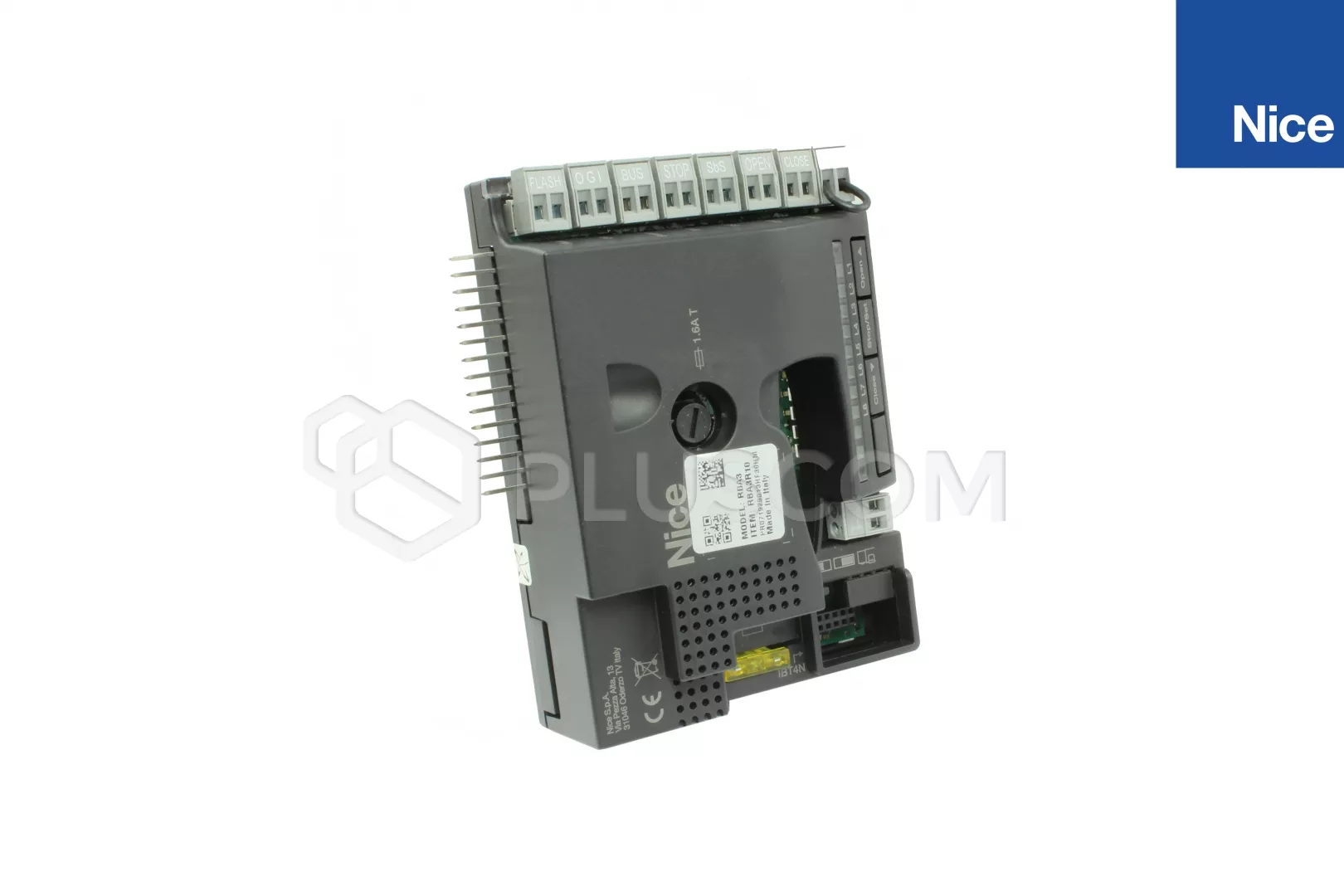

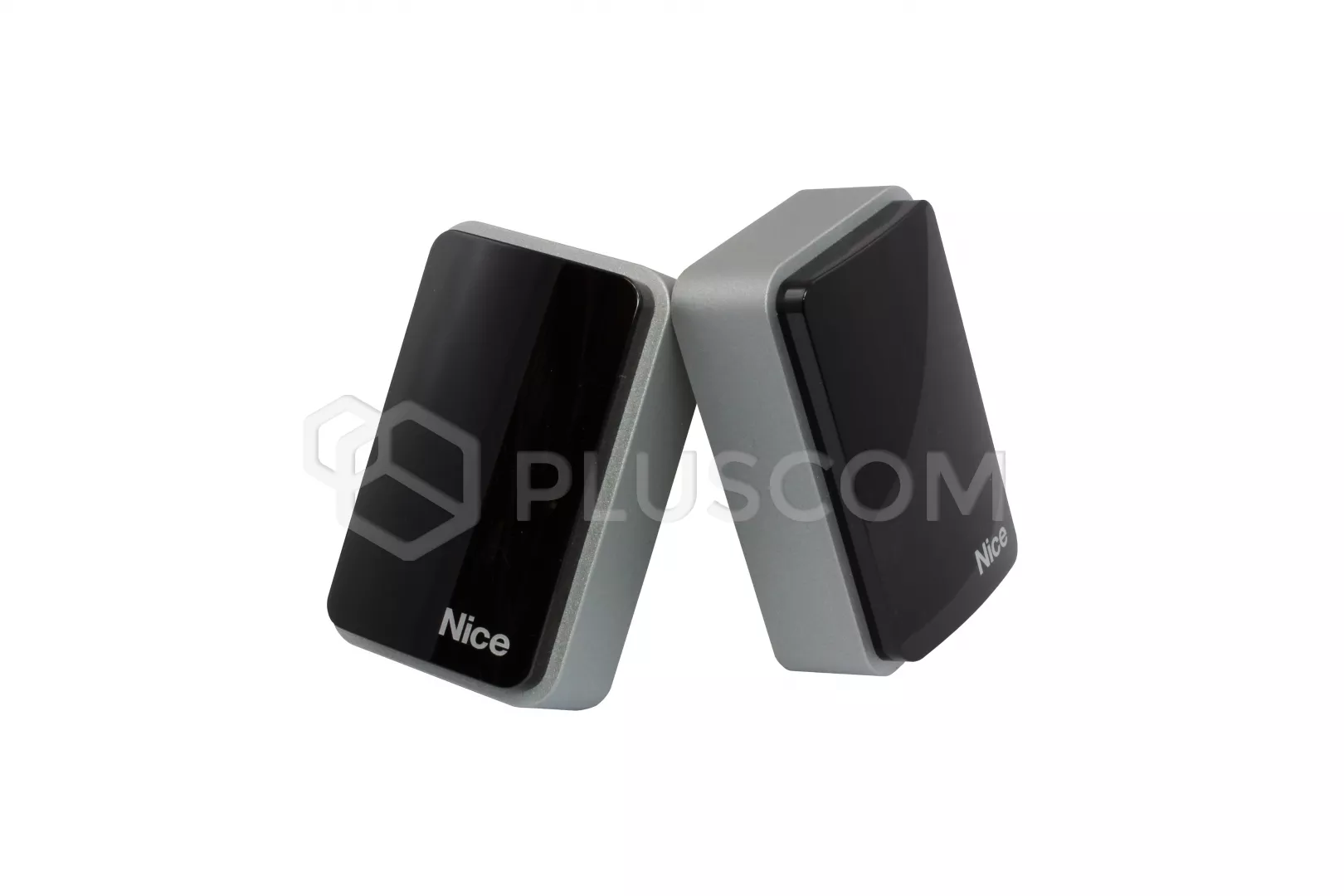

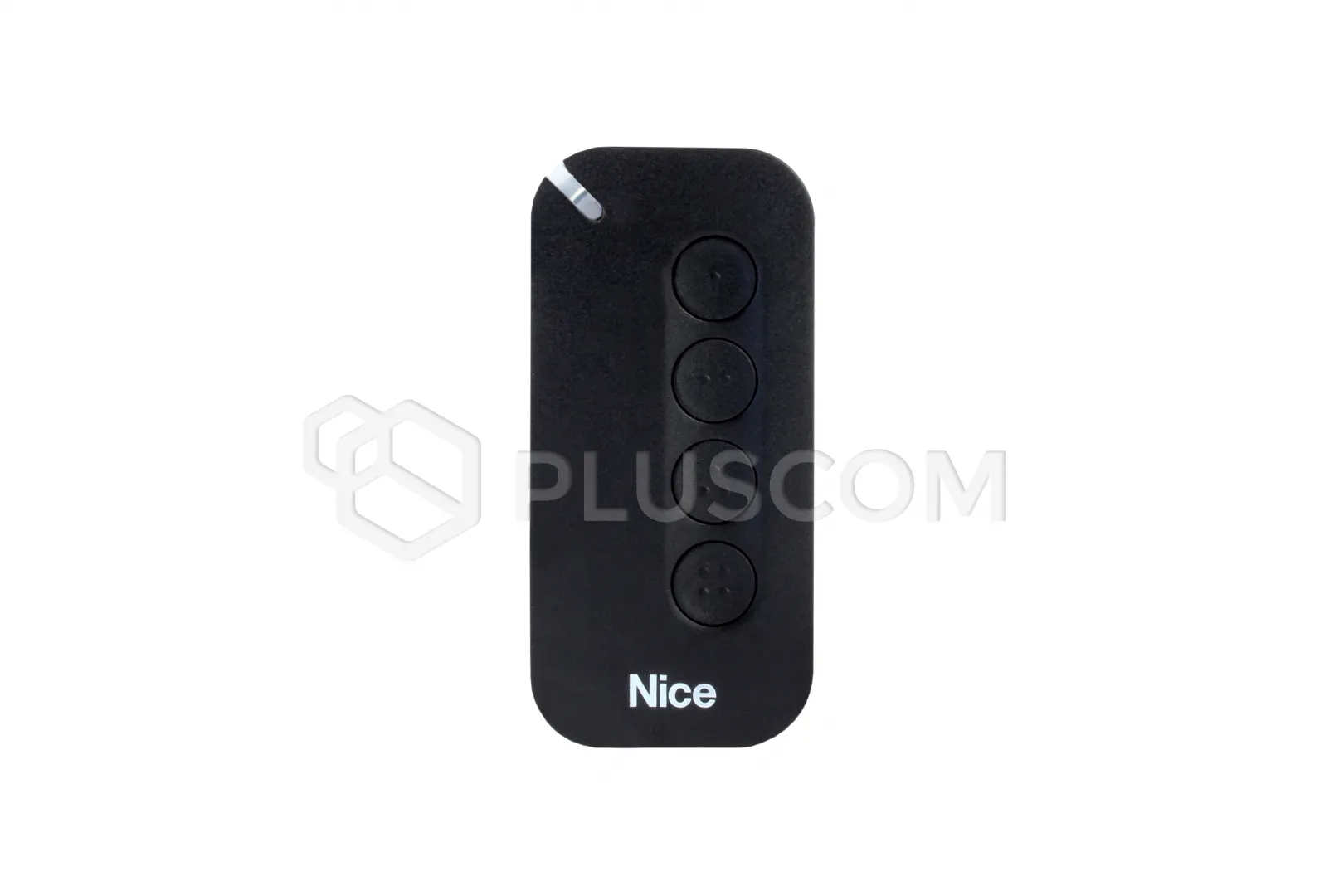

PACKAGE CONTAINS Nice Robus400 R10 gear motor with built-in control unit with BLUEBUS technology Nice OXIBD 4-channels receiver two-way Nice MYGO4 4-channel remote black - 2pcs Photocell Nice EPMB ERA Medium BLUEBUS Nice ELDC LED flashing signal light 12/24V

Nice ROBUS 400 R10 ERA ONE Set

Nice ROBUS is one of the most popular drives. End customers installers praise it for its reliability, solidity and high culture appreciate it for its ease of installation and programming.

The most important advantages of the drive and the set include:

User-friendly: the Nice BlueBUS technology, enables to power and control a maximum of seven couples of photocells using two wires only.
Practical: the control unit and PS124 buffer battery (optional) can be connected by means of a simple connector and can be housed directly inside Robus.
Advanced: RB400 is equipped with a temperature sensor adapt the motor power to the climatic conditions and at the same
time thermal cut-out. A master/slave selection automatically synchronises two motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.
Intelligent: thanks to the obstacle detection system and automatic programming of the working times. Self-diagnosis by means of a flashing light. 8 programming levels.
Safe: acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre.

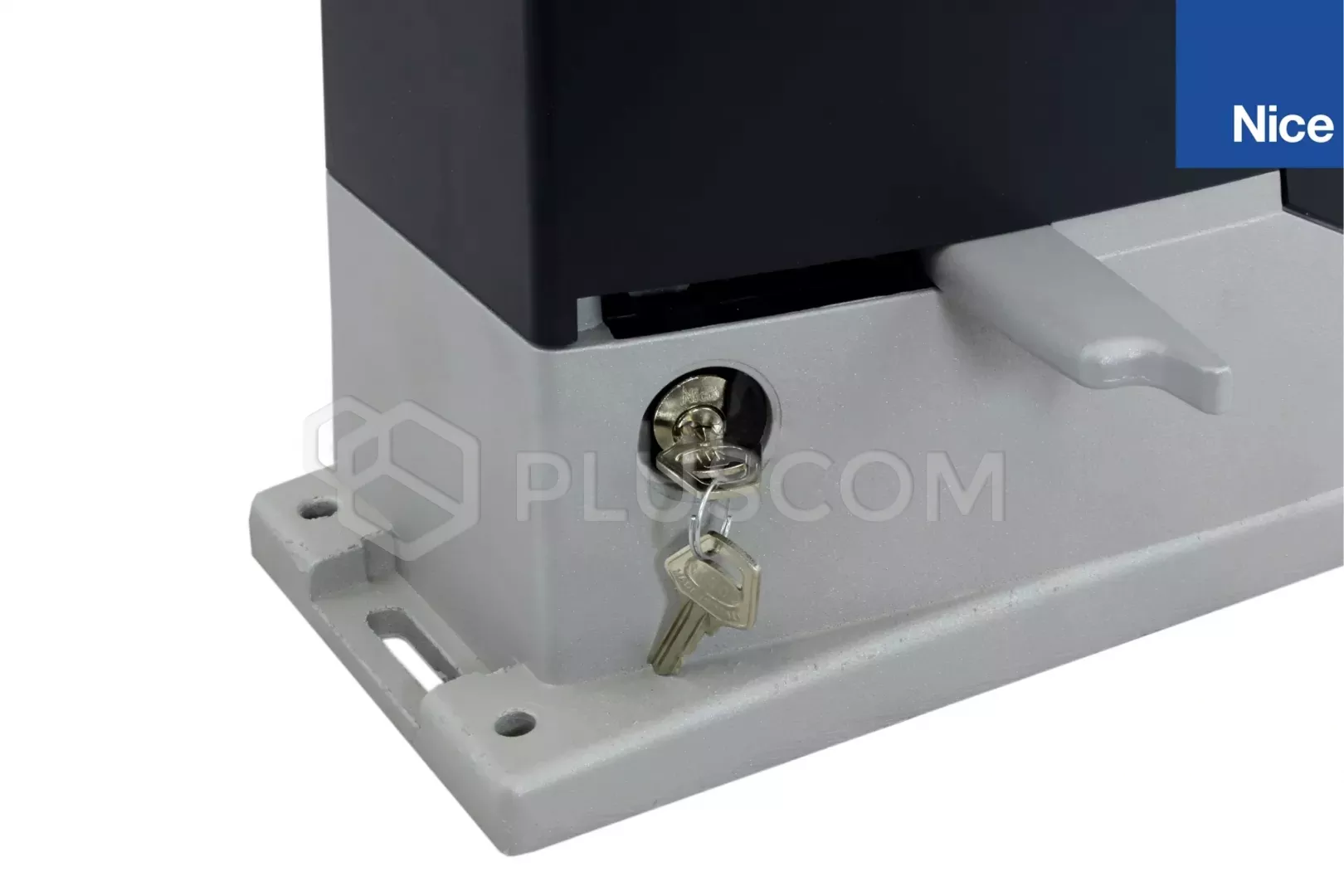

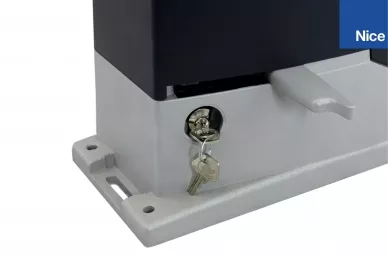

Sturdy: base and release in pressure die cast aluminium and epoxy paint finish.
Very quiet: gear motor on bearings.

TECHNICAL SPECIFICATIONS

ELECTRICAL DATA
power supply (Vac 50/60 Hz): 230V
absorption (A): 1,4
power (W): 330

PERFORMANCE DATA
speed (m/s): 0,34
force (N): 400
work cycle (cycles/hour): 35

DIMENSIONAL AND GENERAL DATA
protection level (IP): 44
working temp: (°C min/max): -20...+50
dimensions (mm): 330x195x277(h)mm
weight (kg): 8
