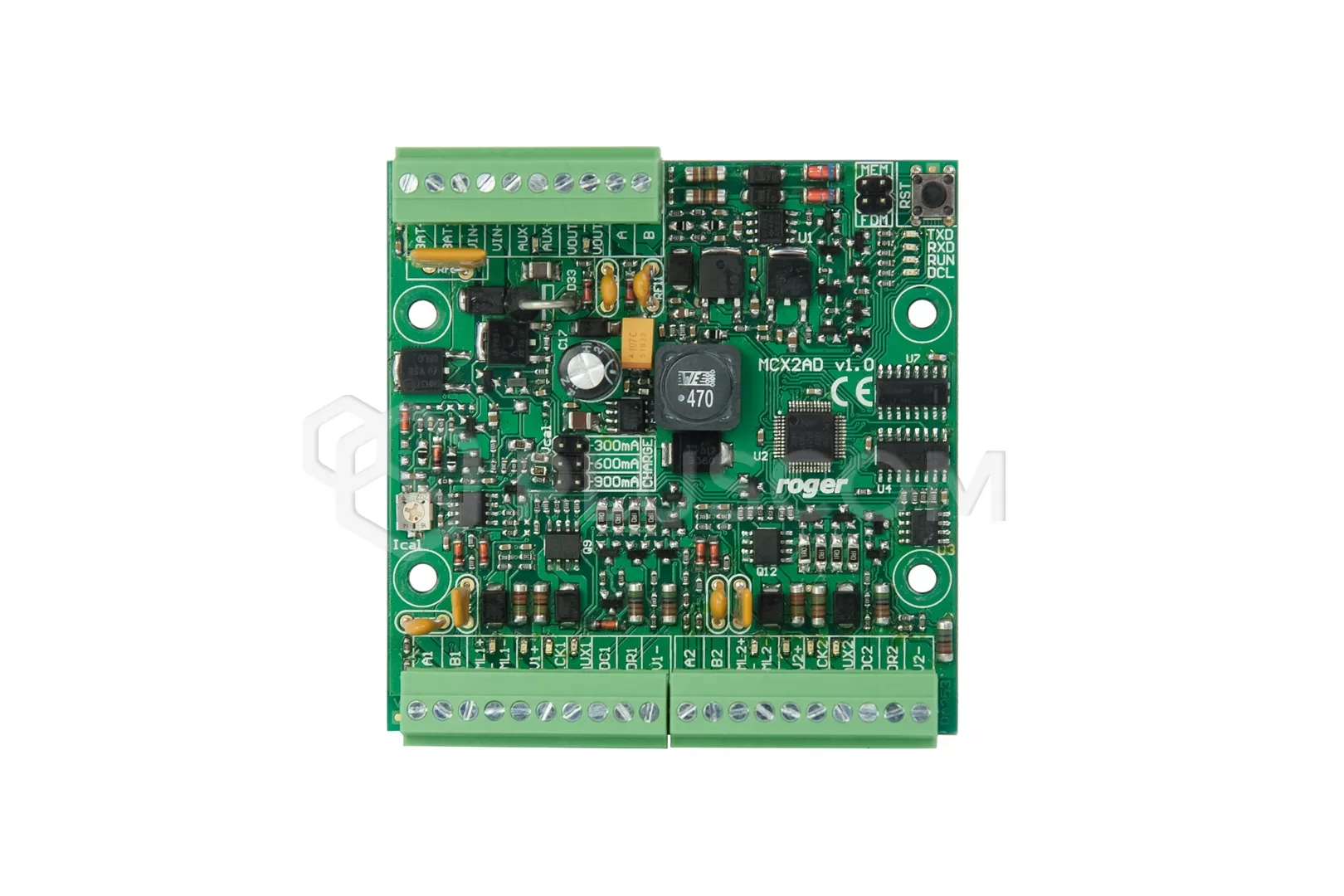

Roger MCX2D Door Expander

85,61 EUR including 20.00% VAT
Product code: #22414
Manufacturer: Roger
  • 4 inputs 2EOL
  • 4 outputs 12 V/1 A
  • 2 supply outputs 12 V/1 A and 12 V/0,2 A
  • Distributes power supply and RS485 communication bus
  • Backup battery service
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,77 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Mean Well LRS-35-12 Switching power supply Roger MCT88M-IO Access Terminal Roger MC16-PAC-2-KIT Access Control Kit Roger MCT84M Access terminal with keypad Roger RUD-1 Portable USB-RS485 communication interface Roger MCT82M Access terminal with keypad ROGER MCT80M Access Terminal Mifare Roge MCT80M-BLE Bluetooth Access Terminal Roger MCT12M-IO Terminal dostępu with keypad Roger MCT12M Proximity Reader with keypad

Roger MCX2D Door Expander


MCX2D is I/O expander dedicated to RACS 5 system. The device after connection to MC16 access controller and MCT series terminals enables to control 2 doors. The expander offers I/Os and distributes power supply and RS485 communication bus. The expander operates with backup battery which depending on particular requirements can be charged with 0.3A, 0.6A or 0.9A current. The expander is equipped with removable terminal blocks which facilitate electrical connections during installation and maintenance. MCX2D expander is offered separately or as a component of MC16-PAC-2-KIT.

Characteristics:
  • RACS 5 system I/O expander
  • Power supply distribution for door devices
  • RS485 bus distribution for MCT terminals
  • 4 parametric (EOL) inputs
  • 4 transistor outputs
  • 6 power supply outputs
  • Backup battery charging
  • RS485 interface
  • Removable screw terminals

Roger MCX2D Door Expander

Roger MCX2D Door Expander


TECHNICAL PARAMETERS
  • supply voltage:
    • 13.8VDC; +/- 100mV (backup battery connected)
    • 11-15 VDC (no backup battery)
  • average current consumption: 50mA
  • battery charging current Configurable: 0.3A/0.6A/0.9A
  • inputs: 4 x parametric inputs
  • transistor outputs: 4 x outputs, each with 15V/1A DC max load
  • power supply outputs:
    • 2 x 13.8VDC/0.2A outputs (VOUT, AUX)
    • 2 x 13.8VDC/0.2A outputs (TML)
    • 2 x 13.8VDC/1.0A outputs (VDR)
  • Distances:
    • up to 1200 m between MC16 controller and MCX expander (RS485)
    • up to 1200 m between MCX expander and MCT terminals (RS485)
    • the total distance between controller and any terminal cannot exceed 1200m
  • environment class: I
  • IP20
  • working temperature: +5°C ~ +40°C
  • dimensions: 80x80x20mm
  • weight: 65g
The MCX2D expander works with access controllers:
