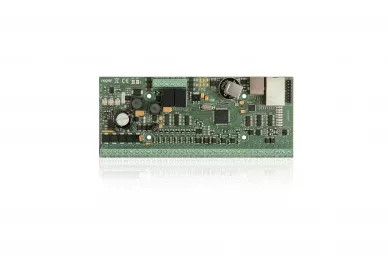

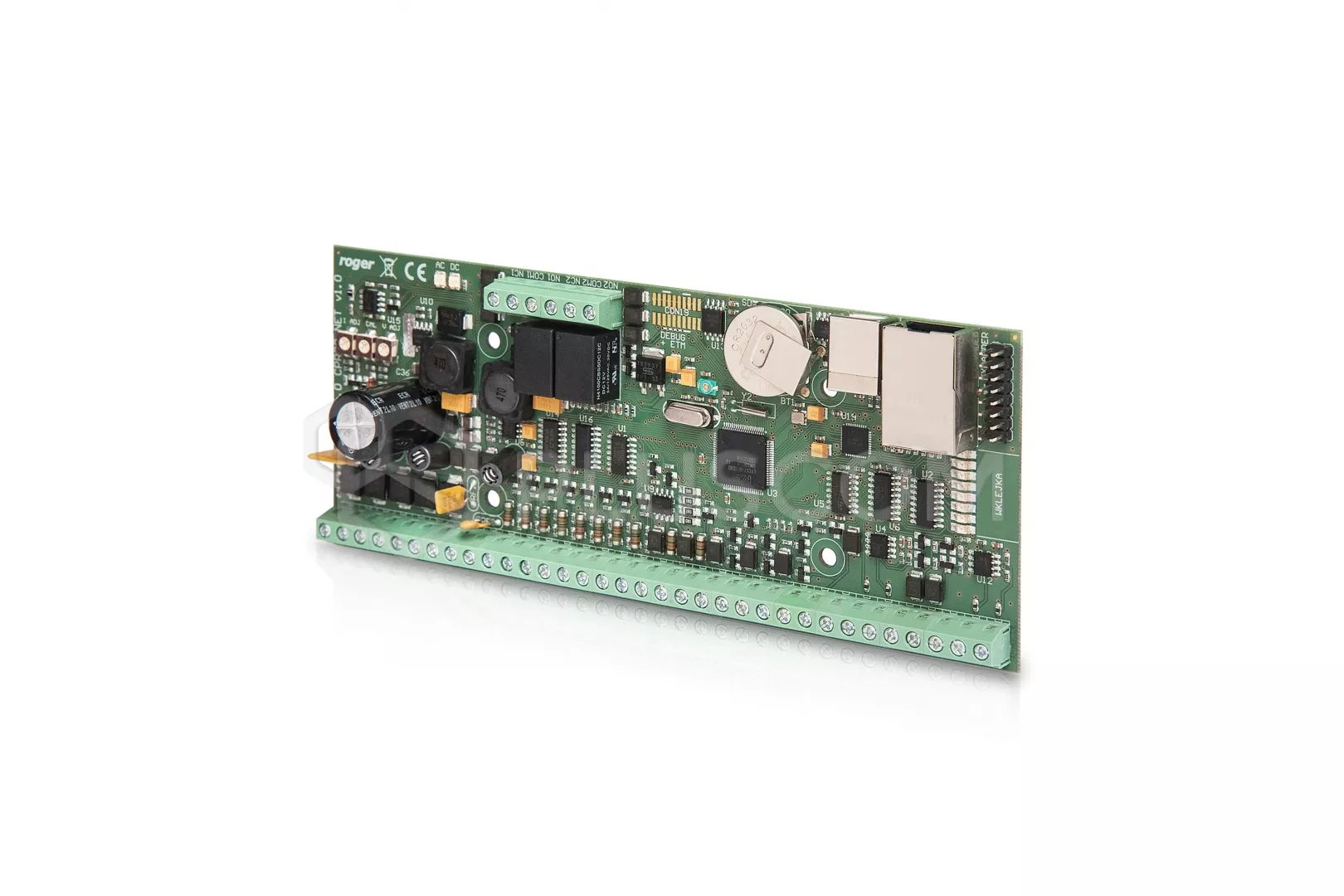

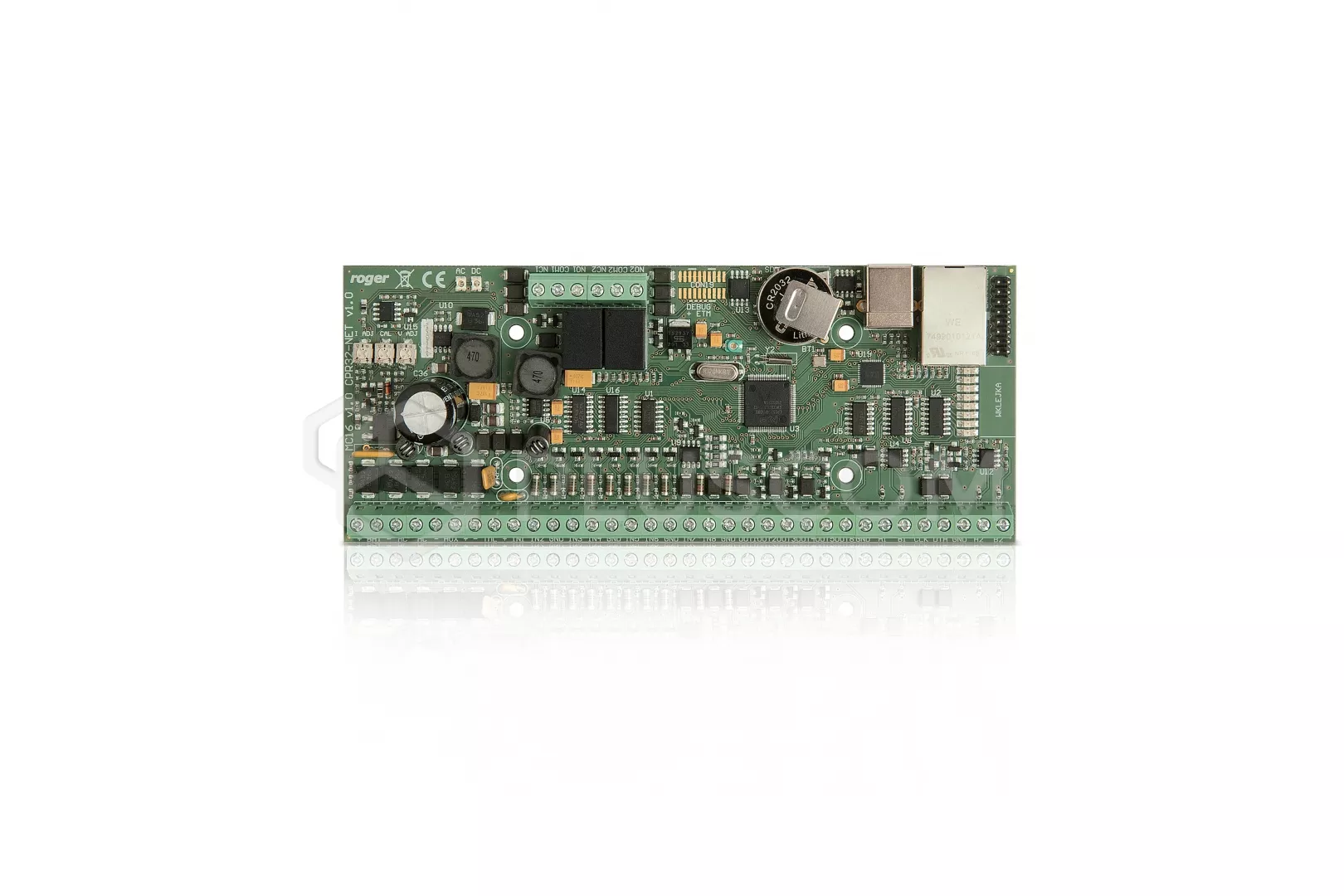

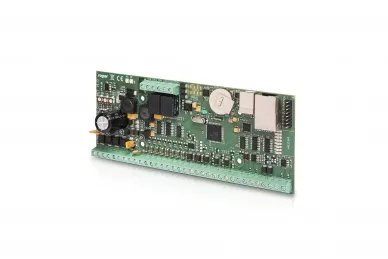

Roger MC16-EVC-64 Conventional Elevator Access Controller

2150,95 EUR including 23.00% VAT
Product code: #22379
Manufacturer: Roger
  • One elevator
  • Number of floors: 64
  • Floor selection by logging in on the reader
  • Number of inputs: 8
  • Number of outputs: 128
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MCT62E Proximity Reader Roger MD70 Touch Panel with MIFARE Reader Roger MCT12E-BK Proximity Reader Roger MCX8-BRD I/O Expander Roger MCT12E Proximity Reader with keypad Roger MCT88M-IO Access Terminal ROGER MCT80M Access Terminal Mifare Roger MCT84M Access terminal with keypad Roger MCT82M Access terminal with keypad Roge MCT80M-BLE Bluetooth Access Terminal

Roger MC16-EVC-64 Conventional Elevator Access Controller


MC16-EVC controller is designed to work with classic elevator systems where the floor is selected by changing the state of electrical contact associated with the floor button. In the access control concept used in the MC16-EVC controller, the user must first identify at the reader installed in the elevator to select the floor and then the controller activates a set of output lines that unlock the floors to which the given user has access.

The authorizations for individual floors can be defined using time schedules and calendars, and there is also the option to unlock buttons to cancel the requirement for user identification. The outputs for buttons unlocking can be located on any I/O expanders connected to the controller, however the most suitable for this purpose is the MCX8 expander offering eight relay outputs with isolated NO/NC contacts. User identification can be carried out on any MCT series reader, PRT series reader or compatible Wiegand interface reader. The controller supports one elevator with 64 floors and up to 8,129 users.

As with other MC16 series controllers, communication with the VISO management application is encrypted and takes place via LAN/WAN network. The conventional elevators are supported in VISO ST management software and there is not limit in terms of the number of lifts serviced in the system.

PARAMETERS:
  • floors: 64
  • inputs: 8
  • outputs: 128
  • access points: 1
  • access terminals: 4
  • power suplies: 16
  • automation nodes: 2
  • control commands: 4
  • function keys: 8
  • access credentials: 8192
  • access doors per access points: 64

Roger MC16-EVC-64 Conventional Elevator Access Controller

Roger MC16-EVC-64 Conventional Elevator Access Controller


Characteristics
  • Access controller in RACS 5 system
  • 18VAC, 12VDC and 24VDC power supply
  • Built-in 12VDC/1,2A power supply unit
  • Backup battery charging and monitoring
  • Ethernet communication interface
  • Encrypted data transmission (AES128 CBC)
  • Peripheral devices interfaces: RS485, RACS CLK/DTA, Wiegand
  • 8 million event buffer on memory card
TECHNICAL DATA
  • supply voltage:
    • 18VAC (17-22VAC)
    • 12VDC(10-15VDC)
    • 24VDC (22-26VDC)
  • current consumption: 100mA with 18VAC power supply (without output load AUX / TML)
  • Distances
    • 1200m for RS485
    • 150m for and RACS CLK/DTA and Wiegand
  • IP20
  • Environmental class: I
  • temperature: +5°C to +40°C
  • case dimensions: 72x175x30mm
  • weight; 200g
The license file, which defines the software limitations, is pre-loaded on to the memory card supplied with the device.
