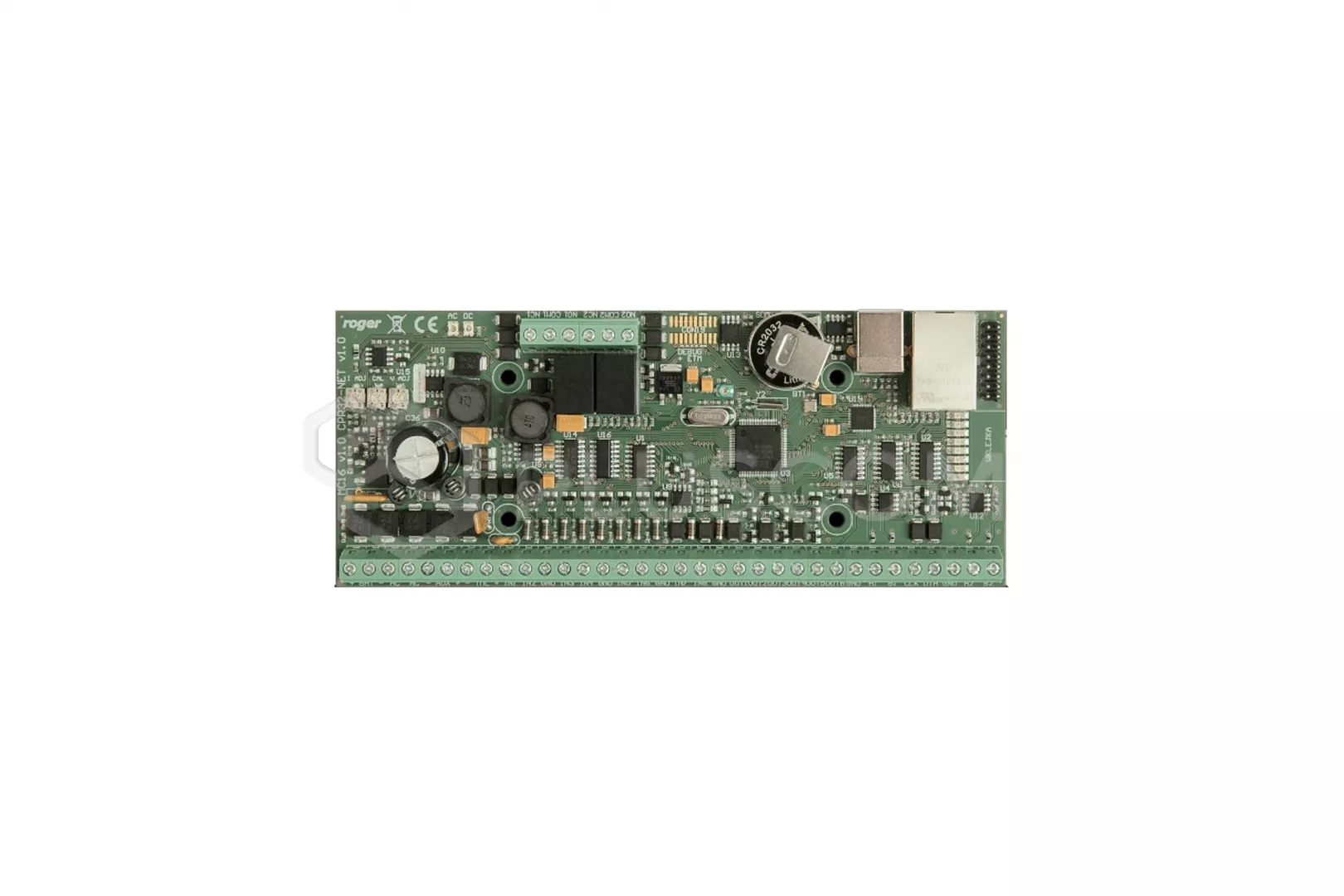

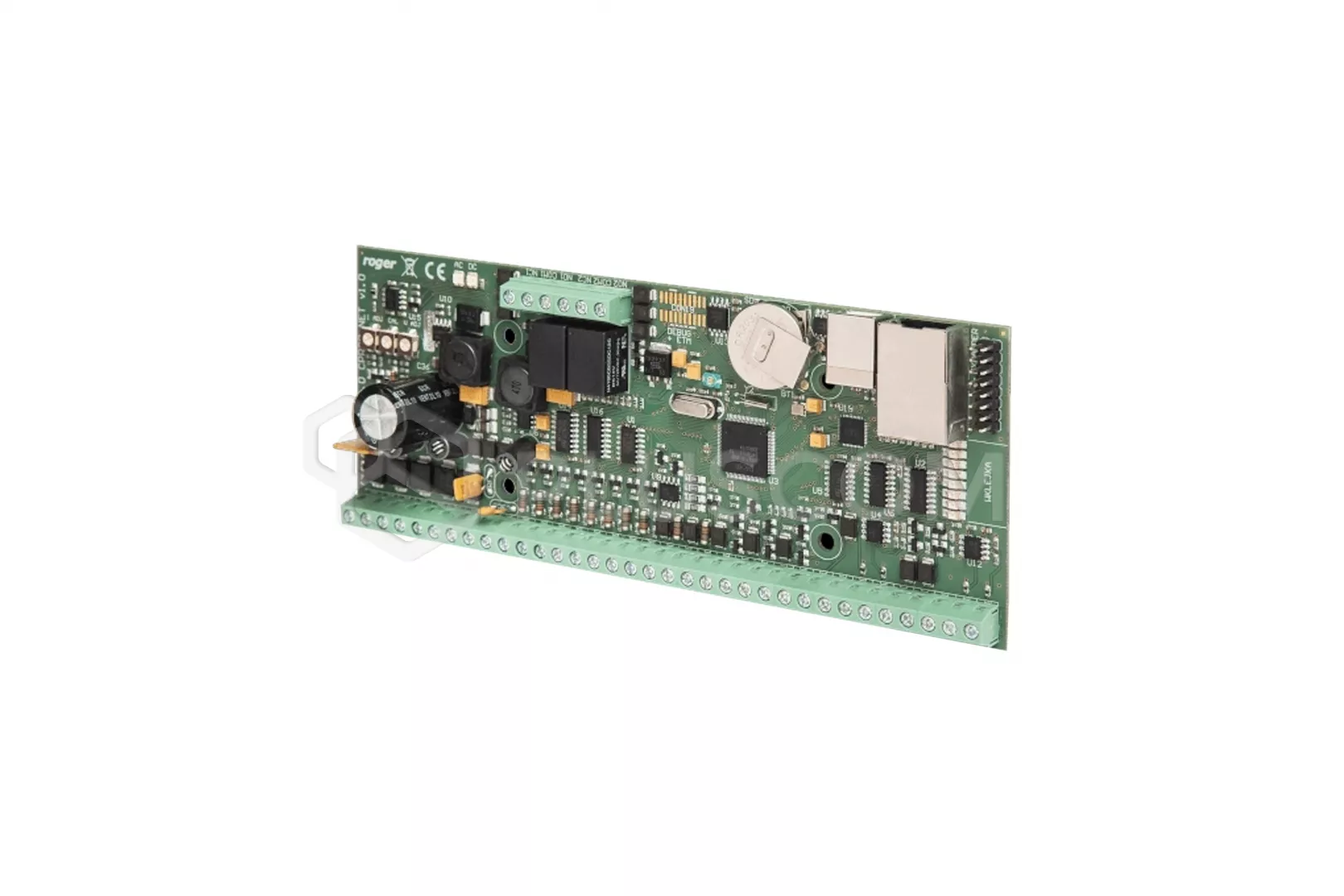

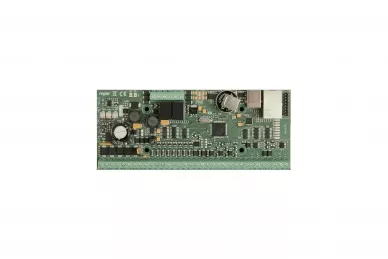

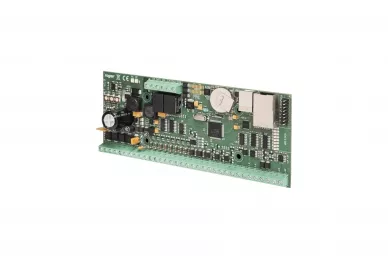

Roger MC16-PAC-EX-1 Physical Access Controller

463,94 EUR including 23.00% VAT
Product code: #32964
Manufacturer: Roger
  • System RACS 5 v2 w wersji EX
  • Access Control for 1 door
  • Input lines: 8
  • Output lines: 8
  • 12000 IDs
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MCX2D Door Expander Roger MCT66E-IO Proximity Reader Roger MCX16-UZ-8 Expander to Integrate Clex System Locks Roger MCX2-BRD I/O Expander Roger MCT64E-IO Proximity Reader with keypad Roger PS8D Power supply 13.8 VDC/10.8 A Roger MCT84M-BK-QB QR Reader Roger MCX16-AP-8 I/O Expander with APERIO interface Roger MCT62E Proximity Reader Roger PS4D Power supply 13,8 VDC/5,4 A

Roger MC16-PAC-EX-1 Access Controller Module

MC16-PAC-EX-1 is network access controller and building automation for the RACS 5 v2 system EX version.
The controller enables operation of up to 1 controlled two-sided passages and is offered event registration for the use of T&A and alarm systems.
The concept of use with an alarm system allows you to present the zone status alarm system and controlling its status directly from the access terminals. MC16-PAC-EX-1 provides an advanced, yet very advanced method managing system users and shaping their rights.

The management controller is with the VISO EX application, which allows operation with Microsoft SQL Server server database. System management can be available from multiple workstations with the VISO EX program and via operators about the operation of the permission level. Software-integrated system server and enables access to and management of the system event log users. Communication with PC Key available via LAN/WAN network transmission with the AES128-CBC encrypted protocol.

FEATURES:
  • 12000 IDs
  • 8 media (card, PIN, fingerprint, etc.) within one identifier
  • 100 permissions per ID
  • 1 double-sided passage (door)
  • 2 login points
  • 4 access terminals (readers)
  • 2 access zones
  • 2 alarm zones
  • 2 electrical nodes
  • try RCP
  • 4 access steps within one registration mode
  • 8 auxiliary parameters on the controller
  • 8 output lines (main board, expanders, input output on readers)
  • 8 transistor outputs 15 V/150 mA DC on the controller
  • 2 30V/1.5A AC/DC output relays on the controller
  • 8 function keys
  • entry blocking with timed reset (Timed Anti-passback)
  • 32 calendars
  • 99 covering time within the calendar
  • 250 time schedules
  • 40 shared times in one schedule
  • direct support for MCT series readers (RS485 interface)
  • support for OSDP readers (OSDP v2 protocol) via the MCI-3 interface
  • possibility to reconnect the PRT series reader to the motherboard controller
  • possibility to disable the Wiegand reader for the motherboard controller
  • support for PRT and Wiegand readers via interfaces MCX
  • bus
  • buffer of 8 million events on a removable memory card
  • DC or AC power supply
  • charging and handy backup battery
  • RACS CLK/DTA interface
  • RS485 interface
  • Ethernet interface
  • AES128-CBC encrypted data method
  • fast (less than 1 minute)
  • transferring treatment in the background without the system running
  • built-in switching power supply with 12 VDC/1.0 A output
  • dimensions: 72.0 x 175.0 x 30.0 mm
Download
Datasheet 0.75 MB
CE Declaration 0.1 MB
User Manual 1.14 MB
Installation Manual 0.36 MB
