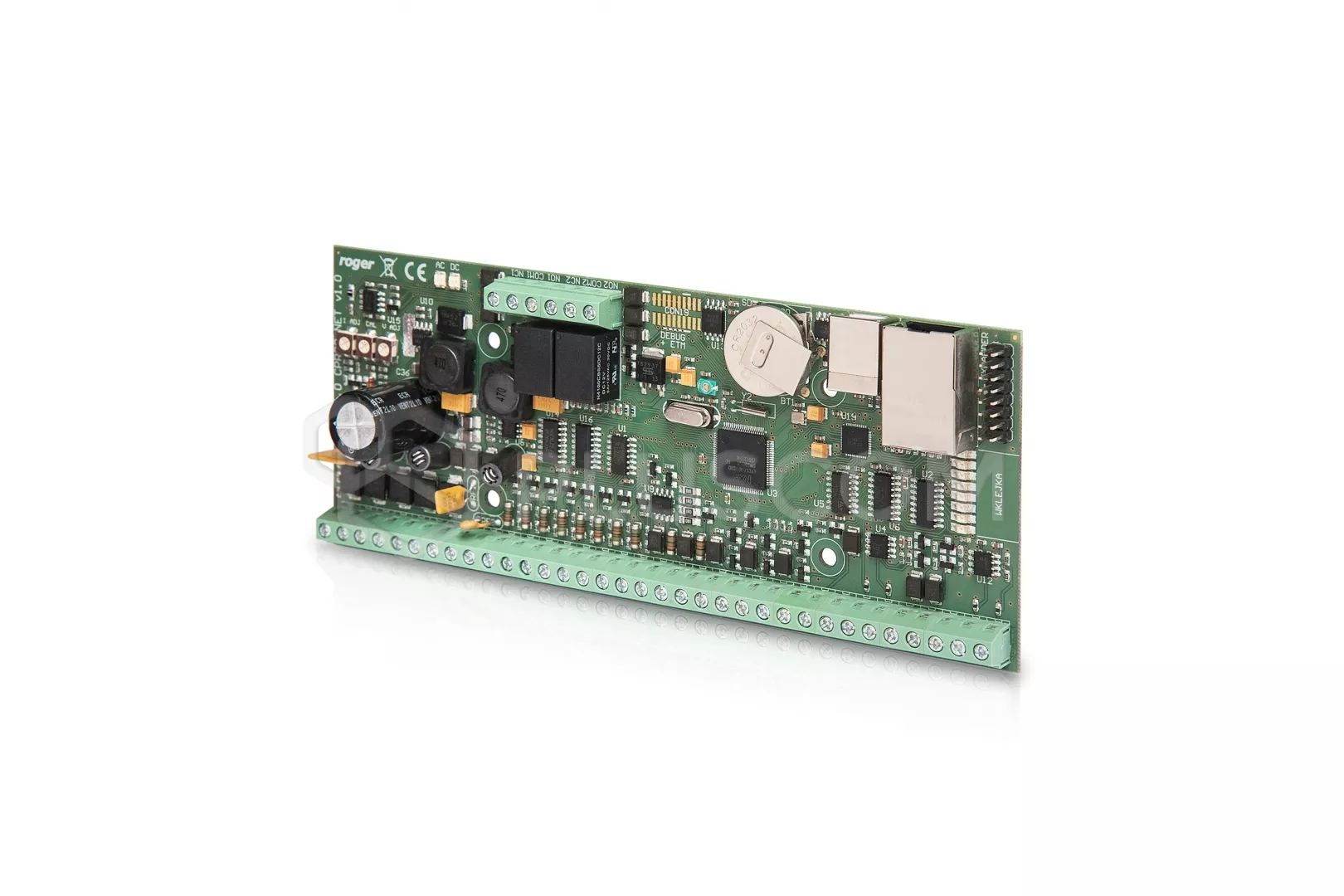

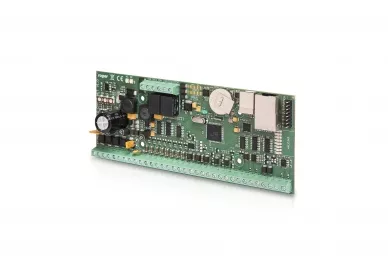

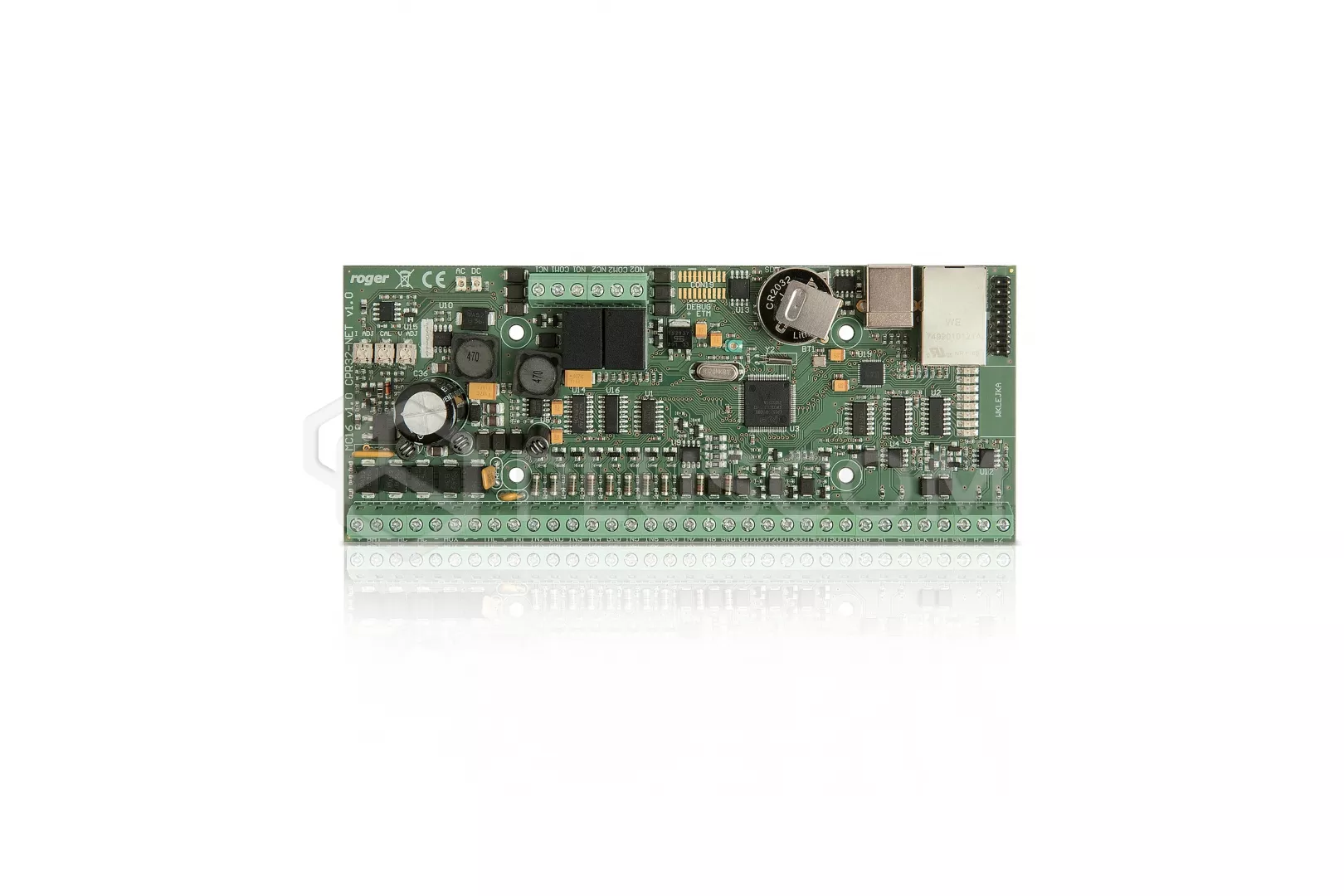

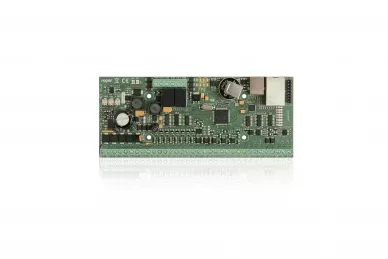

Roger MC16-BAC-16 Building Automation Controller

Roger MC16-BAC-16 Building Automation Controller

MC16-BAC-16 is a module dedicated to building automation and its functions are implemented through 16 automation nodes. We can control the node as users, but also the node itself can control a different state of the controller. State Automation node can be replicated on output lines and this way be used to control systems or devices used in the building (blinds, lighting, air conditioning, heating, ventilation and others).

The state of the automation node can be controlled manually (function key, remote command, logging on the reader, button connected to input line) or automatically from the level of time schedules.

PARAMETERS:

• automation nodes: 16
• input lines: 32
• output lines: 32
• login points: 8
• access terminals: 816
• power supplies: 8
• local commands: 8
• function keys: 32
• identifiers: 8192
• transition to login point: 8
• displays: 48/li>

Characteristics

• Access controller in RACS 5 system
• 18VAC, 12VDC and 24VDC power supply
• Built-in 12VDC/1,2A power supply unit
• Backup battery charging and monitoring
• Ethernet communication interface
• Encrypted data transmission (AES128 CBC)
• Peripheral devices interfaces: RS485, RACS CLK/DTA, Wiegand
• 8 million event buffer on memory card

TECHNICAL DATA

• supply voltage:
• • 18VAC (17-22VAC)
  • 12VDC(10-15VDC)
  • 24VDC (22-26VDC)
• current consumption: 100mA with 18VAC power supply (without output load AUX / TML)
• Distances
• • 1200m for RS485
  • 150m for and RACS CLK/DTA and Wiegand
• IP20
• Environmental class: I
• temperature: +5°C to +40°C
• case dimensions: 72x175x30mm
• weight; 200g

The license file, which defines the software limitations, is pre-loaded on to the memory card supplied with the device.
