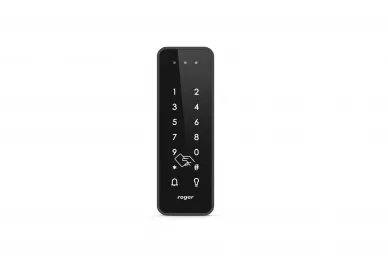

Roger MCT84M Access terminal with keypad

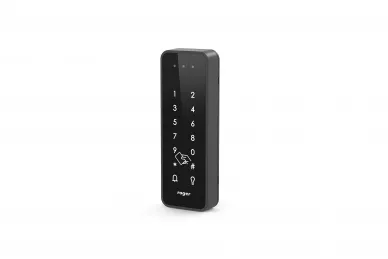

Roger MCT84M Proximity Reader MIFARE with keypad

MCT84M is designed for access control systems in the RACS 5 system. Depending on their versions, devices enable identification of users by PINs and/or 13.56 MHz MIFARE Ultralight/Classic proximity cards. They read both the serial number of the proximity card (CSN) and the programmable number (PCN) stored in encrypted memory sectors on the card. Programmable card number protects it against duplication, which definitely increases security using.

The terminal is equipped with numeric keypad and backlight. The keypad can be used for user identification with PIN and for various keypad commands. By default, the key # is used for PIN confirming.

The terminal requires power supply voltage in range of 11-15VDC. It can be supplied from MCX2D/MCX4D expander of MC16-PAC-KIT, from MC16 access controller (e.g. TML output) or from dedicated power supply unit.

The communication method with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115.

FEATURES

• RACS 5 system access terminal
• 13,56 MHz MIFARE Ultralight/Classic proximity cards
• CSN, MSN, SSN card readout
• support for normal and long card reading method
• Touch keypad with backlight
• 3 LEDs indicators
• Buzzer
• RS485 interface
• Tamper protection

Terminal is equipped with three LED indicators which are used to signal integral functions and they can be additionally programmed with other available functions within high level configuration (VISO).

TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• average current consumption: 65mA
• proximity cards: 13,56 MHz MIFARE Ultralight/Classic
• read range: up to 7
• Distance: 1200m maximal cable length for RS485 bus between controller and reader
• environment class: II
• IP41
• working temperature: -10°C ~ +50°C
• dimensions: 130x45x22mm
• weight: approx. 150g
