Roger MCT88M-IO Access Terminal

369,91 EUR including 23.00% VAT
Product code: #22412
Manufacturer: Roger
  • Colour graphic display
  • Read 13.56 MHz MIFARE Ultralight/Classic/DESFire/PLUS cards
  • Mobile identification using smartphone with NFC or Bluetooth
  • 4 function keys
  • Reading range up to 10m for BLE
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MFC-2 MIFARE 1K ISO Proximity Card Roger MFC-1 MIFARE Ultralight ISO Proximity Card Roger RUD-1 Portable USB-RS485 communication interface Roger MFKF-3 MIFARE 4K Proximity Key Fob Roger MFKF-2 MIFARE 1K Proximity Key Fob Roger MFKF-1 MIFARE Ultralight Proximity Key Fob Roger MFC-4 MIFARE DESFire EV1 2K ISO Proximity Card Roger MFC-3 MIFARE 4K ISO Proximity Card

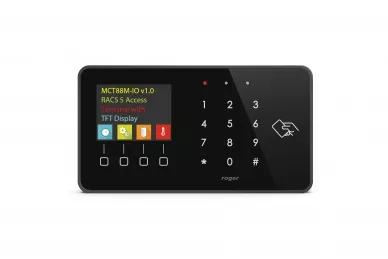

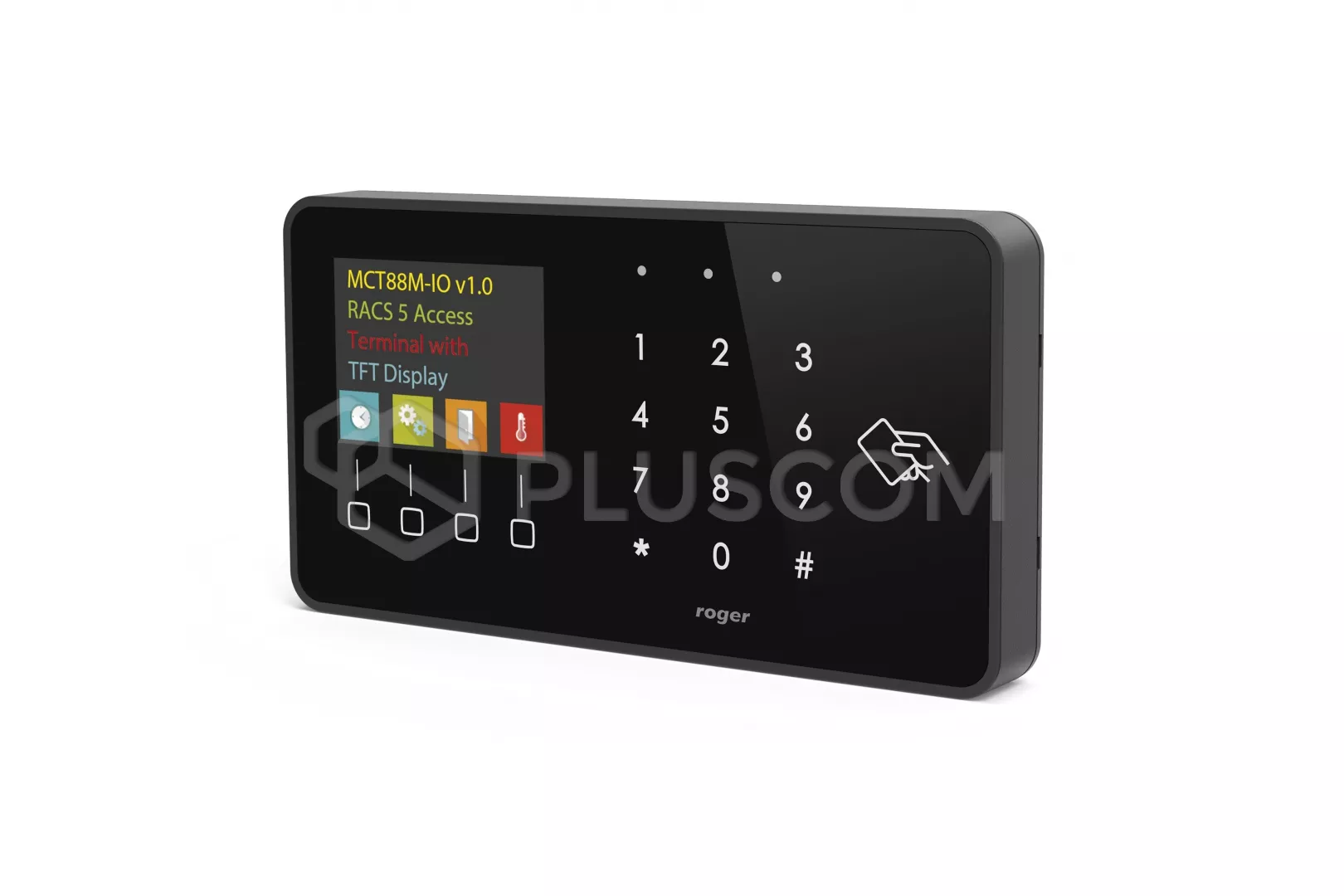

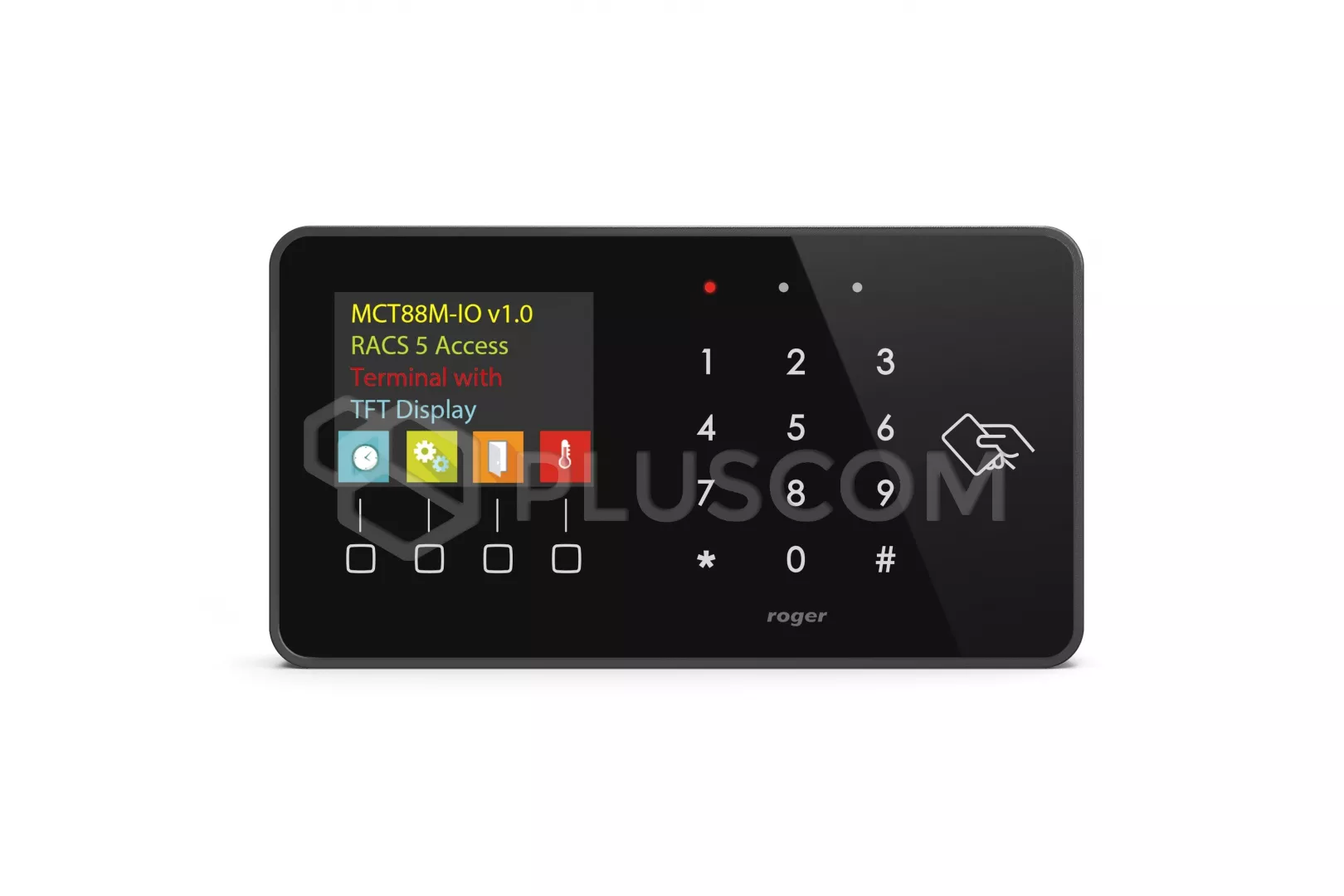

Roger MCT88M-IO Access Terminal with colour graphic display


The MCT88M-IO is an access terminal dedicated to RACS 5 system. The terminal is equipped with colour graphic display, sensor type keypad, 4 function keys and MIFARE Ultralight/Classic/DESFire/Plus/ reader. Users can identify at the terminal with PINs, MIFARE cards and mobile devices equipped with NFC (Near Field Communication) or BLE (Bluetooth Low Energy) technology. MCT88M-IO can be connected to RS485 bus of MC16 access controller directly. Alternatively the terminal can be connected to virtual controller through Ethernet network (LAN). When connected to MC16 controller it can be operated as access control terminal, Time&Attendance terminal and additionally it can be used to control the system especially in regard of building automation functionalities offered by RACS 5. When connected to virtual controller it can be operated as POS (Point of Sale) terminal or assets management terminal.

Characteristics:
  • RACS 5 system access terminal
  • 13.56 MHz MIFARE Ultralight/Classic/DESFire/Plus proximity cards
  • NFC and BLE mobile device identification
  • Colour graphic display
  • 3 LED indicators
  • Buzzer
  • Touch keypad with backlight
  • 4 function keys
  • 3 parametric (EOL) inputs
  • 2 transistor outputs
  • 1 relay output
  • RS485 interface
  • Ethernet (LAN) interface
  • Tamper protection
  • Screw terminals

Roger MCT88M-IO Access Terminal

Roger MCT88M-IO Access Terminal


TECHNICAL PARAMETERS
  • supply voltage:
    • nominal 12VDC
    • min./max. range 10-15VDC
  • average current consumption: 110mA
  • identification methods:
    • 13.56MHz MIFARE Ultralight, Classic, Plus and Desfire proximity cards
    • mobile devices (Android, iOS) with NFC
    • mobile devices (Android, iOS) with Bluetooth Low Energy v4.1
  • reading range:
    • up to 7 cm for MIFARE cards and NFC
    • up to 10 m for BLE – depends on ambient conditions and particular mobile device
  • distance: 1200m maximal cable length for RS485 bus between controller and terminal
  • environment class: I
  • IP41
  • working temperature: +5°C ~ +40°C
  • dimensions: 85x155.5x21.5mm
  • weight: 190g
The Access Terminal works with access controllers:
