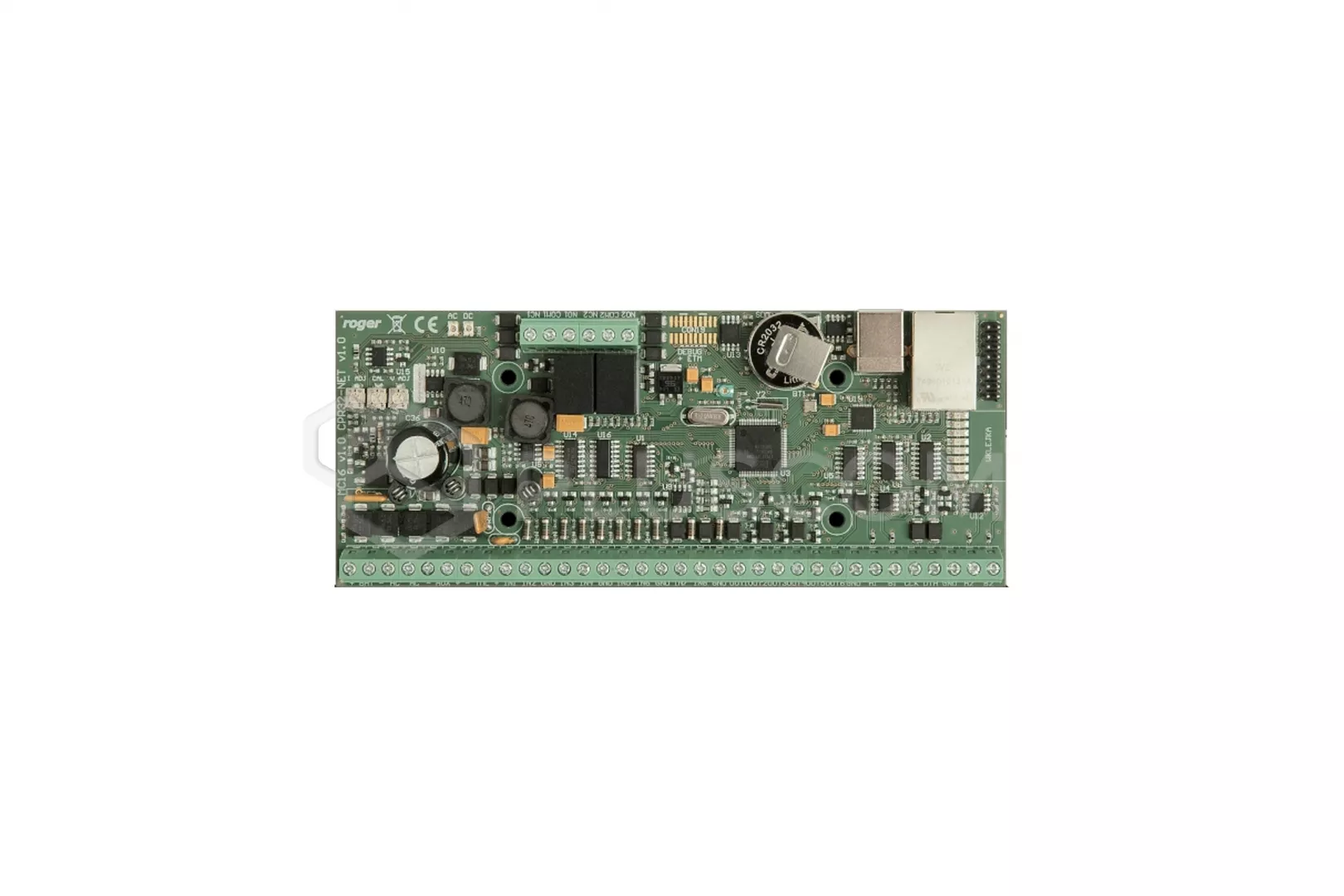

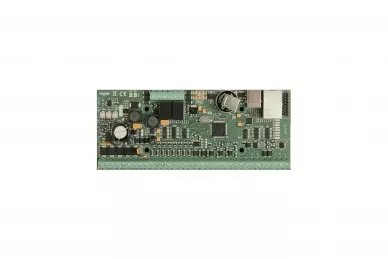

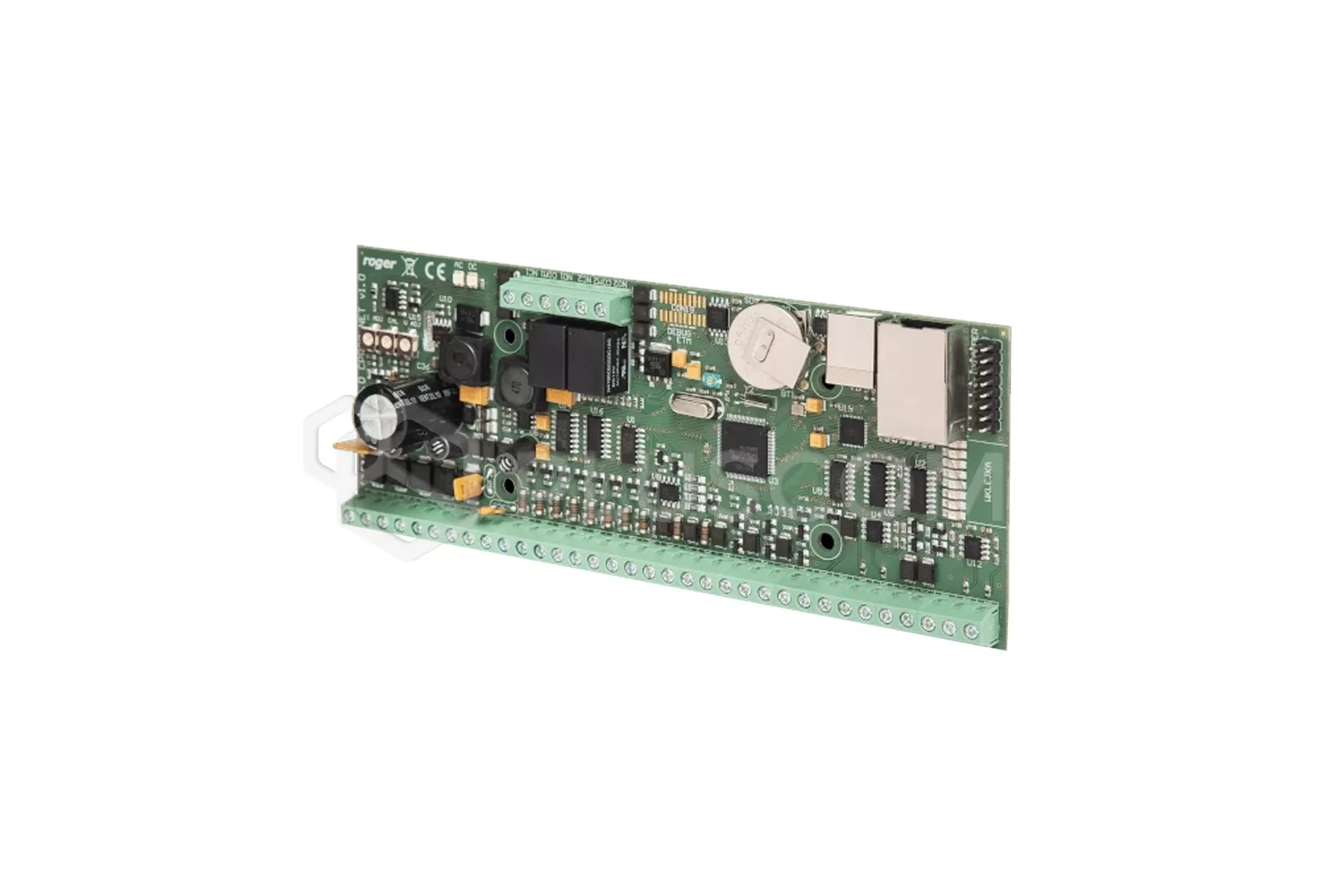

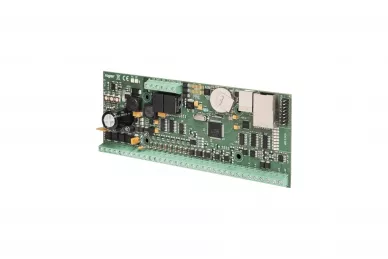

Roger MC16-PAC-EX-2 Physical Access Controller

Roger MC16-PAC-EX-2 Access Controller Module

MC16-PAC-EX-2 is a network access and building automation controller dedicated to the RACS 5 v2 system in the EX version.
The controller enables operation of up to 2 double-sided controlled passages and offers event registration for T&A purposes and integration with the alarm system.
The concept of integration with the alarm system enables the presentation of the zone status alarm system and controlling its status directly from the access terminals. MC16-PAC-EX-2 provides an advanced yet very efficient method managing system users and shaping their rights.

The controller is managed from the VISO EX application, which enables cooperation with Microsoft SQL Server server database. System management can be carried out from the level of many workstations with the VISO EX program and by operators with different levels of authorization. The system provides an integration server software and allows free access to the system event log, as well as managing its users. There is communication with the management computer implemented via LAN/WAN with an encrypted protocol AES128-CBC.

FEATURES:

• 12000 IDs
• 8 media (card, PIN, fingerprint, etc.) within one identifier
• 100 permissions per ID
• 2 double-sided passages (doors)
• 4 login points
• 8 access terminals (readers)
• 4 access zones
• 4 alarm zones
• 4 automation nodes
• TCP modes
• 4 identification steps in one identification mode
• 12 parametric input lines on the controller board
• 8 output lines (main board, expanders, built-in inputs readers)
• 8 15V/150mA DC transistor outputs on controller board
• 2 relay outputs 30V/1.5A AC/DC on controller board
• 8 function keys
• multiple entry lock with timed reset (Timed Anti-passback)
• 32 calendars
• 99 time slots within the calendar
• 250 time schedules
• 40 time slots in one schedule
• direct support for MCT series readers (RS485 interface)
• support for OSDP readers (OSDP v2 protocol) via the MCI-3 interface
• possibility to connect PRT series readers to the motherboard controller
• possibility to connect Wiegand type readers to the motherboard controller
• support for PRT and Wiegand readers via interfaces MCX
• bus
• buffer of 8 million events on a removable memory card
• DC or AC power supply
• backup battery charging and monitoring
• RACS CLK/DTA interface
• RS485 interface
• Ethernet interface
• encrypted data transmission using the AES128-CBC method
• quick setup (less than 1 minute)
• transferring settings in the background without stopping the current system
• built-in switching power supply with 12 VDC/1.0 A output
• dimensions: 72.0 x 175.0 x 30.0 mm
