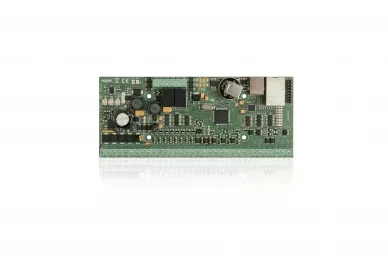

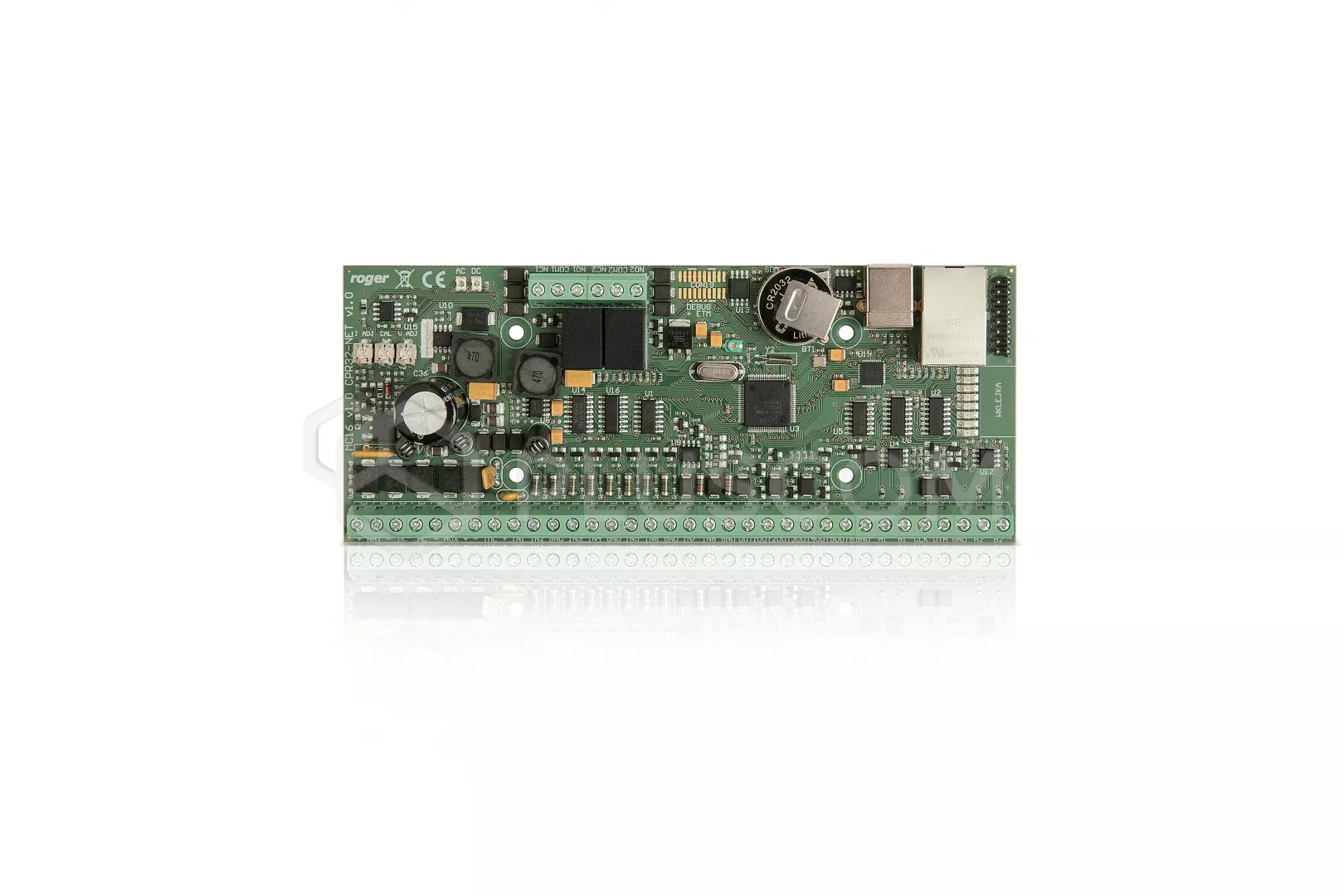

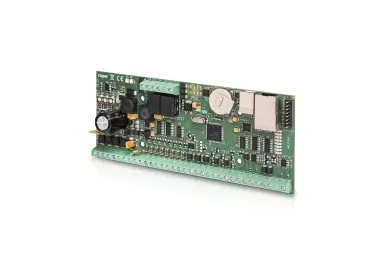

Roger MC16-LRC-16 Locker Access Controller

424,71 EUR including 23.00% VAT
Product code: #22386
Manufacturer: Roger
  • Electronic access control to lockers
  • Access Control for 16 doors
  • Number of inputs: 32
  • Number of outputs: 32
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Mean Well LRS-35-12 Switching power supply Roger PSD4D Supply and bus distributor module Roger MCT64E-IO Proximity Reader with keypad Roger PS1A-LCK Supply Module Roger MCT62E Proximity Reader Roger ME-17 Metal enclosure Roger MCT12E Proximity Reader with keypad Roger MD70 Touch Panel with MIFARE Reader ROGER MCT80M Access Terminal Mifare Roger MCX8-BRD I/O Expander

Roger MC16-LRC-16 Locker Access Controller


Access controller enabling the implementation of electronic access control to lockers and lockers in the RACS 5 system. The MC16-LRC controller can operate with 16 lockers. The access to lockers can be provided with a single reader or lockers can be divided into groups, each with a dedicated reader. Standard wired locks or wireless locks can be used as the lock mechanism.

PARAMETERS:
  • access doors: 16
  • automation nodes: 2
  • input lines: 32
  • output lines: 32
  • access points: 4
  • access terminals: 16
  • power supplies: 4
  • local commands: 4
  • function keys: 8
  • identifiers: 8192
  • transition to login point: 16

Roger MC16-LRC-16 Locker Access Controller

Roger MC16-LRC-16 Locker Access Controller

TECHNICAL DATA
  • supply voltage:
    • 18VAC (17-22VAC)
    • 12VDC(10-15VDC)
    • 24VDC (22-26VDC)
  • current consumption: 100mA with 18VAC power supply (without output load AUX / TML)
  • Distances
    • 1200m for RS485
    • 150m for and RACS CLK/DTA and Wiegand
  • IP20
  • Environmental class: I
  • temperature: +5°C to +40°C
  • case dimensions: 72x175x30mm
  • weight; 200g
The license file, which defines the software limitations, is pre-loaded on to the memory card supplied with the device.
Download
