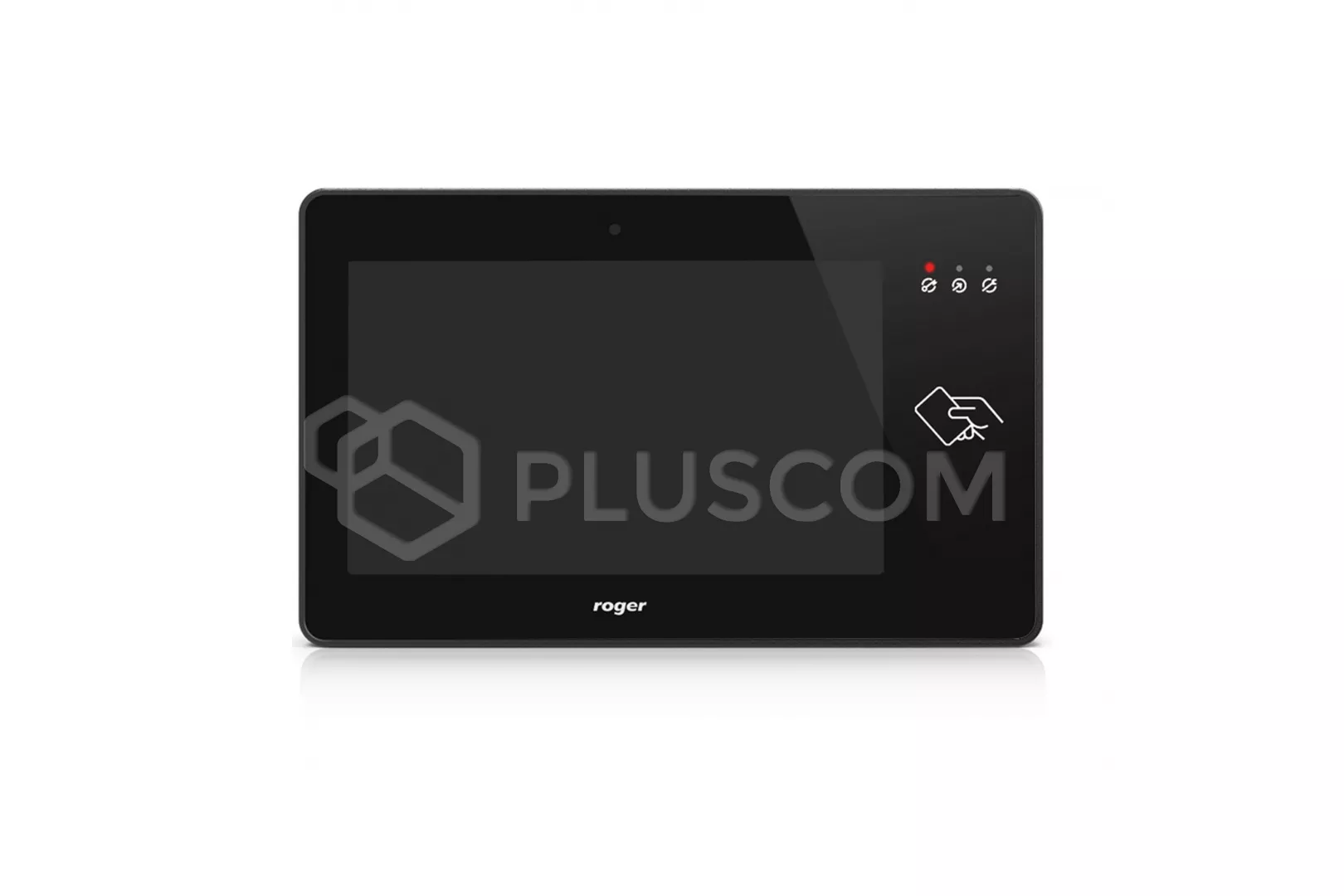

MD70 is a graphical touch panel with built-in camera and 13.56 MHz proximity reader. Generally, terminal is dedicated to operation in as a user authentication device and system commanding terminal in the RACS 5 access control and building automation system.
In particular, MD70 is suitable for operation as a time and attendance registration point. It is possible to install on the panel third party Android applications and extend significantly its functionality. Users logging on the terminal can use MIFARE proximity cards, PIN or QR code.

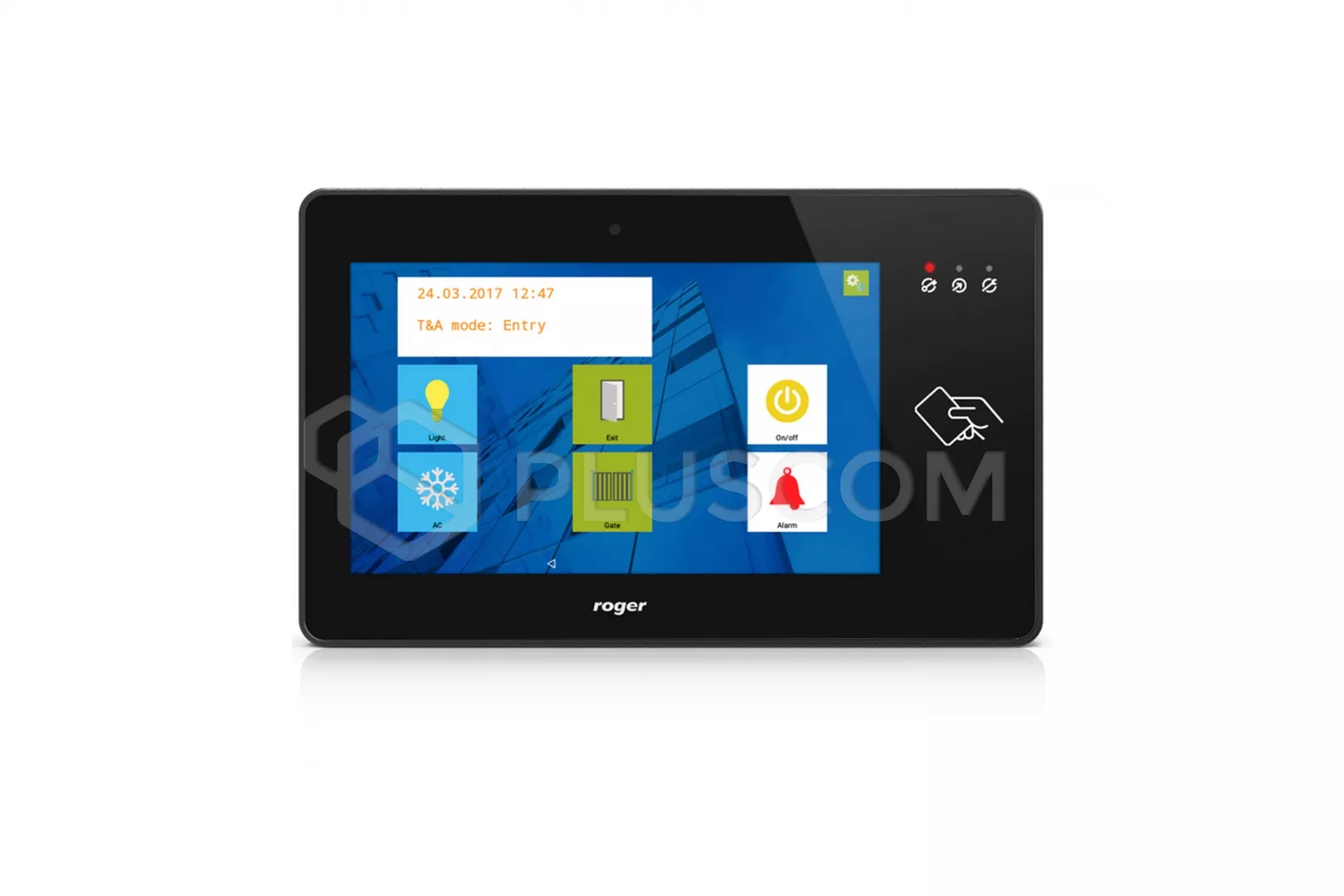

MD70 allows definition of Widgets which can be used to trigger any arbitrary selected action in the RACS 5 system or to present any of its states. The built-in camera can be used to make photos of the system users who login on terminal and for online picture transmission to the managing computers. MD70 can be connected to RACS 5 system by means of wired way (Ethernet, RS485) or wireless one (Wi-Fi). Device is aligned in style with QUADRUS series device line.

TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• average current consumption: 45mA
• max. current consumption: 800mA
• screen: 7'' 800x480px
• camera: 2 Mpx + autofocus
• communication interfaces: Ethernet, WiFi (802.11 a/b/g/n), RS485)
• proximity cards: 13,56 MHz MIFARE Ultralight/Classic
• environment class: I
• IP30
• working temperature: +5°C ~ +40°C
• dimensions: 134x218x25mm
• weight: approx. 500g

Touch Panel works with access controllers:
