Roger MC16-PAC-2-KIT Access Control Kit

693,24 EUR including 23.00% VAT
Product code: #22367
Manufacturer: Roger
  • 2-door access control kit
  • MC16-PAC-2 access controller module
  • MCX2D I/O expander
  • PS2D power supply
  • ME-15 metal enclosure
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Battery 12V 7Ah CS12-7 12V 7,2Ah Battery GP 1272 12V 7Ah Battery GP 1272 F2 Battery 12V 7.2Ah LT12-7.2 Battery 12V 7Ah CJ12-7 Roger MCT12M-BK-IO Proximity Reader MIFARE ROGER MCT80M Access Terminal Mifare Roger MCT12M-BK-DES-IO Proximity Reader MIFARE Roger MCT12M-BK Proximity Reader MIFARE Roger MCT12M Proximity Reader with keypad

Roger MC16-PAC-2-KIT Access Control Kit for 2 doors in the RACS 5 system


SET CONTAINS
  • MC16-PAC-2 access controller module

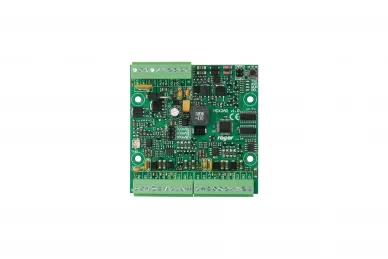

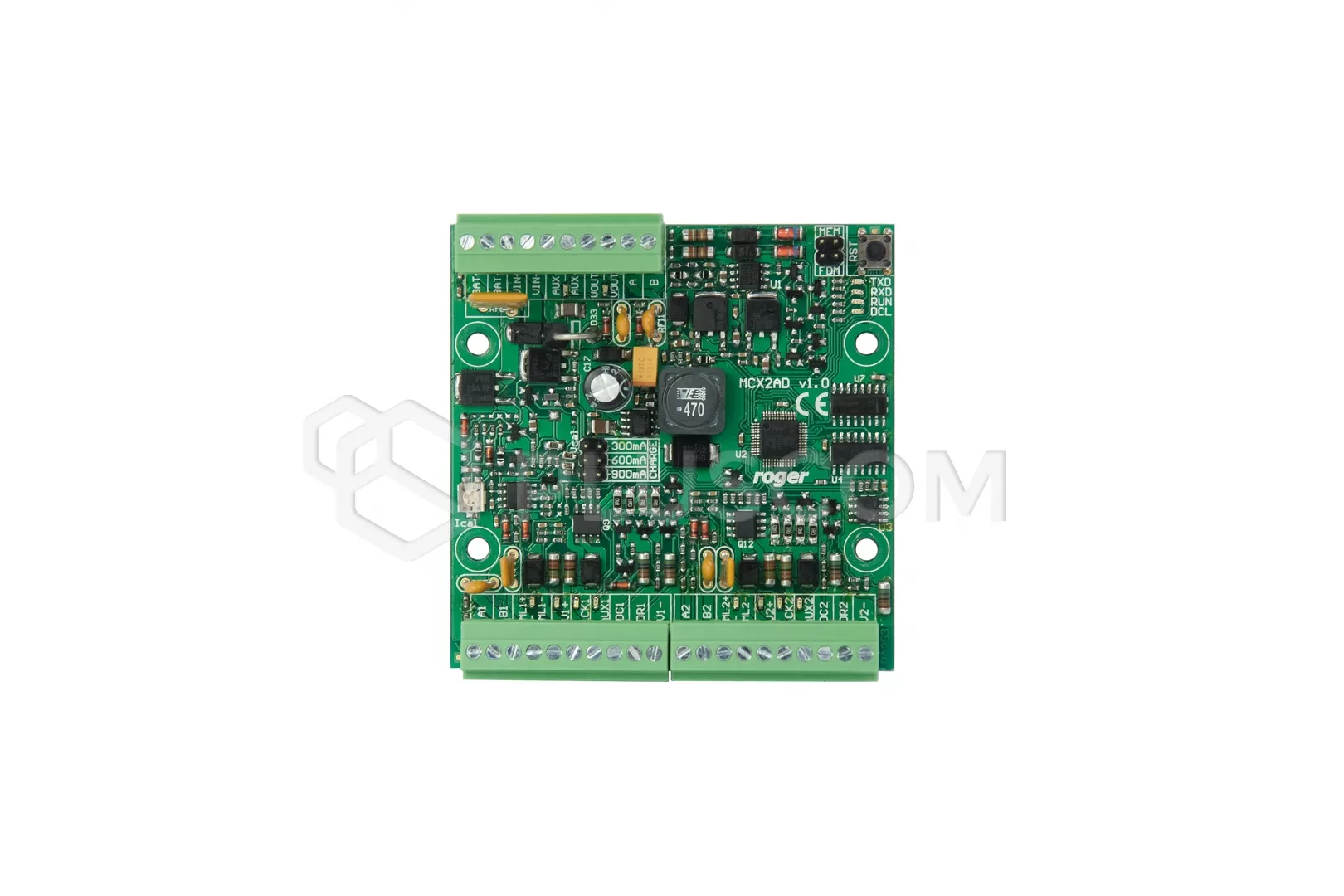

  • MCX2D I/O expander
  • PS2D power supply
  • ME-15 metal enclosure

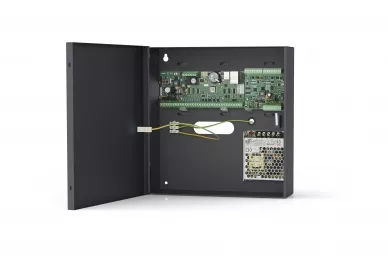

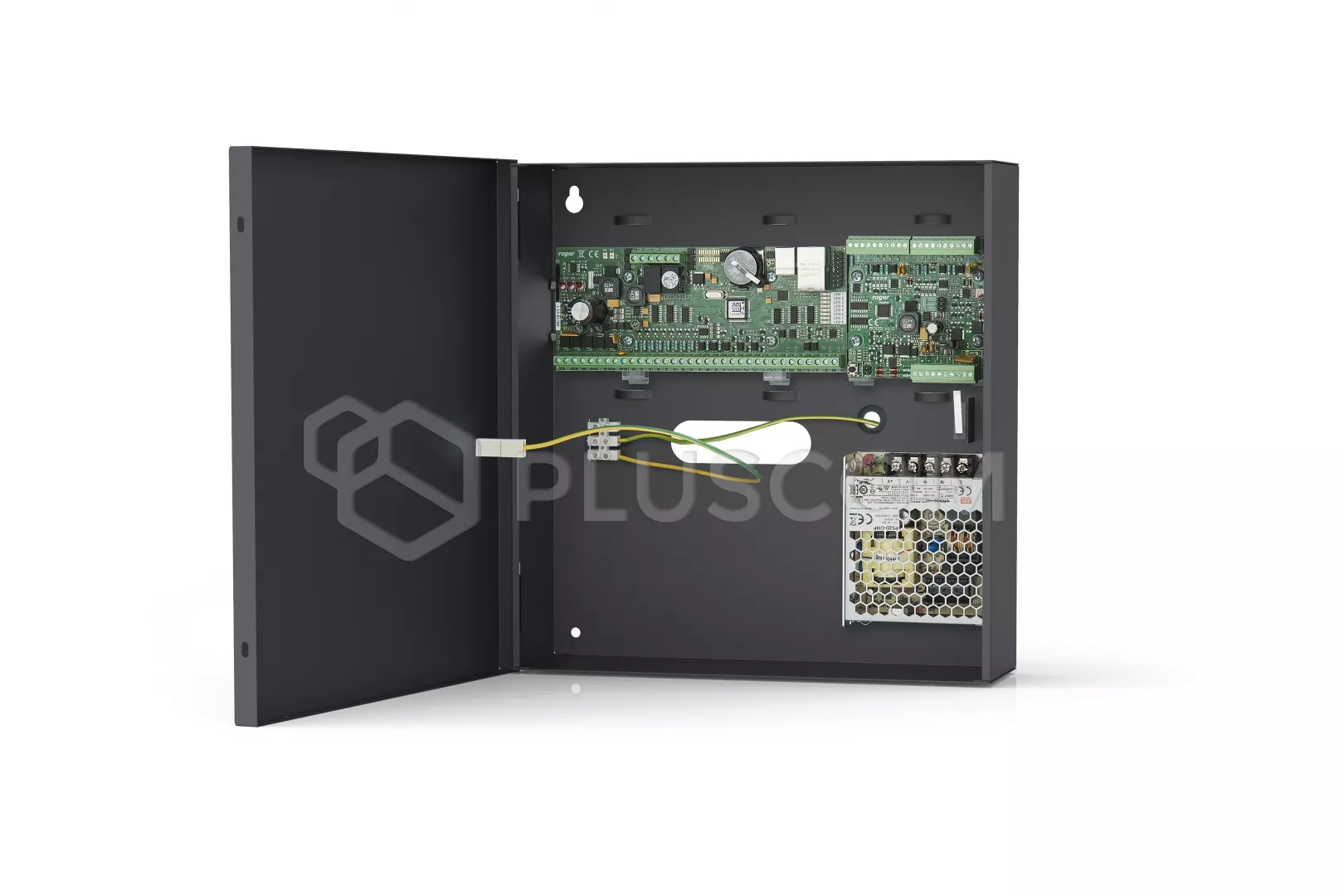

Roger MC16-PAC-2-KIT Access Control Kit

Roger MC16-PAC-2-KIT Access Control Kit
MC16-PAC-2-KIT is designed to control two doors in RACS 5 system. Both doors can be read-in or read-in/out type when equipped with MCT series readers (RS485).

Each transition is served by an independent set of power outputs, composed of a 0.2 A output to power the readers and a 1.0 A output to power supply lock and other elements of the passage.
In case of read-in door, single reader is connected to the controller within particular door

The metal housing of the ME-15 has a place for a 7Ah battery and it is there equipped with one DIN rail and anti-tampering switch.

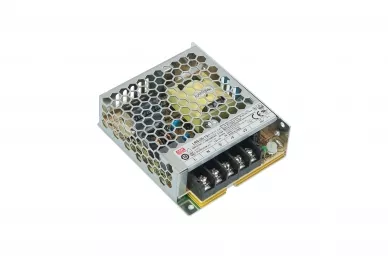

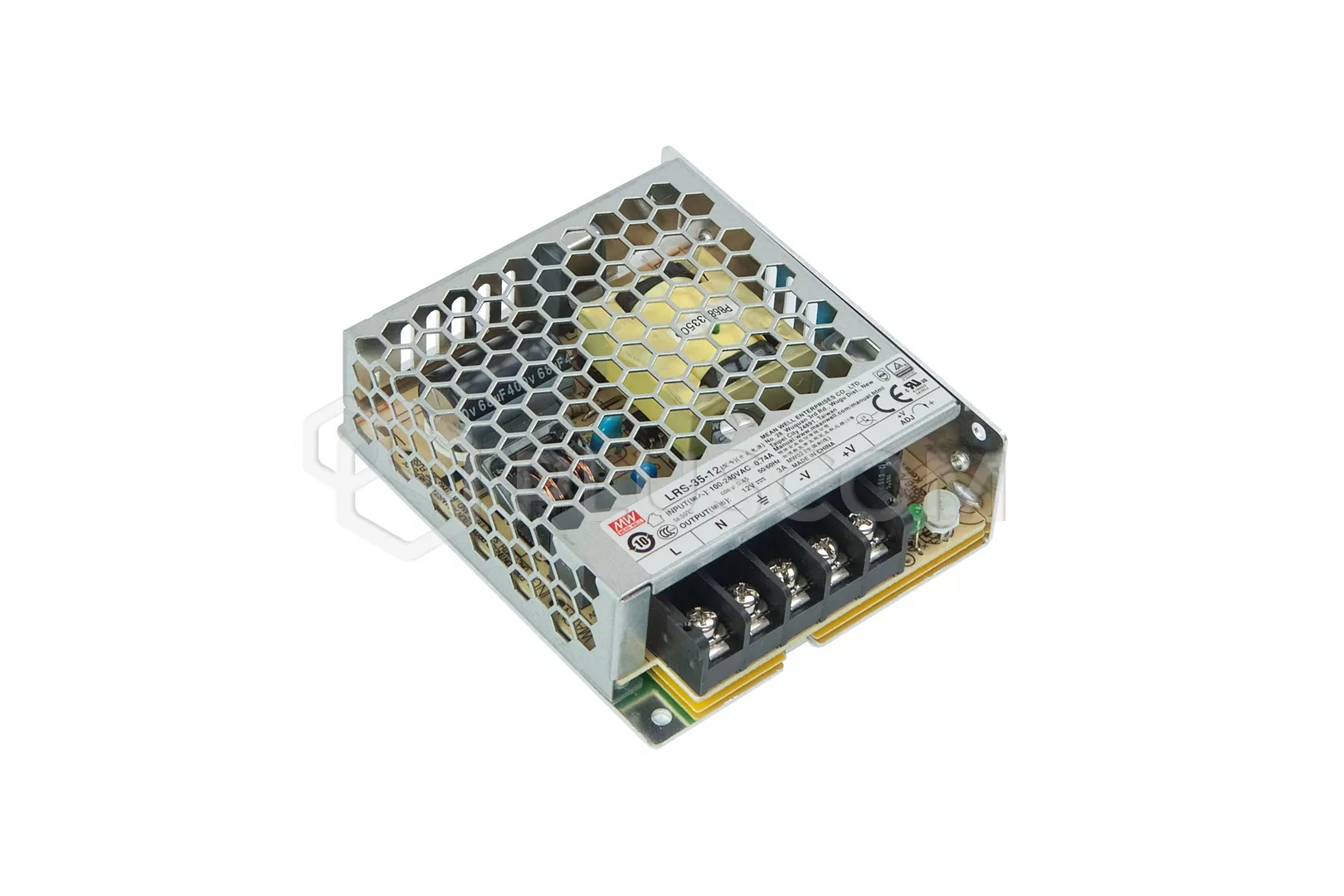

The set is powered by a PS2D 13.8VDC / 2.5A power supply.

MC16 is access and building automation controller dedicated to RACS 5 system. MC16 controller can be supplied from 230VAC/18VAC transformer with minimal power output 20VA, from 12VDC PSU or from 24VDC PSU.
The controller offers advanced and efficient methods for management of users and their authorisations (rights). The configuration of controllers in a system is performed concurrently via LAN/WAN and the total number of controllers does not affect configuration time. The controller is managed with VISO. MC16 can handle not only its own input lines but also lines located in peripheral devices (MCT, MCX).
The communication with MC16 controllers in LAN/WAN is encrypted according to AES128 CBC.

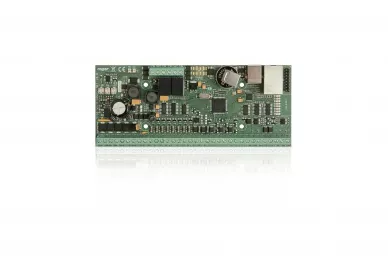

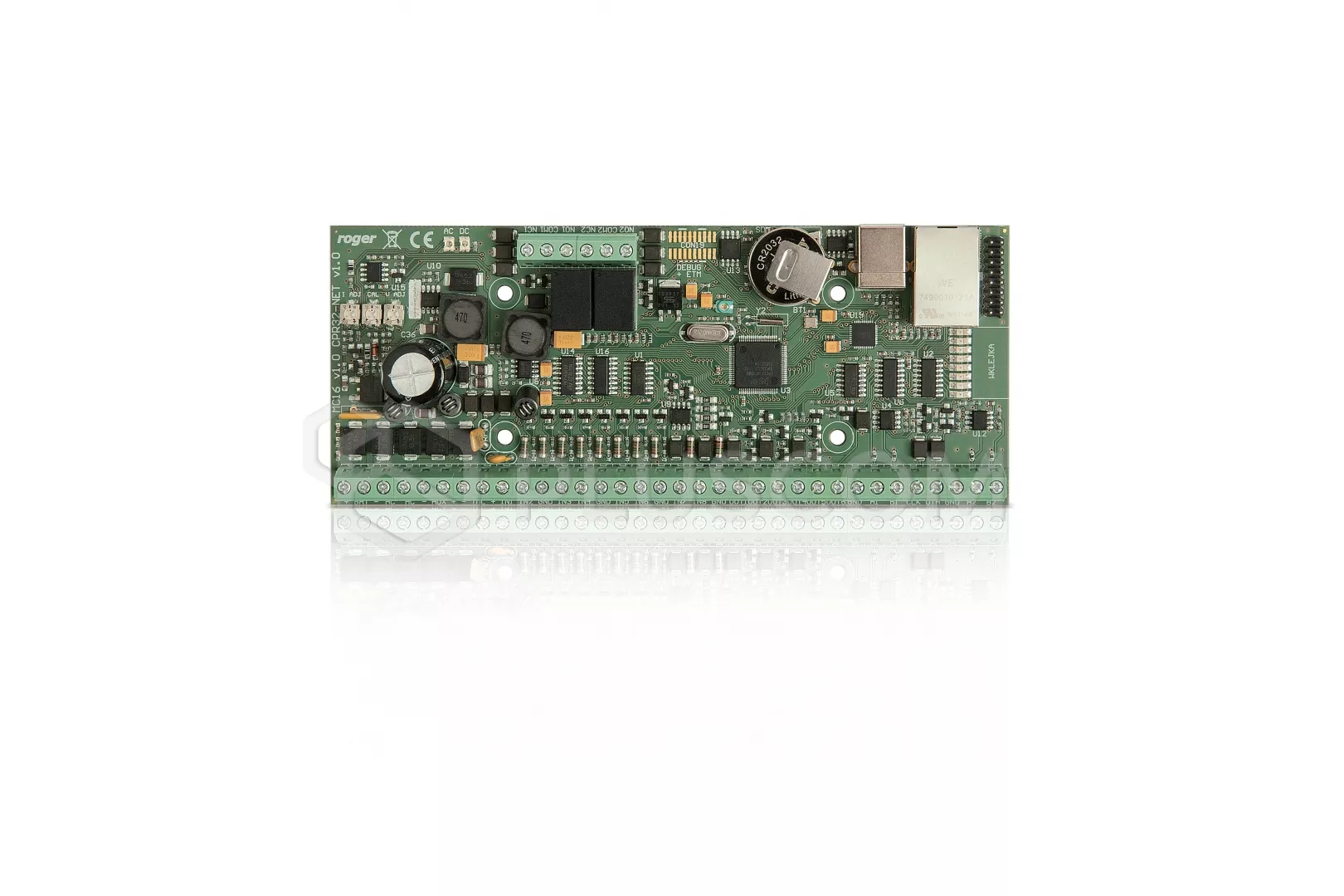

MC16-PAC-2 access controller module

MC16-PAC-2 access controller module


Characteristics
  • Access controller in RACS 5 system
  • 18VAC, 12VDC and 24VDC power supply
  • Built-in 12VDC/1,2A power supply unit
  • Backup battery charging and monitoring
  • Ethernet communication interface
  • Encrypted data transmission (AES128 CBC)
  • Peripheral devices interfaces: RS485, RACS CLK/DTA, Wiegand
  • 8 million event buffer on memory card
TECHNICAL DATA
  • supply voltage:
    • 18VAC (17-22VAC)
    • 12VDC(10-15VDC)
    • 24VDC (22-26VDC)
  • current consumption: 100mA with 18VAC power supply (without output load AUX / TML)
  • interface to 4 RACS CLK/DTA readers (PRT series)
  • interface to 4 Wiegand readers
  • 2 supply outputs 0.2 A
  • 2 power outputs 1A
  • space for 7 Ah battery
  • battery charging current: 0.3 A / 0.6 A / 0.9 A
  • current efficiency: 3A
  • output power: 36W
  • deep discharge protection
  • case dimensions: 295.0x285.0x90.0mm
